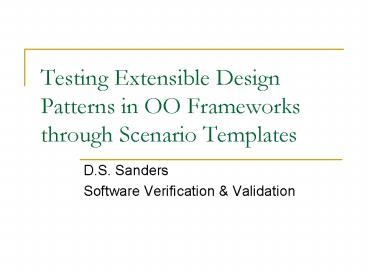

Testing Extensible Design Patterns in OO Frameworks through Scenario Templates

1
Testing Extensible Design Patterns in OO
Frameworks through Scenario Templates

• D.S. Sanders
• Software Verification Validation

2
Design Patterns

• Proven architectures for constructing flexible
  and maintainable software
• Promotes design reuse
• Language independent
• Neither classes nor objects

3
Origins Progenitors

• The Gang of Four
• Eric Gamma
• Richard Helm
• Ralph Johnson
• John Vlissides
• Collectively penned Design Patterns Elements
  of Reusable OO Software
• Written between 1991-1994 released 95

4
Creational Patterns

• Abstract Factory
• Factory Method
• Builder
• Prototype
• Singleton

5
Structural Patterns

• Adapter
• Bridge
• Composite
• Decorator
• Façade
• Flyweight
• Visitor

6
Behavioral Patterns

• Chain of Responsibility
• Command
• Interpreter
• Iterator
• Mediator

• Momento
• Observer
• State
• Strategy
• Template Method
• Visitor

7
Post Gang of Four Patterns

• Architectural Patterns
• Model View Controller
• Concurrency Patterns
• Single Threaded Execution
• Guarded Suspension
• Balking
• Read / Write Lock
• Two Phase Termination

8
Memory Lane Comp 110

• Dynamic Typing
• Some or all type checking done at runtime

9
More memory lane Comp 110

• Dynamic Binding
• Determining at runtime the appropriate method to
  call

10
Pattern Categorization - Redux

• Static
• Does not allow for easy extension
• Behavior does not change after compile time
• Easier to test
• Extensible
• Allows functionality of the app to change
• Adds new classes to the system
• Some of the classes loaded at runtime

11
Factory Method Pattern
12
Factory Method Example
13
Factory Method Example
14
Strategy Pattern
15
Strategy Pattern Example
16
So much testingso little time

• Scenario Based Testing
• Method Sequence Specification (MtSS)
• Message Sequence Specification (MgSS)
• Message Framework Specification (MfSS)

17
The Bank
18
MtSS of Account Class and MgSS of Method Withdraw
19
Message Framework Sequence Specs
20
Test Cases

• MfSS Slicing
• Partition Testing
• Object Types
• Number of / Groups of Objects
• Object Input Space

21
More Memory Lane Comp 380

• Stress Testing
• Boundary Testing
• Negative Testing
• Random Testing

22
Compensating for Extensibility

• Testing Dynamic Typing
• Testing Dynamic Binding
• Testing Extensibility

23
Testing Results
24
Conclusion

• Testing Extensible Design Patterns is difficult
• MfSS will generate scenario templates which lead
  to test cases
• Use in Industry seems limited
• Source Code Credit
• Kathy Sierra, Bert Bates (Factory, Strategy)
• Collegeboard.org (GridWorld Case Study)

25
