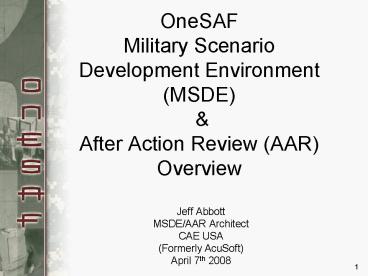

OneSAF Military Scenario Development Environment (MSDE)

1
OneSAFMilitary Scenario Development Environment
(MSDE) After Action Review (AAR)Overview

• Jeff Abbott
• MSDE/AAR Architect
• CAE USA
• (Formerly AcuSoft)
• April 7th 2008

2
MSDE and AAR Overview

• MSDE
• Accomplishments v1.0 to v2.0
• Large Terrain Support
• Ultra Low Resource (ULR) support
• PTR fixes
• On the horizon for v3.0
• Stand-Alone MSDE
• NIMA Map support
• Import Task Org from ABCS systems
• AAR
• Accomplishments v1.0 to v2.0
• Replay and Bookmarks
• Replay from Unit snapshot data
• Performance Enhancements (15k to 32k entities)
• PTR fixes
• On the horizon for v3.0
• Additional Data Collection Performance
• PTR fixes

3
MSDE v2.0 New Capabilities

• Support for Large Terrains
• MSDE supports UTM map projections across two UTM
  zones
• MSDE provides the ability to select the map area
  from a GDC (lat, long) Platt-Carree Projection.

4
Large Terrain Support
5
MSDE v2.0 New Capabilities

• Support for Ultra Low Res entities
• MSDE modified to import ULRs from the Parametric
  Initialization Repository (PAIR)
• MSDE modified to export ULRs to MSDL

6
MSDE Accomplishments v1.0 to v2.0

• Terrain importer
• Performance improvements
• Increased usability and ASDB file auto-generation
  capabilities
• Unit Database (Composition) Importer
• Increased usability
• Support added for new FCS units and entities

7
MSDE Accomplishments v1.0 to v2.0

• MSDL Extensions
• Weapon control status
• Free, Tight, Hold
• MOPP level
• Level 0 through 5
• BOS support for Support Relations
• Fires, Intelligence, Engineer, Chemical, and Not
  Specified.
• Updated MSDE to run with fewer OneSAF
  dependencies (Java code)

8
Military Scenario Definition Language (MSDL)
Extensions
Weapon Control Status
MOPP Status
BOS support for Support Relations
9
On the horizon for v3.0

• Stand-Alone MSDE
• NIMA Map Support
• Import Task Organizations from ABCS
• PTR fixes

10
AAR Accomplishments v1.0 to v2.0

• Replay and Bookmarks
• Enables the user to mark specific events from
  which to replay.
• User can enter comments.
• Bookmarks remember replay settings, eye point and
  tether options.
• Bookmarks are common to 2D and 3D replay.
• Comments/annotations can be reused for multiple
  bookmarks (no need to reenter the comments)

11
AAR Accomplishments v1.0 to v2.0

• Performance enhancements to support 15k and 32k
  entity exercises
• Managed queries (views) are created when the
  database is created, reducing report build time.
• Replay Query performance enhancements reduced
  load time by 90.
• .NET Framework upgrade increased data collection
  by 19.
• PostgreSQL upgrade increased data processing by
  20.
• Replay upgrade provide a Unit level capability.

12
AAR Accomplishments v1.0 to v2.0

• Ability to optionally replay from snapshot data.
• Enables replay to scale to exercises with large
  entity counts and\or long execution times.
• Replay is conducted at the rate of one snapshot
  each second.
• The snapshot interval set when the data was
  collected establishes the rate.

13
Replay and Bookmarks
14
Manage Bookmarks

• Users can add, edit, and delete bookmarks from
  the recorded AAR database.

15
Edit/Specify a Bookmark

• Users can specify bookmark
• Time
• Duration
• Comments

16
Snapshot Replay and Bookmarks
17
On the horizon for v3.0

• Additional data collection performance
  enhancements.
• PTR fixes
• Merge JAAR changes back to OneSAF baseline
• User interface enhancements
• Additional Chart Authoring capabilities
• Presentation Author
• Agent technology
