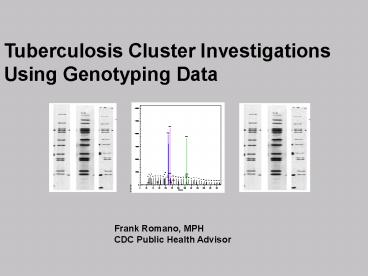

Tuberculosis Cluster Investigations Using Genotyping Data

1
Tuberculosis Cluster Investigations Using
Genotyping Data
Frank Romano, MPH CDC Public Health Advisor
2
Historical Perspective

• 1989 ACET CDC Publishes A Strategic Plan for
  the Elimination of TB in the US
• Predicted incidence rate of 3.5 per 100,000 by
  2000
• Predicted the elimination of TB by 2010

3
History (cont.)

• Late 1980s early 1990s Few states
  performing TB genotyping using IS6110 RFLP
• Jan. 1990August 1993 Strain W
• MDR Strain
• 357 cases reported in NYC prisons and hospitals
• HIV seropositive population
• 80 mortality (Duration 46 weeks)

4

• April 1996 CDC establishes the National
  Tuberculosis Genotyping and Surveillance Network
  (NTGSN)
• 19962000 NTGSN conducts population-based study
  to determine the frequency of specific strains
  geographically using IS6110 RFLP and
  Spoligotyping
• 2001 Results of study published

5
Use Genotype Results to Better Understand

• spread of related strains in communities
• geographic mobility of related strains
• relatedness of strains in persons at high risk
  for tuberculosis
• capacity of local TB controllers to identify
  patients involved in outbreaks and to provide a
  database of DNA fingerprints for tuberculosis
  control activities

6
CDC TB Genotyping Program

• January 2004, the CDC Tuberculosis Genotyping
  Program was initiated to enable rapid genotyping
  of isolates from every patient in the USA with
  culture-positive tuberculosis (TB)
• The Federal Tuberculosis Task Force recommended
  nationwide TB genotyping in response to the
  Institute of Medicine report, Ending Neglect
• The TB Genotyping Program contracts with
  laboratories that provide results within 10
  working days using two PCR-based genotyping tests

7
PCR Based Testing

• Polymerase chain reaction (PCR)
• Only a small amount of culture is needed for
  PCR-based genotyping, and the PCR test can be
  completed in 1day
• because the PCR tests are batched, the actual
  turn-around time from receipt of a specimen to
  reporting the results can be longer

8
CDC TB Genotyping Program

• Goal Provide nationwide rapid
  genotyping tests
• Two CDC-funded laboratories perform genotyping
  for one isolate from every culture-positive TB
  case in the US
• CDC funded TB programs submit isolates to
  regional genotyping labs
• Genotyping labs report results within 10 days

9
CDC TB Genotyping Program Genotyping Laboratory
Assignments
LAB
LAB
Assigned to California Lab
Assigned to Michigan Lab
10
CDC Genotyping Program Laboratory Methods

• Two tiered testing to maximize discriminatory
  power
• PCR
• MIRU Variable number tandem repeats of
  mycobacterial

• interspersed repetitive
  units
• Spoligotyping Spacer oligonucleotide typing
• IS6110-based RFLP
• Done only for isolates that match by both PCR
  tests
• At request of CDC grantee

11
Comparison of Testing Methods

• IS6110RFLP- (Restriction Fragment Length
  Polymorphism)
• Considered most discriminatory test worldwide
• DisadvantagesCost, time, need for specialized
  training lab
  equipment
• Spoligotype- (Spacer Oligonucleotide Typing)
• Lower Specificity than RFLP
• Lower cost, rapid results
• MIRU- (Variable number tandem repeats of
  mycobacterial

• interspersed repetitive
  units)
• Lower Specificity than RFLP
• Lower cost, rapid results

12
Tuberculosis Genotyping Guide

• National TB Controllers Association
• Centers for Disease Control and Prevention

13
(No Transcript)
14
Value of Genotyping

• Identify and prevent transmission
• Enhance contact investigations
• Identify nontraditional settings of transmission
• Facilitate identification of clusters and
  outbreaks
• Improve clinical management
• More readily identify false-positive cultures
• Help distinguish between relapse and reinfection

15
Value of Genotyping (II)

• Enhance surveillance
• Evaluate prevalence of M. tuberculosis genotypes
• Monitor trends in recent transmission
• Evaluate prevention activities
• Completeness of contact investigations
• Progress toward TB elimination

16
CDC TB Genotyping Program

• All programs with CDC Cooperative Agreements are
  eligible (64)
• Program options
• Selective genotyping
• Universal genotyping
• Universal genotyping for subregion

17
TB Genotyping Programs
NYC
D.C.
SD
Universal Selective Mixed Not enrolled
Aug 04
18
TB Genotyping Programs
NYC
D.C.
SD
Universal Selective Mixed Not enrolled
June 06
19
CDC National TB Genotyping Program Update

• As of May 1, 2006, 15,573 isolates have been
  submitted nationally
• 439 isolates submitted from Ohio as of 7/19/2006
• Ohio has 44 clusters (range 2 - 13 patients) as
  of 7/19/2006
• Sharing genotype pattern data across
  jurisdictions (Quarterly Reports from CDC)

20
Ohios Role
21
County Genotyping Report
22
County Cluster Report
23
Genotyping Results

• Interpreting genotyping results and epidemiologic
  data
• When to initiate a cluster investigation,
  initiate (expand) an outbreak investigation, or
  do nothing
• Epi-link a characteristic that 2 or more TB
  patients share that explains where and when TB
  could have been transmitted between them

24
Interpreting Results

• Matching genotype vs. non-matching genotype
• Epi-linked vs. non-epi-linked
• Involved in same recent chain of transmission vs.
  not involved

25
Matching Genotypes

• False-positive culture?
• Suspected false-positives are a priority
• need to stop treatment for falsely diagnosed
  patients as soon as possible

26
False-Positive Cultures

• Clinical Picture
• Health care provider or clinical lab is
  suspicious
• patient had only 1 positive culture out of 1 or
  multiple specimens collected
• patient asymptomatic for TB
• patients chest radiograph not consistent with TB
• patient has another confirmed diagnosis to
  explain symptoms

27
False-Positive Cultures

• Laboratory
• specimens were processed in the same laboratory
  on the same day
• isolates were collected in the same hospital or
  clinic within 3 days
• PCR genotyping pattern matches the laboratory
  control strains (H37rv or H37ra) or laboratory
  proficiency specimens

28
False-Positive Cultures

• False-positive result confirmed
• identify which patients actually have TB and
  which patients were misdiagnosed
• alert the health care providers so they can
  correctly diagnose and treat the misdiagnosed
  patients
• alert the laboratory so the cause of the
  false-positive culture can be determined and
  corrected

29
Matching Genotypes

• Patients Epi-linked prior to genotyping
• Interpretation
• probably involved in same chain of recent
  transmission
• RFLP confirmation or cluster investigation not
  needed
• may determine that an outbreak investigation is
  needed

30
Outbreak Investigations

• An increase in the expected number of cases
• Transmission continues despite adequate control
  efforts by the TB program
• The contact investigation has grown to a size
  that requires additional outside help

31
Cluster OH_009

• 11 Hamilton County cases 1 Kentucky case
• CDC currently assisting with investigation in
  Indiana

32
3
1
4
2
1
12
34
1
3
2
3
Number of isolates as of 06/30/2006 n 55 IN
61.8 of isolates (Note 1 case in Florida
matches on spoligotype and is missing MIRU but is
linked epidemiologically)
33
Matching Genotypes

• Patients have possible epi-links
• are there 3 people in the cluster?
• are there high-risk people in the cluster?
• If yes, request RFLP for confirmation
• if RFLP does not confirm match, no further
  investigation needed
• if RFLP confirms match, consider doing a cluster
  investigation

34
High-risk Patients

• live in congregate settings
• are infected with HIV or have other
  immunocompromising conditions
• are children
• have cavitation on chest radiographs
• have MDR TB
• are homeless

35
Cluster Investigations

• Should only be done when needed
• can be labor intensive
• detailed cluster investigation protocols and data
  collection forms are available from CDC
• review information previously collected to
  determine if additional information is needed
• may need to interview patients again

36
Prioritizing Cluster Investigations

1. suspected false positive culture
2. cluster of 3 high-risk persons w/ possible
   epi-links
3. cluster of 2 high-risk persons w/ possible
   epi-links
4. cluster of 3 low-risk persons w/ possible
   epi-links
5. cluster of 2 low-risk persons w/ possible
   epi-links
6. cluster of high-risk persons with no epi-links
7. cluster of low-risk persons with no epi-links

37
Matching Genotypes

• Patients have no epi-links identified, but are
  involved in same chain of recent transmission
• Interpretation Failure to identify known
  epi-links due to -
• inadequate contact investigation
• transmission from casual contact

38
Matching Genotypes

• Patients not epi-linked and not involved in same
  chain of recent transmission
• Interpretation Matching genotypes with no recent
  transmission due to -
• transmission of endemic strain
• large outbreak in the past
• false positive culture(s)
• laboratory error

39
Non-matching Genotypes

• Patients epi-linked and involved in same chain of
  recent transmission
• Interpretation non-matching genotypes with no
  recent transmission due to -
• genotypes that changed slightly over time
• co-infection with gt1 strain of M. tb
• laboratory error

40
Non-matching Genotypes

• Patients epi-linked and not involved in same
  chain of recent transmission
• Interpretation
• misleading epi-links identified

41
Non-matching Genotypes

• Patients not epi-linked
• Interpretation
• no evidence of recent transmission

42
Large Clusters

• As clusters grow in size, it becomes easier to
• identify epi-links
• identify an endemic strain

43
Deciding What To Do

• Making the correct decision depends upon having
  complete and accurate data from a variety of
  sources
• patient interviews
• contact investigations
• laboratory results
• medical records

44
Questions????
45
Definitions Selective Genotyping The process of
submitting only selected high priority M
tuberculosis isolates for genotyping Universal
Genotyping The process of submitting all M
tuberculosis isolates for genotyping
46
Definitions Genotype The designation that
results from one or more of the three genotyping
techniques used for M tuberculosis
Spoligotyping, MIRU analysis, and IS6110-based
RFLP Genotyping Also referred to as DNA
fingerprinting. A laboratory approach that
provides a description of the genetic makeup and
relatedness of M. tuberculosis isolates Cluster
A genotyping cluster is two or more M
tuberculosis isolates that share matching
genotypes An epidemiologic cluster is two or
more persons with TB who share epidemiologic links
47
ODH Genotyping Contacts

• Frank Romano, MPH
• Public Health Advisor
• [phone]
• Frank.Romano_at_odh.ohio.gov

48
Laboratory Contact Person

• Kevin Sohner, B.S.
• Ohio Dept. of Health Laboratories
• Special Microbiology Section
• 8995 E. Main St., Bldg. 22
• Reynoldsburg, OH 43068
• phone [phone]
• fax [phone]
• e-mail ksohner_at_odh.ohio.gov

49
CDC WebBoard and Contact Information

• NTCA/CDC TB Genotyping Working Group
• Tom Navin, MD at TNavin_at_cdc.gov
• Guide, application instructions and updates
• for CDC TB Genotyping Program
• http//web-tb.forum.cdc.gov
• Guide (printed copy)
• Alan Schley at ASchley_at_cdc.gov
