A Framework for Trust Management System in Computational Grids

1

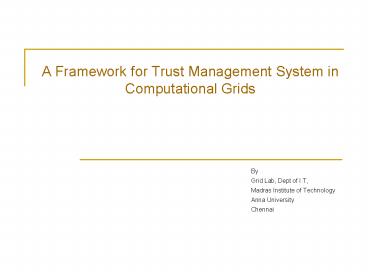

A Framework for Trust Management System in
Computational Grids

• By
• Grid Lab, Dept of I.T,
• Madras Institute of Technology
• Anna University
• Chennai

2
What we cover.

• Motivation
• Trust Management System Lifecycle Metrics
• Trust Based Scheduler
• Trusted Grid Architecture
• Experimental Results ..
• Conclusion

3

• Motivation
• Grid is a dynamic collections of huge number of
  resources spanning multiple administrative
  domains, distributed across the globe to solve a
  computationally intensive problem.
• It involves Resources and Information sharing
  with unknown parties that pose a great challenge
  in ensuring trustworthiness of resource providers
• Current grid security mechanism lacks the ability
  to determine how trustworthy a resource
  provider is.

Objectives

• To define a trust management system with its life
  cycle to evaluate trustworthiness of Grid
  Resource Providers.
• To develop trust resource broker that discovers
  suitable and trusted grid resource for reliable,
  accurate and in time successful job execution
• To propose a standard architecture that enables
  Trust Based Scheduling in Grid

4
We define Trust

• The degree of belief in the resource providers
  competence to complete users task dependably,
  securely and reliably in a specific context at a
  given time

Agent / Resource Broker
users
Resources
5

• Measures whether a resource provider is willing
  to offer his services to the user.
• The previous behaviour / payment record may be
  considered for this trust

Types of trust
6
Trust Management Life Cycle
7
Our Focus is on Equipment Provision trust
8
Trust Management System for Equipment Provision
Trust

• Estimates Trustworthiness of all Grid Resource
  Providers
• Periodically updates the trust value
• The trust calculation is based on
• Resource performance Metrics
• User feedback Metrics
• Resource Registration Metrics
• The Trust Management System integrated with a
  Grid Metascheduler acts as Grid Resource Broker

9
Dependency Metrics
These metrics reflect the throughput of the
resources and their QoS
Government / Private, Registration Number
Affordability, Bandwidth, Success, Failure
These metrics reflect the infrastructure of the
organization. It is used to identify initial
trust value of the resource provider
These metrics reflect reputation of the resource
in the user community
Reputation through feedback
10
Parameters In our context.
11
Issues
2
How to calculate overall trust ?
Issues
3
How to integrate trust with metascheduler ?
12
Tools to determine parameters
- Success - Failure (Obviously)
Gridway
Metascheduler
- Affordability - Bandwidth
Local Scheduler NWS
Network Monitoring Tools (NMT)
13
Trust per Job Execution and Overall Trust
14
Integration with Gridway
To propose a trust based scheduling mechanism
15
Users
PBS cluster
SGE cluster
Condor cluster
16
Components of Gridway..
It receives resource request for executing the job
User
Responsible for job scheduling and initiates
resource discovery
Request Manager
Gridway Core
Responsible for resource discovery and monitoring
Dispatch Manager
Scheduler
Responsible for job execution
MDS2
Grid Information services
MDS4
Middleware Access Drivers
gFTP
RFT
Pre-WS GRAM
WS- GRAM
Responsible for data transfer between the
resources and staging of files
Grid File Transfer Services
Grid Execution services
17
Conventional Gridway Flow
Trust Enabled Gridway Flow
ltjob templategt
ltjob templategt
Job Submit
Job Submit
Invokes Scheduling Operation
Invokes Scheduling Operation
Gathers Available Resource
Gathers Available Resource
Selects Most Trusted Resource
Performs Matchmaking
Performs Matchmaking
Trust DB
Matches Against JobReq
TMS
Invokes TMS
Matches Against JobReq
Selects and submit
Selects and submit
R2
R1
R3
R2
R1
R3
18
Gridway Configuration File
Trust Enabled Gridway Configuration File
gwd.conf
gwd.conf
----
---- GWD_PORT
6725 MAX_NUMBER_OF_CLIENTS 20 NUMBER_OF_ARRAYS
200 NUMBER_OF_JOBS 5000 NUMBER_OF_HOSTS
100 NUMBER_OF_USERS 30 JOBS_PER_SCHED
15 JOBS_PER_HOST 10 JOBS_PER_USER 30
---- ----
---- ----
GWD_PORT 6725 MAX_NUMBER_OF_CLIENT
S 20 NUMBER_OF_ARRAYS 200 NUMBER_OF_JOBS
5000 NUMBER_OF_HOSTS 100 NUMBER_OF_USERS
30 Trust_value1 for the trust based resource
selection Trust_value0 for the normal Gridway
resource selection TRUST_VALUE 1 JOBS_PER_SCHED
15 JOBS_PER_HOST 10 JOBS_PER_USER 30
----
--- -
19
Reaching the destination
Where do we evolve the architecture ?
Integrating Trust Management System with gridway
metascheduler will act as a Resource Broker that
select grid resource based on its trust
value With this resource broker, we hereby
proposing a four layered grid architecture that
facilitates grid resource discovery and
selection of most trusted grid resource for job
execution
20
Layered Architecture of Trust Resource Broker for
Equipment Provision Trust
Receives feedback from the user and resource
registration information from the resource
provider
User Feedback
Grid Resource Registration
Application Portlets
Application Layer
Application Portlets
Application Portlets
Monitors Trust metrics, evaluates trust and makes
decision based on the trust and facilitates job
execution
Trust Broker
Trust Management System
Data base
Trust Layer
Gridway Metascheduler
Constitutes grid middleware, provides grid
resource information to trust layer, and take
care grid resource authentication
NMT
MDS
GRAM
GFTP/RFTP
Grid Middleware
Refers to the underlying grid resources where
actual job execution takes place. They may use
local job manager for monitoring job execution
GSI
Resources
Grid Fabrics
21
Experimental Setup
Trust Based Metascheduler
g09.grid
MITCluster
60 Nodes
Connected with Garuda Resources
VOCluster
15 Nodes
RockCluster
10 Nodes
22
Results
Most trustworthy resource will get more jobs for
scheduling , i.e., a good shop will have huge
crowd
23
Results
The trust value of a resource that shows gradual
decrease in the affordability
24
Portal to submit job
25
Portal displaying output
26
Portal to know job status
27
Portal to submit feedback after job execution
28
Conclusion

• The trust management system integrated with
  gridway metascheduler enables discovery of a
  suitable resource that has the highest trust
  value
• Executing job in a trusted resource facilitates
  satisfactory usage of grid resources with
  increased reliability and accuracy

29
