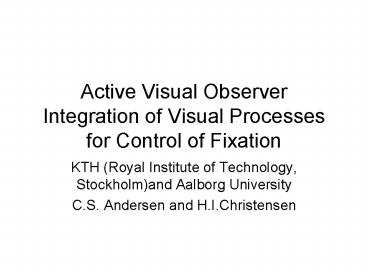

Active Visual Observer Integration of Visual Processes for Control of Fixation

1
Active Visual ObserverIntegration of Visual
Processes for Control of Fixation

• KTH (Royal Institute of Technology, Stockholm)and
  Aalborg University
• C.S. Andersen and H.I.Christensen

2
Architecture for controlling an agile camera

• Basic system facilitates three low level
  processes
• Fixation
• Tracking
• Attention selection and shifting

3
The basic idea

• Is that a tight coupling between the lowest
  visual processes, referred to as the basic
  system, and the sensing apparatus, with known
  latencies, is imperative for successful operation
  in dynamic environments. Following the biological
  inspiration, the basic functionality of a camera
  head are fixation, gaze shift and smooth
  pursuit.
• A system capable of addressing these aspects of
  active vision will be capable of fixating on an
  object, and maintaning fixation while it is
  moving, or during ego motion of the head.

4
The basic system layout
5
The attention mechanisms

• The attention mechanism will allow for selection
  of interesting (salient?) points from the input
  data. The system can perform selection of
  fixation points, fixation and tracking.
• Below is a standard control system for a DC motor
  with tachometer feedback , with normal
  appearance at the top and the control schematic
  at the bottom.

6
Standard control system
7
Designing the Architecture

• Biologists have argued convincingly that eye
  movements typically are performed in two separate
  stages, Version and vergence, with both eyes
  participating in both motion patterns, while
  fixating at some point in the space.The version
  angle is the direction of gaze for an imaginary
  eye positioned between the two rotation centers
  in next figure.

8
Layout of Aalborg head
9
Cyclopean representation

• The version angle relies on the two vergence
  motor settings.The pan motor contributes however,
  along with the vergence motor to the direction of
  gaze.

10
Control

• We may use one camera as leading and the other
  following.
• The visual process of tracking in the leading eye
  approach is roughly equivalent to performing
  control of version and tilt in the cyclopean
  representation, while fixation corresponds to the
  process of vergence control. Hence renaming the
  modules and utilizing a different representation
  the basic control architecture may facilitate
  equal eye control as shown in figure below

11
Architecture for an equal eye dominance control
scheme.
12
Notes to the figure

• It should be noted that the figure only displays
  the forward control lines . Actually there are
  feedback signals form the hardware to the visual
  processes, as well as communication between the
  individual processing modules. The signals in the
  system is as described earlier the actions issued
  by the processing modules, which in this case is
  vergence,version and tilt angle adjustments. Thus
  the close connection with the actual control of
  hardware is still maintained

13
Completing the Architecture

• So far we presented only the mechanical control
  associated with the eye movements. The system has
  addiotnal rotational degree of freedom, the pan.
  There is alos motorized lenses with 3 degrees of
  freedom focal length (zoom), focus
  (accommodation) distance and aperture.

14
The modified cyclopean control architecture
15
An Experimental System

• Final system relies on correlation based
  stabilization fro the left and right camera. The
  computed image slip from the two cameras is
  combined to form the error signal for control of
  the version and tilt angles. While a disparity
  estimate could be computed from the target
  location in the image pair, it has been chosen to
  perform an explicit disparity extraction by
  correlating the images. This provides redundant
  information but it also allows for a more robust
  control since a loss of disparity information
  does not necessarily mean that version and tilt
  control cannot be performed and vice versa.

16
Fixation distance for combined disparity and
accomodation control
17
Attention selection

• The figure below shows how the system selected
  areas of high contrast. Using the centroid of the
  receptive field as fixation point, the fixation
  has been shifted resulting in vergence-version-til
  t angle changes as shown to the right of the
  figure below.

18
The receptive fields
19
Another Active Visual Observer

• Binocular Active Vision System that can attend to
  and fixate a moving target, in particular is
  capable of figure-ground segmentation. This work
  focuses on occlusions of other both stationary
  and moving targets and integrate three cues to
  obtain an overall robust behavior, ego-motion,
  target motion and target disparity.

20
Major parts of the current system

• Selecting a target
• Control of the system for saccade and pursuit
• Measuring the speed of the target for pursuit
• Measuring and selecting a disparity for pursuit

21
System description

• Fundamental skills are fixation, target pursuit
  and target discrimination
• The full system includes the integration of three
  cues for target selection and target
  discrimination. These are used by the moving
  observer to smoothly pursue moving or stationary
  targets binocularly while maintaining vergence.
  Mechanisms for discovering moving targets provide
  means of attention. There is another mechanism to
  find and select new locations to attend to.

22
The system implementation schema (the diamond
indicates one frame delay in the feedback)
23
Motion detection schema
24
The Algorithm

• Affine Background Motion Model is used for fit.
  Two steps involving feedback are included to
  account for object motion and large background
  motion.
• The predicted and previous position and extent of
  the target is used to mask out parts of the image
  which likely belong to the object, so that they
  do not affect the calculation of the affine
  parameters for the background.
• The accumulated parameters are used over time to
  cancel out the majority of the time difference,
  see feedback into WARP.
• Background segmentation makes a use from the
  affine calculations

25
Target segmentation

• The aim is to determine which parts of the scene
  are moving consistently with what is currently
  believed to be the target.
• The calculations on the target are performed in
  analogy with what is done for the background
  motion ,i.e. affine model is used.

26
The target segmentation
27
Disparity segmenttaion
28
Disparity selection

• The object of disparity selection is to select
  the disparities that belong to the target in the
  presence of disparities that arise from other
  locations in the scene.
• They are using the disparity histogram ,selecting
  the highest peak.

29
Integration

• Target areas that do nto get support from either
  motion detection or taret segmentation are
  excluded from the target model. Also the
  disparity module detects areas in the scene that
  lie in front of the pursuing target, which are
  then excluded from the target model.
• Areas that are detected as both moving
  independently as detected by motion detection and
  are moving consistent with the target image
  velocity model from the target segmentation are
  added to the target model.

30
The experimental platform
31
Real time pursuit

• Centers a target visually while the target is
  moving across the room. In the second figure when
  the target in last row second frame moves behind
  the occluding object the pursuit does not follow
  the target,but stays on the occluding object

32
Real time pursuit
33
Real time pursuit
34
Figure ground segmentation extracts the target
from previous sequence
35
Figure ground segmentation,cont.
36
Motion detection returns areas that possibly
belong to moving target
37
Traget segmentation returns areas that are
believed pursued target
38
Pursuit, can handle occlusion
39
Traget pixels extracted from the previous sequence
40
Target pixels extracted without disparity cue.
Attention shifts to the second moving perosn
41
Pursuit during target expansion
42
Notes

• On the top is shown the original sequence during
  pursuit.
• The bottom row shows result of the segmentation
  every 3d frame

43
Pursuit of a rotating umbrella
44
Motion detection with real time motor control
feedbacl
45
Tracking the white box
46
(No Transcript)
