Robotics in Education Challenges Developing an Adequate Curriculum

1

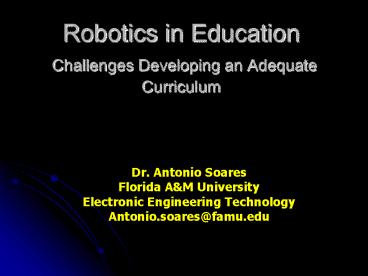

Robotics in Education Challenges Developing an
Adequate Curriculum
Dr. Antonio Soares Florida AM University Electron
ic Engineering Technology Antonio.soares_at_famu.edu
2
Overview

• Education Packages
• Saturated Market
• Technology Crossover
• Lego and Boebot
• Mechatronics
• Whats New!!!

• Intro to Robotics
• Definitions
• Types of Robots
• Applications
• Industrial Robots
• Degree of Freedom
• Joints
• Coordinates
• Complexity

3
Industrial Robots

• A machine that resembles a human being and does
  mechanical routine tasks on command.
• An industrial robot is a re-programmable,
  multifunctional manipulator designed to move
  materials, parts, tools, or specialized devices
  through variable programmed motions for the
  performance of a variety of tasks.

4
What is Robotics?

• Robotics is the art, knowledge base, and the
  know-how of designing, applying, and using
  robots in human endeavors.

5
Types of Robots

• Mobile Robots

• Crawling Robots

Parallax
Mars Explore
6
Types of Robots

• Stationary Robots

• Autonomous Robots

Industrial Robot
EET Robot (Mechatronics)
7
Humanoids Robots
HONDA (ASIMO) Biped Robot
Fujitsu Biped Robot
8
Pet Robots
Sony (AIBO) Toy robot
9
Robot Applications
Machine loading Pick and place operations Welding
Painting Sampling Assembly operation Manufacturing
Surveillance Medical applications Assisting
disabled individuals Hazardous
environments Underwater, space, and remote
locations
10
Industrial Robots

• A manipulator (or an industrial robot) is
  composed of a series of links connected to each
  other via joints. Each joint usually has an
  actuator (a motor for eg.) connected to it.
• These actuators are used to cause relative motion
  between successive links. One end of the
  manipulator is usually connected to a stable base
  and the other end is used to deploy a tool.

11
Industrial Robots
Painting Robot
12
Industrial Robot Arms

• Manipulator
• Pedestal
• Controller
• End Effectors
• Power Source

13
Manipulator

• Base

• Appendages

• Shoulder

• Arm

• Grippers

14
Pedestal
(Human waist)

• Supports the manipulator.
• Acts as a counterbalance.

15
Controller
(The brain)

• Issues instructions to the robot.
• Controls peripheral devices.
• Interfaces with robot.
• Interfaces with humans.

16
End Effectors
(The hand)

• Spray paint attachments
• Welding attachments
• Vacuum heads
• Hands
• Grippers

17
Power Source
(The food)

• Electric
• Pneumatic
• Hydraulic

18
Manipulator Body

• Typically defined as a graph of links and joints

A link is a part, a shape with physical
properties. A joint is a constraint on the
spatial relations of two or more links.
19
Robots degrees of freedom

• Degrees of Freedom Number of independent
  position variables which would has to be
  specified to locate all parts of a mechanism.
• In most manipulators this is usually the number
  of joints.

20
Robots degrees of freedom
what is the degree
1 D.O.F.
2 D.O.F.
3 D.O.F.
A Fanuc P-15 robot. Reprinted with
permission from Fanuc Robotics, North America,
Inc.
21
Robot Joints
Prismatic Joint Linear, No rotation involved.
(Hydraulic or pneumatic
cylinder)
Revolute Joint Rotary, (electrically driven with
stepper motor, servo motor)
22
Robot Coordinates
? Cartesian/rectangular/gantry (3P) 3
cylinders joint
? Cylindrical (R2P) 2 Prismatic joint and 1
revolute joint
? Spherical (2RP) 1 Prismatic joint and 2
revolute joint
? Articulated/anthropomorphic (3R) All
revolute(Human arm)
? Selective Compliance Assembly Robot Arm
(SCARA) 2 paralleled revolute joint and 1
additional prismatic joint
23
Math Complexity

• In Order to Model the Motion of a Manipulator
• Odometry - Position Updates Using Wheals
• Kinematics
• Inverse Kinematics
• Complex PID Controllers

24
Math Complexity

• Kinematics
• Kinematics is the study of motion without regard
  for the forces that cause it.
• It refers to all time-based and geometrical
  properties of motion.
• It ignores concepts such as torque, force, mass,
  energy, and inertia.

25
Forward Kinematics

• Given the starting configuration of the mechanism
  and joint angles, compute the new configuration.

26
Advantages And Disadvantages
? Robots increase productivity, safety,
efficiency, quality, and consistency of products.
? Robots can work in hazardous environments
without the need. ? Robots need no environmental
comfort. ? Robots work continuously without
experiencing fatigue of problem. ? Robots have
repeatable precision at all times. ? Robots
can be much more accurate than human. ? Robots
replace human workers creating economic
problems. ? Robots can process multiple stimuli
or tasks simultaneously. ? Robots lack
capability to respond in emergencies. ? Robots,
although superior in certain senses, have limited
capabilities in Degree of freedom, Dexterity,
Sensors, Vision system, real time response. ?
Robots are costly, due to Initial cost of
equipment, Installation costs, Need for
Peripherals, Need for training, Need for
programming.
27
Robots Taking Over?

• Design Limitations
• we design them, we code the tasks to be performed
• Emotionless Machines
• Cannot logically reason, and/or plan activities,
  unless the designer program it to do so.
• Ethical Issues

28
Educational Platforms
VEX Robotics
Lego Robotics
Boebot From Parallax
29
Mechatronics The Solution
Robotics is an interdisciplinary subject that
benefits from mechanical engineering, electrical
and electronic engineering, computer science,
biology, and many other disciplines.
30
Conclusions

• For K-12 Robot Kits are Appropriate
• Plan in Advance
• Most of these kits are not easy to follow
  because they share applications
• For Higher Education
• Mechatronics with some Industrial robots is
  Advised

31
Lets Talk!!!
FALL 2012 Technical Elective (All Majors) EET
4931 - SPEC TOP ELECTRO ENG Introduction to
Robotics and Automation Instructor Antonio
Soares Antonio.soares_at_famu.edu
