Hybrid State Estimation

1

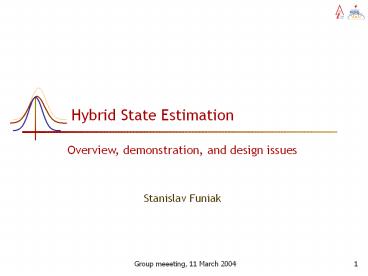

Hybrid State Estimation

• Overview, demonstration, and design issues
• Stanislav Funiak

2
Outline

• Hybrid estimation
• Overview of the problem, example
• Rao-Blackwellised Particle filtering (RBPF) for
  PHA
• Demonstration
• Base model
• Goals of Base model 1
• New in Base model 1.5

3
Problem

• Fault diagnosis
• Extract subtle symptoms from noisy observations
• Potentially complex artifacts
• Assumption the system can be easily modeled by a
  set of behaviors and a set of ODEs / algebraic
  equations

4
Model PHA
ball
5
Model CPHA
ball
6
Goal

• Compute the posterior distribution over the
  hybrid state
• p(xc,t, xd,t y1t, u0t)
• p(?1,t, ?2,t, ?1,t, ?2,t, healtht, has-ballt
  observed ?20..t
  desired torque 0..t)

.
.
7
HofbaurWIlliams 02 Hybrid Belief State Update

• Update the posterior distribution in two steps1.
  transition expansion2. observation

transition expansion
observation
8
Our Approach

• Track a set of mode sequences with a bank of
  Kalman Filters

Problem the number of possible mode sequences
increases - exponentially in time -
exponentially in the number of components Each
mode sequence contributes to one Gaussian in the
posterior Claim Might be able to represent the
posterior with a fewer Gaussians
9
Selecting relevant mode sequences

• Two methods
• K-best filtering
• Looking for a set of leading sequences
• Obtained efficiently with A search
• Particle filtering
• Selecting trajectories probabilistically approx.
  posterior
• Rao-Blackwellised particle filtering

10
Rao-Blackwellised Particle Filtering
(1) Initialization step
draw samples from the initial distribution over
the modes initialize the corresponding continuous
state estimates
mok,1
mf,0
mf,1
mok,0
mok,0
mok,1
mok,0
mok,1
(2) Importance sampling step
evolve each sample trajectory according to the
transition model and previous continuous estimates
(3) Selection (resampling) step
(4) Exact (Kalman Filtering) step
determine transition observ-ation model for
each sample update continuous estimates
11
Demonstration
12
Conclusions

• Need several estimation steps
• or n-step filtering
• Need to ensure that discrete transitions (priors)
  do not dominate when they should not

13
Future work

• Evaluation
• Choosing relative frequences of discrete updates,
  continuous updates (predictions), and
  observations
• k-best vs. sampling
• Implementation
• Discrete inputs
• Model loading
• General clean-up
• UI

14
Base Model v. 1.5
15
Goals

• Support for hybrid models
• Templated vector-like DynamicArray
• General simplification and clean-up

16
Goals of Base model v. 1

• Code reuse

class TimedCCAVariable enum Type
State, Control, getName()
getDomain() getType()
class CCAVariable enum Type State,
Control, getName() getDomain()
getType()
class BaseModelVariable enum Type
State, Control, getName()
getDomain() getType()
class HCAVariable enum Type State,
Control, getName() getDomain()
getType()
17
Goals of Base model v. 1

• Connecting different components of Titan

Sequencer
Base model
Mode reconfiguration
Mode estimation
18
Drawbacks of Base model v. 1

• Assumed overly restrictive C environment
• no templates
• no multiple inheritance
• no exceptions (until later on)
• Legacy
• discrete models (time)
• RRF random requests for features
• ?? cluttered in some places / hard to use

19
Why do we care?

• Templates

DynamicArray 30 kB of C code
BaseModelVariableArray 20 kB of C code
BaseModelDomainArray 20 kB of C code
CCAVariables 20 kB of C code
VectorltTgt
CCADomains 5 kB of C code
20 kB of C code
BaseModelClauseArray 20 kB of C code
HCAAutomatonArray 20 kB of C code
HCAFunctionCallArray 20 kB of C code
CCAAutomata 20 kB of C code
BaseModelValueArray 20 kB of C code
VectorltBmAssignmentgt 20 kB of C code
CCATransitions 10 kB of C code
CCAAssignments 5 kB of C code
HCATransitionArray 20 kB of C code
20
Why do we care?

• Multiple inheritance
• example index propertygetName()
• Strong typing
• Example 1 real vs. finite domain variables
• Example 2 PHA mode variables vs. finite domain
  variables
• Clean interfaces
• will get things done faster
• fewer bugs

21
Accomplishments in Base model 1.5

• New BmVector
• Cleaner, more consistent interfaces
• Strong typing of Real vs. discrete variables
• Additional features

22
What needs to be done

• Meet the needs of the users
• People working on different parts of the engine
• Modules we interface with OpSAT, etc.
• Maintain cleanliness and consistency of
  interfaces without sacrificing efficiency
• Deep vs. shallow copying and comparisons
• Exception handling convention
• Goals - avoid memory leaks in constructors -
  unified approach to exceptions
• Must be a team effort

23
Summary

• Implemented basic hybrid estimation using RBPF
• Cleaned up and redesigned parts of Base model
• Next steps
• HE discrete inputs, model loading, comparison
  with k-best
• Base model finish the redesign of Base model
  bring it back to the main CVS
  trunk

24
Old slides
25
K-best Filtering

• A search through space of possible successors
• Evaluated in the order of

Admissible heuristics upperbound on
probabilityfrom nv onward
Probability (cost) of trajectory so far
26
Comparison with k-best Filter
Multi-modal particle filter
Gaussian k-best filter (HME)
Same representation (mixture of Gaussians/mode
trajectories) Recursive methods ) online operation

• Samples trajectories according to the posterior
• Trajectory hypotheses spread-out ( according to
  posterior)

• Looks for k best trajectories using A
• Focus on trajectories with high posterior
  probability

27
Current Work

• Mixing k-best and sampling strategy
• Integration into Titan

28
Current work Unified Selection Method

• Together, k-best and particle filtering can
  perform better than individuallyIndividual
  weaknesses
• Sampling in discrete domains discards information
• k-best filtering may overly focus on one set of
  hypotheses
• One strategy periodically exchange hypotheses
  between filters
• for trajectories in PF, maintain the posterior
  probability

29
Titan Hybrid-Timed
Hybrid Hierarchical Constraint Automata (HHCA)
Mitch
Greg
Mitch
Model-based Executive
RMPL Program
Control Sequencer
Timed Hierarchical Constraint Automata (THCA)
Control Program
Mode Estimation
Mode Reconfiguration
Plant Model
Timed Concurrent Constraint Automata (TCCA)
Deductive Controller
Stano John L. Michael H.
Concurrent Probabilistic Hybrid Automata (CPHA)
Andreas H.
Michael H.
30
Summary

• cPHA modeling formalism for hybrid systems
• Set of efficient techniques for state (mode)
  estimation in large systems
• K-best filter
• Particle filter
• Understanding of theoretical foundations
  approximations
• Future work
• More experimental work, evaluate trade-offs of
  different strategies
• Qualitative guidance, hybrid model decomposition,
  hybrid model learning

31
References

• Funiak, S., and Williams, B. C. (2003).
  Multi-modal particle filtering for hybrid systems
  with autonomous mode transitions. In DX-2003,
  SafeProcess 2003.
• Hofbaur, M. W., and Williams, B. C. (2002). Mode
  estimation of probabilistic hybrid systems. In
  Hybrid Systems Computation and Control, HSCC
  2002.
• Murphy, K., and S. Russell (2001).
  Rao-Blackwellised particle filtering for dynamic
  Bayesian networks. In Sequential Monte Carlo
  Methods in Practice.
• Crisan, D. (2001). Particle Filters - A
  Theoretical Perspective. In Sequential Monte
  Carlo Methods in Practice
• Dearden, R., and Hutter, F., (2003). Gaussian
  Particle Filter for Diagnosis of Non-Linear
  Systems. In DX-2003, SafeProcess 2003.

32
Equations for Acrobot
