1

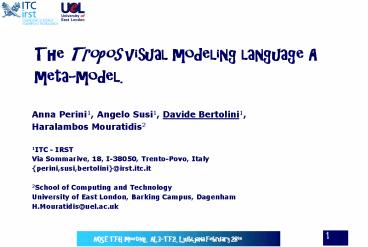

The Tropos visual modeling language A meta-model.
Anna Perini1, Angelo Susi1, Davide Bertolini1,
Haralambos Mouratidis2 1ITC - IRST Via
Sommarive, 18, I-38050, Trento-Povo,
Italy perini,susi,bertolini_at_irst.itc.it 2School
of Computing and Technology University of East
London, Barking Campus, Dagenham H.Mouratidis_at_uel.
ac.uk
2
Context

• A Tropos meta-model implemented in a tool (TAOM4E
  http//sra.itc.it/tools/taom/). It is a revision
  of the one presented in Jaamas 2004.
• An Unifying metamodel for AO specification
  under discussion in AOSE TGF and a proposal in a
  paper presented at AOSE04 (C. Bernon, M.
  Cossentino, M-P. Gleizes, P. Turci, F.
  Zambonelli)

3
Outline

• A slide recalling how visual modeling in Tropos
  looks like
• The Tropos meta-model (specified according to MOF
  2.0)
• Our proposal on how to integrate it in the
  Unifying metamodel (to be discussed)
• Agent structure
• Agent interactions
• Agent society and organizational structure
• Agent implementation
• An overview of the technology we used for
  implementing it.

4
AO Visual Modeling with Tropos
Early Requirements
Late Requirements
Architectural Design
Implementation
Detailed Design
Actors in the organizational setting
Sub-system Actors
Agents
Sw Agents
System Actor
Requirement driven approach
5
Tropos metamodel 1/2

• Actor an entity that has strategic goals
  andintentionality
• Goal actors' strategic interests
• Resource a physical or an informational
  entity
• Plan a way of doing something
• Dependency depender ? dependum ? dependee.

6
Tropos metamodel 2/2

• AND/OR decompositionroot(Goal) ? sub(Goals)
• Contribution towards the fulfillment of a goal
• Means-end analysis a means to satisfy the
  goal.

7
A Unifying Meta-Model
C. Bernon, M. Cossentino, M-P. Gleizes, P. Turci,
F. Zambonelli. A Study of some Multi-agent
Meta-Models (AOSE 04)
8
Discussion 1/2

• Agent structure
• Agent a software having property such as
  autonomy, reactivity, proactivity
• Role abstract characterisation of the behaviour
  of a social actor
• Position represents a set of roles
• As a result we could add all Tropos concepts
• GOAL/PLAN (with analysis technique)
• Resource -gt Resource

9
Discussion 2/2

• Agent interactions
• Initially, interactions are modelled in terms of
  social dependencies
• Later they are translated into structural
  patterns of interactions between the agents of
  the system (? UML)
• Moreover, agents are able to communicate with
  their environment in terms of events that
  describe a triggering condition for an agents
  actions.
• Agent society and organizational structure
• During E.R. stage an organisational model is
  produced
• This model forms the basis for the systems
  structure
• a set of organisational styles inspired by
  organisation theory (pyramid, matrix, auction)
• social patterns (such as mediator, broker and
  embassy).
• Belongs relationship if we are not modelling
  role
• Agent implementation
• The implementation activity follows step-by-step
  the detailed design specification on the basis of
  the establish mapping between the implementation
  platform constructs and the detailed design
  notions

10
TAOM4E technologies

• Meta Object Facility abstract language and
  framework for specifying, constructing and
  managing technology neutral meta-models.
• Model Implementation JMI MDR (now EMF)
• Model Persistence XML XMI
• Eclipse (http//www.eclipse.org/)

11
Model Driven Architecture

• Separate business logic (processes, rules) from
  supporting technologies.
• Models are centric
• Target middleware is not important.
• Platform Independent Models (PIM)
• Without middleware details
• Platform Specific Models (PSM)
• Including all middleware details
• PIM to PSM transformations (QVT)
• Models and Mappings become your corporate
  assets

Another Model
Bezivin, 2004
12
Conclusion

• The Tropos meta-model (specified according to
  MOF1.4)
• A proposal on how to integrate it in the
  Unifying metamodel (presented at AOSE04)
• An overview of the technology we used for
  implementing it in the TAOM4E tool, following MDA
  directives
