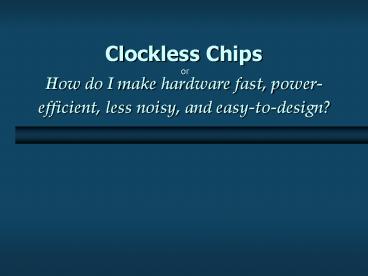

Clockless Chips or

2
Presentation Flow

• Motivation.
• Introduction to the clocked circuits,
• Challenges with Clocked circuits.
• Clock less / Asynchronous circuits.
• How clock less chips work?
• Usefulness Challenges for Clock less Design.
• Applications

3
Motivation for Clock less (Designers view)

• Modularity for system-on-chip design
• Plug-and-play interconnectivity
• Average-case performance
• No worst-case delay synchronization
• Many interfaces are asynchronous
• Buses, networks, ...

4
Introduction Clocked Digital Design

• Most current digital systems are synchronous
• Clock a global signal that paces operation of
  all components

• Benefit of clocking enables discrete-time
  representation
• all components operate exactly once per clock
  tick
• component outputs need to be ready by next clock
  tick
• allows glitchy or incorrect outputs between
  clock ticks

5
ChallengesWith Clocked Design

• Unprecedented Challenges
• Distributing the clock globally.
• Wastage of energy. Bcoz clocks themselves
  consume lot of energy (30).
• Traverse the chips longest wires in one clock
  cycle.
• Order of arrival of the signals is unimportant.
• Design becoming unmanageable using a centralized
  (synchronous) approach.

6
Why Clock less?

• The world already is mostly clock less!
• So, why bother with clocks at all?!
• make everything Clockless ? greater elegance and
  robustness

Events at the level of Clock Speed Example
(In between) Large-scale systems Several Seconds to milliseconds PC-printer comm., Keyboard inputs, network comm.
Between chips Milliseconds to 100 nanoseconds CPU-memory interface, Interrupts
Within a chip (functional units) Nanoseconds to 100 picoseconds Adders, control logic
single logic gate 10 picoseconds
quantum level Picoseconds to femtoseconds
7
What is Clock less Design?

• Digital design with no centralized clock
• Functions away from the clock
• Different parts work at different speeds
• Synchronization using local handshaking
• Hand-off the result immediately

8
How is data represented in an asynchronous
system? How is information exchanged?
control signaling (handshake styles)
Solution to above Questions are
9
Handshaking Protocols Components

• Bundled-Data Handshaking Protocols
• 2-Phase Bundled-Data Protocol
• 4-Phase Bundled-Data protocol
• Dual-rail Handshaking Protocols
• 2-Phase Dual-rail Protocol
• 4-Phase Dual-rail Protocol

Delay Insensitive Method
10
Data Encoding Bundled Data

• Single-rail Bundled Datapath simplest approach

• widely used
• Features
• datapath 1 wire per bit (e.g. standard sync
  blocks)
• matched delay produces delayed done signal
• worst-case delay longer than slowest path

• Practical style can reuse sync components small
  area
• Fixed (worst-case) completion time

11
Data Encoding Dual-Rail

• Dual-rail uses 2 wires per data bit

Each Dual-Rail Pair provides both data value and
validity

• provides robust data-dependent completion
• needs completion detectors

12
Dual-Rail Completion Sensing

• Dual-Rail Completion Detector
• combines dual-rail signals
• indicates when all bits are valid (or reset)

• C-element
• if all inputs1, output ? 1
• if all inputs0, output ? 0
• else, maintain output value

• OR together 2 rails per bit
• Merge results using a Müller C-element

13
Muller C-element
Vdd
A
B
Z
A
B
Z
A
B
Z
Static Logic Implementation
A
B
Gnd
14
Handshaking Styles 4-phase

• 4-Phase requires 4 events per handshake

• Level-sensitive ? simpler logic implementation
• Overhead of return-to-zero (RTZ or resetting)
• extra events which do no useful computation

15
Handshaking Styles 2-phase

• 2-Phase requires 2 events per handshake
• transition signaling

• Elegant no return-to-zero
• Slower logic implementation
• logic primitives are inherently level-sensitive,
  not event-based (at least in CMOS)

16
Handshaking Data Representation

• Several combinations possible
• dual-rail 4-phase, single-rail 4-phase, dual-rail
  2-phase, and single-rail 2-phase
• Example dual-rail 4-phase
  Which To Use?

• dual-rail data functions as an implicit
  request
• 4-phase cycle between acknowledge and implicit
  request

A
B
17
Why Clock less? (Technical View)
Power Consumption
Performance
Robustness
Electro- magnetic Compability
18
Challenges of Clock less Design
Difficult to DESIGN
Concurrent models for SPECIFI-
CATION
Complex TIMING ANALYSIS
Difficult to TEST
19
Applications of Clock less Chips
Clock less Logic Application

20
