Transcript and Presenter's Notes

Title: Decision-Procedure Based Theorem Provers Tactic-Based Theorem Proving Inferring Loop Invariants

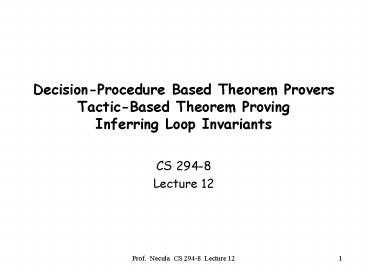

1
Decision-Procedure Based Theorem
ProversTactic-Based Theorem ProvingInferring
Loop Invariants
  • CS 294-8
  • Lecture 12

2
Review
Source language
VCGen
FOL
Theories
?
Goal-directed proving
Sat. proc 1
Sat. proc n

3
Combining Satisfiability Procedures
  • Consider a set of literals F
  • Containing symbols from two theories T1 and T2
  • We split F into two sets of literals
  • F1 containing only literals in theory T1
  • F2 containing only literals in theory T2
  • We name all subexpressions
  • p1(f2(E)) is split into f2(E) n Æ
    p1(n)
  • We have unsat (F1 Æ F2) iff unsat(F)
  • unsat(F1) Ç unsat(F2) ) unsat(F)
  • But the converse is not true
  • So we cannot compute unsat(F) with a trivial
    combination of the sat. procedures for T1 and T2

4
Combining Satisfiability Procedures. Example
  • Consider equality and arithmetic

5
Combining Satisfiability Procedures
  • Combining satisfiability procedures is non
    trivial
  • And that is to be expected
  • Equality was solved by Ackerman in 1924,
    arithmetic by Fourier even before, but E A only
    in 1979 !
  • Yet in any single verification problem we will
    have literals from several theories
  • Equality, arithmetic, lists,
  • When and how can we combine separate
    satisfiability procedures?

6
Nelson-Oppen Method (1)
  • Represent all conjuncts in the same DAG
  • f(f(x) - f(y)) ? f(z) Æ y x Æ x y z
    Æ z 0

f
-


f
f
f


y
x
z
0
7
Nelson-Oppen Method (2)
  • Run each sat. procedure
  • Require it to report all contradictions (as
    usual)
  • Also require it to report all equalities between
    nodes

f
-


f
f
f


y
x
z
0
8
Nelson-Oppen Method (3)
  • Broadcast all discovered equalities and re-run
    sat. procedures
  • Until no more equalities are discovered or a
    contradiction arises

f
x Contradiction
-


f
f
f


y
x
z
0
9
What Theories Can be Combined?
  • Only theories without common interpreted symbols
  • But Ok if one theory takes the symbol
    uninterpreted
  • Only certain theories can be combined
  • Consider (Z, , ) and Equality
  • Consider 1 x 2 Æ a 1 Æ b 2 Æ f(x) ¹
    f(a) Æ f(x) ¹ f(b)
  • No equalities and no contradictions are
    discovered
  • Yet, unsatisfiable
  • A theory is non-convex when a set of literals
    entails a disjunction of equalities without
    entailing any single equality

10
Handling Non-Convex Theories
  • Many theories are non-convex
  • Consider the theory of memory and pointers
  • It is not-convex
  • true ) A A Ç sel(upd(M, A, V), A)
    sel(M, A) (neither of the disjuncts is
    entailed individually)
  • For such theories it can be the case that
  • No contradiction is discovered
  • No single equality is discovered
  • But a disjunction of equalities is discovered
  • We need to propagate disjunction of equalities

11
Propagating Disjunction of Equalities
  • To propagate disjunctions we perform a case
    split
  • If a disjunction E1 Ç Ç En is discovered
  • Save the current state of the prover
  • for i 1 to n
  • broadcast Ei
  • if no contradiction arises then return
    satisfiable
  • restore the saved prover state
  • return unsatisfiable

12
Handling Non-Convex Theories
  • Case splitting is expensive
  • Must backtrack (performance --)
  • Must implement all satisfiability procedures in
    incremental fashion (simplicity --)
  • In some cases the splitting can be prohibitive
  • Take pointers for example.
  • upd(upd((upd(m, i1, x), , in-1, x), in, x)
  • upd((upd(m, j1, x), ,
    jn-1, x) Æ
  • sel(m, i1) ¹ x Æ Æ sel(m, in) ¹ x
  • entails Çj ¹ k ij ¹ ik
  • (a conjunction of length n entails n2 disjuncts)

13
Forward vs. Backward Theorem Proving
14
Forward vs. Backward Theorem Proving
  • The state of a prover can be expressed as
  • H1 Æ Æ Hn )? G
  • Given the hypotheses Hi try to derive goal G
  • A forward theorem prover derives new hypotheses,
    in hope of deriving G
  • If H1 Æ Æ Hn ) H then
  • move to state H1 Æ Æ Hn Æ H )? G
  • Success state H1 Æ Æ G Æ Hn )? G
  • A forward theorem prover uses heuristics to reach
    G
  • Or it can exhaustively derive everything that is
    derivable !

15
Forward Theorem Proving
  • Nelson-Oppen is a forward theorem prover
  • The state is L1 Æ Æ Ln Æ L )? false
  • If L1 Æ Æ Ln Æ L ) E (an equality) then
  • New state is L1 Æ Æ Ln Æ L Æ E )? false (add
    the equality)
  • Success state is L1 Æ Æ L Æ Æ L Æ Ln )?
    false
  • Nelson-Oppen provers exhaustively produce all
    derivable facts hoping to encounter the goal
  • Case splitting can be explained this way too
  • If L1 Æ Æ Ln Æ L ) E Ç E (a disjunction of
    equalities) then
  • Two new states are produced (both must lead to
    success)
  • L1 Æ Æ Ln Æ L Æ E )? false
  • L1 Æ Æ Ln Æ L Æ E )? false

16
Backward Theorem Proving
  • A backward theorem prover derives new subgoals
    from the goal
  • The current state is H1 Æ Æ Hn )? G
  • If H1 Æ Æ Hn Æ G1 Æ Æ Gn ) G (Gi are
    subgoals)
  • Produce n new states (all must lead to
    success)
  • H1 Æ Æ Hn )? Gi
  • Similar to case splitting in Nelson-Oppen
  • Consider a non-convex theory
  • H1 Æ Æ Hn ) E Ç E
  • is same as H1 Æ Æ Hn Æ E Æ E ) false
  • (thus we have reduced the goal false to
    subgoals E Æ E )

17
Programming Theorem Provers
  • Backward theorem provers most often use
    heuristics
  • If it useful to be able to program the heuristics
  • Such programs are called tactics and tactic-based
    provers have this capability
  • E.g. the Edinburgh LCF was a tactic based prover
    whose programming language was called the
    Meta-Language (ML)
  • A tactic examines the state and either
  • Announces that it is not applicable in the
    current state, or
  • Modifies the proving state

18
Programming Theorem Provers. Tactics.
  • State Formula list Formula
  • A set of hypotheses and a goal
  • Tactic State ! (State ! a) ! (unit ! a) ! a
  • Continuation passing style
  • Given a state will invoke either the success
    continuation with a modified state or the failure
    continuation
  • Example a congruence-closure based tactic
  • cc (h, g) c f
  • let e1, , en new equalities in the
    congruence closure of h
  • c (h e1, , en, g)
  • A forward chaining tactic

19
Programming Theorem Provers. Tactics.
  • Consider an axiom 8x. a(x) ) b(x)
  • Like the clause b(x) - a(x) in Prolog
  • This could be turned into a tactic
  • clause (h, g) c f if unif(g, b) f then
  • s (h, f(a))
  • else
  • f ()
  • A backward chaining tactic

20
Programming Theorem Provers. Tacticals.
  • Tactics can be composed using tacticals
  • Examples
  • THEN tactic ! tactic ! tactic
  • THEN t1 t2 ls.lc.lf.
  • let newc s t2 s c f
    in t1 s newc f
  • REPEAT tactic ! tactic
  • REPEAT t THEN t (REPEAT t)
  • ORELSE tactic ! tactic ! tactic
  • ORELSE t1 t2 ls.lc.lf.
  • let newf x t2 s c f
    in t1 s c newf

21
Programming Theorem Provers. Tacticals
  • Prolog is just one possible tactic
  • Given tactics for each clause c1, , cn
  • Prolog tactic
  • Prolog REPEAT (c1 ORLESE c2 ORELSE
    ORELSE cn)
  • Nelson-Oppen can also be programmed this way
  • The result is not as efficient as a
    special-purpose implementation
  • This is a very powerful mechanism for
    semi-automatic theorem proving
  • Used in Isabelle, HOL, and many others

22
Techniques for Inferring Loop Invariants
23
Inferring Loop Invariants
  • Traditional program verification has several
    elements
  • Function specifications and loop invariants
  • Verification condition generation
  • Theorem proving
  • Requiring specifications from the programmer is
    often acceptable
  • Requiring loop invariants is not acceptable
  • Same for specifications of local functions

24
Inferring Loop Invariants
  • A set of cutpoints is a set of program points
  • There is at least one cutpoint on each circular
    path in CFG
  • There is a cutpoint at the start of the program
  • There is a cutpoint before the return
  • Consider that our function uses n variables x
  • We associate with each cutpoint an assertion
    Ik(x)
  • If a is a path from cutpoint k to j then
  • Ra(x) Zn ! Zn expresses the effect of path a on
    the values of x at j as a function of those at k
  • Pa(x) Zn ! B is a path predicate that is true
    exactly of those values of x at k that will
    enable the path a

25
Cutpoints. Example.
  • p01 true
  • r01 A Ã A, K Ã 0, L Ã len(A), S Ã 0,
  • m à m
  • p11 K 1 lt L
  • r11 A Ã A, K Ã K 1, L Ã L,
  • S à S sel(m, A K), m à m
  • p12 K 1 L
  • r12 r11
  • Easily obtained through sym. eval.

L len(A) K 0 S 0
S S AK K K lt L
return S
26
Equational Definition of Invariants
  • A set of assertions is a set of invariants if
  • The assertion for the start cutpoint is the
    precondition
  • The assertion for the end cutpoint is the
    postcondition
  • For each path from i to j we have
  • 8x. Ii(x) Æ Pij(x) )
    Ij(Rij(x))
  • Now we have to solve a system of constraints with
    the unknowns I1, , In-1
  • I0 and In are known
  • We will consider the simpler case of a single
    loop
  • Otherwise we might want to try solving the
    inner/last loop first

27
Invariants. Example.
0
  • I0 ) I1(r0(x))
  • The invariant I1 is established initially
  • I1 Æ K1 lt L ) I1(r1(x))
  • The invariant I1 is preserved in the loop
  • I1 Æ K1 L ) I2(r1(x))
  • The invariant I1 is strong enough (i.e. useful)h

L len(A) K 0 S 0
ro
1
S S AK K K lt L
r1
2
return S
28
The Lattice of Invariants
true
  • Weak predicates satisfy the condition 1
  • Are satisfied initially
  • Strong predicates satisfy condition 3
  • Are useful
  • A few predicates satisfy condition 2
  • Are invariant
  • Form a lattice

false
29
Finding The Invariant
  • Which of the potential invariants should we try
    to find ?
  • We prefer to work backwards
  • Essentially proving only what is needed to
    satisfy In
  • Forward is also possible but sometimes wasteful
    since we have to prove everything that holds at
    any point

30
Finding the Invariant
true
  • Thus we do not know the precondition of the
    loop
  • The weakest invariant that is strong enough has
    most chances of holding initially
  • This is the one that well try to find
  • And then check that it is weak enough

false
31
Induction Iteration Method
true
  • Equation 3 gives a predicate weaker than any
    invariant
  • I1 Æ K1 L ) I2(r1(x))
  • I1 ) ( K1 L ) I2(r1(x)))
  • W0 K1 L ) I2(r1(x))
  • Equation 2 suggest an iterative computation of
    the invariant I1
  • I1 ) (K1 lt L ) I1(r1(x)))

false
32
Induction Iteration Method
  • Define a family of predicates
  • W0 K1 L ) I2(r1(x))
  • Wj W0 Æ K1 lt L ) Wj-1(r1(x))
  • Properties of Wj
  • Wj ) Wj-1 ) ) W0 (they form a strengthening
    chain)
  • I1 ) Wj (they are weaker than any invariant)
  • If Wj-1 ) Wj then
  • Wj is an invariant (satisfies both equations 2
    and 3)
  • Wj ) K1 lt L ) Wj(r1(x))
  • Wj is the weakest invariant
  • (recall domain theory, predicates form a
    domain, and we use the fixed point theorem to
    obtain least solutions to recursive equations)

33
Induction Iteration Method
  • W K1 L ) I2(r1(x)) //
    This is W0
  • W true
  • while (not (W ) W))
  • W W
  • W (K1 L ) I2(r1(x)))
    Æ (K 1 lt L ) W(r1(x)))
  • The only hard part is to check whether W ) W
  • We use a theorem prover for this purpose

34
Induction Iteration.
true
  • The sequence of Wj approaches the weakest
    invariant from above
  • The predicate Wj can quickly become very large
  • Checking W ) W becomes harder and harder
  • This is not guaranteed to terminate

W0
W1
W2
W3
false
35
Induction Iteration. Example.
0
  • Consider that the strength condition is
  • I1 ) K 0 Æ K lt len(A) (array bounds)
  • We compute the Ws
  • W0 K 0 Æ K lt len(A)
  • W1 W0 Æ K1ltL ) K1 0 Æ K1ltlen(A)
  • W2 W0 Æ K1 lt L )
  • (K 1 0 Æ K 1 lt len(A) Æ
  • K2lt L ) K2 0 Æ
  • K2 lt len(A)))

L len(A) K 0 S 0
ro
1
S S AK K K lt L
r1
2
return S
36
Induction Iteration. Strengthening.
  • We can try to strengthen the inductive invariant
  • Instead of
  • Wj W0 Æ K1 lt L ) Wj-1(r1(x))
  • we compute
  • Wj strengthen (W0 Æ K1 lt L ) Wj-1(r1(x)))
  • where strengthen(P) ) P
  • We still have Wj ) Wj-1 and we stop when Wj-1 )
    Wj
  • The result is still an invariant that satisfies 2
    and 3

37
Strengthening Heuristics
  • One goal of strengthening is simplification
  • Drop disjuncts P1 Ç P2 ! P1
  • Drop implications P1 ) P2 ! P2
  • A good idea is to try to eliminate variables
    changed in the loop body
  • If Wj does not depend on variables changed by r1
    (e.g. K, S)
  • Wj1 W0 Æ K1 lt L ) Wj(r1(x))
  • W0 Æ K1 lt L ) Wj
  • Now Wj ) Wj1 and we are done !

38
Induction Iteration. Strengthening
true
  • We are still in the strong-enough area
  • We are making bigger steps
  • And we might overshoot then weakest invariant
  • We might also fail to find any invariant
  • But we do so quickly

W0
W1
W2
W1
W3
W2
false
39
One Strengthening Heuristic for Integers
  • Rewrite Wj in conjunctive normal form
  • W1 K 0 Æ K lt len(A) Æ (K 1 lt L ) K
    1 0 Æ K 1 lt len(A))
  • K 0 Æ K lt len(A) Æ (K 1 L Ç
    K 1 lt len(A))
  • Take each disjunction containing arithmetic
    literals
  • Negate it and obtain a conjunction of arithmetic
    literals
  • K1 lt L Æ K1 len(A)
  • Weaken the result by eliminating a variable
    (preferably a loop-modified variable)
  • E.g., add the two literals L gt len(A)
  • Negate the result and get another disjunction
  • L len(A)
  • W1 K 0 Æ K lt len(A) Æ L len(A) (check
    that W1 ) W2)

40
Induction Iteration
  • We showed a way to compute invariants
    algoritmically
  • Similar to fixed point computation in domains
  • Similar to abstract interpretation on the lattice
    of predicates
  • Then we discussed heuristics that improve the
    termination properties
  • Similar to widening in abstract interpretation

41
Theorem Proving. Conclusions.
  • Theorem proving strengths
  • Very expressive
  • Theorem proving weaknesses
  • Too ambitious
  • A great toolbox for software analysis
  • Symbolic evaluation
  • Decision procedures
  • Related to program analysis
  • Abstract interpretation on the lattice of
    predicates
Write a Comment
User Comments (0)
About PowerShow.com
