eScience

1

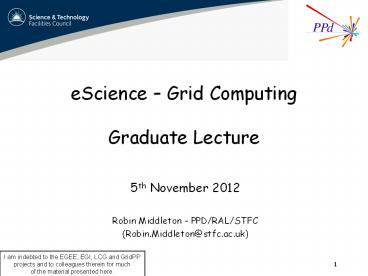

eScience Grid ComputingGraduate Lecture

• 5th November 2012
• Robin Middleton PPD/RAL/STFC
• (Robin.Middleton_at_stfc.ac.uk)

I am indebted to the EGEE, EGI, LCG and
GridPP projects and to colleagues therein for
much of the material presented here.
2
eScience Graduate Lecture
A high-level look at some aspects of computing
for particle physics today

• What is eScience, what is the Grid ?
• Essential grid components
• Grids in HEP
• The wider picture
• Summary

3
What is eScience ?

• also e-Infrastructure, cyberinfrastructure,
  e-Research,
• Includes
• grid computing (e.g. WLCG, EGEE, EGI, OSG,
  TeraGrid, NGS)
• computationally and/or data intensive highly
  distributed over wide area
• digital curation
• digital libraries
• collaborative tools (e.g. Access Grid)
• other areas
• Most UK Research Councils active in e-Science
• BBSRC
• NERC (e.g. climate studies, NERC DataGrid -
  http//ndg.nerc.ac.uk/ )
• ESRC (e.g. NCeSS - http//www.merc.ac.uk/ )
• AHRC (e.g. studies in collaborative performing
  arts)
• EPSRC (e.g. MyGrid - http//www.mygrid.org.uk/ )
• STFC (e.g. GridPP - http//www.gridpp.ac.uk/ )

4
eScience year 2000

• Professor Sir John Taylor, former (1999-2003)
  Director General of the UK Research Councils,
  defined eScience thus
• science increasingly done through distributed
  global collaborations enabled by the internet,
  using very large data collections, terascale
  computing resources and high performance
  visualisation.
• Also quotes from Professor Taylor
• e-Science is about global collaboration in key
  areas of science, and the next generation of
  infrastructure that will enable it.
• e-Science will change the dynamic of the way
  science is undertaken.

5
What is Grid Computing ?

• Grid Computing
• term invented in 1990s as metaphor for making
  computer power as easy to access as the electric
  power grid(Foster Kesselman - "The Grid
  Blueprint for a new computing infrastructure)
• combines computing resources from multiple
  administrative domains
• CPU and storageloosely coupled
• serves the needs of one or more virtual
  organisations (e.g. LHC experiments)
• different from
• Cloud Computing (e.g. Amazon Elastic Compute
  Cloud - http//aws.amazon.com/ec2/ )
• Volunteer Computing (SETI_at_home, LHC_at_home -
  http//boinc.berkeley.edu/projects.php )

6
Essential Grid Components

• Middleware
• Information System
• Workload Management Portals
• Data Management
• File transfer
• File catalogue
• Security
• Virtual Organisations
• Authentication
• Authorisation
• Accounting

7
Information System

• At the heart of the Grid
• Hierarchy of BDII (LDAP) servers
• GLUE information schema
• (http//www.ogf.org/documents/GFD.147.pdf)
• LDAP (Lightweight Directory Access Protocol)
• tree structure
• DN Distinguished Name

8
Workload Management System (WMS)

• For example - composed of the following parts
• User Interface (UI) access point for the user
  to the WMS
• Resource Broker (RB) the broker of GRID
  resources, responsible to find the best
  resources where to submit jobs
• Job Submission Service (JSS) provides a
  reliable submission system
• Information Index (BDII) a server (based on
  LDAP) which collects information about Grid
  resources used by the Resource Broker to rank
  and select resources
• Logging and Bookkeeping services (LB) store Job
  Info available for users to query
• However, you are much more likely to use a portal
  to submit work

• Executable gridTest
• StdError stderr.log
• StdOutput stdout.log
• InputSandbox /home/robin/test/gridTest
• OutputSandbox stderr.log, stdout.log
• InputData lfntestbed0-00019
• DataAccessProtocol gridftp
• Requirements other.ArchitectureINTEL \
  other.OpSysLINUX other.FreeCpus gt4
• Rank other.GlueHostBenchmarkSF00

Example JDL
9
Portals - Ganga

• Job Definition Management
• Implemented in Python
• Extensible plug-ins
• Used ATLAS, LHCb non-HEP
• http//ganga.web.cern.ch/ganga/index.php

10
Data Management

• Storage Element (SE)
• gt1 implementation
• all are accessed through SRM (Storage Resource
  Manager) interface
• DPM Disk Pool Manager (disk only)
• secure authentication via GSI, authorisation via
  VOMS
• full POSIX ACL support with DN (userid) and VOMS
  groups
• disk pool management (direct socket interface)
• storage name space (aka. storage file catalog)
• DPM can act as a site local replica catalog
• SRMv1, SRMv2.1 and SRMv2.2
• gridFTP, rfio
• dCache (disk tape) developed at DESY
• ENSTORE developed at Fermilab
• CASTOR devloped at CERN
• Cern Advanced STORage manager
• HSM Hierarchical Storage Manager
• disk cache tape

11
File Transfer Service

• File Transfer Service is a data movement fabric
  service
• multi-VO service, balance usage of site resources
  according to VO and site policies
• uses SRM and gridFTP services of an Storage
  Element (SE)
• Why is it needed ?
• For the user, the service it provides is the
  reliable point to point movement of Storage URLs
  (SURLs) among Storage Elements
• For the site manager, it provides a reliable and
  manageable way of serving file movement requests
  from their VOs
• For the VO manager, it provides ability to
  control requests coming from users(re-ordering,
  prioritization,...)

12
File Catalogue

• LFC LHC File Catalogue - a file location
  service
• Glossary
• LFN Logical File Name GUID Global Unique
  ID SURL Storage URL
• Provides a mapping from one or more LFN to the
  physical location of file
• Authentication authorisation is via a grid
  certificate
• Provides very limited metadata size, checksum
• Experiments usually have a metadata catalogue
  layered above LFC
• e.g. AMI ATLAS Metadata Interface

13
Grid Security

• Based around X.509 certificates Public Key
  Infrastructure (PKI)
• issued by Certificate Authorities
• forms a hierarchy of trust
• Glossary
• CA Certificate Authority
• RA Registration Authority
• VA Validation Authority
• How it Works
• User applies for certificate with public key at a
  RA
• RA confirms user's identity to CA which in turn
  issues the certificate
• User can then digitally sign a contract using the
  new certificate
• User identity is checked by the contracting party
  with VA
• VA receives information about issued certificates
  by CA

14
Virtual Organisations

• Aggregation of groups ( individuals) sharing use
  of (distributed) resources to a common end under
  an agreed set of policies
• a semi-informal structure orthogonal to normal
  institutional allegiances
• e.g. A HEP Experiment
• Grid Policies
• Acceptable use Grid Security New VO
  registration
• http//proj-lcg-security.web.cern.ch/proj-lcg-secu
  rity/security_policy.html
• VO specific environment
• experiment libraries, databases,
• resource sites declare which VOsit will support

15
Security - The Three As

• Authentication
• verifying that you are who you say you are
• your Grid Certificate is your passport
• Authorisation
• knowing who you are, validating what you are
  permitted to do
• e.g. submit analysis jobs as a member of LHCb
• e.g. VO capability to manage production software
• Accounting (auditing)
• local logging what you have done your jobs !
• aggregated into grid-wide respository
• provides
• usage statistics
• information source in event of security incident

16
Grids in HEP

• LCG EGEE EGI Projects
• GridPP
• The LHC Computing Grid
• Tiers 0,1,2
• The LHC OPN
• Experiment Computing Models
• Typical data access patterns
• Monitoring
• Resource providers view
• VO view
• End-user view

17
LCG?EGEE-gtEGI
LCG ? LHC Computing Grid Distributed Production
Environment for Physics Data Processing Worlds
largest production computing grid In 2011
gt250,000 CPU cores, 15PB/Yr, 8000 physicist, 500
institutes
EGEE ? Enabling Grids for E-sciencE Starts from
LCG infrastructure Production Grid in 27
countries HEP, BioMed, CompChem, Earth Science,
EU Support
18
GridPP

• Phase 1 2001-2004
• Prototype (Tier-1)
• Phase 2 2004-2008
• From Prototype to Production
• Production (Tier-12)
• Phase 3 2008-2011
• From Production to Exploitation
• Reconstruction, Monte Carlo, Analysis
• Phase 4 2011-2014
• routine operation during LHC running

• Integrated within the LCG/EGI framework
• UK Service Operations (LCG/EGI)
• Tier-1 Tier-2s
• HEP Experiments
• _at_ LHC, FNAL, SLAC
• GANGA (LHCb ATLAS)
• Working with NGS informing the UK NGI for EGI

Tier-1 Farm Usage
19
LCG The LHC Computing Grid

• Worldwide LHC Computing Grid - http//lcg.web.cern
  .ch/lcg/
• Framework to deliver distributed computing for
  theLHC experiments
• Middleware / Deployment
• (Service/Data Challenges)
• Security (operations policy)
• Applications (Experiment) Software
• Distributed Analysis
• Private Optical Network
• Experiments ? Resources ? MoUs
• Coverage
• Europe ? EGI
• USA ? OSG
• Asia ? Naregi, Taipei,China
• Other

20
LHC Computing Model
The LHC Computing Centre
CERN Tier 0
21
LHCOPN Optical Private Network

• Principle means to distribute LHC data
• Primarily linking Tier-0 and Tier-1s
• Some Tier-1 to Tier-1 Traffic
• Runs over leased lines
• Some resilience
• Mostly based on10 Gigabit technology
• Reflects Tierarchitecture

22
LHC Experiment Computing Models

• General (ignoring experiment specifics)
• Tier-0 (_at_CERN)
• 1st pass reconstruction (including initial
  calibration)
• RAW data storage
• Tier-1
• Re-processing some centrally organised analysis
• Custodial copy of RAW data, some ESD, all AOD,
  some SIMU
• Tier-2
• (chaotic) user analysis simulation
• some AOD (depends on local requirements)
• Event sizes determine disk buffers at experiments
  Tier-0
• Event datasets
• formats (RAW, ESD, AOD, etc)
• (adaptive) placement (near analysis) replicas
• Data streams physics specific, debug,
  diagnostic, express, calibration
• CPU storage requirements
• Simulation

23
Typical Data Access Patterns
Access Rates (aggregate, average) 100 Mbytes/s
(2-5 physicists) 500 Mbytes/s (5-10
physicists) 1000 Mbytes/s (50 physicists) 2000
Mbytes/s (150 physicists)
Typical LHC particle physics experiment One year
of acquisition and analysis of data
Raw Data 1000 Tbytes
Reco-V1 1000 Tbytes
Reco-V2 1000 Tbytes
ESD-V1.1 100 Tbytes
ESD-V1.2 100 Tbytes
ESD-V2.1 100 Tbytes
ESD-V2.2 100 Tbytes
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
AOD 10 TB
24
Monitoring

• A resource providers view

25
Monitoring

• Virtual Organisation specifics

26
Monitoring - Dashboards

• Virtual Organisation view
• e.g. ATLAS dashboard

27
Monitoring Dashboards

• For the end user
• available through dashboard

28
The wider Picture

• What some other communities do with Grids
• The ESFRI projects
• Virtual Instruments
• Digital Curation
• Clouds
• Volunteer Computing
• Virtualisation

29
What are other communities doing with grids ?

• Astronomy Astrophysics
• large-scale data acquisition, simulation, data
  storage/retrieval
• Computational Chemistry
• use of software packages (incl. commercial) on
  EGEE
• Earth Sciences
• Seismology, Atmospheric modeling, Meteorology,
  Flood forecasting, Pollution
• Fusion (build up to ITER)
• Ion Kinetic Transport, Massive Ray Tracing,
  Stellarator Optimization.
• Computer Science
• collect data on Grid behaviour (Grid Observatory)
• High Energy Physics
• four LHC experiments, BaBar, D0, CDF, Lattice
  QCD, Geant4, SixTrack,
• Life Sciences
• Medical Imaging, Bioinformatics, Drug discovery
• WISDOM drug discovery for neglected / emergent
  diseases(malaria, H5N1, )

30
ESFRI Projects(European Strategy Forum on
Research Infrastructures)

• Many are starting to look at their e-Science
  needs
• some at a similar scale to the LHC (petascale)
• project design study stage
• http//cordis.europa.eu/esfri/

Cherenkov Telescope Array
31
Virtual Instruments

• Integration of scientific instruments into the
  Grid
• remote operation, monitoring, scheduling,
  sharing
• GridCC - Grid enabled Remote Instrumentation with
  Distributed Control and Computation
• CR build workflows to monitor control remote
  instruments in real-time
• CE, SE, ES , IS SS as in a normal grid
• Monitoring services
• Instrument Element (IE)
• - interfaces for remote control monitoring
• CMS run control includes an IEbut notreally
  exploited (yet) !
• DORII Deployment Of Remote Instrumentation
  Infrastructure
• Consolidation of GridCC with EGEE,
  g-Eclipse,Open MPI, VLab
• The Liverpool Telescope - robotic
• not just remote control, but fully autonomous
• scheduler operates on basis of observingdatabase
• (http//telescope.livjm.ac.uk/)

32
Digital Curation

• Preservation of digital research data for future
  use
• Issues
• media data formats metadata data management
  tools reading (FORTRAN) ...
• digital curation lifecycle - http//www.dcc.ac.uk/
  digital-curation/what-digital-curation
• Digital Curation Centre - http//www.dcc.ac.uk/
• NOT a repository !
• strategic leadership
• influence national (international) policy
• expert advice for both users and funders
• maintains suite of resources and tools
• raise levels of awareness and expertise

33
JADE (1978-86)

• New results from old data
• new improved theoretical calculations MC
  models optimised observables
• better understanding of Standard Model (top, W,
  Z)
• re-do measurements better precision, better
  systematics
• new measurements, but at (lower) energies not
  available today
• new phenomena check at lower energies
• Challenges
• rescue data from (very) old media resurrect old
  software data management implement modern
  analysis techniques
• but, luminosity files lost recovered from ASCII
  printout in an office cleanup
• Since 1996
• 10 publications (as recent as 2009)
• 10 conference contributions
• a few PhD Theses
• (ack S.Bethke)

34
What is HEP doing about it ?

• ICFA Study Group on Data Preservation and Long
  Term Analysis in High Energy Physics
  https//www.dphep.org/
• 5 Workshops so far intermediate report to ICFA
• Available at arxiv0912.0255
• Initial recommendationsDecember 2009
• Blueprint for DataPreservation in HighEnergy
  Physics to follow

35
Grids, Clouds, Supercomputers,
(Ack Bob Jones former EGEE Project Director)

• Grids
• Collaborative environment
• Distributed resources (political/sociological)
• Commodity hardware (also supercomputers)
• (HEP) data management
• Complex interfaces (bug not feature)

• Supercomputers
• Expensive
• Low latency interconnects
• Applications peer reviewed
• Parallel/coupled applications
• Traditional interfaces (login)
• Also SC grids (DEISA, Teragrid)

• Clouds
• Proprietary (implementation)
• Economies of scale in management
• Commodity hardware
• Virtualisation for service provision and
  encapsulating application environment
• Details of physical resources hidden
• Simple interfaces (too simple?)

• Volunteer computing
• Simple mechanism to access millions CPUs
• Difficult if (much) data involved
• Control of environment ? check
• Community building people involved in Science
• Potential for huge amounts of real work

35
36
Clouds / Volunteer Computing

• Clouds are largely commercial
• Pay for use
• Interfaces from grids exist
• absorb peak demands(e.g. before a conference !)
• CernVM images exist
• Volunteer Computing
• LHC_at_Home
• SixTrack study particle orbitstability in
  accelerators
• Garfield study behaviour of gas-based detectors

37
Virtualisation

• Virtual implementation of a resource e.g. a
  hardware platform
• a current buzzword, but not new IBM launched
  VM/370 in 1972 !
• Hardware virtualisation
• one or more virtual machines running an operating
  system within a host system
• e.g. run Linux (guest) in a virtual machine (VM)
  with Microsoft Windows (host)
• independent of hardware platform migration
  between (different) platforms
• run multiple instances on one box provides
  isolation (e.g. against rogue s/w)
• Hardware-assisted virtualisation
• not all machine instructions are virtualisable
  (e.g. some privileged instructions)
• h/w-assist traps such instructions and provides
  hardware emulation of them
• Implementations
• Zen, VMware, VirtualBox, Microsoft Virtual PC,
• Interest to HEP ?
• the above opportunity to tailor to experiment
  needs (e.g. libraries, environment)
• CernVM CERN specific Linux environment -
  http//cernvm.cern.ch/portal/
• CernVM-FS network filesystem to access
  experiment specific software
• Security certificate to assure origin/validity
  of VM

38
Summary

• What is eScience about and what are Grids
• Essential components of a Grid
• middleware
• virtual organisations
• Grids in HEP
• LHC Computing GRID
• A look outside HEP
• examples of what others are doing
