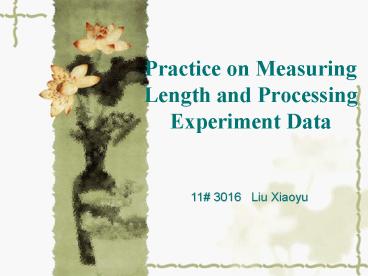

Practice on Measuring Length and Processing Experiment Data

1
Practice on Measuring Length and Processing
Experiment Data
11 3016 Liu Xiaoyu
2

• What we need to do in this experiment?
• To obtain the volume of a hollow cylinder and
  a sphere
• What measuring tools we can use ?
• A metal ruler, a vernier caliper a
  micrometer
• Why we need to do such an experiment?
• 1. Know the correct use of the vernier
  caliper the micrometer
• 2. Do some exercises for processing
  experiment data

3

• 1.Introduction of tools

1).Metal ruler
4

• Parameters for a ruler
• Graduation value (i) defined as the value
  between two closed graduation marks.
• Instrument error ( ) defined as half of
  the graduation value.

5
2). Vernier caliper
6

• Parameters for a vernier caliper
• Graduation value defined as ia/n.
• Instrument error same value as the
• graduation
  value.
• Rules for reading LL0ki

7
3). Micrometer
8

• Parameters for a micrometer
• Graduation value also can be defined as ia/n
• Instrument error half of the graduation
  value.
• Rules for reading
• The final result the reading the original

•
  reading

9
2. Experiment data
1) Height of the hollow cylinder (measured by the
metal ruler) mm
Times h
1
2
3
4
5
Mean value
10
2). Outside inside diameter of the hollow
cylinder (measured by the vernier caliper)

mm
Times Do Di
1
2
3
4
5
Mean value
11
3). Diameter of the sphere (measured by the
micrometer) mm
Times The original reading The reading Final D
1
2
3
4
5
Mean value Mean value Mean value
12
3.Data processing

• 1). Volume of the hollow cylinder

13

• 2).Volume of the sphere
