Basic Concepts

1

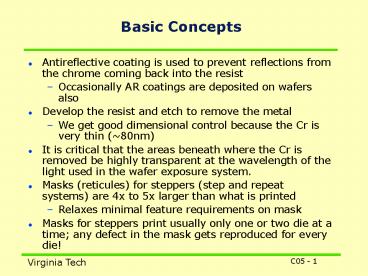

Basic Concepts

• Antireflective coating is used to prevent
  reflections from the chrome coming back into the
  resist
• Occasionally AR coatings are deposited on wafers
  also
• Develop the resist and etch to remove the metal
• We get good dimensional control because the Cr is
  very thin (80nm)
• It is critical that the areas beneath where the
  Cr is removed be highly transparent at the
  wavelength of the light used in the wafer
  exposure system.
• Masks (reticules) for steppers (step and repeat
  systems) are 4x to 5x larger than what is printed
• Relaxes minimal feature requirements on mask
• Masks for steppers print usually only one or two
  die at a time any defect in the mask gets
  reproduced for every die!

2
Reflectivity

• At the interface of two bulk layers

http//www.mellesgriot.com/products/optics/images/
3
Antireflectivity Coatings


• For l/4 thick films
• Ideal index of refraction for antireflective
  coating is v(nairnglass)

4
Basic Concepts

• We generally separate lithography into three
  parts
• The light source
• The exposure system
• The resist
• The exposure tool creates the best image possible
  on the resist (resolution, exposure field, depth
  of focus, uniformity and lack of aberrations)
• The photoresist transfers the aerial image from
  the mask to the best thin film replica of the
  aerial image (geometric accuracy, exposure speed,
  resist resistance to subsequent processing)

5
Light Source

• Historically, light sources have been arc lamps
  containing Hg vapor

• A typical emission spectra from a Hg-Xe lamp
• Low in DUV (200-300nm) but strong in the UV
  region (300-450nm)

6
Light Source

• To minimize problems in the lens optics, the lamp
  output must be filtered to select on of the
  spectral components.
• Two common monochromatic selections are the
  g-line at 436 nm and the i-line at 365 nm.
• The i-line stepper now dominates the 0.35 ?m
  market

7
Light Sources

• For 0.18 and 0.13, we use two excimer lasers (KrF
  at 248 nm and ArF at 193 nm)
• These lasers contain atoms that do not normally
  bond, but if they are excited the compounds will
  form when the excited molecule returns to the
  ground state, it emits
• These lasers must be continuously strobed
  (several hundred Hz) or pulsed to pump the
  excitation
• Can get several mJ of energy out
• Technical problems have been resolved for KrF and
  these are used for 0.25 and 0.18 ?m
• ArF is likely for 0.18 and 0.10 ?m technical
  problems remain

8
Exposure System

• There are three classes of exposure systems
• Contact
• Proximity
• Projection

9
Exposure System

• Contact printing is the oldest and simplest
• The mask is put down with the Cr in contact with
  the wafer
• This method
• Can give good resolution
• Machines are inexpensive
• Cannot be used for high-volume due to damage
  caused by the contact
• Still used in research and prototyping situations

10
Wafer Exposure Systems

• Proximity printing solves the defect problem
  associated with contact printing
• The mask and the wafer are kept about5 25 ?m
  apart
• This separation degrades the resolution
• Cannot print with features below a few microns
• The resolution improves as wavelength decrease.
  This is a good system for X-ray lithography
  because of the very short exposure wavelength
  (1-2 nm).

11
Wafer Exposure Systems

• For large-diameter wafers, it is impossible to
  achieve uniform exposure and to maintain
  alignment between mask levels across the complete
  wafer.
• Projection printing is the dominant method today
• They provide high resolution without the defect
  problem
• The mask (reticule) is separated from the wafer
  and an optical system is used to image the mask
  on the wafer.
• The resolution is limited by diffraction effects
• The optical system reduces the mask image by 4X
  to 5X
• Only a small portion of the wafer is printed
  during each exposure
• Steppers are capable of lt 0.25 ?m
• Their throughput is about 25 50 wafers/hour

12
Optics Basics

• We need a very brief review of optics
• If the dimensions of objects are large compared
  to the wavelength of light, we can treat light as
  particles traveling in straight lines and we can
  model by ray tracing
• When light passes through the mask, the
  dimensions of objects are of the order of the
  dimensions of the mask
• We must treat light as a wave

13
Optics Basics

• Diffraction occurs because light does not travel
  in straight lines
• Pass a light through a pin-hole we see that the
  image is larger than the hole
• This cannot be explained by ray tracing

14
Diffraction of Light
15
Diffraction of Light

• The Huygens-Fresnel principle states that every
  unobstructed point of a wavefront at a given time
  acts as a point source of a secondary spherical
  wavelet at the same frequency
• The amplitude of the optical field is the sum of
  the magnitudes and phases
• For unobstructed waves, we propagate a plane wave
• For light in the pin-hole, the ends propagate a
  spherical wave.

16
Diffraction of Light
17
Youngs Single Slit Experiment
sinq l/d
http//micro.magnet.fsu.edu/optics/lightandcolor/d
iffraction.html
18
Amplitude of largest secondary lobe at point Q,
eQ, is given by eQ a(A/r)f(c)d where A is
the amplitude of the incident wave, r is the
distance between d and Q, and f(c) is a function
of c, an inclination factor introduced by
Fresnel.
http//micro.magnet.fsu.edu/optics/lightandcolor/d
iffraction.html
19
Youngs Double Slit Experiment
http//micro.magnet.fsu.edu/optics/lightandcolor/i
nterference.html
20
Basic Optics

• This diffraction bends the light
• Information about the shape of the pin hole is
  contained in all of the light we must collect
  all of the light to fully reconstruct the pattern
• The following diagram shows how the system works
• Note that the focusing lens only collects part of
  the diffraction pattern
• The light diffracted at higher angles contains
  information about the finer details of the
  structure and are lost

21
Basic Optics
22
Basic Optics

• The image produced by this system is

23
Basic Optics

• The diameter of the central maximum is given
  by
• Note that you get a point source only if d ? ?

24
Basic Optics

• There are two types of diffraction
• Fresnel, or near field diffraction
• Fraunhofer, or far field diffraction
• In Fresnel diffraction, the image plane is near
  the aperture and light travels directly from the
  aperture to the image plane (see Figure 5-4)
• In Fraunhofer diffraction, the image plane is far
  from the aperture, and there is a lens between
  the aperture and the image plane (see Figure 5-6)
• Fresnel diffraction applies to contact and
  proximity printing while Fraunhofer diffraction
  applies to projections systems
• There are powerful simulations systems for both
  cases

25
Fraunhofer Diffraction

• We define the performance of the system in terms
  of
• Resolution
• Depth of focus
• Field of view
• Modulation Transfer Function (MTF)
• Alignment accuracy
• throughput

26
Fraunhofer Diffraction

• Imagine two sources close together that we are
  trying to image (two features on a mask)
• How close can these be together and we can still
  resolve the two points?
• The two points will each produce an Airy disk
  (5-7)
• Lord Rayleigh suggest that we define the
  resolution by placing the maximum from the second
  point source at the minimum of the first point
  source

27
Fraunhofer Diffraction
28
Fraunhofer Diffraction

• With this definition, the resolution
  becomes
• For air, n1
• ? is defined by the size of the lens, or by an
  aperture and is a measure of the ability of the
  lens to gather light

29
Fraunhofer Diffraction

• This is usually defined as the numerical
  aperture, or NA
• This really is defined only for point sources, as
  we used the point source Airy function to develop
  the equation
• We can generalize by replacing the 0.61 by a
  constant k1 which lies between 0.6 and 0.8 for
  practical systems

30
Fraunhofer Diffraction

• From this result, we see that we get better
  resolution (smaller R) with shorter wavelengths
  of light and lenses of higher numerical aperture
• We now consider the depth of focus over which
  focus is maintained.
• We define ? as the on-axis path length difference
  from that of a ray at the limit of the aperture.
  These two lengths must not exceed ?/4 to meet the
  Rayleigh criterion

31
Depth of Focus
32
Depth of Focus

• From this criterion, we have
• For small ?

33
Fraunhofer Diffraction

• From this we note that the depth of focus
  decreases sharply with both decreasing wavelength
  and increasing NA.
• The Modulation Transfer Function (MTF) is another
  important concept
• This applies only to strictly coherent light, and
  is thus not really applicable to modern steppers,
  but the idea is useful

34
Fraunhofer Diffraction

• Because of the finite aperture, diffraction
  effects and other non-idealities of the optical
  system, the image at the image plane does not
  have sharp boundaries, as desired
• If the two features in the image are widely
  separated, we can have sharp patterns as shown
• If the features are close together, we will get
  images that are smeared out.

35
Modulation Transfer Function
36
Fraunhofer Diffraction

• The measure of the quality of the aerial image is
  given by
• The MTF is really a measure of the contrast in
  the aerial image
• The optical system needs to produce MTFs of 0.5
  or more for a resist to properly resolve the
  features
• The MTF depends on the feature size in the image
  for large features MTF1
• As the feature size decreases, diffractions
  effects casue MTF to degrade

37
Change in MTF versus Wavelength
38
Contrast and Proximity Systems

• These systems operate in the near field or
  Fresnel regime
• Assume the mask and the resist are separated by
  some small distance g
• Assume a plane wave is incident on the mask
• Because of diffraction, light is bent away for
  the aperture edges
• The effect is shown in the next slide
• Note the small maximum at the edge this results
  from constructive interference
• Also note the ringing
• As a result, we often use multiple wavelengths

39
Fresnel Diffraction
40
Fresnel Diffraction

• As g increases, the quality of the image
  decreases because diffraction effects become more
  important
• The aerial image can generally be computed
  accurately whenwhere W is the feature size
• Within this regime, the minimum resolvable
  feature size is

41
Depth of Focus
http//www.research.ibm.com/journal/rd/411/holm1.g
if
42
