Working With Chemical Reactions

1

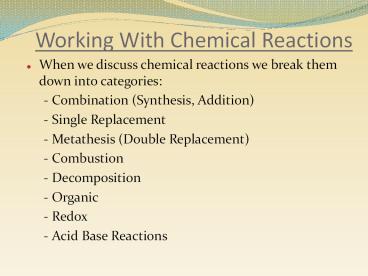

Working With Chemical Reactions

• When we discuss chemical reactions we break them
  down into categories
• - Combination (Synthesis, Addition)
• - Single Replacement
• - Metathesis (Double Replacement)
• - Combustion
• - Decomposition
• - Organic
• - Redox
• - Acid Base Reactions

2
Additional Categories

• Lewis Acid Base Reactions Adduct formation
• Reactions of Anhydrides Substances that do not
  contain water, but react with water to produce
  acids and bases, usually in the form of a gas
  bubbled through water or a solid. May also have
  acidic and basic reactants.
• Non-trivial redox slightly unpredictable

3
Identification Problems

• It is difficult to identify a reaction using only
  the reactants. For example
• Solid Calcium Oxide is exposed to a stream of
  Carbon Dioxide Gas.
• You are asked to write the equation, in net ionic
  form, if possible and to answer the following
  question
• What type of reaction has occurred?

4
Which Presents a Problem

• Presented with the complete reaction
• Solid Calcium Oxide is exposed to a stream of
  Carbon Dioxide Gas.
• CaO CO2 ? CaCO3
• It would be easy to determine that this is a
  combination reaction... but how can the behavior
  of CaO be predicted?

5
Strategies to Help

• Focus on gathering information about the
  reactants so we can determine the kinds of
  reactions they will undergo and better predict
  products.

• Learn strategies that can help to incorporate
  large amounts of information into our existing
  knowledge base.

6
First Rethink Memorization

• Rote memorization has distinct disadvantages.
• It doesnt allow you to apply knowledge in a
  variety of situations.
• When thinking of ways to study, its essential
  that facts not remain isolated but that there is
  an understanding the same principles may apply in
  more that one case.

7
Memorization Acquiring a Knowledge Base

• The Purpose of Memorization, is to allow you to
  acquire a working knowledge base that can be
  readily recalled so that you can use your mental
  energy to focus on higher level problem solving.
• In order to readily recall and remember
  information
• IT MUST BE ORGANIZED IN A WAY THAT IS
• Associated with your existing knowledge
• Grouped so that it can be readily used

8
To Help You to Learn How to Do This

• Reactants can be organized into broad categories,
  and breaking them down according to
  element/compound recognition (when looking at the
  reactants).
• Key tools you will need mainly solubility
  guidelines, acid/base lists, the reactivity
  series, must also be memorized.

9
Reactions By Reactant

• Starting from the reactions that are most
  numerous, and working towards narrower
  categories.
• 1) Simple Reactions Involving Metals
• 2) Non-metal Reactions not organic
• 3) Acid Base Reactions
• 4) Complex Ions
• 5) Non-trivial Redox

10
REMEMBER!!!

• There are 3 things that drive reactions forward
• Formation of a Gaseous product
• Formation of water
• Formation of an insoluble precipitate

11
Reactions of Elemental Metals

• Active metals react with cold water, steam, and
  non-oxidizing metals to varying degrees.
• These are single replacement reactions
• The table on page 153 in your text clearly shows
  this trend

12
(No Transcript)
13
Reactions of Elemental Metals

• The most active metals (K, Na, Li, Ca), will
  react with cold water to produce a metal oxide
  and hydrogen gas.

Small chunks of Sodium are added to cold water.
2Na 2H2O ? 2NaOH H2 Net Ionic 2Na
2H2O ? 2Na 2OH- H2 Describe a test
to confirm the gaseous product in your reaction
Hold a match to a flask containing a small sample
and listen for a pop.
14
Sodium and Water
Source 1
The flame is Hydrogen Gas which has ignited due
to the heat produced by the reaction.
15
Reactions of Elemental Metals

• The active metals from Al to Iron in the
  reactivity series will react with steam to
  produce the metal oxide and hydrogen gas.
• Steam is passed over solid magnesium.
• Mg H2O ? MgO H2

16
Reactions of Elemental Metals

• Active to less active metals, (Li to Pb on
  reactivity series), will react with non-oxidizing
  acids to produce the salt of the metal and
  Hydrogen gas.
• Calcium Metal is added to a dilute solution of
  Hydrochloric Acid.
• Ca HCl ? CaCl2 H2
• Net Ionic Ca 2H ? Ca2 H2
• Give at least one visual observation for this
  reaction
• The release of hydrogen gas would cause bubbling.


17
Reactions of Active Metals with O2

• SLPMg 's 4 active metals Sodium, Lithium,
  Potassium and Magnesium (only magnesium is stable
  in air and has to be ignited)
• Lithium Metal is burned in air.
• Besides Combustion, what type of reaction could
  this be classified as?
• 4Li O2 ? 2Li2O
• This is a synthesis, or combination reaction.

18
Reactions of Active Metals with O2

• SLPMg will burn in Oxygen to produce metal oxides
  that will all become strong bases when dissolved
  in water.
• These are combustion reactions and Synthesis
  reactions (combination), and redox reactions

Mg being ignited
Mg Burning (Source 1)
19
Less Reactive Metals O2

• Less reactive metals will also react with Oxygen
  to form oxides, however they do so without
  combustion.
• Six commonly react with unheated oxygen, each
  more slowly from Al, Zn, Fe, Sn, Pb, Cu.

Rust - Iron Oxide

Oxidized Copper
20
Less Reactive Metals O2

• Iron is heated and allowed to react in the
  presence of excess oxygen.
• 3Fe 2O2 ? Fe3O2
• The word excess in the question indicates that
  you should give Iron the higher oxidation state.
• What is the oxidation state of the Iron in the
  resulting compound.
• The Iron has adopted a 3 charge.

21
Least Active Metals

• Hg, Ag, Pd, Pt and Au are the least reactive
  metals.
• If they occur as oxides, they will readily
  decompose if heated.
• Gold and Platinum are
• the least reactive, and
• wont form oxides.
• Since gold does not
• Oxidize these gold
• Artifacts from Egypt to
• Survive thousands of
• years.

22
Reactions of Group 1 2 MetalsWith Nitrogen

• You may remember that Nitrogen as generally
  nonreactive due to its triple bond.
• Nitrogen does react with certain main group
  elements, but may require intense heat to provide
  the energy needed to drive the reaction.

23
Reactions of Group 1 2 MetalsWith Nitrogen

• Group 1 - only Lithium reacts with Nitrogen at
  room temperature to yield Li3N.
• 6Li N2 ? 2Li3N
• Group 2 - Mg, Ca, Ba and Sr will all react with
  nitrogen to produce compounds, but must be
  strongly heated. In all cases, the Nitrogen will
  adopt a -3 oxidation state.

24
Example Question

• Magnesium Metal is added to nitrogen gas.
• 3Mg N2 ? Mg3N2
• What is the oxidation number of Magnesium before
  and after the reaction?
• No Net Ionic equation is necessary. In this case
  since the magnesium is elemental its Oxidation
  state is initially 0 and goes to a 2.

25
Decomposition of the Products

• 6Li N2 ? 2Li3N (salt like solid)
• Decomposes to
• Li3N 3H2O ? 3Li OH- NH3
• 3M N2 ? M3N2 (s) where M Mg,Ca, Ba, Sr
• Decomposes when heated to
• M3N2 (s) ? 3M (s) N2(g)
• Or the Metal Nitride can react with water to
  produce ammonia and the metal hydroxide
• M3N2 (s) 6H2O (l) ? 3M(OH)2 (aq) 2NH3 (g)

26
Reactions of Metal Oxides

• Metal Oxides that are soluble, will react with
  water to form hydroxides.
• Calcium metal is heated strongly in the presence
  of oxygen.
• 2Ca O2 ? 2CaO
• If the product of this solution is added to water
  is the resulting mixture acidic or basic?
• 2CaO H2O ?2Ca2 2OH-
• The formation of hydroxide indicates this
  solution is basic.

27
Reactions of Metal Oxides

• Metal Oxides that are soluble, will react with
  water to form hydroxides.
• Solid Lithium Oxide is added to excess water.
• Is the final solution acidic, basic or neutral?
• Li2O H2O ? 2LiOH
• Net ionic Li2O H2O ? 2Li OH-
• The resulting solution is basic.

28
Example Questions

• Solid Barium Oxide is added to distilled water.
• Is the resulting solution acidic basic or
  neutral?

29
Reactions of Metal Oxides

• Metal oxides will react with non-metal oxides to
  form salts.
• Solid Calcium Oxide is exposed to a stream of
  Carbon Dioxide gas.
• CaO CO2 ? CaCO3
• What type of reaction has occurred?
• Synthesis/Combination
• notice that this forms an insoluble salt

30
Example Questions

• Sulfur Dioxide gas is passed over Solid Calcium
  Oxide.
• Name the product compound.

31
Example Questions

• A mixture of solid Calcium Oxide,
• And solid Tetraphosphorus Decaoxide is heated.
• Is the product compound soluble in water?

32

• CaO P4O10 ? Ca 4P 11O
• There is the potential to make phosphate and
  therefore get an insoluble product
• 6 calcium oxides and 1 tetraphosphorous decaoxide
  make exactly 2 calcium phosphates.
• 6CaO P4O10 ? 2Ca3(PO4)2

33
Reverse Reaction

• Carbonates will decompose back into metal oxides
  and carbon dioxide when roasted (heated).
• CaO CO2 ? CaCO3
• CaCO3 HEAT? CaO CO2

34
Reactions of Metal Oxides

• Metal Oxides will react with acids to produce
  water and a salt of the metal...this is like a
  version of a neutralization reaction.
• CaO 2HCl ? CaCl2 H2O
• Net Ionic CaO 2HCl ? Ca2 Cl- H2O
• From your packet A metal oxide is, in a real
  sense, a basic anhydride, i.e. a base with the
  water removed.
• So an acid plus a basic anhydride
  neutralization

35
Reactions of Metal Hydrides

• Typical metal hydrides are those formed from the
  reaction of a active group one or two metal, and
  hydrogen gas.
• In a metal hydride, hydrogen will carry a -1
  charge, instead of 1. You will notice that in
  hydrides H is not in front, but follows the metal
  cation, since here it is an anion.

36
Reactions of Metal Hydrides

• Metal hydrides react with water to produce the
  metal hydroxide, which you will recognize as a
  strong base, and hydrogen gas will be evolved.
• Solid Lithium Hydride is added to distilled
  water.
• LiH H2O ? LiOH H2
• Net Ionic LiH H2O ? Li OH- H2
• Is the final solution acidic, basic or neutral?
• The resulting solution would be basic.

37
Reaction Reversal

• Metal hydroxides may then decompose into metal
  oxides and water
• Zn(OH)2 ? ZnO H2O

38
Other Patterns - Decomposition

• Chlorates decompose into metal chlorides and
  oxygen gas
• Alkali and alkaline nitrates decompose into
  nitrites and oxygen gas

39
Example Question

• Solid Potassium Chlorate is heated in the
  presence of manganese dioxide as a catalyst.
• How many moles of reaction products can be
  produced from one mole of potassium chlorate.

40
Difficulties

• One of the more difficult types of questions are
  those that demand recall of a particular reaction
  in terms of physical observations.
• For example
• Aluminum Metal is added to a solution of Copper
  (II) Chloride.
• List at least 2 observations that indicate a
  chemical reaction is occurring.

41
Working through it

• Single replacement, double replacement, redox??
  Well sort of all of the above.
• We can get credit for at least half this equation
  because we know our reactivity series and we know
  Aluminum is more active than copper so
• Al CuCl2 ? AlCl3 Cu
• Balanced 2Al 3CuCl2 ? 2AlCl3 3Cu
• Net Ionic 2Al 3Cu2 ? 2Al3 3Cu

42
Now What?

• What if you've never done this reaction?
• Some information that can help If you would like
  you can memorize the colors of some transition
  metal ions. In water they form complex ions,
  which give them colors...

43
Colors of Complex Ions
44
That's one clue...

• If you know Copper is being reduced to Copper
  metal, its complex ion will come out of solution,
  so the blue/green color of the solution will
  fade.
• Now think harder, where is the copper going? Well
  it's being converted back to copper metal, which
  is a reddish color, so we could take a stab, and
  say there will be a red precipitate.
• Third... if you would like to see this for
  yourself, this reaction is most definitely
  exothermic go to
• http//www.youtube.com/watch?vOQPwPGDQqzs
• So you could also say, heat is given off.

45
(No Transcript)
46
Basic Comparison of Active Metals

• If the two metals are in the same group, the one
  in the lower position will be more reactive.
• If the two metals are in the same period, the one
  further left will be more reactive.
• Transition metals can be memorized as a list,
  often people use a mnemonic device, using the
  first letters.

47
Good Old Precipitates

• Knowing your solubility guidelines can really
  give you a lot of insight into reactions.
• A question that says both compounds are in
  solution can be written out in ionic form, where
  a pair of suspected precipitators can be
  identified.
• Additionally, a lot of complex ion reactions,
  involve the dissolving of an otherwise insoluble
  compound, using a strong base or acid, another
  clue!

48
Example Question

• Solutions of Silver Nitrate and Sodium Chromate
  are mixed.
• What is the oxidation number of the chromium in
  the chromate ion?

49

• Write your reaction and balance
• 2AgNO3 Na2CrO4 ? Ag2CrO4 2NaNO3
• Now you must write is it in net ionic form
• 2Ag CrO4-2 ? Ag2CrO4
• The Oxidation number of chromium in chromate is
  always the same, so even if you struggled with
  reaction, you should be able to say that this
  chromium is a 6

50
Example Question

• Solutions of Manganese (II) Sulfate and Ammonium
  Sulfide are mixed.
• List any precipitate that forms during this
  reaction.

51
Example Question

• A solution of copper (II) chloride is added to a
  solution of sodium sulfide.
• Name the spectator ions in this reaction.

52
Reactions of Non-Metals

• Organic reactions are specific and have their own
  section.
• Non-metals and oxygen react to form non-metal
  oxides, limited oxygen might produce a monoxide
  (like Carbon monoxide), excess produces the
  dioxide.
• 2 non-metals can undergo Combination/synthesis
  and form molecular compounds.

53
Reactions of Non-metals

• Non-metal oxides and water form ternary acids.
• ie. Dinitrogen pentoxide and water form?
• Carbon Dioxide and water form?
• Reverse Reaction Ternary acids decompose into
  non-metal oxides and water.

54
Answers

• Nitric Acid
• Carbonic Acid
• These are synthesis/combination reactions so all
  the reactants are in the product, acid should be
  written in ionic form because they are soluble.

55
Individual Reactions

• Unfortunately some characteristic reactions do
  need to be recognized and memorized.
• Carbon disulfide has a characteristic reaction
  with oxygen to produce Carbon Dioxide and Sulfur
  Dioxide.
• CS2 O2 ? CO2 SO2

56
Other Patterns - Decomposition

• Some ammonium salts decompose to lose ammonia.
• Ammonium salts containing nitrate or dichromate
  decompose to produce an oxide, water and nitrogen
  gas. The N or Cr undergoes reduction.
• Ex. Solid ammonium carbonate is
  heated.
• Classify the reaction type.
• Yields 2 ammonia, Carbon dioxide, and water. Heat
  is your clue that this is decomposition. Remove
  ammonia, and also carbonates decompose to carbon
  dioxide, the remaining elements form water.

57
Other Patterns - Decomposition

• Hydrogen peroxide decomposes in the presence of a
  catalyst to water and oxygen
• Ex. A solution of Hydrogen Peroxide is
  catalytically decomposed.
• Name the element being reduced and the element
  being oxidized.
• This needs to be balanced, two hydrogen peroxide
  yields two water and one oxygen molecule.

58
Example Question

• A solution of Hydrogen Peroxide is catalytically
  decomposed.
• Name the element being reduced and the element
  being oxidized.

59
Recommended Practice

• Create your own way to study the reactivity
  series, either as a visual or a memory trick. Be
  prepared to hand in a copy.
• Create your own way of representing the
  solubility rules, you can use the table example
  given in class, but make sure it includes all the
  precipitates you are responsible for.
• Reaction Schematic Organize all the reactions
  covered so far into a graphic format, like a
  table or flow chart. Make connections!!

60
Homework

• Complete the reaction worksheet

61
Sources and Links

• 1) University of Siegen, Germany cool chemistry
  photo page - http//www2.uni-siegen.de/pci/versuc
  he/english/v44-1-1.html

62
(No Transcript)
