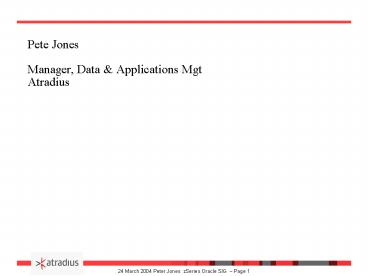

Pete Jones Manager, Data

1
Pete JonesManager, Data Applications
MgtAtradius
2

• Presentation Agenda
• Introductions. What ever happened to Jon
  Dartnell?
• Brief overview of Atradius.
• Implementing Oracle Cost Based Optimiser at
  Atradius.
• Next Oracle objectives.
• Oracle 9i Initial Impressions and a few
  thoughts on problem
• solving. (Paul Mansfield).

3
Introductions

• Robin Burge, Manager, Central Systems
  Infrastructure (CSI)
• Paul Mansfield, Senior z/Os Oracle Database
  Engineer (CSI)
• Pete Jones, Manager, Data Applications Mgt.
  (DAM)
• ATRADIUS formerly GERLINGNCM, previously NCM.

4
Brief Overview of Atradius
5
Brief Overview of Atradius

• Main Datacentre UK, Wales, Cardiff - 160 miles
  directly East of London, England.
• UK houses the Datacentre and has the
  preponderance of IT resources for Atradius.
• UK is a Branch office (ITS plus business approx.
  560 staff)
• Headquarters Netherlands, Amsterdam. (ITS plus
  business approx. 640 staff)
• Other Europe Cologne (Germany), Namur (Belgium),
  Paris (France), Italy (Rome), Nordic countries
  (Denmark, Sweden, Norway, Finland) Poland (other
  E. European countries).
• Rest of the World USA, Canada, Mexico,
  Australia, New Zealand, Japan, China, India
• Total Staff 3,500 (310 IT Staff).
• Main Lines of Business Credit Insurance
  administered through a Group Wide System, Credit
  Management, Bonding, Factoring.
• Financials Number two in the world credit
  insurance market with a total turnover of 1.3
  billion, a 25 market share worldwide.

6
Technical Overview

• Platforms
• IBM z900 Series, 2064/2C5 (4 LPARS - 5 CPUs,
  10gb memory)
• 12 Terabytes EMC , IBM 3494 Tape library
• IFL ready for VM/Linux
• AIX 1 x P690 (8 LPARS - 26 CPUs, 81gb
  memory), 8 x P610s .
• Intel/Linux New this year! http//www.atradius.
  com

7
Core Business Applications

• Internal Users SYMPHONY Group System 10yrs
  old!
• Oracle Forms 6 - access via Citrix, otherwise
  Forms on Desktop.
• dB Oracle 8.7.1.4.50 z/OS (size 207gb)
• Oracle Financials v11.5.8
• Other systems supporting Symphony
• Imaging system (Filenet)
• Cobol Batch (TWS8.2)
• Customer Reports dB (Oracle AIX )
• Pricing dB (Oracle - AIX)
• DWH (Oracle - AIX).
• Many Test environments (x16 full volume on z/OS)

8
Core Business Applications

• External Customers SERV_at_NET -
  http//www.atradius.com/serv_at_net
• IBM Apache and WebSphere v4.2
• CTG, CICS
• Same Backend dB as Symphony
• Java development - outsourced (THBS)

9
What have we achieved in the past year?

• INTEGRATION, INTEGRATION, INTEGRATION,
  INTEGRATION, INTEGRATION which has prevented us
  from do anything strategic with Oracle.
• But we did manage to squeeze in something.
• Implemented Oracle Cost Base Optimiser (CBO).

10
Implementing Oracle Cost Based Optimiser at
Atradius
11
Why CBO for Atradius?

• 1. RBO is no longer supported under 10g.
• 2. Although it is not a physical prerequisite for
  migrating to 9i, it would be a logical and common
  sense move to migrate to CBO first and get it
  stable.
• 3. There are a host of CBO features that we
  cannot use or properly use and these are starting
  to rear their heads as Symphony is developed.
• SOLD! Do we have a Choice? that was the easy
  bit

12
Implemented CBO by hook or by crook - a
managers view

• PRE Project planning
• 1. Not an easy project! Goal was 3 months to do
  it in.
• 2. Lack of resource available right from the
  beginning (QA and developers) Really needed
  more attention and commitment!
• 3. No clear strategy on how to implement CBO e.g.
  of table to be analysed there always
  conflicting information.
• 4. DBA Research! Test, analyse results and more
  research.

13
Implement CBO by hook or by crook a managers
view

• Some challenges we faced
• 1. Impacts on testing for on-going projects
  when to cut them over to CBO.
• 2. Impact on the release management process
  weekly changes, when do we need to re-analyse a
  Table/index how to implement that in Test gt
  Production.
• 3. How to manage CBO once in production.
• 4. Impact on performance! No firm idea until we
  were in production.
• 5. Contingency! we missed the first
  implementation date.

14
Implement CBO by hook or by crook a managers
view

• Production preparation tips
• 1. Finally received acceptance 6 months later (3
  months late) expect problems in Production!
• 2. For Week 12 ensure plenty of resource to
  react to production problems.
• 3. Communication and problem management - manage
  user expectations.
• 4. Implementation Timing Choose a quiet week
  e.g. school holiday, so system would be quieter
  by default.
• 5. A weekend implementation and perform as MUCH
  LIVE WORK as you can on that weekend.
• 6. Back-out plan!! Test it well first
  requirement minimum down time
• 7. As a manager book your vacation and get out of
  the country! 0)

15
Implement CBO by hook or by crook a managers
view

• Post Implementation
• First Day Top SQL statements doing full table
  scans from disk CPU up 100. System was holding
  out! Skiing vacation was excellent! (Paul will
  walk through some of the issues in more detail).
• Week 1 Very bad statements were fixed and going
  into second week CPU had dropped down, but still
  an increase of 25.
• Week 2 Skiing over ( and a month later we are
  still stable and managing the remaining/new
  performance issues.

16
Implement CBO by hook or by crook a managers
view

• Conclusion Overall not impressed and
  disappointed!
• Performance yet to see any performance
  benefits.
• DBAs tell me its more difficult to manage e.g.
  DB reorgs more complicated and always risks that
  execution paths will change after a reorg more
  performance testing, overhead on changes.
• Two months on and we still need to reduce our
  CPU!
• Still need to remove rule hints, which were used
  to quickly fix CBO performance problems.
• Still a steep learning curve for all my DBAs.
• CONCLUSION A successful Project CBO by hook or
  by crook

17
Next Oracle objectives for Atradius
18
.. what next ?

• Upgrade to 9.2 planning under way Paul has
  some initial technical feedback on this.
• Web Forms Proof Of Concept - strategic option
  is to go to a J2EE application, but have to take
  Web Forms as first step! Worrying factor is how a
  generated web application will perform?
• Linux/VM We are looking to push this forward
  starting with our web Infrastructure (Serv_at_net).
  Robin I have yet to agree time scales for
  running Oracle on this platform.
• 24 by 6.
• Oracle Financials upgrade to 11.5.9

19
Oracle 9i Initial Impressions and a few thoughts
on problem solving Author Paul Mansfield, IT
Services Date March 24, 2004
20

• A few gripes before I start
• CBO under 8i is pretty bad - hope its better
  under 9i
• A lot of the 9i installation documentation is
  generic and its very confusing to know which
  bits apply to Z/OS
• Patches very fragmented and...why do we end up
  with everything when we just selected a subset on
  the initial install
• The new route of going thru a middle level
  agent before speaking to mainframe support isnt
  working - it just delays things

21

• 9i Initial Thoughts
• We wanted to run 8.1.7.4 and 9.2.0.4 in same
  LPAR with a minimal number of IPLs during cutover
  and we wanted to keep the same service names.
• Changing TYPE in your SERVICE definitions
• ( NET8 to NET and ORA8 to ORA) requires an IPL.
• Documentation says you MUST change the TYPE
• but not true under 9.2.0.4.
• Can get away with one IPL.

22
Oracle 8 and 9 services can run alongside each
other under the same SSN but must use the new 9i
LLA modules DEFINE SERVICE ORAB DESC('Oracle
ORAB Database') - TYPE(ORA)
PROC(ORAORAB) -
MAXAS(1) -
PARM('ORACLE.V9R2M0.PARMLIB(O9PARM)')
DEFINE SERVICE NET9 PROCEDURE(ORANET9) TYPE(NET)
- DESCRIPTION('NET9
V9.2.0 OSDI TEST') -
PARM('HPNS PORT(1551) OSUSER -
DUMP(ORACLE.NET9.DUMP.OUTPUT)') DEFINE
SERVICE ORAX PROCEDURE(ORAORAX) TYPE(ORA8) -
DESCRIPTION('ORACLE DB V8.1.7 ODSI ORAX TEST')
- MAXAS(2) -

PARM('ORACLE.V8R1M7.PARMLIB(O8PARM)')
DEFINE SERVICE NET8 PROCEDURE(ORANET8)
TYPE(NET8) -
DESCRIPTION('NET8 V8.1.7 OSDI TEST') -
PARM('HPNS PORT(1549) OSUSER -
DUMP(ORACLE.NET8.DUMP2.OUTPUT)')
23
You could try writing a program to issue commands
to switch from an 8i service to a 9i service
//ORABSWAP JOB (0000,OR),'ORACLE
SWAP',CLASSA,// MSGCLASSX,PRTY15,MSGLEVEL(1,1
),NOTIFYSYSUID//STC EXEC PGMCOMMAND,PARM'OSDI
STOP ORAB'//WAIT EXEC PGMWAIT,PARM'10'//STC
EXEC PGMCOMMAND,// PARM'OSDI ALTER SERVICE
ORAB PROC(ORAB9204)'//STC EXEC PGMCOMMAND,//
PARM'OSDI ALTER SERVICE ORAB PARM('ORACLE.V9R2M0.
PARMLIB(O9PARM)')'//WAIT EXEC PGMWAIT,PARM'10'
//STC EXEC PGMCOMMAND,PARM'OSDI START
ORAB'// (sample kindly provided by Oracle
Support)
24

• A few changes we have to make to old jobs/procs
  etc
• No more SVRMGRL
• Audit records can no longer be cut to SMF
  datasets
• Construct CONNECT ABC/EDF_at_ZORAB no longer works

25

• Precompilers
• In the past we used both COBOL precompilers i.e
  PROCOB and PROCOB18.
• We would like to cutover to one precompiler with
  9i but tightening up in PROCOB precompiler
  means program changes are needed.
• Must use NODYNAM option and therefore programs
  should be changed to use CALL WS-VAR rather than
  CALL PROG1. (also applies to v8)
• Use PICXVARCHAR2 option (no longer the default)
  in precompiler step otherwise tests on fields
  with trailing blanks will include the blanks in
  comparisons. (also applies to v8)
• Compilations now produce a PM3 object rather
  than a load module at Linkedit time. These must
  be stored in a PDSE. You can produce a
  traditional load module if required.
• For the SYSPUNCH DD in the PROCOB step you must
  specify RECFMFB as part of the DCB information
  i.e DCB(RECFMFB,LRECL80,BLKSIZE800)
• All CICS programs have to be recompiled.

26

• Access Manager for CICS
• Documentation says you must set
  distributed_transactions parameter in INITORA.
  This is an obsolete parameter.
• The LIBCLNTS module is massive (25meg) . I found
  I needed the CICS region size to be 40meg greater
  than the EDSA size in the SIT to get it to load
  (why so big?!!).
• Some of our programs still had a CONNECT /
  this no longer works.

27

• Upgrade process
• Documentation rather frustrating. Seems to
  assume everyone going from MPM to OSDI.
• Couldnt get upgrade to work with 9.2.0.2.
  (ORA-03113 end of file on communication channel)
  Tried using 9.2.0.4 and went very smoothly.
• Control Files now larger
• Dont use SGA_MAX_SIZE
• DB_CACHE_SIZE instead of DB_BLOCK_BUFFERS, i.e
  db_block_buffers500 becomes db_cache_size2000k
• Even at 9.2.0.4 experienced hangs when issuing
  OSDI STOP commands (oh no! not more patches).

28
DO YOU EVER FEEL LIKE THIS?!
DEVELOPMENT
29

• A few thoughts on problem solving
• Some of the tools available
• Statspack or V queries
• IPCS
• LOGMNR
• Traces
• RMF monitor (enclave resource consumption)
• SMF stats

30
My favourite V query SELECT SQL_TEXT,
BUFFER_GETS, EXECUTIONS,
DECODE(EXECUTIONS,0,1,BUFFER_GETS/EXECUTIONS)
BUFF_EXEC, OPTIMIZER_MODE,
FIRST_LOAD_TIME, LOADS,
DISK_READS,
PARSING_USER_ID FROM
VSQLAREA
WHERE BUFFER_GETS gt 10000
ORDER BY BUFFER_GETS Look out for
any newcomers at the bottom of the heap. We
recently found the following
31
select procedure_catalog, procedure_schema,
procedure_name, parameter_name,
ordinal_position, parameter_type,
parameter_hasdefault, parameter_default,
is_nullable, data_type, character_maximum_length,
character_maximum_length character_octet_length,
numeric_precision, numeric_scale, description,
type_name, type_name, overload from (select null
procedure_catalog, owner procedure_schema,
decode(package_name,NULL,object_name,package_name
'.'object_name) procedure_name,
decode(position,0,'RETURN_VALUE',nvl(argument_name
,chr(0))) parameter_name, position
ordinal_position, decode(in_out,'IN',1,'IN/OUT',2,
'OUT',decode(argument_name,null,4,3),null)
parameter_type, null parameter_hasdefault, null
parameter_default, null is_nullable,
decode(data_type, 'CHAR', 129, 'NCHAR', 129,
'DATE', 135, 'FLOAT', 139, 'LONG', 129, 'LONG
RAW , 128, 'NUMBER', 139, 'RAW', 128, 'ROWID',
129, 'VARCHAR2', 129, 'NVARCHAR2', 129, 13)
data_type, decode(data_type, 'CHAR',
decode(data_length, null, 2000, data_length),
'LONG', 2147483647, 'LONG RAW', 2147483647,
'ROWID', 18, 'RAW', decode(data_length, null,2000,
data_length), 'VARCHAR2', decode(data_length,
null, 4000, data_length), 'DATE', null, 'FLOAT',
null, 'NUMBER', null, null) character_maximum_leng
th, decode(data_type, 'DATE', 19, 'FLOAT', 15,
'NUMBER', decode(data_precision, null, 0,
data_precision), 'CHAR', null, 'NCHAR', null,
'LONG', null, 'LONG RAW', null, 'RAW', null,
'VARCHAR2', null, 'NVARCHAR2', null,
null) numeric_precision, decode(data_type,
'DATE', 0, 'NUMBER', decode(data_scale, null, 0,
data_scale), 'CHAR', null, 'NCHAR', null,
'FLOAT', null, 'LONG', null, 'LONG RAW', null,
'RAW', null, 'VARCHAR2', null, 'NVARCHAR2',
null,null) numeric_scale, null description,
data_type type_name, overload from all_arguments
where data_level 0 and data_type is not null)
procedure_parameters where procedure_name
'GS_INSERT_SEARCH_RESULTS_SP' order by
1,2,3,5 ..GENERATED BY THIRD PARTY VB
APPLICATION!!
32

• Just a thought
• How about 2 new columns in VSQLAREA
• CPU_TIME
• ELAPSED_TIME
• Im impressed - they are there in Oracle 9 (in
  microseconds)
• Well done Oracle
• Tells me how costly a statement is without using
  trace
• --------------------------------------------------
  -------------------------
• BUFFER_GETS EXECUTIONS BUFF_EXEC OPTIMIZER_MODE
  CPU TIME ELAPSED TIME
• ----------- ---------- ----------
  ------------------------- ---------------
• UPDATE TBOR_NON_NCM_ORGANISATIONS SET
  D_ORCCT_ST_TOT_AMTb1 WHERE ID b2
• 3405291 67349 50.5618643 CHOOSE
  12.46 56.52

33
IPCS (interactive problem control facility) Ask
Oracle if you can have a set of their IPCS
routines to run on your machine. When a DUMP
occurs the first thing you want to know is who
caused it. If you can find this out 5 minutes
after the dump occurs and can contact the user
involved they may actually remember what they
were doing. Meanwhile you can be FTPing your 2
gig dump to Oracle Support.
34
IPCS (contd) use the MAPMIRS command -----------
-------------- IPCS Subcommand Entry
------------------------------- Enter a free-form
IPCS subcommand or a CLIST or REXX exec
invocation below

gt mapmirs




----------------------- IPCS Subcommands and
Abbreviations -------------------- ADDDUMP
DROPDUMP, DROPD LISTMAP, LMAP
RUNCHAIN, RUNC ANALYZE DROPMAP,
DROPM LISTSYM, LSYM SCAN
ARCHECK DROPSYM, DROPS LISTUCB,
LISTU SELECT ASCBEXIT, ASCBX
EQUATE, EQU, EQ LITERAL SETDEF,
SETD ASMCHECK, ASMK FIND, F
LPAMAP STACK
CBFORMAT, CBF FINDMOD, FMOD MERGE
STATUS, ST CBSTAT
FINDUCB, FINDU NAME
SUMMARY, SUMM CLOSE GTFTRACE,
GTF NAMETOKN SYSTRACE
COPYDDIR INTEGER NOTE,
N TCBEXIT, TCBX COPYDUMP
IPCS HELP, H OPEN
VERBEXIT, VERBX COPYTRC LIST,
L PROFILE, PROF WHERE, W
CTRACE LISTDUMP, LDMP RENUM,
REN
35
IPCS (contd) locate the entry with
STAT08xxxxxx MIRS7EEE39D0 KEY00800048 8388680
STAT0202000A GATE00000000 ATHP0F8CB5AC
gtgtJOBNORANET8 OUSROSUSR USRN TERM
PGMNMINBNDS SAVE1D7CEB90
CEET1D7C32C8 CSTO0009E218 HWST0009E218
ASID005C HASN0000 MIRS7EEBE9D0 KEY00760046
7733318 STAT0202000A GATE00000000 ATHP0F1765AC
gtgtJOBNORANET8 OUSROSUSR USRN TERM
PGMNMINBNDS SAVE1D5A1B90
CEET18AFD2C8 CSTO0017B818 HWST00186588
ASID005C HASN0000 MIRS7EED01D0 KEY00480042
4718658 STAT08020002 GATEFFEE0000 ATHP0F8CEB2C
gtgtJOBNORANET8 OUSROSUSR USRN TERM
PGMNMINBNDS SAVE00000000
CEET1A7AA2C8 CSTO00313848 HWST00000000
ASID005C HASN0000 use the MIRS address
0EED01D0 in the IPCS browse option. Scroll down a
page and you will hopefully see ............ORAN
ET8 ........ MINBNDS G048 0042GEORGE01
36
Try writing your own IPCS routine Dump will
contain block of stats e.g CPU used, Phys Reads,
Log Reads etc for each user and pointer to SQL
executed Sample output from 8.1.7.4 dump
analysis below gtgtUSRID ORAWPI5 SID 9 LOGRD
51208 CPU(MS) 890 PHYRD 12525 USER ROLLB
0 SQL BEGINb1DBMS_PIPE.RECEIVE_MESSAGE('BU_AGE
NCY_SEARCH')IFb10 THENb2D

gtgtUSRID ORAWPI6 SID 10 LOGRD
1406 CPU(MS) 181 PHYRD 179 USER ROLLB 0 SQL
BEGINb1DBMS_PIPE.RECEIVE_MESSAGE('bu_get_is_buy
er_data')IFb10 THENb

gtgtUSRID GLBFATW SID 11 LOGRD 0
CPU(MS) 0 PHYRD 0 USER ROLLB 0 SQL
SELECT NGBTL.ID,NGBTL.CLA_BUCLT_ID,NGBTL.ORNNN_ID,
NGBTL.WF_EVENT_TYPE FROM

gtgtUSRID CFTELS1 SID 12 LOGRD 2904
CPU(MS) 21 PHYRD 162 USER ROLLB 0 SQL



gtgtUSRID GLBFATW SID 13 LOGRD 0 CPU(MS) 0
PHYRD 0 USER ROLLB 0 SQL DELETE FROM
TBEA_BATCH_CHECKPOINT_DATA WHERE(EABSM_PROCESS_COD
Eb1 AND EA

gtgtUSRID SYS SID 14 LOGRD 0 CPU(MS) 0
PHYRD 0 USER ROLLB 0 SQL SELECT
TO_CHAR(SYSDATE,'YYDDDHH24MISS'),TO_CHAR(SYSDATE,'
DDMMYYYY'),TO_CHA ORABUP0 HI LOGR
124717277 ORABUP0 HI PHYS READS 6160749
ORABUP0 HI CPU 219262 ZZNDN03 HI
USER ROLLBACKS 198
37

• Log Miner
• Copy log before use
• Run queries against clone of our Prod system
• Doesnt work well with more than one large log
• Useful not just as an audit trail but also as a
  summary of who has been doing all the updates

38
Log Miner (contd) sample1 connect / as sysdba

execute sys.dbms_logmnr.add_logfile(-
logfilename gt
'/dsn/CFCICS1.BRINLOG.VSAM', -
options gt sys.dbms_logmnr.new)
exec
sys.dbms_logmnr.start_logmnr ( -
dictfilename gt
'/oracle/logs/ORAZ/dictionary.ora', -
STARTTIME gt to_date('09-Oct-2003
132500', 'DD-MON-YYYY HH24MISS'), ENDTIME gt
to_date('09-Oct-2003 132805', 'DD-MON-YYYY
HH24MISS')) SET HEADING OFF
SET
PAGESIZE 0
set arraysize 1
select
username, session, sql_undo, sql_redo from
vlogmnr_contents exec sys.dbms_logmnr.end_log
mnr ( )
39
Log Miner (contd) sample 2 execute
sys.dbms_logmnr.add_logfile(-
logfilename gt '/dsn/CFCICS1.BRINLOG.A0017639.LOG
', - options gt sys.dbms_logmnr.new)
exec sys.dbms_logmnr.start_logmnr
( - dictfilename gt
'/oracle/logs/ORAZ/dictionary.ora') SET
PAGESIZE 0
SELECT USERNAME, SESSION, OPERATION,
COUNT() FROM VLOGMNR_CONTENTS
GROUP BY USERNAME,
SESSION, OPERATION exec
sys.dbms_logmnr.end_logmnr ( )
40
Tracing Logon Triggers CREATE OR REPLACE
TRIGGER sys.LOG_TRIGGER AFTER LOGON ON
DATABASE begin if user 'ORAF012' or user
'ORAFPI3' or user 'ORAFPIP' then execute
immediate 'alter session set sql_Tracetrue'
end if end
41
Tracing (contd) Logon Trigger to show bind
variables (beware abends) CREATE OR REPLACE
TRIGGER LOG_TRIGGER_bind AFTER LOGON ON
DATABASE begin if user 'ORABPIP' or user
'ORAB001' then execute immediate 'alter
session set events ''' '10046 trace name
context forever, level 4''' end if end /
42
Tracing (contd) Issues with EXPLAIN PLAN when
using CBO Why does explain plan in the trace
show different path to explain plan when run
against the offending statement? I still want
to close my traces - bring back CLOSETRACE
command. If I extend into another trace dataset
does first one close?
43

• RMF Monitoring
• RMFWDM Overview
• Enclave Resource Consumption
• Enclave Attribute CLS/GRP P Goal D X
  EAppl TCPU USG DLY IDL
•

• SUMMARY
  8.468
• ENC00079 ORACLEHI 1 75
  0.866 1.051 13 1.7 70
• ENC00051 ORACLEHI 1 75
  0.450 0.772 9.0 2.0 20
• ENC00068 ORACLEHI 1 75
  0.371 6.060 2.1 2.1 76
• ENC00072 ORACLEHI 1 75
  0.268 6.490 4.1 0.0 86
• ENC00024 ORACLEHI 1 75
  0.237 4.803 6.0 1.2 76
• Userid . . . . . . . . . . GBSTHO3
• Subsystem Type OSDI Owner ORANET8 System
  SYS1
• Can look back in time

44

• SMF Statistics
• Some figures still a bit buggy but still can be
  very useful.
• Standard report provided.
• We extract top ten resource using sessions
  during the day. Summary of Oracle resource usage
  sent to IT managers
• Any internal users using more than 250 secs CPU
  in one day receive an e-mail asking what they
  were doing.
• Any developers found in production also get a
  mail.

45
Sample of Daily Report
