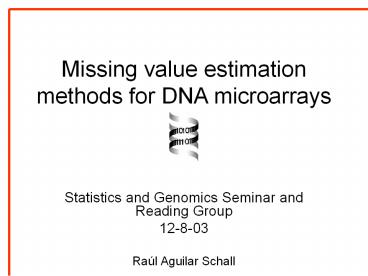

Missing value estimation methods for DNA microarrays

1
Missing value estimation methods for DNA
microarrays

• Statistics and Genomics Seminar and Reading Group
• 12-8-03
• Raúl Aguilar Schall

2

1. Introduction
2. Missing value estimation methods
3. Results and Discusion
4. Conclusions

3
1. Introduction

• Microarrays
• Causes for missing values
• Reasons for estimation

4
MICROARRAYS

• DNA microarray technology allows for the
  monitoring of expression levels of thaousands of
  genes under a variety of conditions.
• Various analysis techniques have been debeloped,
  aimed primarily at identifying regulatory
  patterns or similarities in expression under
  similar conditions.
• The data of microarray experiments is usually in
  the form of large matrices of expression levels
  of genes (rows) under different experimental
  conditions (columns) and frequently values are
  missing.

5
CAUSES FOR MISSING VALUES

• Insufficient resolution
• Image corruption
• Dust or scratches on the slide
• Result of the robotic methods used to create them

REASONS FOR ESTIMATING MISSING VALUES

• Many algorithms for gene expression analysis
  require a complete matrix of gene array values as
  input such as
• Hierarchical clustering
• K-means clustering

6
2. Missing value estimation methods

• Row Average or filling with zeros
• Singular Value Decomposition (SDV)
• Weighted K-nearest neighbors (KNN)
• Linear regression using Bayesian gene selection
• Non-linear regression using Bayesian gene
  selection

7
Row Average Or Filling With Zeros

• Currently accepted methods for filling missing
  data are filling the gaps with zeros or with the
  row average.
• Row averaging assumes that the expression of a
  gene in one of the experiments is similar to its
  expression in a different experiment, which is
  often not true.

8
2. Missing value estimation methods

• Row Average or filling with zeros
• Singular Value Decomposition (SDV)
• Weighted K-nearest neighbors (KNN)
• Linear regression using Bayesian gene selection
• Non-linear regression using Bayesian gene
  selection

9
Singular Value Decomposition SVDimpute

• We need to obtain a set of mutually orthogonal
  expression patterns that can be linearly combined
  to approximate the expression of all genes in the
  data set.
• The principal components of the gene expression
  matrix are referred as eigengenes.

• Matrix VT contains eigengenes, whose contribution
  to the expression in the eigenspace is quantified
  by corresponding eigenvalues on the diagonal of
  matrix ?.

10
Singular Value Decomposition SVDimpute

• We identify the most significant eigengenes by
  sorting them based on their corresponding
  eigenvalues.
• The exact fraction of eigengenes for estimation
  may change.
• Once k most significant eigengenes from VT are
  selected we estimate a missing value j in gene i
  by
• Regressing this gene against the k eigengenes
• Use the coefficients of regression to reconstruct
  j from a linear combination of the k eigengenes.

Note 1. The jth value of gene i and the jth
values of the k eigengenes are not used in
determining these regression coefficients. 2.
SVD can only be performed on complete matrices.
11
2. Missing value estimation methods

• Row Average or filling with zeros
• Singular Value Decomposition (SDV)
• Weighted K-nearest neighbors (KNN)
• Linear regression using Bayesian gene selection
• Non-linear regression using Bayesian gene
  selection

12
Weighted K-Nearest Neighbors (KNN)

• Consider a gene A that has a missing value in
  experiment 1, KNN will find K other genes which
  have a value present in experiment 1, with
  expression most similar to A in experiments 2N
  (N is the total number of experiments).
• A weighted average of values in experiment 1 from
  the K closest genes is then used as an estimate
  for the missing value in gene A.
• Select genes with expression profiles similar to
  the gene of interest to impute missing values.
• The norm used to determine the distance is the
  Euclidean distance.

13
2. Missing value estimation methods

• Linear regression using Bayesian gene selection
• Gibbs sampling (quick overview)
• Problem statement
• Bayesian gene selection
• Missing-value prediction using strongest genes
• Implementation issues

14
Linear Regression Using Bayesian Gene Selection

• Gibbs sampling
• The Gibbs sampler allows us effectively to
  generate a sample X0,,Xm f(x) without
  requiring f(x).
• By simulating a large enough sample, the mean,
  variance, or any other characteristic of f(x) can
  be calculated to the desired degree of accuracy.
• In the two variable case, starting with a pair of
  random variables (X,Y), the Gibbs sampler
  generates a sample from f(x) by sampling instead
  from the conditional distributions f(xy) and
  f(yx).
• This is done by generating a Gibbs sequence of
  random variables

15
Linear Regression Using Bayesian Gene Selection
cont.

• The initial value Y0 y0 is specified, and the
  rest of the elements of the sequence are obtained
  iteratively by alternately generating values
  (Gibbs sampling) from

• Under reasonably general conditions, the
  distribution of Xk converges to f(x)

16
Linear Regression Using Bayesian Gene Selection
cont.

• Problem statement
• Assume there are n1 genes and we have m1
  experiments
• Without loss of generality consider that gene y,
  the (n1)th gene, has one missing value in the
  (m1)th experiment.
• We should find other genes highly correlated with
  y to estimate the missing value.

17
Linear Regression Using Bayesian Gene Selection
cont.

• Use a linear regression model to relate the gene
  expression levels of the target gene and other
  genes

18
Linear Regression Using Bayesian Gene Selection
cont.

• Bayesian gene selection
• Use a linear regression model to relate the gene
  expression levels of the target gene and other
  genes
• Define ? as the nx1 vector of indicator variables
  ?j such that ?j 0 if ?j 0 (the variable is
  not selected) and ?j 1 if ?j ? 0 (the
  variable is selected). Given ?, let ?? consist of
  all non-zero elements of ? and let X? be the
  columns of X corresponding to those of ? that are
  equal to 1.
• Given ? and ?2, the prior for ?? is

• Empirically set c100.

19
Linear Regression Using Bayesian Gene Selection
cont.

• Given ?, the prior for ?2 is assumed to be a
  conjugate inverse-Gamma distribution

• ?inj1 are assumed to be independent with
  p(?i1) ?j ,
• j 1,,n where ?j is the probability to select
  gene j. Obviously, if we want to select 10 genes
  from all n genes, then ?j may be set as 10/n.
• In the examples ?j was empirically set to 15/n.
• If ?j is chosen to take larger a larger value,
  then
• (XT? X?)-1 is often singular.
• A Gibbs sampler is employed to estimate the
  parameters.

20
Linear Regression Using Bayesian Gene Selection
cont.

• The posterior distributions of ?2 and ? are given
  respectively by

• In the study, the initial parameters are randomly
  set.
• T35 000 iterations are implemented with the
  first 5000 as the burn-in period to obtain the
  Monte Carlo samples.

• The number of times that each gene appears for
  t5001,,T is counted.
• The genes with the highest appearance frequencies
  play the strongest role in predicting the target
  gene.

21
Linear Regression Using Bayesian Gene Selection
cont.

• Missing-value prediction using the strongest
  genes
• Let Xm1,? denote the (m1)-th expression
  profiles of these strongest genes.
• There are three methods to estimate ?? and
  predict the missing value ym1
• Least-squares
• Adopt model averaging in the gene selection step
  to get ?. However this approach is problematic
  due to different numbers of genes in different
  Gibbs iterations.
• The method adopted is for fixed ?, the Gibbs
  sampler is used to estimate the linear regression
  coefficients ?. Draw the previous ?? and ?2 and
  then iterate the two steps. T 1500 iterations
  are implemented with the first 500 as the burn-in
  to obtain the Monte Carlo samples
• ?(t), ?2(t), t501,,T

22
Linear Regression Using Bayesian Gene Selection
cont.
The estimated value for ym1is
23
Linear Regression Using Bayesian Gene Selection
cont.

• Implementation issues
• The computational complexity of the Bayesian
  variable selection is high. (v.gr., if there are
  3000 gene variables, then for each iteration (XT?
  X?)-1 has to be calculated 3000 times).
• The pre-selection method selects genes with
  expression profiles similar to the target gene in
  the Euclidian distance sense
• Although ?j was set empirically to 15/n, you
  cannot avoid the case that the number of selected
  genes is bigger than the sample size m. If this
  happens you just remove this case because (XT?
  X?)-1 does not exist.
• This algorithm is for a single missing-value. You
  have to repeat it for each missing value.

24
2. Missing value estimation methods

• Row Average or filling with zeros
• Singular Value Decomposition (SDV)
• Weighted K-nearest neighbors (KNN)
• Linear regression using Bayesian gene selection
• Non-linear regression using Bayesian gene
  selection

25
Nonlinear Regression Using Bayesian Gene Selection

• Some genes show a strong nonlinear property
• The problem is the same as stated in the previous
  section
• The nonlinear regression model is composed of a
  linear term plus a nonlinear term given by

• Apply the same gene selection algorithm and
  missing-value estimation algorithm as discussed
  in the previous section
• It is linear in terms of ?(X).

26
3. Results and Discusion

• The SDV and KNN methods were designed and
  evaluated first (2001).
• The Linear and Nonlinear methods are newer
  methods (2003) that are compared to the KNN,
  which proved to be the best in the past.

27
Set up for the Evaluation of the Different Methods

• Each data set was preprocessed for the evaluation
  by removing rows and columns containing missing
  expression values.
• Between 1 and 20 of the data were deleted at
  random to create test data sets.
• The metric used to assess the accuracy of
  estimation was calculated as the Root Mean
  Squared (RMS) difference between the imputed
  matrix and the original matrix, divided by the
  average data value in the complete data set.
• Data sets were
• two time-series (noisy and not)
• one non-time series.

28

• KNN
• The performance was assessed over three different
  data sets (both types of data and percent of data
  missing and over different values of K)

1 3 5 12
17 23 92 458
916
29

• The method is very accurate, with the estimated
  values showing only 6-26 average deviation from
  the true values.
• When errors for individual values are considered,
  aprox. 88 of the values are estimated with
  normalized RMS error under 0.25, with noisy time
  series with 10 entries missing.
• Under low apparent noise levels in time series
  data, as many as 94 of values are estimated
  within 0.25 of the original value.

1 0.5
1 1.5
30

• KNN is accurate in estimating values for genes
  expressed in small clusters (matrices as low as
  six columns).
• Methods as SVD or row average are inaccurate in
  small clusters because the clusters themselves do
  not contribute significantly to the global
  parameters upon which these methods rely

31

• SVD
• SVD-method deteriorates sharply as the number of
  eigengenes used is changed.
• Its performance is sensitive to the type of data
  being analyzed

32

• Comparison of KNN, SVD and row average

33
Performance of KNNimpute and SVDimpute methods on
different types of data as a function of data
missing
34

• Linear and Nonlinear regression methods
• These two methods were compared only against
  KNNimpute
• Three aspects were considered to assess the
  performance of these methods
• Number of selected genes for different methods
• Comparison based on the estimation performance on
  different amount of missing data
• Distribution of errors for three methods for
  fixed K7 at 1 of data missing
• Both linear and nonlinear predictors perform
  better than KNN
• The two new algorithms are robust relative to
  increasing the percentage of missing values.

35
Effect of the number of selected genes used for
different methods
36
Performance comparison under different data
missing percentages
37
Error histograms of different estimation methods
and 1 missing data rate.
38
4. Conclusions

• KNN and SVD methods surpass the commonly accepted
  solutions of filling missing values with zeros or
  row average.
• Linear and Nonlinear approaches with Bayesian
  gene selection compare favorably with KNNimpute,
  the one recommended among the two previous.
  However, these two new methods imply a higher
  computational complexity.

39
Literature

• Xiaobo Zhou, Xiaodong Wang, and Edward R.
  Dougherty
• Missing-value estimation using linear and
  non-linear regression with Bayesian gene
  selectionbioinformatics 2003 19 2302-2307.
• Olga Troyanskaya, Michael cantor, Gavin Sherlock,
  pat brown, Trevor Hastie, Robert Tibshirani,
  David Botstein, and Russ B. Altman
• Missing value estimation methods for DNA
  microarraysbioinformatics 2001 17 520-525.
• George Casella and Edward I. George
• Explaining the Gibbs sampler.
• The American statistician, august 1992, vol. 46,
  no. 3 167-174.
