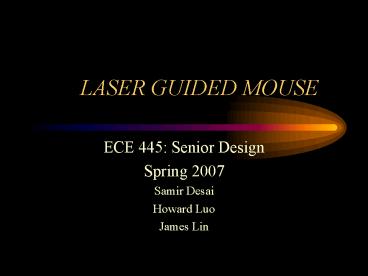

LASER GUIDED MOUSE

1
LASER GUIDED MOUSE

• ECE 445 Senior Design
• Spring 2007
• Samir Desai
• Howard Luo
• James Lin

2
Project Description

• Through the combination of a standard laser
  pointer and a clicking device that we designed,
  we have revolutionized the presentation industry
  by introducing a new freedom of movement while
  maintaining control of the computer wireless and
  effortlessly

3
Project Sub-units

• This project was divided into three main
  sub-units
• Device design and fabrication
• System integration and driver manipulation
• Image acquisition and analysis

4
Device Circuit Design

• Goals of the Clicking Device
• Wireless
• Simple Logic
• Low Power Consumption
• Configurable size
• No lag time
• Very little noise
• Transmission speed that allows rapid double
  clicking

5
Design Basics

• Two capacitive push buttons send parallel signals
  that represent the Left and Right mouse clicks
• Parallel signals are encoded into a serial signal
  using an 8 bit shift register. The shift register
  provides a start and stop code that enclose the
  LR signals 010LR010

6
Design Basics Continued

• Shift Register outputs serial signal to a
  Transmitter which then wireless sends the signal
  to a Receiver on a different board.
• Receiver takes the signal and sends it to a
  Max232 which converts the voltages into values
  the serial port will recognize and transfers them
  via DB9 and RS232 cable to the com port.

7
555 Timer

• Shift register needed a clock frequency that
  would be recognized by comport and be fast enough
  to allow a rapid double click.
• We chose 2400 bits per second (Hz)
• LM 555 Timer allowed us to generate a clock very
  near this frequency

8
555 Timer continued
Using two resisters of value 1600 Ohms and 2000
Ohms and two capacitors of value .1uF and .01uF,
we generated a clock signal of 2576 Hz with a
duty cycle 64.3
9
555 Generated Waveform
10
Design issues and solutions

• After the basic design was completed, there were
  some problematic issues that needed fixing
• Too much noise
• Power source regulation
• Square wave generation

11
Clicker Schematic
12
Receiver Schematic
13
Printed Circuit Boards

• Once final boards were built and successfully
  tested, we designed PCBs
• Helped with size configuration
• Provided more suitable casing options

14
PCB issues

• The PCBs for the clicker and the receiver were
  never successfully tested
• 555 timer
• Max232
• Hardwiring
• Floating voltages

15
PCB pictures Clicker
16
PCB pictures Receiver
17
Casing Pictures Clicker
18
Casing Pictures Clicker continued
19
Casing Pictures Receiver
20
Casing Pictures Receiver continued
21
Testing and Plots

• Capacitive button

22
Testing and Plots continued

• Transmitter to Receiver 2400 Hz

23
Testing and Plots continued

• Transmitter to DB9 input at 2400 Hz and 20 feet

24
Future Improvements

• Drag and Drop feature
• Miniaturization
• USB implementation

25
System Integration

• Serial data read into COM port and analyzed
• Relative location of laser pointer acquired from
  image processing
• Integration of these two factors followed by
  mouse driver manipulation

26
Block Diagram of Integration
27
Serial Port Test HowTo

• Hardware Serial loop back
• Software Reads in data from the serial port and
  interprets data as Left or Right click

28
Serial port loopback

• Serial port pin diagram

29
RS232 Test Program
30
RS232 Test Program
31
RS232 Test Program
32
RS232 Test Program
33
Behind the GUI

• Serial Port Settings
• Baud Rate 2400
• Data Bits 7
• Stop Bit 1
• Parity Bit none

34
Reading from the Receiver
35
SerialPort Class in .Net Framework

• Close Closes the port connection and sets the
  IsOpen property to false
• Open Opens a new serial port connection
• ReadExisting Reads all immediately available
  bytes, based on the encoding, in both the stream
  and the input buffer of the SerialPort object.
• Write Writes data to the serial port output
  buffer

36
Process for reading COM port

• Open COM port
• On data received, read in data from COM port
  buffer
• Interpret data
• Close COM port

37
GUI of COM port tester
38
Reading from Image Processor

• clickLocation detector.point

39
Mouse control HowTo

• Use import method SendInput of the user32.dll
  library
• DllImport the User32.dll
• Remember to add the library
• using System.Runtime.InteropServices

40
Testing Mouse Control
41
Process for Mouse Control

• Set Text Left / Right
• Set the cursor to memorized location
• Set up the INPUT structure
• Fill it for mouse down and send the input
• Fill it for mouse up and send the input

42
Image Processing

• Logitech QuickCam Fusion
• Microsoft DirectShow
• 320x240 BitMap
• 8-10 fps
• Applied a red filter to camera lens

43
Image Processing
44
Image Processing

• Every 5 pixels of BitMap is checked
• Finds brightest spot in picture

45
GUI
46
Calibration

• Software automatically determines the users
  screen resolution
• Define four corners using laser pointer and
  buttons on GUI
• Use corners to determine upper lower, left, and
  right bounds
• Calculate XFactor and YFactor
• Convert BitMap location to screen (x, y)

47
Calibration Marks
48
Calibration
49
Calibration

• XFactor and YFactor 3.5 4.5
• Therefore approximately every 20 pixels on the
  screen is clickable
• point new Point(ScreenX, ScreenY)

50
Calibration
51
Future Improvements

• Faster scanning for more precision
• Automatic detection of background brightness
• Compensation for slanted projected screen
  (Keystone)

52
Ethical Considerations

• Dont point lasers in peoples eyes!

53
Special Thanks to

• Ethan Miller ECE 445 Teaching Assistant
• Scott McDonald Machine shop supervisor
• Wally Smith ECE parts shop inventory staff
• Mark Smart ECE parts shop PCB fabrication
• Thank you all for your time and patience. We
  could not have done it without you!

54
Questions

• Any questions?
