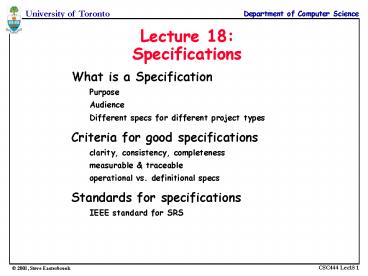

Lecture 18: Specifications

1
Lecture 18Specifications

• What is a Specification
• Purpose
• Audience
• Different specs for different project types
• Criteria for good specifications
• clarity, consistency, completeness
• measurable traceable
• operational vs. definitional specs
• Standards for specifications
• IEEE standard for SRS

2
What is a Specification?

• A specification is an agreement
• between the producer of a service
• and the consumer of that service
• Software must be specified precisely
• if there is a danger of misunderstanding (or
  forgetting) the consumers needs
• if more than one persons needs are represented
• if more than one person will be developing the
  software

3
Uses of specifications

• Statement of user needs
• communicates understanding of those needs to
  everyone involved
• acts as a check that the real needs have been
  captured
• must be understandable by the owners of those
  needs!
• Statement of implementation constraints
• a point of reference for the developers
• can be used to justify development goals and
  resources
• Documentation of a product
• a point of reference for product maintainers
• must be updated when the product is updated
• baseline for change requests
• A legal contract
• a point of reference for verification and
  certification
• must be possible to determine whether the
  specification was met
• must be updated whenever changes are negotiated

4
Choosing appropriate Spec types
Source Adapted from Blum 1992, p154-5

• Consider two different projects
• A) Small project, 1 programmer, 6 months
• programmer talks to customer, then writes up a
  5-page memo
• B) Large project, 50 programmers, 2 years
• team of analysts model the requirements, then
  document them in a 500-page SRS

5
Desiderata for Specifications
Source Adapted from the IEEE-STD-830-1993. See
also van Vliet 1999, pp225-226

• Valid (or correct)
• expresses actual requirements
• Complete
• Specifies all the things the system must do
• ...and all the things it must not do!
• Responses to all classes of input
• Structural completeness, and no TBDs!!
• Consistent
• doesnt contradict itself (i.e. is satisfiable)
• Uses all terms consistently
• Note timing and logic are especially prone to
  inconsistency
• Necessary
• doesnt contain anything that isnt required

• Unambiguous
• every statement can be read in exactly one way
• define confusing terms in a glossary
• Verifiable
• a process exists to test satisfaction of each
  requirement
• every requirement is specified behaviorally
• Understandable (Clear)
• by non-computer specialists
• Modifiable
• Carefully organized, with minimal redundancy
• Traceable!

6
Restrictiveness vs. Generality

• Specificand Sets
• A specification describes a set of acceptable
  behaviours
• The set of all implementations that meet a
  specification are its specificand set
• There are always an infinite number of possible
  implementations
• E.g.
• Restrictiveness
• a specification should rule out any
  implementation that is unacceptable to its users
• Generality
• a specification should be general enough so that
  few of the acceptable implementations are
  excluded.
• In particular the more desirable (e.g. elegant,
  efficient) implementations
• should not be excluded.
• Examine every condition in the spec and ask if
  its really needed

This specification is trivial, but its
specificand set is still infinite!
procedure foo(x int) returns yint effects x y
7
Ambiguity

• Is this ambiguous?
• Can test by trying to translate it
• if you get different answers from different
  people, then it is ambiguous.

The system shall report to the operator all
faults that originate in critical functions or
that occur during execution of a critical
sequence and for which there is no fault recovery
response.
8
Consistency and Completeness

• Consistency
• an inconsistent specification contradicts itself
  and therefore cannot be satisfied
• inconsistency may depend on context
• In practice, inconsistency is hard to test for.
• Completeness
• internally complete
• all terms are defined
• no TBDs
• Complete with respect to the requirements
• i.e. describes all services needed by the users
• In practice, completeness is nearly impossible to
  achieve
• aim for balance between generality and
  restrictiveness

The text should be kept in lines of equal length
specified by the user. Spaces should be inserted
between words to keep the line lengths equal. A
line break should only occur at the end of a word
9
Operational vs. Definitional

• An Operational Specification
• describes an abstraction in terms of its intended
  behaviour
• by describing how it might work
• e.g.
• A Declarative Specification
• describes an abstraction in terms of the desired
  properties of the implementation
• by describing some properties it must obey
• e.g.
• Declarative specifications are better
• More general (less implementation bias)
• Easier to verify

procedure search(list a, int x) returns
int effects examines each element of a in turn
and returns the index of the first one that is
equal to x. signals NOT_IN if it reaches the end
of the list without finding x.
procedure search(list a, int x) returns
int effects returns i such that aix signals
NOT_IN if there is no such i.
10
Modifiability and Traceability

• Modifiability
• well-structured, indexed, cross-referenced, etc.
• redundancy reduces modifiability
• avoid or clearly mark as such
• An SRS is not modifiable if it is not
  traceable...
• Traceability
• Backwards each requirement traces to a source
• e.g. a requirement in the system spec a
  stakeholder etc
• Forwards each requirement traces to parts of the
  design that satisfy that requirement
• Note traceability links are two-way hence other
  documents must trace into the SRS
• Every requirement must have a unique label.
• Useful Annotations
• E.g. relative necessity and relative stability

11
IEEE Standard for SRS
Source Adapted from IEEE-STD-830-1993 See also,
van Vliet 1999, pp226-231
Identifies the product, application domain

• 1 Introduction
• Purpose
• Scope
• Definitions, acronyms, abbreviations
• Reference documents
• Overview
• 2 Overall Description
• Product perspective
• Product functions
• User characteristics
• Constraints
• Assumptions and Dependencies
• 3 Specific Requirements
• Appendices
• Index

Describes contents and structure of the remainder
of the SRS
Describes all external interfaces system, user,
hardware, software also operations, site
adaptation, and hardware constraints
Summary of major functions
Anything that will limit the developers options
(e.g. regulations, reliability, criticality,
hardware limitations, parallelism, etc)
All the requirements go in here (I.e. this is the
body of the document). IEEE STD provides 8
different templates for this section
12
IEEE STD Section 3 (example)
Source Adapted from IEEE-STD-830-1993. See also,
Blum 1992, p160

• 3.1 External Interface Requirements
• 3.1.1 User Interfaces
• 3.1.2 Hardware Interfaces
• 3.1.3 Software Interfaces
• 3.1.4 Communication Interfaces
• 3.2 Functional Requirements
• this section organized by mode, user class,
  feature, etc. For example
• 3.2.1 Mode 1
• 3.2.1.1 Functional Requirement 1.1
• 3.2.2 Mode 2
• 3.2.1.1 Functional Requirement 1.1
• ...
• 3.2.2 Mode n
• ...

• 3.3 Performance Requirements
• Remember to state this in measurable terms!
• 3.4 Design Constraints
• 3.4.1 Standards compliance
• 3.4.2 Hardware limitations
• etc.
• 3.5 Software System Attributes
• 3.5.1 Reliability
• 3.5.2 Availability
• 3.5.3 Security
• 3.5.4 Maintainability
• 3.5.5 Portability
• 3.6 Other Requirements

13
References

• van Vliet, H. Software Engineering Principles
  and Practice (2nd Edition) Wiley, 1999.
• Section 9.2 covers most of the material in this
  lecture, and gives a good introduction to the
  IEEE standards.
• IEEE-STD-830-1993
• Is the current IEEE standard that covers software
  specifications. It is available electronically
  through the IEEE electronic library (access via U
  of T library website for the campus-wide
  subscription)
• Blum, B. Software Engineering A Holistic View.
  Oxford University Press, 1992
• Provides some additional insights into how to
  write good specifications.
