AS 4022: Cosmology

1

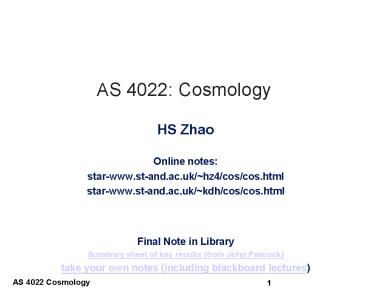

AS 4022 Cosmology

• HS Zhao
• Online notes
• star-www.st-and.ac.uk/hz4/cos/cos.html
• star-www.st-and.ac.uk/kdh/cos/cos.html
• Final Note in Library
• Summary sheet of key results (from John Peacock)
• take your own notes (including blackboard
  lectures)

2
(No Transcript)
3
The Visible Cosmos a hierarchy of structure and
motion

• Cosmos in a computer

4
Observe A Hierarchical Universe

• Planets
• moving around stars
• Stars grouped together,
• moving in a slow dance around the center of
  galaxies.

5

• Galaxies themselves
• some 100 billion of them in the observable
  universe
• form galaxy clusters bound by gravity as they
  journey through the void.
• But the largest structures of all are
  superclusters,
• each containing thousands of galaxies
• and stretching many hundreds of millions of light
  years.
• are arranged in filament or sheet-like
  structures,
• between which are gigantic voids of seemingly
  empty space.

6
Cosmic Village

• The Milky Way and Andromeda galaxies,
• along with about fifteen or sixteen smaller
  galaxies,
• form what's known as the Local Group of galaxies.

• The Local Group
• sits near the outer edge of a supercluster, the
  Virgo cluster.
• the Milky Way and Andromeda are moving toward
  each other,
• the Local Group is falling into the middle of the
  Virgo cluster, and
• the entire Virgo cluster itself,
• is speeding toward a mass
• known only as "The Great Attractor."

7
Introducing Gravity and DM (Key players)

• These structures and their movements
• can't be explained purely by the expansion of the
  universe
• must be guided by the gravitational pull of
  matter.
• Visible matter is not enough
• one more player into our hierarchical scenario
• dark matter.

8
(No Transcript)
9
1st main concept in cosmology

• Cosmological Redshift

10
(No Transcript)
11
1st main concept Cosmological Redshift

• The space/universe is expanding,
• Galaxies (pegs on grid points) are receding from
  each other
• As a photon travels through space, its wavelength
  becomes stretched gradually with time.
• Photons wave-packets are like links between grid
  points
• This redshift is defined by

12

• E.g. Consider a quasar with redshift z2. Since
  the time the light left the quasar the universe
  has expanded by a factor of 1z3. At the epoch
  when the light left the quasar,
• What was the distance between us and Virgo
  (presently 15Mpc)?
• What was the CMB temperature then (presently 3K)?


13
Lec 2 Cosmic Timeline

• Past ? Now

14
Set your watches 0h0m0s
Trafalgar Square London Jan 1
Fundamental observers
H
H
H
H
H
H
H
H
A comic explanation for cosmic expansion
15
3 mins later
He
He
Homogeneous Isotropic Universe
16
Feb 14 t45 days later
D2
D3
D1
C1
C2
C3
d?
B1
A1
R(t)
?
B2
d?
A2
B3
A3
17
2nd Concept metric of 12D universe

• Analogy of a network of civilization living on an
  expanding star (red giant).
• What is fixed (angular coordinates of the grid
  points)
• what is changing (distance).

18
Analogy a network on a expanding sphere
3
2
.
1
Angle f1
4
2
3
Expanding Radius R(t)
1
4
Fundamental observers 1,2,3,4 with Fixed angular
(co-moving) coordinates (?,f) on expanding
spheres their distances are given by Metric at
cosmic time t ds2 c2 dt2-dl2, dl2 R2(t)
(d?2 sin2 ? df2)
Angle ?1
19
3rd Concept The Energy density of Universe

• The Universe is made up of three things
• VACUUM
• MATTER
• PHOTONS (radiation fields)
• The total energy density of the universe is made
  up of the sum of the energy density of these
  three components.
• From t0 to t109 years the universe has expanded
  by R(t).

20
Eq. of State for Expansion analogy of baking
bread
?? ??

• Vacuumair holes in bread
• Matter nuts in bread
• Photons words painted
• Verify expansion doesnt change Nhole, Nproton,
  Nphoton
• No Change with rest energy of a proton, changes
  energy of a photon

?? ??
21

• VACUUM ENERGY
• MATTER
• RADIATIONnumber of photons Nph constant

22

• The total energy density is given by

Radiation Dominated
log?
Matter Dominated
n-4
Vacuum Dominated
n-3
n0
R
23
Key Points

• Scaling Relation among
• Redshift z,
• expansion factor R
• Distance between galaxies
• Temperature of CMB T
• Wavelength of CMB photons lambda
• Metric of an expanding 2Dtime universe
• Fundamental observers
• Galaxies on grid points with fixed angular
  coordinates
• Energy density in
• vacuum, matter, photon
• How they evolve with R or z
• If confused, recall the analogies of
• balloon, bread, a network on red giant star,
  microwave oven

24
TopicsTheoretical and Observational

• Universe of uniform density
• Metrics ds, Scale R(t) and Redshift
• EoS for mix of vacuum, photon, matter
• Thermal history
• Nucleosynthesis
• He/D/H
• Structure formation
• Growth of linear perturbation
• Origin of perturbations
• Relation to CMB
• Hongsheng.Zhao (hz4)

• Quest of H0 /Omega (obs.)
• Applications of expansion models
• Distances Ladders
• (GL, SZ)
• SNe surveys
• Cosmic Background from
• COBE/MAP/PLANCK etc

25
Acronyms in Cosmology

• Cosmic Background Radiation (CBR)
• Or CMB (microwave because of present temperature
  3K)
• Argue about 105 photons fit in a 10cmx10cmx10cm
  microwave oven. Hint 3kT h c / ?
• CDM/WIMPs Cold Dark Matter, weakly-interact
  massive particles
• At time DM decoupled from photons, T 1014K, kT
  0.1 mc2
• Argue that dark particles were
• non-relativistic (v/c ltlt 1), hence cold.
• Massive (m gtgt mproton 1 GeV)

26
Acronyms and Physics Behind

• DL Distance Ladder
• Estimate the distance of a galaxy of size 1 kpc
  and angular size 1 arcsec? About 0.6 109 light
  years
• GL Gravitational Lensing
• Show that a light ray grazing a spherical galaxy
  of 1010 Msun at typical b1 kpc scale will be
  bent 4GM/bc2 radian 1 arcsec
• It is a distance ladder
• SZ Sunyaev-Zeldovich effect
• A cloud of 1kev thermal electrons scattering a 3K
  microwave photon generally boost the latters
  energy by 1kev/500kev0.2
• This skews the blackbody CMB, moving low-energy
  photons to high-energy effect is proportional to
  electron column density.

27

• the energy density of universe now consists
  roughly
• Equal amount of vacuum and matter,
• 1/10 of the matter is ordinary protons, rest in
  dark matter particles of 10Gev
• Argue dark-particle-to-proton ratio 1
• Photons (3K 10-4ev) make up only 10-4 part of
  total energy density of universe (which is
  proton rest mass energy density)
• Argue photon-to-proton ratio 10-4 GeV/(10-4ev)
  109

28
(No Transcript)
29
What have we learned?

• Concepts of Thermal history of universe
• Decoupling
• Last scattering
• Dark Matter era
• Compton scattering
• Gravitational lensing
• Distance Ladder
• Photon-to-baryon ratio gtgt1
• If confused, recall the analogy of
• Crystalization from comic soup,
• Last scattering photons escape from the
  photosphere of the sun

30
The rate of expansion of Universe

• Consider a sphere of radius rR(t) ?,
• If energy density inside is ? c2
• ? Total effective mass inside is
• M 4 p? r3 /3
• Consider a test mass m on this expanding sphere,
• For Test mass its
• Kin.Energy Pot.E. const E
• ? m (dr/dt)2/2 G m M/r cst
• ?(dR/dt)2/2 - 4 pG ? R2/3 cst
• cstgt0, cst0, cstlt0
• (dR/dt)2/2 4 pG (? ?cur) R2/3
• where cst is absorbed by ?cur R(-2)

31
(No Transcript)
32
Lec 4 Feb 22
A powerful scaling relation (approximate) t
-2 H2(dR/dt)2/R2 (?cur ?m ?r
?v ) R-n (1z)n T n
33
Where are we heading?

• Next few lectures will cover a few chapters of
• Malcolm S. Longairs Galaxy Formation Library
  Short Loan
• Chpt 1 Introduction
• Chpt 2 Metrics, Energy density and Expansion
• Chpt 9-10 Thermal History

34
Thermal Schedule of Universe chpt 9-10

• At very early times, photons are typically
  energetic enough that they interact strongly with
  matter so the whole universe sits at a
  temperature dictated by the radiation.
• The energy state of matter changes as a function
  of its temperature and so a number of key events
  in the history of the universe happen according
  to a schedule dictated by the temperature-time
  relation.
• Crudely (1z)1/R (T/3) 109 (t/100s)(-2/n)
  1000 (t/0.3Myr)-2/n, H1/t
• n4 during radiation domination

T(K) 1010 103
Radiation Matter
Recombination After this Barrier photons
free-stream in universe
He D 100s
Neutrinos decouple
???Myr
1012 109 106 103 1
1z
35
A summary Evolution of Number Densitiesof ?, P,
e, ?
All particles relativistic
Neutrinos decouple while relativistic
Protons condense at kT0.1mp c2
Num Density
Electrons freeze-out at kT0.1me c2
Now
36
A busy schedule for the universe

• Universe crystalizes with a sophisticated
  schedule, much more confusing than simple
  expansion!
• Because of many bosonic/fermionic players
  changing balance
• Various phase transitions, numbers NOT conserved
  unless the chain of reaction is broken!
• p p- lt-gt ????? (baryongenesis)
• e e lt-gt ?????, v e lt-gt v e (neutrino
  decouple)
• n lt? p e- v, p n lt? D ???(BBN)
• H e- lt? H ???????? e lt-gt ? e
  (recombination)
• Here we will try to single out some rules of
  thumb.
• We will caution where the formulae are not valid,
  exceptions.
• You are not required to reproduce many details,
  but might be asked for general ideas.

37
What is meant Particle-Freeze-Out?

• Freeze-out of equilibrium means NO LONGER in
  thermal equilibrium, means insulation.
• Freeze-out temperature means a species of
  particles have the SAME TEMPERATURE as radiation
  up to this point, then they bifurcate.
• Decouple switch off the chain is broken
  Freeze-out

38
A general history of a massive particle

• Initially mass doesnt matter in very hot
  universe
• relativistic, dense
• frequent collisions with other species to be in
  thermal equilibrium and cools with photon bath.
• Photon numbers (approximately) conserved, so is
  the number of relativistic massive particles

39
(No Transcript)
40
Initially zero chemical potential ( Chain is on,
equilibrium with photon)

• The number density of photon or massive particles
  is
• Where we count the number of particles occupied
  in momentum space and g is the degeneracy
  factor. Assuming zero cost to
  annihilate/decay/recreate.
•


for Fermions - for Bosons
41

• As kT cools, particles go from
• From Ultrarelativistic limit. (kTgtgtmc2)
• particles behave as if they were massless?
• To Non relativistic limit ( ??mc2/kT gt 10 ,
  i.e., kTltlt 0.1mc2) Here we can neglect the ?1 in
  the occupancy number?

42
When does freeze-out happen?

• Happens when KT cools 10-20 times below mc2, run
  out of photons to create the particles
• Non-relativisitic decoupling
• Except for neutrinos

43
(No Transcript)
44
(No Transcript)
45

• Rule 2. Survive of the weakest
• While in equilibrium, nA/nph exp????? (Heavier
  is rarer)
• When the reverse reaction rate ?A? is slower than
  Hubble expansion rate H(z) , the abundance ratio
  is frozen NA/Nph 1/(?A?) /Tfreeze
• Question why frozen while nA , nph both drop as
  T3 R-3.
• ??A nph/(?A?) , if m Tfreeze

?A? LOW? (v) smallest interaction, early
freeze-out while relativistic
Freeze out
?A? HIGH? later freeze-out at lower T
46
Effects of freeze-out

• Number of particles change (reduce) in this phase
  transition,
• (photons increase only slightly)
• Transparent to photons or neutrinos or some other
  particles
• This defines a last scattering surface where
  optical depth to future drops below unity.

47
Number density of non-relativistic particles to
relativistic photons

• Reduction factor exp(- ??????mc2/kT, which drop
  sharply with cooler temperature.
• Non-relativistic particles (relic) become much
  rarer by exp(-?) as universe cools below mc2/???
• ??????????????
• So rare that infrequent collisions can no longer
  maintain coupled-equilibrium.
• So Decouple switch off the chain is broken
  Freeze-out

48
After freeze-out

• Particle numbers become conserved again.
• Simple expansion.
• number density falls with expanding volume of
  universe, but Ratio to photons kept constant.

49
Small Collision cross-section

• Decouple non-relativisticly once kTltmc2 . Number
  density ratio to photon drops steeply with
  cooling exp(- mc2/kT).
• wimps (Cold DM) etc. decouple (stop
  creating/annihilating) while non-relativistic.
  Abundance of CDM ? 1/ ?A?
• Tc109K NUCLEOSYNTHESIS (100s)
• Tc5000K RECOMBINATION (0.3 Myrs) (z1000)

50
For example,

• Antiprotons freeze-out t(1000)-6 sec,
• Why earlier than positrons freeze-out t1sec ?
• Hint anti-proton is 1000 times heavier than
  positron.
• Hence factor of 1000 hotter in freeze-out
  temperature
• Proton density falls as R-3 now, conserving
  numbers
• Why it falls exponentially exp(-?) earlier on
• where ????mc2/kT? R.
• Hint their numbers were in chemical equilibrium,
  but not conserved earlier on.

51
smallest Collision cross-section

• neutrinos (Hot DM) decouple from electrons (due
  to very weak interaction) while still hot
  (relativistic 0.5 Mev kT gtmc2 0.02-2 eV)
• Presently there are 3 x 113 neutrinos and 452 CMB
  photons per cm3 . Details depend on
• Neutrinos have 3 species of spin-1/2 fermions
  while photons are 1 species of spin-1 bosons
• Neutrinos are a wee bit colder, 1.95K vs. 2.7K
  for photons during freeze-out of
  electron-positions, more photons created

52
(No Transcript)
53
Coupled radiation-baryon relativistic fluid
Radiation
Matter
Matter number density
Random motion energy Non-Relativistic IDEAL GAS

• Show C2s c2/3 /(1Q) , Q (3 ?m) /(4 ?r) , ?
  Cs drops
• from c/sqrt(3) at radiation-dominated era
• to c/sqrt(5.25) at matter-radiation equality

54
(No Transcript)
55
Temperature and Sound Speed of Decoupled
Baryonic Gas
After decoupling (zlt500), Cs 6 (1z) m/s
because

T?
Te
R
Until reionization z 10 by stars quasars
Te 8 Cs2 8 R-2
dP
dP
dX
dX
56
What have we learned?Where are we heading?

• Sound speed of gas before/after decoupling
• Topics Next
• Growth of chpt 11 bankruptcy of uniform
  universe
• Density Perturbations (how galaxies form)
• peculiar velocity (how galaxies move and merge)
• CMB fluctuations (temperature variation in CMB)
• Inflation (origin of perturbations)

57
Peculiar Motion

• The motion of a galaxy has two parts

Proper length vector
Uniform expansion vo
Peculiar motion ?v
58
Damping of peculiar motion (in the absence of
overdensity)

• Generally peculiar velocity drops with
  expansion.
• Similar to the drop of (non-relativistic) sound
  speed with expansion

59
Non-linear Collapse of an Overdense Sphere

• An overdense sphere is a very useful non linear
  model as it behaves in exactly the same way as a
  closed sub-universe.
• The density perturbations need not be a uniform
  sphere any spherically symmetric perturbation
  will clearly evolve at a given radius in the same
  way as a uniform sphere containing the same
  amount of mass.

60
R, R1
log?
Rmax
t-2
Rmax/2 virialize
t
Background density changes this way
logt
61
Gradual Growth of perturbation
Verify d changes by a factor of 10 between z10
and z100? And a factor of 100 between z105 and
z106?
62
Equations governing Fluid Motion
63
Decompose into unperturbed perturbed

• Let
• We define the Fractional Density Perturbation

64

• Motion driven by gravity
• due to an overdensity
• Gravity and overdensity by Poissons equation
• Continuity equation
• Peculiar motion dv and peculiar gravity g1 both
  scale with d and are in the same direction.

The over density will rise if there is an inflow
of matter
65
THE equation for structure formation

• In matter domination
• Equation becomes

Gravity has the tendency to make the density
perturbation grow exponentially.
Pressure makes it oscillate
66

• Each eq. is similar to a forced spring

F
m
Restoring
Term due to friction
(Displacement for Harmonic Oscillator)
x
t
67
(No Transcript)
68
What have we learned? Where are we heading?

• OverDensity grows as
• R (matter) or R2 (radiation)
• Peculiar velocity points towards overdensities
• Topics Next Jeans instability

69
(No Transcript)
70
Lec 8

• What have we learned chpt 11.4
• Conditions of gravitational collapse (growth)
• Stable oscillation (no collapse) within sound
  horizon if pressure-dominated
• Where are we heading
• Cosmic Microwave Background chpt 15.4
• As an application of Jeans instability
• Inflation in the Early Universe chpt 20.3

71
Theory of CMB Fluctuations

• Linear theory of structure growth predicts that
  the perturbations
• will follow a set of coupled Harmonic Oscillator
  equations.

Or
72

• The solution of the Harmonic Oscillator within
  sound horizon is
• Amplitude is sinusoidal function of k cs t
• if kconstant and oscillate with t
• or tconstant and oscillate with k.

73

• We dont observe the baryon overdensity
  directly
• -- what we actually observe is temperature
  fluctuations.
• The driving force is due to dark matter over
  densities.
• The observed temperature is

Effect due to having to climb out of
gravitational well
74

• The observed temperature also depends on how fast
  the Baryon Fluid is moving.

Doppler Term
75
(No Transcript)
76
Horizon
x sun x
Why are these two galaxies so similar without
communicating yet?
Why is the curvature term so small (universe so
flat) at early universe if radiation dominates
n4 gt2?
77
What have we learned?

• What determines the patterns of CMB at last
  scattering
• Analogy as patterns of fine sands on a drum at
  last hit.
• The need for inflation to
• Bring different regions in contact
• Create a flat universe naturally.

78
Inflationary Physics

• Involve quantum theory to z1032 and perhaps a
  scalar field ?(x,t) with energy density

V(?)
finish
Ground state
?
79
(No Transcript)
80
Inflation dilutes the effect of initial
curvature of universe
81
Exotic Pressure drives Inflation
82
What Have we learned?

• How to calculate Horizon.
• The basic concepts and merits of inflation
• Pressure of various kinds (radiation, vacuum,
  matter)

83
List of keys

• Scaling relations among
• Redshift z, wavelength, temperature, cosmic time,
  energy density, number density, sound speed
• Definition formulae for pressure, sound speed,
  horizon
• Metrics in simple 2D universe.
• Describe in words the concepts of
• Fundamental observers
• thermal decoupling
• Common temperature before,
• Fixed number to photon ratio after
• Hot and Cold DM.
• gravitational growth.
• Over-density,
• direction of peculiar motion driven by
  over-density, but damped by expansion
• pressure support vs. grav. collapse

84
Lecture 3Metrics for Curved Geometry
85
Cosmological Observations in a Curved and
Evolving Universe
Non-Euclidian geometries ( positive / negative
curvature ) Evolving geometries
( expanding / accelerating /
decelerating ) Time-Redshift-Distance relations
86
Non-Euclidean GeometryCurved 3-D SpacesHow
Does Curvature affect Distance Measurements
?
87
Is our Universe Curved?
Closed Flat Open
Curvature
0 -- Sum
of angles of triangle
gt 180o 180o
lt 180o Circumference of circle
lt 2 ? r
2 ? r gt 2 ?
r Parallel lines converge remain
parallel diverge Size
finite infinite
infinite Edge
no no
no
88
(No Transcript)
89
(No Transcript)
90
(No Transcript)
91
Embedded Spheres
R radius of curvature
?
92
Metric for 3-D surface of 4-D sphere
93
(No Transcript)
94
(No Transcript)
95
(No Transcript)
96
Lecture 4Space-Time Metric
97
(No Transcript)
98
(No Transcript)
99
(No Transcript)
100
Fidos and co-moving coordinates
Distance varies in time
Fiducial observers (Fidos)
Co-moving coordinates
Labels the Fidos
101
Coordinate Systems
102
(No Transcript)
103
Luminosity Distance

• Luminosity ( erg s-1 )
• area of photon sphere ( when photons observed )
• redshift
• time dilation lower photon arrival rate
• observed flux ( erg cm-2 s-1 )
• Luminosity distance

Sources look fainter/farther.
104
Lecture 5Time - Redshift - Distance
Relationships General RelativityGeodesics
105
(No Transcript)
106
(No Transcript)
107
Time -- Redshift relation
Memorise this derivation!
108
Lecture 6General Relativity
Field Equations Dynamics of the Universe
R(t) ?H(x) ?Friedmann Equation
109
Einstein Field Equations
110
Homogeneity and Isotropy
homogeneous not isotropic
isotropic not homogeneous
For cosmology, assume Universe is
Homogeneous. Simplifies the equations. )
111
Homogeneous perfect fluid
Einstein field equations
---gt Friedmann equations
energy
momentum
Note energy density and pressure decelerate, ?
accelerates.
112
(No Transcript)
113
(No Transcript)
114
Newtonian Analogy
115
Density - Evolution - Geometry
R(t)
Open k -1
t
Flat k 0
Closed k 1
116
(No Transcript)
117
Lecture 7Dynamics of the Universe Solutions
to the Friedmann Equation for R(t)
118
Hubble Parameter Evolution -- H(z)
Dimensionless Friedmann Equation
Curvature Radius today
Density determines Geometry
119
(No Transcript)
120
(No Transcript)
121
Hubble Parameter Evolution -- H(z)
122
Look-Back Time and Age
123
(No Transcript)
124
Lecture 8Observational Cosmology Parameters
of Our UniverseThe Concordance Model
125
(No Transcript)
126
(No Transcript)
127
Concordance Model Parameters
128
Our (Crazy?) Universe
Vacuum Dominated
accelerating
decelerating
Critical
Cycloid
Empty
Sub-Critical
129
Concordance Model
Three main constraints
2
1
3
130
HST Key Project
Freedman, et al. 2001 ApJ 553, 47.
131
Hubble time and radius
132
(No Transcript)
133
Age Constraints

• Nuclear decay ( U, Th -gt Pb )
• Decay times for (232Th,235U,238U) (20.3, 1.02,
  6.45) Gyr
• 3.7 Gyr oldest Earth rocks
• 4.57 Gyr meteorites
• 10 Gyr time since supernova produced U, Th
• ( 235U / 238U 1.3 --gt 0.33, 232Th / 238U
  1.7 --gt 2.3 )
• Stellar evolution
• 13-17 Gyr oldest globular clusters
• White dwarf cooling
• 13 Gyr coolest white dwarfs in M4

134
(No Transcript)
135
Globular Cluster Ages
136
Coolest White Dwarfs
Hansen et al. 2002 ApJ 574,155
White dwarf cooling ages --gt
star formation at z gt 5.
Cooling times have been measured using ZZ Ceti
oscillation period changes.
137
(No Transcript)
138
Lecture 9Observational Cosmology Discovery
of Dark Energy
139
(No Transcript)
140
(No Transcript)
141
(No Transcript)
142
Observable Distances
Verify these low-z expansions.
143
(No Transcript)
144
(No Transcript)
145
Finding faint Supernovae
Observe 106 galaxies. Again, 3 weeks later. Find
new stars. Measure lightcurves. Take
spectra. ( Only rare Type Ia Supernovae work ).
146
Hi-Z Supernova Spectra
H?
H?
SN II --- hydrogen lines (collapse and rebound
of the core of a massive star)
SN I --- no hydrogen lines (no H-rich envelope
surrounding the core)
SN Ia --- best known standard
candles (implosion of 1.4 Msun white dwarf,
probably due to accretion in a mass-transfer
binary system).
147
Calibrating Standard Bombs
Absolute magnitude M B gt
1. Brighter ones decline more slowly. 2. Time
runs slower by factor (1z).
AFTER correcting Constant peak brightness MB
-19.7
Observed peak magnitude m M 5 log (d/Mpc)
25 gives the distance!
Time gt
148
SN Ia at z 0.8 are 25 fainter than expected
Acceleration ( ! ? ) 1. Bad Observations? --
2 independent teams agree 1. Dust ? --
corrected using reddening 2. Stellar populations
? -- earlier generation of stars -- lower
metalicity 3. Lensing? -- some brighter, some
fainter -- effect small at z 0.8
Reiss et al. 1998 Perlmutter et al. 1998
149
1998 cosmology revolution
Acceleration ( ! ? ) matter-only models ruled
out cosmological constant ? gt 0 Dark Energy
150
HST Supernova Surveys
Tonry et al. 2004.
HST surveys to find SN Ia beyond z 1
151
25 HST SN 1a beyond z 1
Reiss et al. 2007.
Most distant Supernova SN 2007ff z
1.75
SNAP SuperNova Acceleration Probe 1.5m
wide-angle multi-colour space telescope --- 1000
SN 1a (Not Yet Funded)
152
Lecture 10Checking the Distance Ladder
Sunyaev-Zeldovich EffectGravitational Lensing
153
(No Transcript)
154
HST Key Project
Freedman, et al. 2001 ApJ 553, 47.
155
Galaxy Clusters arefilled with hot X-ray gas
optical (galaxies)
X-ray (hot gas)
156
Gravitational Lensing

• Luminous arcs in clusters of
  galaxies

157
Gravitational Lensing
multiple images of background galaxy lensed by
the cluster
158
The Lensed Galaxy
159
(No Transcript)
160
(No Transcript)
161
(No Transcript)
162
(No Transcript)
163
(No Transcript)
164
Lensing by a Point Mass
2 images opposite sides of lens major image
outside ring minor image inside ring net
magnification (sum of 2 images) vs time
165
(No Transcript)
166
(No Transcript)
167
Quasars Lensed by Galaxies
168
Masses from Einstein Rings
Perfect alignment gives an Einstein Ring
Mass usually less certain than distance, so use
theta and D to calculate M.
169
(No Transcript)
170
Time Delay Measurement

• Light curves of the images show a shift in time.

146 days
Hjorth et al. 2003.
171
But, no simple lenses.
Almost always several galaxies involved. Prevents
very accurate distance measurements.
172
Dark Matter Galaxy CountsRedshift
SurveysGalaxy Rotation CurvesCluster
DynamicsGravitational Lenses
2
1
3
173
Mass Density by Direct Counting

• Add up the mass of all the galaxies per unit
  volume
• Volume calculation as in Tutorial problem.
• Need representative volume gt 100 Mpc.
• Cant see faintest galaxies at large
  distance. Use local Luminosity Functions to
  include fainter ones.
• Mass/Light ratio depends on type of galaxy.
• Dark Matter needed to bind Galaxies and Galaxy
  Clusters dominates the normal matter (baryons).
• Hot x-ray gas dominates the baryon mass of Galaxy
  Clusters.

174
(No Transcript)
175
Cluster Masses from X-ray Gas
Coma Cluster M(gas)M(stars)3x1013 Msun
often M(gas) gt M(stars)
M/L100-200
176
Cluster Masses from X-ray Gas
T108K
M 1014 Msun
total mass
g 3x10-8 cm s-2
stars
gas
177
Masses from Gravitational Lensing
General agreement with Virial Masses.
178
Evidence for Dark Matter ?
Galaxies ( r 20 Kpc ) Flat Rotation Curves V
200 km/s Galaxy Clusters ( r 200 Kpc
) Galaxy velocities V 1000 km/s X-ray Gas T
108 K Giant Arcs
X-ray Optical
179
Or . Has General Relativity Failed ?
4 Normal Matter
22 Dark Matter ?
74 Dark Energy ?
Can Alternative Gravity Models fit all the data
without 2 miracles ? ( Dark Matter, Dark
Energy )
180
MOND and TeVeS
MOdified Newtonian Dynamics
MOND acceleration parameter
Milgrom 1983
MOND gives flat rotation curves V( r ) const
and Tully-Fischer V4 M
Tensor Vector Scalar
Bekenstein 2004
Covariant metric gravity theory that reduces to
MOND in weak-field low-velocity limit.
181
Cosmic Microwave BackgroundFlat Geometry
2
1
3
182
1965 -- Penzias Wilson
Bell Labs telecommunications engineers
find excess microwave noise from the sky. 1
of thermal ( T 300o K ) noise ---gt T 3o
K Afterglow of the Big Bang CMB Cosmic
Microwave Background Confirms a forgotten 1948
prediction by Gamow. Nobel Prize -gt PW
183
Recombination Epoch ( z1100 )ionised plasma
--gt neutral gas

• Redshift z gt 1100
• Temp T gt 3000 K
• H ionised
• electron -- photon Thompson scattering

• z lt 1100
• T lt 3000 K
• H recombined
• almost no electrons
• neutral atoms
• photons set free

184
(No Transcript)
185
NASA 1992 - COBECOsmic Background Explorer
186
COBE spectrum of CMB
A perfect Blackbody ! No spectral lines -- strong
test of Big Bang. Expansion preserves the
blackbody spectrum. T(z) T0 (1z)
T0 3000 K z 1100
187
Cosmic Microwave Background
Almost isotropic
T 2.728 K
Dipole anisotropy Our velocity
Milky Way sources anisotropies
188
COBE - tiny ripples
Resolution 7o
189
Tiny Ripples at Redshift 1100
Ripples are relics of the Big Bang
initial quantum fluctuations expanded by early
inflation the seeds of later galaxy/cluster
formation. standard yardsticks for measuring
curvature ( and other cosmology
parameters )
190
1999 - Boomerang in Antarctica
Baloon Observations Of Millimetric Extragalactic
Radiation ANisotropy and Geophysics
191
Boomerang in Antarctica
192
Boomerangs Baloon
193
Boomerangs Stratospheric Flight Track
Altitude 37 km 10 days
194
Resolution 0.3o
195
(No Transcript)
196
Spherical Harmonics
Fit temperature map with a series of
m cycles in longitude l - m nodes in latitude
197
Supernovae CMB ripples
Pre-WMAP constraints From BOOMERANG and MAXIMA
circa 2002
198
WMAP
NASA 2001... Wilkinson Microwave Anisotropy Prob
e
199
(No Transcript)
200
2003 -- WMAP Power Spectrum
Spergel et al. 2003 ApJSup 148,175.
201
Sound Horizon at z 1100
Standard Ruler
202
Angular scale --gt Geometry
203
Sound Horizon at z 1100
recombination at z 1100
dt - dx / x H( x ) R( t ) R0 / x
H( x ) from Friedmann Eqn.
keep 2 largest terms.
204
Sound Horizon at z 1100

Expands by factor 1 z 1100
to 120 Mpc today.
205
(No Transcript)
206
Precision Cosmology
( From the WMAP 1-year data analysis)
207
Dark Energy ? Vacuum energy?Bubble
Cosmology?Dark Matter ? Large-Scale Structure
Galaxy Rotation CurvesCluster
DynamicsGravitational LensesMACHOs? --- No
WIMPs? --- MaybeModified Gravity ?MOND ,
TeVeS
