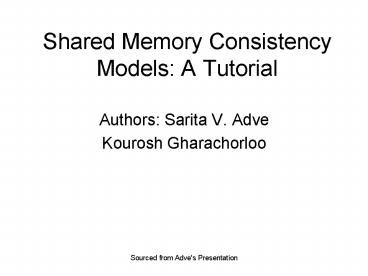

Shared Memory Consistency Models: A Tutorial

1
Shared Memory Consistency Models A Tutorial

• Authors Sarita V. Adve
• Kourosh Gharachorloo

2
Overview

• Memory Consistency Model
• Implicit Memory Model -- Sequential Consistency
• Relaxed Memory Model (system-centric)
• Relaxed models (program-centric)

3
Memory Consistency Model

• Definition Order in which memory operations will
  appear to execute
• -- what value can a read return
• -- a read should return the value of the last
  write to the same memory location
• Affecting 3P
• -- Programmability (easy-of-programming)
• -- Performance (optimization)
• -- Portability (moving software across different
  systems)

4
Implicit Memory Model

• Sequential consistency (SC) Lamport
• Result of an execution appears as if
• All operations executed in some sequential order
• Memory operations of each process in program
  order

5
Implicit Memory Model

• Sequential consistency (SC) Lamport
• Result of an execution appears as if
• All operations executed in some sequential order
• Memory operations of each process in program
  order

Two aspects Program order Atomicity
6
Architectures without Caches example 1

• Initially Flag1 Flag2 0
• P1 P2
• Flag1 1 Flag2 1
• if (Flag2 0) if (Flag1 0)
• critical section critical section
• Execution
• P1 P2
• (Operation, Location, Value)
  (Operation, Location, Value)
• Write, Flag1, 1 Write, Flag2, 1
• Read, Flag2, 0 Read, Flag1, ____

7
Architectures without Caches example 1

• Initially Flag1 Flag2 0
• P1 P2
• Flag1 1 Flag2 1
• if (Flag2 0) if (Flag1 0)
• critical section critical section
• Execution
• P1 P2
• (Operation, Location, Value)
  (Operation, Location, Value)
• Write, Flag1, 1 Write, Flag2, 1
• Read, Flag2, 0 Read, Flag1, 0?

8
Architectures without Caches example 1
P1 P2 (Operation, Location, Value)
(Operation, Location, Value) Write, Flag1, 1
Write, Flag2, 1 Read, Flag2, 0 Read,
Flag1, 0
Can happen if Write buffers with read
bypassing Overlap, reorder write followed by
read in h/w or compiler Allocate Flag1 or Flag2
in registers Optimization by use of writer
buffer is safe on convention uniprocessor, but it
can violate SC in multiprocessor system.
9
Architectures without Caches example 1
Write buffer
10
Architectures without Caches example 2
Initially Head Data 0 P1 P2 Data
2000 while (Head ! 1) Head 1
... Data P1 P2 Write, Data, 2000
Read, Head, 0 Write, Head, 1 Read,
Head, 1 Read, Data, 0?
Can happen if Overlap or reorder writes or
non-blocking reads in hardware or compiler
11
Architectures without Caches example 2
Overlapped writes
12
Architectures without Caches example 3
Non-blocking reads
13
Architectures With Caches

• Cache Coherence and SC
• Cache Coherence
• A write is visible to all processors
• Serialization of writes to the same location
• SC
• Serialization of writes to all locations
• Operations appear to execute in program order
• SC implies Cache Coherence
• A memory consistency model as the policy that
  places an early and late bound on when a new
  value can be propagated by invalidating or
  updating
• Atomicity for writes
• Propagating changes to cache copies in a
  non-atomic operation
• Serialize write can avoid the violation of SC
• Ordering of updates/invalidates between source
  and destination is preserved by network
• Or delay an update/invalidate from being sent out
  until any updates or invalidates from previous
  write are acknowledged

14
SC Summary

• SC constrains all memory operations
• Write ? Read
• Write ? Write
• Read ? Read, Write
• Simple model for reasoning about parallel
  programs
• But, intuitively reasonable reordering of memory
  operations in a uniprocessor may violate
  sequential consistency model in multiprocessor
• Modern microprocessors reorder operations all the
  time to obtain performance (write buffers,
  overlapped writes,non-blocking reads).
• How do we reconcile sequential consistency model
  with the demands of performance?

15
Relaxed Memory Model

• Optimizations
• Program order relaxation
• Write ? Read
• Write ? Write
• Read ? Read, Write
• Read others write early
• Read own write early

16
Relaxed Memory Model (system-centric)
Models provide safety net Models maintain
uniprocessor data and control dependences, write
serialization
17
System-Centric model assessment

• System-centric models provide higher performance
  than SC
• BUT how about 3P criteria
• Programmability?
• Programmer need to consider the correctness with
  the optimization the specific model provides
• Portability?
• Many different models
• Performance?
• Can we do better?
• Programmer-Centric Model

18
Programmer-Centric Models

• Data operation executed more aggressively
• Programmer provide information about memory
  operations
• System based on the model exploit the
  optimization without violating consistency

19
Programmer-Centric Model
20
Programmer-Centric Model Assessment

• 3P criteria
• Programmability
• System ensure correctness instead of safety nets
  used by programmer
• Performance
• Optimization enabled by the WO can be applied
• Information enables more aggressive optimization
• Portability
• Not based on specific model
