TOPOTACTIC NANOCHEMISTRY APPROACH TO SILVER SELENIDE NANOWIRES

1

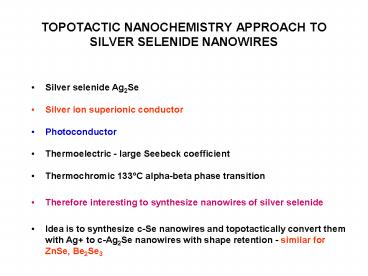

TOPOTACTIC NANOCHEMISTRY APPROACH TO SILVER
SELENIDE NANOWIRES

• Silver selenide Ag2Se
• Silver ion superionic conductor
• Photoconductor
• Thermoelectric - large Seebeck coefficient
• Thermochromic 133C alpha-beta phase transition
• Therefore interesting to synthesize nanowires of
  silver selenide
• Idea is to synthesize c-Se nanowires and
  topotactically convert them with Ag to c-Ag2Se
  nanowires with shape retention - similar for
  ZnSe, Be2Se3

2
Unique Features of Selenium

• Intrinsic Optical Chirality
• Highest Photoconductivity
• (s 8 x 104 S/cm for t-Se)
• Piezoelectric and Nonlinear
• Optical (NLO) Properties
• Thermoelectric Properties
• Useful Catalytic Properties
• (Halogenation, Oxidation)
• Reactivities to Form Other
• Functional Materials such
• as ZnSe, CdSe and Ag2Se

Se Chain
Trigonal Selenium (t-Se)
3
Growth of c-Se Nanowires from a-Se Seeds
100 oC
100 oC
a-Se
R.T.
a-Se
t-Se
(t-Se)
a-Se
t-Se
4
Various Stages of Se Wire Growth
5
Nanowires of t-Se with f30 nm
XRD
6
Absorption Spectra of t-Se Nanowires
30 nm wires
10 nm wires
7
Photoresponse of t-Se Nanowire
8
Synthesis of Silver Nanowires
AgNO3 HO(CH2)2OH
PtCl2
(PVP)
PVPAg11
160-180 oC
9
Mechanism Chemistry versus Art
PtCl2
AgNO3
(CH2OH)2
PVP
Pt seeds
PVP ?
Growth
10
Various Stages of Wire Growth
20 min
10 min
60 min
40 min
11
Silver Nanowires with f40 nm
XRD
12
Bi-Crystalline Structure
13
TOPOTACTIC TRANSFORMATION OF ORIENTED c-Se NWS TO
ORIENTED C-Ag2Se NWS
3Se(s) Ag(aq) 3H2O 2Ag2Se(s)
Ag2SeO3 (aq) 6H(aq)
0.71
AgNO3
0.49
0.49
(flt30 nm)
t-Se
0.44
AgNO3
(fgt40 nm)
0.44
(tetragonal Ag2Se)
0.78
0.70
(orthorhombic Ag2Se)
14
PXRD MONITORING OF TOPOTACTIC CONVERISON OF c-Se
NWs TO c-Ag2Se NWs

• Rapid solution-solid phase reaction
• Complete in less than 2 hours
• Samples washed with hot water to remove Ag2SeO3
  by product
• Time evolution of PXRD shows c-Se converts to
  c-Ag2Se

3Se(s) Ag(aq) 3H2O 2Ag2Se(s)
Ag2SeO3 (aq) 6H(aq)
15
Tetragonal a-Ag2Se (f30 nm)
EDX
16
Orthorhombic a-Ag2Se (fgt40 nm)
17
FILMS - FORM?

• Supported - substrate type and effect of
  interface
• Free standing - synthetic strategy
• Epitaxial - lattice matching - tolerance
• Superlattice - artificial
• Patterned - chemical or physical lithography

18
FILMS - WHEN IS A FILM THICK OR THIN?

• Monolayer - atomic, molecular thickness
• Multilayer - compositional superlattice - scale -
  periodicity
• Bulk properties - scale - thickness greater than
  l(e,h)
• Quantum size effect - 2D confinement - free
  electron behavior in third dimension - quantum
  wells

19
THIN FILMS ARE VITAL IN MODERN TECHNOLOGY

• Protective coatings
• Optical coatings, electrochromic windows
• Filters, mirrors, lenses
• Microelectronic devices
• Optoelectronic devices
• Photonic devices

20
THIN FILMS ARE VITAL IN MODERN TECHNOLOGY

• Electrode surfaces
• Photoelectric devices, photovoltaics, solar cells
• Xerography, photography
• Electrophoretic and electrochromic ink, displays
• Catalyst surfaces
• Information storage, magnetic, magneto-resistant,
  magneto-optical, optical memories

21
FILM PROPERTIES - ELECTRICAL, OPTICAL, MAGNETIC,
MECHANICAL, ADSORPTION, PERMEABILTY, CHEMICAL

• Thickness and surface volume ratio
• Structure - surface vs bulk, surface
  reconstruction, roughness
• Hydrophobicity, hydrophilicy
• Composition
• Texture, single crystal, microcrystalline,
  orientation
• Form, supported or unsupported, nature of
  substrate

22
METHODS OF SYNTHESIZING THIN FILMS

• ELECTROCHEMICAL, PHYSICAL, CHEMICAL
• Cathodic deposition, anodic deposition,
  electroless deposition
• Laser ablation
• Cathode sputtering, vacuum evaporation
• Thermal oxidation, nitridation

23
METHODS OF SYNTHESIZING THIN FILMS

• ELECTROCHEMICAL, PHYSICAL, CHEMICAL
• Liquid phase epitaxy
• Self-assembly, surface anchoring
• Discharge techniques, RF, microwave
• Chemical vapor deposition CVD, metal organic
  chemical vapour deposition MOCVD
• Molecular beam epitaxy, supersonic cluster beams,
  aerosol deposition

24
ANODIC OXIDATIVE DEPOSITION OF FILMS

• Deposition of oxide films, such as alumina,
  titania
• Deposition of conducting polymer films by
  oxidative polymerization of monomer, such as
  thiophene, pyrrole, aniline
• Oxide films formed from metallic electrode in
  aqueous salts or acids

25
ANODIC OXIDATION OF Al IN OXALIC OR PHOSPHORIC
ACID TO FORM ALUMINUM OXIDE

• PtH3PO4, H2OAl
• Al ? Al3 3e- anode
• PO43- 2e- ? PO33- O2- cathode
• Overall electrochemistry potential control of
  oxide thickness
• Oxide anions diffuse through growing layer of
  aluminum oxide
• 2Al3 3O2- ? g-Al2O3 (annealing) ? a-Al2O3

26
ANODIC OXIDATION OF PATTERNED Al DISC TO MAKE
PERIODIC NANOPOROUS Al2O3 MEMBRANE
Aqueous HgCl2 dissolves Al to give Hg and
Al(H2O)63 and H3PO4 dissolves Al2O3 barrier
layer to give Al(H2O)63 - yields open channel
membrane
2Al 3PO43- ? Al2O3 3PO33- 2Al 3C2O42- ?
Al2O3 6CO 3O2-
27
ANODIC OXIDATION OF LITHOGRAPHIC PATTERNED Al TO
PERIODIC NANOPOROUS Al2O3
28
ANODIC OXIDATION OF LITHOGRAPHIC PATTERNED Al TO
PERIODIC NANOPOROUS Al2O3
40V
60V
80V
29
PROPOSED MECHANISM OF ALUMINA PORE FORMATION IN
ANODICALLY OXIDIZED ALUMINUM
SELF ORGANIZED SELF LIMITING GROWTH OF PORES
30
Templated synthesis of metal barcoded nanorods
31
MESOSCOPIC AMPHIPHILES
32
MESOSCOPIC AMPHIPHILESCURRENT CONTROL OF LENGTH
OF POLYMER AND METAL SEGMENTS
33
MESOSCOPIC AMPHIPHILES - POLYMERIZATION INDUCED
SHRINKAGE OF Ppy SEGMENT
34
(No Transcript)
35
MESOSCOPIC AMPHIPHILES - GEOMETRIC PACKING
PARAMETERS
36
ANODIC OXIDATION OF Si TO FORM POROUS Si
THROWING SOME LIGHT ON SILICON

• Typical electrochemical cell to prepare PS by
  anodic oxidation of heavily doped p-type Si
• PS comprised of interconnected nc-Si with H/O/F
  surface passivation
• nc-Si right size for QSEs and red light emission
  observed during anodic oxidation

37
LIGHT WORK BY THE SILICON SAMURAIWHERE IT ALL
BEGAN AND WHERE IT IS ALL GOING
FROM CANHAMS 1990 DISCOVERY OF PL AND EL
ANODICALLY OXIDIZED p-DOPED Si WAFERS, TO NEW
LIGHT EMITTING SILICON NANOSTRUCTURES, TO SILICON
OPTOELECTRONICS, TO PHOTONIC COMPUTING
38
ELECTRONIC BAND STRUCTURE OF DIAMOND SILICON
LATTICE

• band structure of Si computed using density
  functional theory with local density and
  pseudo-potential approximation
• diamond lattice, sp3 bonded Si sites
• VB maximum at k 0, the G point in the Brillouin
  zone, CB minimum at distinct k value
• indirect band gap character, very weakly emissive
  behavior
• absorption-emission phonon assisted
• photon-electron-phonon three particle collision
  very low probability, thus band gap emission
  efficiency low, 10-5

39
SEMICONDUCTOR BAND STRUCTURE CHALLENGE,
EVOKING LIGHT EMISSION FROM Si

• EMA Rexciton 0.529e/mo where e dielectric
  constant, reduced mass of exciton mo memh/(me
  mh)
• Note exciton size within the bulk material
  defines the size regime below which significant
  QSEs on band structure are expected to occur,
  clearly lt 5 nm to make Si work

40
REGULAR OR RANDOM NANNSCALE CHANNELS IN
ANODICALLY OXIDIZED SILICON WAFERS

• Anodized forms of p-type Si wafer
• Showing formation of random (left) and regular
  (right) patterns of pores
• Lithographic pre-texturing directs periodic pore
  formation
