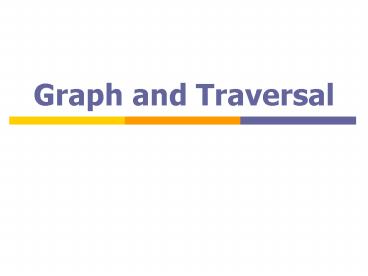

Graph and Traversal

1
Graph and Traversal
2
Graph
edge
vertex
3
Weighted Graph
1
3
0
5
-2
5
4
Undirected Graph
5
Complete Graph (Clique)
6
Path
a
Length 4
b
c
d
e
7
Cycle
a
g
b
c
f
d
e
8
Directed Acyclic Graph (DAG)
9
Degree
10
In-Degree Out-Degree
11
Disconnected Graph
12
Connected Components
13
Formally

• A weighted graph G (V, E, w), where
• V is the set of vertices
• E is the set of edges
• w is the weight function

14
Variations of (Simple) Graph

• Multigraph
• More than one edge between two vertices
• E is a bag, not a set
• Hypergraph
• Edges consists of more than two vertex

15
Example

• V a, b, c
• E (a,b), (c,b), (a,c)
• w ((a,b), 4), ((c, b), 1), ((a,c),-3)

a
4
-3
b
c
1
16
Adjacent Vertices

• adj(v) set of vertices adjacent to v
• adj(a) b, c
• adj(b)
• adj(c) b
• ?v adj(v) E
• adj(v) Neighbours of v

a
4
-3
b
c
1
17
Applications
18
Travel Planning
direct flight
city
5
cost
19
Question

• What is the shortest way to travel between A and
  B?
• SHORTEST PATH PROBLEM
• How to mimimize the cost of visiting n cities
  such that we visit each city exactly once, and
  finishing at the city where we start from?
• TRAVELING SALESMAN PROBLEM

20
Internet
network link
computer
21
Question

• What is the shortest route to send a packet from
  A to B?
• SHORTEST PATH PROBLEM

22
(No Transcript)
23
The Web
web link
web page
24
Question

• Which web pages are important?
• Which set of web pages are likely to be of the
  same topic?

25
Module Selection
prerequisite
module
26
Question

• Find a sequence of modules to take that satisfy
  the prerequisite requirements.
• TOPOLOGICAL SORT

27
SDU Matchmaking
compatible
participant
28
Questions

• How to match-up as many pairs as possible?
• MAXIMUM MATCHING PROBLEM

29
Terrorist
knows
suspects
30
Question

• Who are the important figures in a terrorist
  network?

31
(No Transcript)
32
Other Applications

• Biology
• VLSI Layout
• Vehicle Routing
• Job Scheduling
• Facility Location

33
Implementation
34
Adjacency Matrix

• double vertex

1
1 2 3
1 ? 4 -3
2 ? ? ?
3 ? 1 ?
4
-3
2
3
1
35
Adjacency List

• EdgeList vertex

1
2
3
3
-3
2
4
1
4
-3
2
3
2
1
1
neighbour
cost
36
Avoid Pointers in Competition..
1 2 3
2
3 2
1
4
-3
2
3
1 4 -3
2
3 1
1
37
Breadth-First Search
38
Breadth-First Search
A
C
B
D
E
F
39
Breadth-First Search
A
C
B
D
E
F
40
Breadth-First Search
A
C
B
D
E
F
41
Breadth-First Search
A
C
B
D
E
F
42
Breadth-First Search
A
C
B
D
E
F
43
Breadth-First Search
A
C
B
D
E
F
44
Breadth-First Search
A
C
B
D
E
F
45
Breadth-First Search
A
C
B
D
E
F
46
Breadth-First Search
0
1
2
2
2
3
47
Level-Order on Tree

• if T is empty return
• Q new Queue
• Q.enq(T)
• while Q is not empty
• curr Q.deq()
• print curr.element
• if T.left is not empty
• Q.enq(curr.left)
• if curr.right is not empty
• Q.enq(curr.right)

48
BFS(v)

• Q new Queue
• Q.enq (v)
• while Q is not empty
• curr Q.deq()
• if curr is not visited
• print curr
• mark curr as visited
• foreach w in adj(curr)
• if w is not visited
• Q.enq(w)

A
C
B
D
E
F
49

• Q new Queue
• Q.enq (v)
• foreach w in V
• set w.parent to null
• while Q is not empty
• curr Q.deq()
• mark curr as visited
• foreach w in adj(curr)
• if w is not visited w.parent is null
• w.parent curr
• Q.enq(w)

A
C
B
D
E
F
50
Calculating Level

• Q new Queue
• Q.enq (v)
• v.level 0
• while Q is not empty
• curr Q.deq()
• if curr is not visited
• mark curr as visited
• foreach w in adj(curr)
• if w is not visited
• w.level curr.level 1
• Q.enq(w)

A
C
B
D
E
F
51
Search All Vertices

• Search(G)
• foreach vertex v
• mark v as unvisited
• foreach vertex v
• if v is not visited
• BFS(v)

52
Running Time

• Q new Queue
• Q.enq (v)
• while Q is not empty
• curr Q.deq()
• if curr is not visited
• print curr
• mark curr as visited
• foreach w in adj(curr)
• if w is not visited
• Q.enq(w)

Main Loop
Initialization
Total Running Time
53
Depth-First Search
54
Depth-First Search
A
C
B
D
E
F
55
Depth-First Search
A
C
B
D
E
F
56
Depth-First Search
A
C
B
D
E
F
57
Depth-First Search
A
C
B
D
E
F
58
Depth-First Search
A
C
B
D
E
F
59
Depth-First Search
A
C
B
D
E
F
60
Depth-First Search
A
C
B
D
E
F
61
Depth-First Search
A
C
B
D
E
F
62
DFS(v)

• S new Stack
• S.push (v)
• mark v as visited
• while S is not empty
• curr S.top()
• if every vertex in adj(curr)
• is visited
• S.pop()
• else
• let w be an unvisited vertex in adj(curr)
• S.push(w)
• print and mark w as visited

A
C
B
D
E
F
63
Recursive Version DFS(v)

• print v
• marked v as visited
• foreach w in adj(v)
• if w is not visited
• DFS(w)

A
C
B
D
E
F
64
Search All Vertices

• Search(G)
• foreach vertex v
• mark v as unvisited
• foreach vertex v
• if v is not visited
• DFS(v)

65
Running Time

• DFS ?(V E)

66
Single-SourceShortest Path
67
Applications

• BFS
• shortest path
• DFS
• longest path in DAG
• finding connected component
• detecting cycles
• topological sort

68
Definition

• A path on a graph G is a sequence of vertices
  v0, v1, v2, .. vn where (vi,vi1)?E
• The cost of a path is the sum of the cost of all
  edges in the path.

69
Unweighted Shortest Path
A
C
B
D
E
F
70
ShortestPath(s)

• Run BFS(s)
• w.level shortest distance from s
• w.parent shortest path from s

71
Positive Weighted Shortest Path
A
5
1
3
C
B
5
1
3
1
D
E
F
4
2
72
BFS(s) does not work

• Must keep track of smallest distance so far.
• If we found a new, shorter path, update the
  distance.

73
Idea 1
s
w
10
8
2
6
v
74
Idea 2
w
6
6
v
6
6
6
6
6
75
Definition

• distance(v) shortest distance so far from s to
  v
• parent(v) previous node on the shortest path so
  far from s to v
• cost(u, v) the cost of edge from u to v

76
Example
s
w
10
8
2
6
distance(w) 8 cost(v,w) 2 parent(w) v
v
77
Relax(v,w)

• d distance(v) cost(v,w)
• if distance(w) gt d then
• distance(w) d
• parent(w) v

s
w
10
8
2
6
v
78
Dijkstras Algorithm
A
5
1
3
C
B
5
1
3
1
D
E
F
4
2
79
Dijkstras Algorithm
0
5
1
3
8
8
5
1
3
1
8
8
8
4
2
80
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
8
8
4
2
81
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
8
8
4
2
82
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
10
6
8
4
2
83
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
10
6
8
4
2
84
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
6
10
4
2
85
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
6
10
4
2
86
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
6
10
4
2
87
Dijkstras Algorithm
0
5
1
3
5
8
5
1
3
1
8
6
10
4
2
88
Dijkstras Algorithm
0
5
3
5
8
1
8
6
10
4
2
89
Dijkstras Algorithm

• color all vertices yellow
• foreach vertex w
• distance(w) INFINITY
• distance(s) 0

90
Dijkstras Algorithm

• while there are yellow vertices
• v yellow vertex with min distance(v)
• color v red
• foreach neighbour w of v
• relax(v,w)

91
Running Time
O(V2 E)

• color all vertices yellow
• foreach vertex w
• distance(w) INFINITY
• distance(s) 0
• while there are yellow vertices
• v yellow vertex with min distance(v)
• color v red
• foreach neighbour w of v
• relax(v,w)

92
Using Priority Queue

• foreach vertex w
• distance(w) INFINITY
• distance(s) 0
• pq new PriorityQueue(V)
• while pq is not empty
• v pq.deleteMin()
• foreach neighbour w of v
• relax(v,w)

93
Initialization O(V)

• foreach vertex w
• distance(w) INFINITY
• distance(s) 0
• pq new PriorityQueue(V)

94
Main Loop

• while pq is not empty
• v pq.deleteMin()
• foreach neighbour w of v
• relax(v,w)

95
Main Loop
O((VE) log V)

• while pq is not empty
• v pq.deleteMin()
• foreach neighbour w of v
• d distance(v) cost(v,w)
• if distance(w) gt d then
• // distance(w) d
• pq.decreaseKey(w, d)
• parent(w) v

96
cost(u,v) lt 0?
A
-5
1
3
C
B
5
1
3
1
D
E
F
-4
2
97
Problem 1
w
6
10
v
6
-5
6
6
6
6
98
Problem 2
A
-5
1
3
C
B
5
1
3
1
D
E
F
-4
2
99
Basic Idea

• Longest possible path between two vertices V-1

100
Basic Idea

• foreach edge (u,v)
• relax(u , v)
• We will get the shortest paths of length 1
  between s and all other vertices.
• Repeat the above pseudocode V-1 times.

101
Bellman-Ford Algorithm
0
5
1
-3
8
8
3
1
3
1
8
8
8
-4
-2
102
Bellman-Ford Algorithm
0
5
1
-3
5
8
3
1
3
1
8
8
8
-4
-2
103
Bellman-Ford Algorithm
0
5
1
-3
5
2
3
1
3
1
8
6
8
-4
-2
104
Bellman-Ford Algorithm
0
5
1
-3
5
2
3
1
3
1
4
3
2
-4
-2
105
Bellman-Ford Algorithm
0
5
1
-3
5
2
3
1
3
1
1
3
-1
-4
-2
106
Bellman-Ford Algorithm

• do V-1 times
• foreach edge (u,v)
• relax(u,v)
• // check for negative weight cycle
• foreach edge (u,v)
• if distance(v) gt distance(u) cost(u,v)
• ERROR has negative cycle

107
Detecting Cycles
108
Idea Use DFS

• Denote vertex as visited, unvisited and
  visiting
• Mark a vertex as visited vertex is finished

109
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
110
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
111
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
112
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
113
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
114
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
115
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
116
Depth-First Search
unvisited
A
visiting
visited
C
B
D
E
F
117
Aha! Cycles!
unvisited
A
visiting
visited
C
B
D
E
F
118
Type of Edges
unvisited
Tree Edge
visiting
visited
Backward Edge
Forward Edge
Cross Edge
119
Longest Path

• (in a DAG)

120
Counting Length of the Path
A
C
B
D
E
F
1
0
121
Counting Length of the Path
unvisited
A
visiting
visited
C
B
D
E
F
2
1
0
122
Counting Length of the Path
unvisited
A
visiting
visited
3
C
B
D
E
F
2
1
0
123
Counting Length of the Path
unvisited
A
visiting
5
visited
3
4
C
B
D
E
F
2
1
0
124
Longest Path

• Run DFS as usual
• When a vertex v is finished, set
• L(v) max L(u) 1 for all edge (v,u)

125
Topological Sort
126
Topological Sort

• Goal Order the vertices, such that if there is a
  path from u to v, u appears before v in the
  output.

127
Topological Sort

• ACBEFD
• ACBEDF
• ACDBEF

A
C
B
D
E
F
128
Topological Sort

• Run DFS as usual
• When a vertex is finish, push it onto a stack
