Title: Enabling a Multi-Vendor EHRS Using Document Storage and Interchangeable Apps

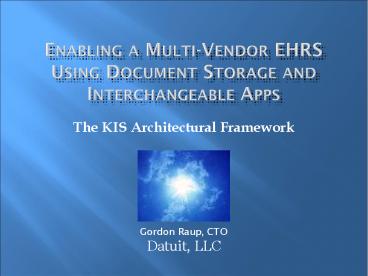

1
Enabling a Multi-Vendor EHRSUsing Document
Storage andInterchangeable Apps
  • The KIS Architectural Framework

Gordon Raup, CTO Datuit, LLC
2
Introduction
  • Started from a business need
  • Build software to make the PCMH work
  • Found cross provider collaboration is difficult,
    time-consuming and expensive with current
    technology
  • Goals
  • A single Electronic Chart for the Patient that
    all vendors use
  • Allow provider to modify EHRS without vendor
    assistance
  • Current Status
  • Provisional Business Process Patent was filed May
    2010
  • Changed companies to accelerate progress
  • Currently working on the prototype and finalizing
    the patent

3
The current HIT Database ModelThe Hairball
4
Consequencesof the Database Model
  • Data is stored in Silos
  • No single database schema can meet all needs
  • Databases dont scale up well for large volumes
    of data
  • Provider is dependent on the Vendor
  • Only the Vendor can change the system
  • Very expensive to change Vendors
  • Innovation is expensive
  • Must either be done by or coordinated with the
    vendor or done in a different silo

5
More Consequencesof the Database Model
  • Interfaces required to link silos
  • Requires agreement between two vendors and the
    provider
  • Fragile and expensive
  • Cross-Provider collaboration is difficult
  • Data from different providers must be viewed
    separately or translated
  • Translation is expensive and risky
  • Vendors pursuing a winner take all strategy
  • Health Reform Difficult with Database Model
  • Accountable Care Organizations and Medical Homes
    require high level of cross-provider
    collaboration

6
The KIS Framework, part 1The Document Model
7
Document Model
  • All permanent storage is done in documents
  • Context always kept with data
  • Use only published standards for which
    conformance can be tested
  • Continuity of Care Document (CCD)
  • Clinical Document Architecture (CDA)
  • Use only documents conformant with the HL7
    Reference Information Model (RIM)
  • Use Logic Apps to extract and combine data from
    multiple documents

8
Data Keeps Gate Servers
  • Store Documents in Specially designed data
    centers Data Keeps
  • Every patient has Primary Data Keep where all
    Documents are stored, regardless of vendor.
  • Multi-level storage Permanent layer,
    BigTable-like layer, RAM layer
  • Fierce Protective Shield Gate Server
  • Patient identification, User ID Role
    authentication, validation of User Permissions,
    Session Authentication and Termination,
  • Encryption and decryption.
  • Document Masking per Patient Consent.

9
Interchangeable Logic Apps
  • Accelerator Apps inside Gate Server
  • Tightly integrated with the BigTable layer
  • Purpose is to have data end user needs before it
    is asked for
  • Predictive modeling based on knowledge of health
    system, patient health status and user past
    practices.
  • Interchangeable Diabetes Center may want
    different Accelerator than Cardiac Rehab
  • Data Agents outside Gate Server
  • Viewer Agent, Communication Agent, Logic Agent
  • Tightly integrated with end user browser session
  • Purpose is to prepare new screens before browser
    action generates request for them

10
(No Transcript)
11
The KIS Framework, part 2The Assembly Line
12
(No Transcript)
13
Interchangeable UI Apps
  • Apps are Nested
  • Four types of Primitives Action Elements, List
    Elements, Data Widgets, Page Definitions
  • Four Levels of Nesting Page Sets, Solution
    Sets, Packages, and Applications
  • Tightly integrated with Viewer Agent
  • Apps have Defined Roles and Services
  • Med List App must be able to supply meds in a
    standard format for other apps to use.
  • Office Visit App must have all of the required
    elements of an Office Visit
  • Requirements are usually a constraint on
    underlying document standard

14
(No Transcript)
15
Advantages of KIS
  • Single Electronic Chart for each Patient
  • All Data for the patient in one place No
    interoperability required. EPC instead of EHR
  • Avoids the cost, speed delays, and translation
    risk of HIE
  • The tight care coordination needed for Medical
    Homes and Accountable Care Organizations wont be
    realized unless each provider can see all of the
    data quickly, whenever they want it.
  • Allows all Providers to be in the same silo
  • Because all documents must conform to published
    industry standards all vendors can reliably read
    and interpret the data.
  • Documents posted by one provider are immediately
    available and usable by other providers and
    their Data Agents.

16
More Advantages of KIS
  • Fosters innovation in care delivery
  • Technically-aware healthcare providers or their
    IT departments can create their own page sets,
    data widgets, and KIS packages without technical
    training by using KIS BUILDER
  • Such innovators can sell their IP with little
    effort and investment and automatically have
    proceeds deposited in their bank account each
    month.
  • Reduces Health IT costs substantially
  • By allowing provider organizations to compete
    with vendors, overall IP costs will be reduced
  • By using simple interchangeable parts, the system
    will be cheaper to maintain and adjust
  • By moving to a Utility Computing model health IT
    infrastructure costs will be substantially
    reduced.

17
Still More Advantages of KIS
  • Supports Open Source without the challenges
  • Developer organizations can provide KIS apps to
    others at no charge or for a small fee.
  • KIS Organization will ensure system reliability
    and enhancements.
  • Makes FDA Quality Standards Practical
  • KIS breaks software apps into small chunks that
    can be separately tested to higher standards.
  • Allows true Provider-Patient Collaboration
  • Different KIS apps tailored to consumers can
    display the same data as recorded by healthcare
    providers no importing.
  • Patients can add data to the EPC just like any
    other provider

18
Technical Challenges
  • Response Time
  • Database technology was developed to improve
    response time, but is not scalable.
  • KIS will use small independent distributed Data
    Agents to provide real time data and services to
    end users
  • Data Agents will use in-memory fast-response data
    structures such as NOSQL, and modern search
    algorithms such as web crawlers and predictive
    modeling to provide fast response time.
  • It is anticipated that when fully built out,
    response times will be better than comparable
    database response times.

19
Technical Challenges
  • Choosing Document Standards
  • Not all types of documents have published
    standards that are widely accepted.
  • Different document standards will be required in
    different countries and in different industry
    segment
  • Industry is now rapidly coalescing around
    preferred standards
  • A common marketplace of supported standards as
    implemented in the KIS platform will accelerate
    this process
  • Ensuring Privacy and Security
  • Robust Identity Management and Privacy Consent
    Management will be critical to widespread
    adoption.
  • The Health IT industry has struggled with both of
    these electronic management challenges. Both are
    substantially easier to lock down with a
    consistent system.
  • KIS provides vendors such a consistent system
    while providing a level playing field on which
    to compete.

20
Thank you!
  • Gordon Raup, CTO
  • Datuit, LLC
  • graup_at_datuit.com
  • www.datuit.com
