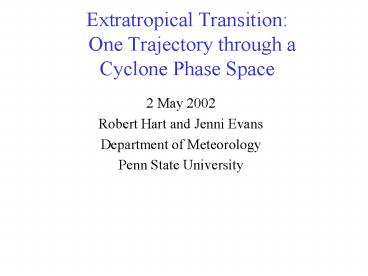

Extratropical Transition: One Trajectory through a Cyclone Phase Space

1
Extratropical Transition One Trajectory
through a Cyclone Phase Space

• 2 May 2002
• Robert Hart and Jenni Evans
• Department of Meteorology
• Penn State University

2
Which 5 are officially tropical cyclones?
Images courtesy NOAA/NCDC
3
Cyclone phase diagram

• Generalized, continuum approach to describing
  cyclone structure proposed schematically by Beven
  (1997) and also recently suggested by Reale and
  Atlas (2001).
• Objectively defined phase diagram proposed in
  Hart (2002, MWR and Poster P1.28).
• Provides considerably more freedom than two
  discrete groups of tropical, extratropical
  cyclones
• Cyclones described here using objective
  physically insightful parameters

4
Cyclone Parameter B Thermal Asymmetry

• Storm-relative 900-600hPa mean thickness field
  (shaded) asymmetry within 500km radius

3160m
3260m
L
5
Cyclone Parameter B Thermal Asymmetry
Forming (B?0) Mature(B?0)
Decay(B?0)
Conventional Tropical cyclone B ? 0
L
L
L
Developing(Bgtgt0) Mature(Bgt0)
Occlusion(B?0)
Conventional Extratropical cyclone B
varies
L
L
L
6
Cyclone Parameter -VT Thermal Wind
Warm-core example Floyd 14 Sep 1999
Focus here on 900-600hPa
-VTL gtgt 0
7
Cyclone Parameter -VT Thermal Wind
Cold-core example Cleveland Superbomb 26 Jan 1978
Focus here on 900-600hPa
-VTL ltlt 0
8
Cyclone phase diagram B Vs. -VTL
Asymmetric cold-core
Asymmetric warm-core
Symmetric warm-core
Symmetric cold-core
9
Case example Hurricane Floyd (1999)
Track image from NHC Best-Track Analysis/web page
10
Phase diagnosis symmetric, moderately strong
warm-core
1200 UTC 9 Sept 1999
Asymmetric cold-core
B
Asymmetric warm-core
Symmetric cold-core
Symmetric warm-core

• NHC Best-track Tropical Storm 1000hPa
  /45knots

-VTL
11
0000 UTC 15 Sept 1999
Asymmetric cold-core
B
Asymmetric warm-core

• Phase diagnosis very strong, symmetric
  warm-core

Symmetric cold-core

• NHC Best-track Hurricane 933hPa
  /115knots

-VTL
12
0000 UTC 16 Sept 1999
Asymmetric cold-core
B
Asymmetric warm-core

• Phase diagnosis extratropical transition
  begins

Symmetric cold-core

• NHC Best-track Hurricane 950hPa
  /90knots

-VTL
13
1200 UTC 16 Sept 1999
Asymmetric cold-core
B
Asymmetric warm-core

• Phase diagnosis hybrid cyclone

Symmetric cold-core

• NHC Best-track Hurricane 967hPa
  /70knots

-VTL
14
1200 UTC 17 Sept 1999
Asymmetric cold-core
B

• Phase diagnosis extratropical transition
  completion

Symmetric cold-core
-VTL

• NHC Best-track Extratropical 984hPa
  /45knots

15
1200 UTC 19 Sept 1999
Asymmetric cold-core
B

• Phase diagnosis asymmetric, cold-core

Symmetric cold-core
-VTL
16
Michelle (2001) AVN
Recent transition cases of similar trajectory but
varied analysis, geography season
Vance (1999) NGP
17
Summary

• Extratropical transition is correctly identified
  within the phase space as the conversion
  symmetric/warm-core ? asymmetric
  cold-core
• Objective diagnoses (and forecast guidance when
  applied to model output) for the commencement
  completion of extratropical transition possible
• Allows for comparison to satellite model
  diagnostics presented by Harr Elsberry (2000)
  and Klein et al. (2000)

18
Summary

• The reverse (subtropical or tropical) transition
  can also be diagnosed or forecast by also looking
  at VTL Vs. -VTU Karen, Olga, Noel (2001)
• Phase diagrams are being produced in real-time
  and were used experimentally by CHC, NHC during
  the 2001 season http//eyewall.met.psu.edu/cyclo
  nephase
• Intercomparison of phase diagrams from many
  forecast models may provide measure of lifecycle
  predictability uncertainty ? ensembling

19
Future work

• Further dynamical insight provided by other
  measures? e.g. Thermal vorticity (Darr 2002)
• Examine phase predictability
• Impact of synthetic bogus on phase evolution
• Delay or acceleration of transitions?

20
Future work

• Can phase diagram be used to indicate when
  bogussing should cease?
• Synoptic evaluation of common trajectories
• Dynamics evolution along phase trajectory
• Dynamics of hybrid cyclones

21
Acknowledgments

• Penn State University Jenni Evans, Bill Frank,
  Mike Fritsch, Nelson Seaman
• SUNY Albany Lance Bosart, John Molinari
• University of Wisconsin/CIMSS Chris Velden
• National Hurricane Center (NHC) Jack Beven,
  Richard Pasch, Miles Lawrence, Lixion Avila
• Canadian Hurricane Center (CHC) Pete Bowyer
• Lawrence Livermore National Lab Mike Fiorino
• NCDC Satellite imagery
• NCEP Real-time gridded analyses forecasts
• NCAR/CDC NCEP/NCAR Reanalyses

22
(No Transcript)
23
Unnamed TC (1991)
Michael (2000)
Images courtesy NCDC
Perfect Storm (1991)
Noel (2001)
Presidents Day Blizzard (1979)
Extratropical Low
Floyd (1999)
Superstorm of 1993
Gloria (1985)
24
Cyclone parameter -VT Thermal Wind
e.g. 700hPa height
ZMAX
500km
?Z ZMAX-ZMIN isobaric height difference
within 500km radius
Proportional to geostrophic wind (Vg)
magnitude ?Z d f Vg / g where
ddistance between height extrema, fcoriolis,
ggravity
ZMIN
Vertical profile of ZMAX-ZMIN is proportional to
thermal wind (VT) if d is constant
900-600hPa -VTL 600-300hPa -VTU
-VT lt 0 Cold-core, -VT gt 0 Warm-core
25
Other Paths to Transition Extended hybrid
status.
Results from competing forcings driving vertical
structure change 1. Trough interaction can
drive asymmetric/cold-core development 2.
Gulf stream can drive symmetric/warm-core
development ? Hybrid structure maintained over
several days until one ultimately dominates or
dissipation occurs
26
Cold-to-warm core transition
Tropical Transition of
Hurricane Olga (2001) -VTU Vs. -VTL
-VTU Vs. VTL can show tendency toward a shallow
or even deep warm-core structure when
conventional analyses of MSLP, PV may be
ambiguous or insufficient.
27
Symmetric warm-core evolutionHurricane Mitch
(1998) B Vs. -VTL
SYMMETRIC WARM-CORE
28
Asymmetric cold-core evolution
Extratropical Cyclone B Vs. -VTL
Increasing B as baroclinic development
occurs. After peak in B, intensification ensues
followed by weakening of cold-core occlusion.
29
Cold-core phase diagnosis compared to NHC ET
declaration1979-1993 ECMWF 1.125 Reanalysis 60
storms
