Title: Chapter 8


1

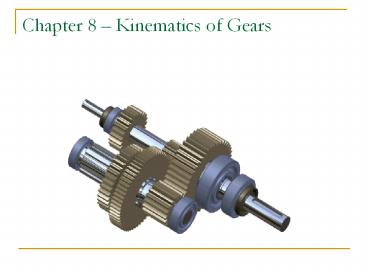

Chapter 8 Kinematics of Gears
2
Gears!
  • Gears are most often used in transmissions to
    convert an electric motors high speed and low
    torque to a shafts requirements for low speed
    high torque
  • Speed is easy to generate, because voltage is
    easy to generate
  • Torque is difficult to generate because it
    requires large amounts of current
  • Gears essentially allow positive engagement
    between teeth so high forces can be transmitted
    while still undergoing essentially rolling
    contact
  • Gears do not depend on friction and do best when
    friction is minimized
  • Basic Law of Gearing
  • A common normal (the line of action) to the
    tooth profiles at their point of contact must, in
    all positions of the contacting teeth, pass
    through a fixed point on the line-of-centers
    called the pitch point
  • Any two curves or profiles engaging each other
    and satisfying the law of gearing are conjugate
    curves, and the relative rotation speed of the
    gears will be constant

3
Spur Gears
  • Teeth are parallel to the axis of the gear
  • Advantages
  • Cost
  • Ease of manufacture
  • Availability
  • Disadvantages
  • Only works with mating gear
  • Axis of each gear must be parallel

4
Standard Spur Gears (Berg Master Catalog)
5
Helical Gears
  • Teeth are at an angle to the gear axis (usually
    10 to 45) called helix angle
  • Advantages
  • Smooth and quiet due to gradual tooth engagements
    (spur gears whine at high speed due to impact).
    Helical gears good up to speeds in excess of
    5,000 ft/min
  • More tooth engagement allows for greater power
    transmission for given gear size.
  • Parallel to perpendicular shaft arrangement Fig
    8.2
  • Disadvantage
  • More expensive
  • Resulting axial thrust component

6
Helical Gears
  • Mating gear axis can be parallel or crossed
  • Can withstand the largest capacity at 30,000 hp

7
Worm Gears
worm gear
  • Gears that are 90 to each other
  • Advantages
  • Quiet / smooth drive
  • Can transmit torque at right angles
  • No back driving
  • Good for positioning systems
  • Disadvantage
  • Most inefficient due to excessive friction
    (sliding)
  • Needs maintenance
  • Slower speed applications

worm
8
Bevel Gears
  • Gear axis at 90, based on rolling cones
  • Advantages
  • Right angle drives
  • Disadvantages
  • Get axial loading which complicates bearings and
    housings

9
Spiral Bevel Gears
  • Same advantage over bevel gears as helical gears
    have over spur gears!!
  • Teeth at helix angle
  • Very Strong
  • Used in rear end applications (see differentials)

10
Why Use Gears?
  • Reduce speed
  • Increase torque
  • Move power from one point to another
  • Change direction of power
  • Split power

Generally this functionality is accomplished by
many gears mounted in a gear box!
11
BostonGear
Examples of off the shelf drives
Show slides
12
Other Drives
  • Splitter One input with several outputs
  • Right Angle Transfers torque thru right angles,
    can be as simple as mating bevel gears

www.gamweb.com/ power_series.htm
Types of Gear Boxes http//en.wikipedia.org/wiki/
Gear_box
13
Other Drives
  • Differentials
  • Engines typically operate over a range of 600 to
    about 7000 revolutions per minute (though this
    varies, and is typically less for diesel
    engines), while the car's wheels rotate between 0
    rpm and around 1800 rpm. Engine higher speed,
    lower torque versus wheels.

www.torsen.com/products/ T-1.htm
How a manual transmission works
http//en.wikipedia.org/wiki/Manual_transmission
14
How a differential works http//en.wikipedia.org/
wiki/Differential_(mechanical_device)
15
John Deere 3350 tractor cut in Technikmuseum
Speyer Museum
16
Gears vs Belts and Chains
  • Gears are much more capable in terms of power
    rating (helical gear drives capable of gt 30,000
    hp)
  • With planetary gear sets large gear ratios can
    be achieved (1001)
  • Gear applications include high torque and high
    speeds
  • Can have multiple speed reductions by pairing
    different gears or gear trains (several gears in
    series)

17
Gears used for Speed Reducer
  • Recall the main purpose of mating/meshing gears
    is to provide speed reduction or torque increase.

Gear nG NG
Pinion nP NP
18
Example
  • Want a 31 reduction
  • NP22 teeth
  • What is NG?
  • Solution
  • VR 3 NG/NP
  • NG 322 66 teeth

Figure 8-15, pg. 322
19
n4, N4
n1, N1
Engine
Pump
Given n1 500 rpm, N1 20tN2 70t, N3 18t,
N4 54t Find n4
n2, N2
n3, N3
Example Double Speed Reducer
  • Solution
  • n2 500 rpm(20/70) 142.8 rpm
  • n3 n2
  • n4 142.8 rpm(18/54) 47.6 rpm
  • Total reduction 500/47.6 10.5 (0r 10.51)

Torque?? Increases by 10.5!!Power?? Stays the
same throughout!
20
Pinion
Line drawn perpendicular at point of contact
always crosses centerline at same place then VR
np/nG constant
POWER np
Law of Kinematics
Holds true if teeth have conjugate profile!!
DEMO!
Fig 8-7
21
(No Transcript)
22
Spur Gear Nomenclature
  • Pitch Circle(s)
  • The circles remain tangent throughout entire
    engagement
  • Pitch Diameter
  • Diameter of pitch circle
  • DP Pitch f of pinion
  • DG Pitch f of gear

(power gear or driving gear) (Driven gear)
23
Gear Nomenclature
  • N Number of teeth
  • Use subscript for specific gear
  • NPNumber of teeth on pinion (driver)
  • NGNumber of teeth on gear (driven)
  • NP lt NG (for speed reducer)
  • NANumber of teeth on gear A
  • Circular Pitch, P is the radial distance from a
    point on a tooth at the pitch circle to
    corresponding point on the next adjacent tooth
    P(pD)/N

24
Gear Nomenclature
  • Gear Train Rule Pitch of two gears in mesh must
    be identical

PINION
p
DG
p
DP

P
NP
NG
GEAR
25
Gear Nomenclature
  • Diametral Pitch, (Pd) Number of teeth per inch
    of pitch diameter
  • Two gears in mesh must have equal Pd
  • Standard diametral pitches can be found in Table
    8-1 and 8-2

N

Pd
D
NG
NP


Pd
DP
DG
26
Gear Nomenclature
Figure 8-8
More Gear Nomenclature http//en.wikipedia.org/wi
ki/List_of_gear_nomenclature
27
(No Transcript)
28
Gear Geometry
  • Spur Gears
  • Tooth Profile Conjugate shape
  • Conjugate Profile
  • Tooth is thicker at base, maximum moment
  • s M/s
  • Pressure Angle (f) - angle between tangent and
    perpendicular line to gear tooth surface
  • Allows constant velocity ratio between mating
    gears and smooth power transmission

Conjugate profile
Fillet Radius
29
Force perpendicular at f
Pressure Angle
F 14.5
F 20
F 25
30
Figure 8-11
31
Gear Nomenclature Example
  • 8-1) Gear has 44 teeth, Æ20, full depth
    involute form diametral pitch Pd 12
  • Pitch Diameter
  • Circular Pitch

NG
44 teeth
3.667 inch



DG
12 t/in
Pd
DG
p
(p)
3.667in
.2617 in/t



Pc
NG
44 t
32
Gear Nomenclature Example
  • Addendum
  • Dedendum

1
1
.0833 in
a



Pd
12 t/in
1.25
1.25
.1042 in

b


Pd
12 t/in
33
Gear Nomenclature Example
  • Clearance
  • Whole Depth
  • ht ab .1875 in
  • Working Depth
  • hk 2a .16667 in

.25
.25
.0208 in

c


Pd
12 t/in
34
Gear Nomenclature Example
  • Tooth Thickness
  • Outside Diameter

PC
.2617in
.1309 in

t


2
2
N2
2.833 in

O.D.
DO


Pd
35
Gear Nomenclature Notes
  • Clearance maybe a problem for small pinions
    driving large gears, therefore they wont mesh
    and will lock up (See Table 8-6)
  • As NP decreases so does max NG
  • If design necessatates small pinion, maybe able
    to increase clearance by undercutting gear tooth
    (See Figure 8-14)

36
(No Transcript)
37
  • Summary of Gear Nomenclature
  • DP Pitch diameter of pinion
  • DG Pitch diameter of gear
  • NP No. teeth (t) for pinion
  • NG No. teeth (t) or gear
  • Pd diametral pitch N/D constant for meshing
    gears
  • p circular pitch pD/N constant for meshing
    gears
  • nP speed of pinion (rpm)
  • nG speed of gear (rpm)
  • VR velocity ratio nP/nG NG/NP
  • Power constant across mating gears or series
    system
  • Pin Pout
  • Power in branched system is conserved
  • Pin PA PB ..
  • Torque will change!!

38
  • Conclusion
  • Total speed reduction 1750/68 25.7
  • Torque increase 25.7
  • Power constant!!

39
Gear Trains
  • Train Value TV Product of the values for each
    gear pair in the train

nin


TV
(VR1)(VR2). . . .
nout
40
Gear Train Alternate Solution
(VR1)(VR2)(VR3)
TV

30
68
68
8.4

TV



25
22
30
ni
TV

nout
ni
1750 rpm
nout
208 rpm ccw



TV
8.4
Tout 8.4 Tin !! Lots of Torque
41
YouTube Gear Animations
  • Speed Reducers
  • http//www.youtube.com/watch?v7LReoWPg_pMfeature
    related
  •
  • http//www.youtube.com/watch?v1_jbZVBXjWcfeature
    related
  •
  • Automotive Differential http//www.youtube.com/wa
    tch?viBLE0_Sjqw4featurerelated
  • Manual Transmission http//www.youtube.com/watch?
    vMBmLJCeGu7ofeaturerelated
  • Gear Cutting
  • http//www.youtube.com/watch?vfps0OR1eF_sfeature
    related
  • http//www.youtube.com/watch?vxF9CjluRFJ4feature
    related
