The MS Beamline X04SA Material Science

1

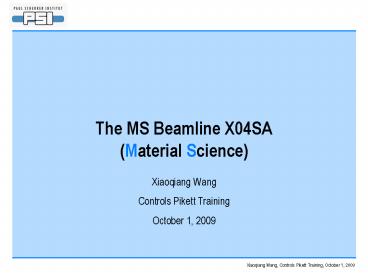

The MS Beamline X04SA(Material Science)

• Xiaoqiang Wang
• Controls Pikett Training
• October 1, 2009

2
Beamline Layout X04SA
PLD
ES2
OP2
EPS
SD
PD
ES3
Network Switch
FE
OP1
PD Powder Diffrractometer SD Surface
Diffrractometer
3
Problems

• Quota exceeds
• User deletes files to Trash
• Newport Diffractometer motors fails to respond
• Reset the motor controller
• Local contacts know how

4
CVS Repository and IOCs

• X/X04SA/FE X04SA-VME-FE
• X/X04SA/OP1 X04SA-VME-OP1
• X/X04SA/OP2 X04SA-VME-OP2
• X/X04SA/ES2 X04SA-VME-ES2
• X/X04SA/ES3 X04SA-VME-ES3
• X/PLD X04SA-VME-PLD
• X/ROBOT/X04SA X04SA-PC-ROBO x04sa-softioc50001

• Stäubli Robots (ES2)
• G/SPEC/local/X04SA SPEC macros
• All boot from /work

5
Login to the beamline

• Network gateway x04sa-gw
• E-account e10097
• Consoles
• ES2 x04sa-cons-1, x04sa-cons-2 (winxp),
  x04sa-cons-3
• ES3 x04sa-cons-4, x04sa-cons-5, x04sa-cons-6,
  x04sa-ms-1 (dual boot)
• Servers
• WWW x04sa-www-1 (MEG server)

6
Documentation

• Controls Wiki
• https//controls.web.psi.ch/cgi-bin/twiki/view/Ma
  in/X04SA
• Beamline Wiki
• https//wiki.intranet.psi.ch/MSBL/WebHome
• Operation Manual
• https//wiki.intranet.psi.ch/MSBL/ManInfobook

7
Beamline Staff

• Powder Diffractometer (ES2)
• Fabia Gozzo
• Antonio Cervellino

• Surface Diffractometer (ES3)
• Philip Willmott (beamline manager)
• Domenico Martoccia
• Stephan Pauli

Technical Support Dominik Meister and Michael
Lange Microstrip Detector Bernd Schmitt
http//sls.web.psi.ch/view.php/beamlines/ms/staff/
index.html
