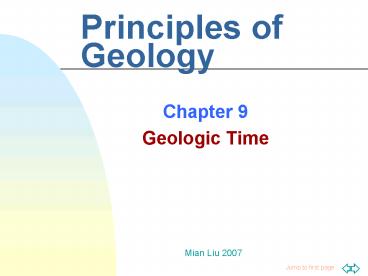

Principles of Geology

1
Principles of Geology

• Chapter 9
• Geologic Time

Mian Liu 2007
2
the canyons of this region would be a Book of
Revelations in rock-leaved Bible of geology.
J. W. Powell
3
Dating rocks

• Relative dating
• Using a set of principles to put rocks in their
  proper sequences of formation
• Absolute dating
• Using radioactive decay to determine the exact
  age of rocks

4
Principles of relative dating

• Law of superposition
• Developed by Nicolaus Steno in 1669
• In an undeformed sequence of sedimentary rocks
  (or layered igneous rocks), the oldest rocks are
  on the bottom

5
Principles of relative dating

• Principle of original horizontality
• Layers of sediment are generally deposited in a
  horizontal position
• Rock layers that are flat have not been disturbed

6
Principles of relative dating

• Principle of cross-cutting relationships
• Younger features cut across older feature

7
Principle of cross-cutting relationships
8
Principles of relative dating

• Inclusions
• An inclusion is a piece of rock that is enclosed
  within another rock
• Rock containing the inclusion is younger

9
Principles of relative dating

• Unconformity
• An unconformity is a break in the rock record
  produced by erosion and/or nondeposition of rock
  units

10
Principles of relative dating

• Types of unconformities
• Angular unconformity tilted rocks are overlain
  by flat-lying rocks
• Disconformity strata on either side of the
  unconformity are parallel
• Nonconformity metamorphic or igneous rocks in
  contact with sedimentary strata

11
Correlation of rock layers

• Correlation by physical criteria
• For a limited area
• Correlation using index fossils
• Principle of fossil succession

12
Overlapping ranges of fossils help date rocks
more exactly than a single fossil
13
(No Transcript)
14
Dating rocks

• Relative dating
• Using a set of principles to put rocks in their
  proper sequences of formation
• Absolute dating
• Using radioactive decay to determine the exact
  age of rocks

15
Absolute Dating based on Radioactive Decay
Parent
daughter
Why does it work? 1. The decay rate is CONSTANT,
independent of external conditions in the
earth. 2. The daughter/Parent ratio can be
precisely measured.
16
Dating with radioactivity

• Parent an unstable radioactive isotope
• Daughter product the isotopes resulting from
  the decay of a parent

17
Dating with radioactivity

• Radioactivity
• Spontaneous changes (decay) in the structure of
  atomic nuclei

18
Half-life the time required for one-half of the
radioactive nuclei in a sample to decay
19
Dating with carbon-14 (radiocarbon dating)

• Half-life of only 5730 years
• Used to date very recent events
• Carbon-14 is produced in the upper atmosphere
• Useful tool for anthropologists, archeologists,
  and geologists who study very recent Earth history

20
(No Transcript)
21
Tree ring dating (dendrochronology)

• Growth ring is added each year on the outer rim
• Characteristics of each ring (size, density, etc.
  ) varies with environment, especially climate
• A regional pattern may be established, allowing
  comparison between live trees and trees killed by
  geological events in the past, thus providing age
  constraints to those events (dendrochronology).

22
The geologic time scale

• The geologic time scale a calendar of Earth
  history
• Subdivides geologic history into units
• Originally created using relative dates
• Structure of the geologic time scale
• Eon the greatest expanse of time

23
The geologic time scale

• Structure of the geologic time scale
• Era subdivision of an eon
• Eras of the Phanerozoic eon
• Cenozoic (recent life)
• Mesozoic (middle life)
• Paleozoic (ancient life)
• Eras are subdivided into periods
• Periods are subdivided into epochs

24
End of Chapter 9
