Title: Mediastinum


1

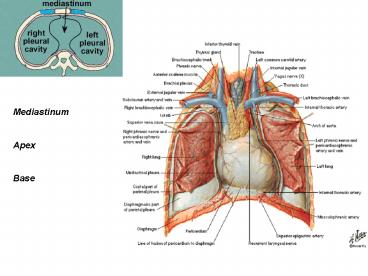

Mediastinum Apex Base
2
Fibrous pericardium
3
Double membrane surrounds the heart itself.
4
FIBROUS PERICARDIUM
PARIETAL LAYER OF SEROUS PERICARDIUM
Pericardial cavity filled with pericardial fluid
VISCERAL LAYER OF SEROUS PERICARDIUM
HEART WALL
5
Heart Wall
  • Epicardium
  • Visceral layer of the serous pericardium
  • Myocardium
  • Endocardium

Outside of the heart
Inside of the heart
6
(No Transcript)
7
(No Transcript)
8
What type of tissue? Why?
9
Mostly cardiac muscle but also contains the
fibrous skeleton of the heart
Needed for electrical isolation!
10
What type of tissue? Why?
11
Interatrial septum
LA
Interventricular septum
RA
LV
RV
12
(No Transcript)
13
Right Ventricle
Right Atrium
Pulmonary Circuit
Systemic Circuit
Left Ventricle
Left atrium
2 pumps in series
14
(No Transcript)
15
Not a lot of muscle in the atria. Why?
16
Upper Body Circulation (above the diaphragm)
Coronary Circulation
Superior Vena Cava
Coronary Sinus
Right Atrium
Inferior Vena Cava
Lower Body Circulation (below the diaphragm)
17
Interior (cut-away) view of the right atrium.
18
(No Transcript)
19
Lungs
Pulmonary Veins
Left Atrium
20
(No Transcript)
21
(No Transcript)
22
Interior (cut-away) view of the right atrium.
23
(No Transcript)
24
(No Transcript)
25
Look at all the muscle? Which is thicker? Why?
26
(No Transcript)
27
(No Transcript)
28
Left Ventricle
Aorta
Systemic Arteries
Systemic Circuit
Systemic Capillaries
Systemic Veins
Venae Cavae
Right Atrium
29
Right Ventricle
Pulmonary Trunk
Pulmonary Arteries
Pulmonary Circuit
Pulmonary Capillaries
Pulmonary Veins
Left Atrium
30
Left Ventricle
Systemic and pulmonary circuits are in series
Left Atrium
Aorta
Systemic Arteries
Pulmonary Veins
Pulmonary Capillaries
Systemic Capillaries
Systemic Veins
Pulmonary Arteries
Venae Cavae
Pulmonary Trunk
Right Atrium
Right Ventricle
31
Left Ventricle
Aorta
Coronary Arteries
Coronary Circuit - A special branch of the
systemic circuit
Why is the coronary circuit necessary?
Coronary Capillaries
Coronary Veins
Coronary Sinus
Right Atrium
32
(No Transcript)
33
Anastomoses Collateral routes End arteries
34
Which coronary artery is normal?
35
  • Ischemia
  • Angina
  • Infarction

36
4 Heart Valves - 2 atrioventricular - 2
semilunar
37
Flap of connective tissue covered by endothelium
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
Cardiac Muscle Cells
Contractile Cells
Autorhythmic Cells
99
1
50
Cardiac Contractile Cells
  • Striated
  • Uninucleate
  • Branching
  • Linked by intercalated disks
  • Desmosomes mechanical connection
  • Prevents cells from separating.
  • Allows force to be transmitted from cell to cell
  • Gap junctions electrical connection
  • Allow the heart to act as a functional syncytium

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
Autorhythmic Cells
  • Intrinsically control heart rate
  • (extrinsic effects on heart rate are via nerves,
    and hormones)
  • Spontaneously and rhythmically depolarize
  • Connected to other cardiac muscle cells via gap
    junctions

55
6 Main Groups of Autorhythmic Cells
  • Sinoatrial node
  • Internodal pathway
  • Atrioventricular node
  • Atrioventricular bundle
  • Right and left bundle branches
  • Purkinje fibers

56
What ensures that the electrical signal follows
this path?
Pacemaker
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
Normal
Arrhythmic
Fibrillation
61
  • Ectopic Focus
  • Another tissue takes over the pacemaker role
  • Caffiene, nicotine, fatigue
  • Can result in premature ventricular contractions.
  • Whats the danger?

62
HEART BLOCK
63
Extrinsic Control
Cardioinhibitory Center
Cardioacceleratory Center
64
Increased cardioinhibitory center activity
APs sent down the vagus nerve to the heart
ACh released onto the SA and AV nodes
Heart rate declines
65
Increased cardioacceleratory center activity
APs sent sympathetic cardiac nerves to the heart
NE released onto the SA and AV nodes
Heart rate increases
66
ANS Influence on the Resting Heart
Parasympathetic influence
Sympathetic influence
67
An Incredibly Important Concept
  • Blood moves from one place to another because of
    a PRESSURE GRADIENT

High Pressure
Valves can only help direct blood flow.
Blood Flow ?
Low Pressure
68
Cardiac Cycle
Ventricular Filling
Isovolumetric Relaxation
Isovolumetric Contraction
Ventricular Ejection
Cardiac cycle everything that occurs from the
start of 1 heartbeat to the start of the
next. -includes contraction (systole) and
relaxation (diastole) of all 4 chambers
69
Ventricular Filling
  • Ventricles are in diastole LOW PRESSURE.
  • At first the atria are in diastole.
  • Pressure is higher in the atria than in the
    ventricles, BUT lower in the atria than in the
    venae cavae and in the pulmonary veins.
  • Passive.
  • Then the atria are in systole.
  • Pressure is definitely higher in the atria than
    in the ventricles.
  • Active.

70
Ventricular Filling
  • During this stage
  • The AV valves are open. WHY?
  • The semilunar valves are closed. WHY?
  • Think about pressures!!!!

71
Ventricular Filling
  • At its conclusion, no more blood will enter the
    ventricle until the next cycle begins.
  • The amt of blood in the ventricle right now is
    known as the END DIASTOLIC VOLUME.
  • If pressure in the venae cavae increased, what
    would happen to EDV???

72
Isovolumetric Contraction
  • As the ventricle contracts, pressure rises within
    it.
  • The AV valve slams shut quickly creating the
    1st heart sound (LUB).
  • It takes a little more contracting and thus more
    pressure before the semilunar valve opens.
  • Thus for a little while, both valves are closed
    while the ventricle is contracting.
  • With both valves closed, no blood is entering or
    exiting, hence isovolumetric contraction.

73
Left atrium
Left ventricle
Aorta
74
Ventricular Ejection
  • The semilunar valve opened when ventricle
    pressure was greater than arterial pressure.
  • Blood will flow out of the ventricle and into the
    aorta until the gradient no longer exists.
  • When the ventricle stops contracting and begins
    to relax, the gradient will soon disappear.

75
Ventricular Ejection
  • The ventricle will not eject all of its blood
    some will remain.
  • The remaining blood is called the END SYSTOLIC
    VOLUME. Why?
  • Why would it be bad if the ventricle ejected 100
    of its blood with each contraction?
  • Think about exercise!

76
Ventricular Ejection
  • The amt of blood ejected by each ventricle during
    a single cardiac cycle is known as stroke volume.
  • Stroke Volume End diastolic volume End
    systolic volume.
  • SV EDV ESV
  • The stroke volumes of the 2 ventricles must be
    EQUAL!

77
Isovolumetric Relaxation
  • Kind of the reverse of isovolumetric contraction.
  • When ventricle pressure dips below arterial
    pressure, the semilunars shut (causing the 2nd
    heart sound (DUP)). But, pressure is still
    higher in the ventricles than in the atria and
    the AV valves remain closed.
  • Eventually ventricle pressure will drop (as the
    ventricle continues relaxing) until it is below
    atrial pressure and then the AV valves will
    open.
  • The period in between the shutting of the
    semilunar valves and the opening of the AV valves
    is isovolumetric relaxation.

78
Ventricle Volume
79
(No Transcript)
80
(No Transcript)
81
  • Given that
  • Aortic Pressure 82mmHg
  • Left Atrium Pressure 11mmHg
  • Left Ventricle Pressure 61 mmHg and falling
  • Answer the following
  • The tricuspid valve is
  • The mitral valve is
  • The pulmonary semilunar valve is
  • The aortic semilunar valve
  • LV volume is
  • LA volume is
  • The phase of the cardiac cycle is
  • The most recent heart sound was caused by

82
(No Transcript)
83
(No Transcript)
84
Cardiac Output
  • The volume of blood pumped by one ventricle in
    one minute.
  • Cardiac Output Heart Rate x Stroke Vol.
  • CO HR x SV

85
(No Transcript)
86
Heart Rate Will Increase If
  • Cardioacceleratory activity increases.
  • Sympathetic activity increases.
  • There is increased NE release on the heart.
  • Cardioinhibitory activity decreases.
  • Parasympathetic activity decreases.
  • Vagus nerve activity (vagal tone) decreases.
  • There is decreased ACh released on the heart.
  • Plasma epinephrine levels increase.
  • Plasma thyroxine levels increase.
  • Caffeine is used.
  • Nicotine is used.
  • Sympathetic mimics (ephedrine) are used.

87
Heart Rate and Filling Time
  • If heart rate increases
  • The time between beats will _____________
  • Filling time will ________________________
  • The end diastolic volume will_____________

88
Regulating Stroke Volume
  • Preload
  • Contractility
  • Afterload

89
  • PRELOAD -- The more the ventricle is stretched
    the more force it generates.

More blood returns to the heart.
The ventricle is stretched.
There is a more optimum overlap between actin
myosin.
More force is generated by the ventricle.
More blood is pumped out.
90
Systolic Force
Diastolic Volume
91
  • As venous return increases, stroke volume will
  • As end diastolic volume decreases, stroke volume
    will
  • As heart rate increases, stroke volume will

92
Contractility
  • The harder the ventricle muscle contracts, the
    more blood will be ejected.
  • Contractility can be increased by
  • Increased sympathetic activity (i.e., increased
    NE release on the heart).
  • Increased levels of plasma hormones such as
    epinephrine and thyroxine.
  • Drugs such as digitalis.

93
Afterload
  • Consider the following

Aorta
LV
In this situation, the man with the yellow head
has 5 seconds to open the blue door and then move
as many red bricks as he can from the LV to the
aorta.
94
Afterload
Aorta
LV
In this situation, the man with the yellow head
still has 5 seconds to open the blue door and
move as many red bricks as he can. But now,
theres someone pushing on the door. Hell have
to spend more time opening the door and hell
have less time to move the red bricks from the LV
to the aorta.
95
  • The higher the pressure in the aorta
  • The longer it takes to open the aortic semilunar
    valve
  • The smaller the amount of time for ejecting blood

96
  • As afterload increases, stroke volume will
  • As afterload increases, end systolic volume will

97
(No Transcript)
98
(No Transcript)
99
(No Transcript)
100
(No Transcript)
101
Homeostatic Imbalances
  • Tachycardia
  • Bradycardia
  • Congestive heart failure
Write a Comment
User Comments (0)
About PowerShow.com
