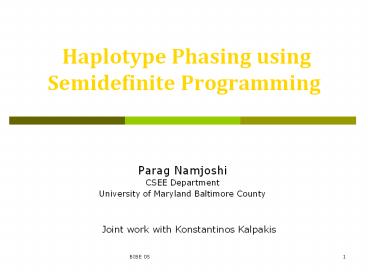

Haplotype Phasing using Semidefinite Programming

1
Haplotype Phasing using Semidefinite Programming

• Parag Namjoshi
• CSEE Department
• University of Maryland Baltimore County

Joint work with Konstantinos Kalpakis
2
Outline

• Biology Review
• Motivation
• Previous work
• Our contribution
• Experimental results
• Conclusions

3
Biology Review

• living systems are composed of cells
• the code for the creation of the cells is packed
  in a molecule called DNA.
• DNA consists of four nucleic acids Adenine,
  Cytosine, Guanine, and Thymine arranged as
  complementary strands of a double helix.
• DNA strand string of A,C,G, Ts.

4
Chromosomes

• the genome is arranged as set of distinct
  chromosomes.

• mammals are diploids
• humans have 22 x
• and y chromosomes.
• chromosomes occur in
• homologous pairs
• one homologous chromosome
• is inherited from each parent
• homologous chromosomes contain the same genes in
  the same order (up to mutations)

5
Single Nucleotide Polymorphisms.

• Single Nucleotide Polymorphism (SNP) mutation
  of a single base.
• evidence suggests that in humans
• 90 of variation is due to SNPs
• DNA has long conserved regions punctuated by SNPs
• there is one SNP in approximately 1000 bases
• most SNPS are bi-allelic
• at any given locus, only two of the four possible
  nucleotides are present in 95 of the population
• the restriction (projection) of a DNA strand to
  SNP sites is a haplotype

6
What are Genotypes?

• the genotype of diploid organisms is the
  conflation of the inherited haplotypes

7
Genotype Haplotype Std. Representation

• genotypes and haplotypes can be represented as a
  0,1,2 vectors
• independently for each site
• identify each one of the two letters that appear
  in it with 0 or 1
• replace each homozygous site with 0/1 using the
  mapping above
• replace heterozygous sites with 2

8
Haplotypes vs. Genotypes

• large scale polymorphism studies such as Linkage
  Disequilibrium need haplotype information
• however, experimentally
• it is expensive to segregate the haplotypes of
  the individuals
• it is easier to observe the genotypes of those
  individuals
• can we find haplotypes from the genotypes
  computationally?
• a genotype with h heterozygous sites can be
  explained (phased) by 2h-1 different haplotype
  pairs
• how do you choose among them?

9
Haplotype Phasing with Parsimony

• in Population haplotyping, given genotypes from
  different individuals we want to find a set of
  haplotypes which resolve all the genotypes
• Recall that there can be many such solutions
• Experimental evidence suggests that the number of
  such haplotypes is small
• HPP Haplotype Phasing Problem with Pure
  Parsimony
• Given a set of genotypes, find a minimum size set
  of haplotypes which conflate to produce the given
  genotypes
• other criteria for choosing among possible sets
  of haplotypes are
• perfect phylogeny, minimum total pairwise
  distance, minimum diameter, etc
• we focus on HPP problem
• Lancia, Pinotti, and Rizzi proved that the HPP is
  NPcomplete as well as APXhard

10
Clarks Rule

• Clark (1990) describes a greedy inference rule to
  find a small set of haplotypes resolving a set of
  genotypes
• Starting with a set of haplotypes H that resolves
  all the homozygous genotypes, do the following
• for each unresolved genotype g
• if there is a pair (h, h) that resolves g with h
  in H, then add h to H, else stop
• the solution obtained is sensitive to the order
  in which genotypes are resolved
• Clarks rule may terminate with some genotypes
  unresolved (orphans)
• The rule can be modified to include a pair of
  haplotypes that resolve an orphan genotype, and
  continue as before

11
Gusfields TIP

• Gusfield (1999) introduces the TIP approach
• enumerate all distinct haplotypes that can be
  used to resolve any single heterozygous genotype
• solve an Integer linear Program (IP) to select a
  minimum size set haplotypes from the enumerated
  haplotypes that explains the genotypes
• TIP uses O(2L n) variables and constraints, where
  L is the maximum number of heterozygous loci of
  any genotype
• Gusfield describes a number of important
  improvements to the basic approach above that
  improve performance

12
Harrower-Brown IP

• Harrower and Brown give an alternate 0-1 IP for
  the HPP problem (HB-IP)
• explain the n genotypes with 2n haplotypes (not
  necessarily distinct)
• the number of distinct haplotypes used are
  minimized
• the number of variables and constraints is
  polynomial in n, m

13
The QIP approach - Outline

• arithmetic representation of genotypes
• semidefinite programming (SDP)
• Quadratic Integer Program (QIP) for HPP
• a semidefinite programming based heuristic to
  solve QIP
• experimental results
• concluding remarks

14
Arithmetic Representation of Genotypes

• represent each genotype g as a vector d with
• each homozygous locus takes value 0 or 2 iff it
  was 0 or 1 in g
• each heterozygous locus takes value 1
• conflation can now be replaced by addition
• if haplotypes h1 and h2 explain genotype d, then
• d h1 h2
• we call d an arithmetic genotype

g 0 1 2 h1 0 1 0 h2 0 1 1
d 0 2 1 h1 0 1 0 h2 0 1 1
g ? d
15
Arithmetic Genotypes

• let ? be n x m matrix with the arithmetic
  genotypes as rows
• let H be k x m matrix with haplotypes as rows
• if haplotypes in H resolve ?, then
• ? S H
• where S is a n x k 0-1-2 matrix
• the row of S for a homozygous genotype has a
  single 2
• all other rows have exactly two 1s
• we call S a selector matrix
• ith row of S selects two haplotypes (rows of
  H) to explain ith genotype

16
The k-HPP Problem

• the k-HPP problem
• Given nxm matrix ? representing a set of n
  distinct genotypes each with m loci
• Find an nxk 0-1-2 selector matrix S and a kxm 0-1
  haplotype matrix H such that
• ? S H
• S has as few non-zero columns as possible
• all row-sums of S are 2
• HPP is equivalent to k-HPP with k2n
• lower Bounds for HPP
• is a well known lower bound
• Lemma rank(?) is a lower bound for HPP
• Consider an optimal solution S, H
• Since ? S H, we know that rank(?)
  min(rank(S), rank(H)), and thus H must have at
  least rank(?) distinct rows (haplotypes)

17
Finding H given ? and S

• given ? and H to find an S is easy
• given ? and S find an H by solving a 2-SAT
  problem
• If genotype i is resolved by haplotypes t and l,
  then for each locus j, add following clauses
• If di,j 0, add two clauses (ht,j) (hl,j)
• If di,j 2, add two clauses (ht,j) (hl,j)
• If di,j 1, add clauses (ht,j V hl,j ) (ht,j
  V hl,j)
• Only one of the ht,j ,hl,j must both be 1
• 2-SAT problem
• has km variables and 2nm clauses
• can be solved in (almost) linear time
• any satisfying assignment gives a resolution of
  the genotypes

18
Quadratic, Vector, and Semi-definite Programs

• Quadratic Integer Program
• Optimize a quadratic objective function subject
  to quadratic constraints on integer variables
• Strict, when each term has total degree 0 or 2
• Vector program
• optimize a linear objective function of inner
  products of vector variables subject to linear
  constraints on inner products of those variables
• Strict quadratic programs lead to vector programs
  (products of variables are mapped to inner
  products of corresponding vectors)
• SDP program
• optimize a linear objective function of the
  elements of a matrix X subject to
• linear constraints on the elements of X
• X being a positive semi-definite matrix
• Vector programs lead to SDP (X is the matrix of
  all vector inner products)
• SDP programs can be solved in polynomial-time
  with small numerical errors, thus
• solving vector programs, thus
• solving relaxations of strict Quadratic Integer
  programs
• construct an approximate solution to a quadratic
  integer program from a solution of its
  relaxation, obtained via SDP

19
Quadratic Integer Program for the k-HPP
Subject to
20
QIP Heuristic SDPRoundingBacktracking

• recursively solve k-HPP
• using SDP compute vectors for the variables of
  QIP
• for each selector variable Si,j, compute
• PSi,jprobability that a random hyperplane
  separates the vectors of Si,j and z variables
  (ala MAX-CUT)
• round to 1 the Si,j with the highest PSi,j
• residual k-HPPk-HPP problem with the rounded
  Si,js fixed to their rounded value
• if the residual k-HPP is infeasible
• round Si,j to 0 instead
• if the new residual k-HPP is still infeasible
• backtrack by returning infeasible
• recursively solve the residual k-HPP

21
Experiments

• we experiment with three approaches for the HPP
  problem
• Clarks rule
• LP relaxation of Gusfields TIP scheme with
  simple rounding
• the QIP heuristic for kHPP with k 2n
• The MATLAB package SDPT 3.02 is used to solve the
  SDP relaxation of the problem
• all experiments are done on a single CPU MATLAB
  on a Dual Xeon 2.4 Ghz desktop with 1GB memory

22
Experimental Datasets

• we use synthetic datasets A and B
• each with 20 instances for each triplet (n, m, k)
  (5, 5, 5), (8, 8, 8), (10, 10, 10), and (15,
  15, 15) (and for B, recombination levels ? 0,
  16 and 40)
• generate instances of the HPP problem as follows
• randomly mate k haplotypes with m loci to produce
  n genotypes
• generation of haplotypes for dataset A
• each locus of k haplotypes takes value 0/1 with
  probability ½ independent of other loci and other
  genotypes
• generation of haplotypes for dataset B
• Use Hudsons program to generate haplotypes with
  these parameters
• diploid population of size 106
• mutation rate 1.5 10-6
• recombination levels ? 0, 16 and 40
  corresponding to crossover probabilities 0, 4
  10-6, and 10-5

23
Experimental Results
24
QIP Extensions

• QIP can be extended to handle many variants of
  basic k-HPP problem, such as
• partial Genotypes
• Some loci in some genotypes are unknown
• shared haplotypes
• Prior knowledge of shared haplotypes
• allowing for erroneous genotypes and loci editing
• allowing for outlier genotypes

25
Concluding Remarks

• developed arithmetic formulation for the HPP
  problem
• provides new lower bound
• yields simple quadratic IP (QIP)
• QIP can be extended to handle many variants,
  incorporate prior information etc
• SDP relaxation of QIP that can be solved in
  polynomial time
• SDProundingbacktracking gives QIP heuristic
• experimentally
• Demonstrate competitiveness of QIP heuristic vs
  Clarks rule and Gusfields TIP relaxation
• Show that rank of the genotypes is a tighter
  lower bound than
• future work
• Analysis of worst-case performance ratio of the
  QIP heuristic
• Devise algorithms that scale better

26
Thank You !
Questions ?
