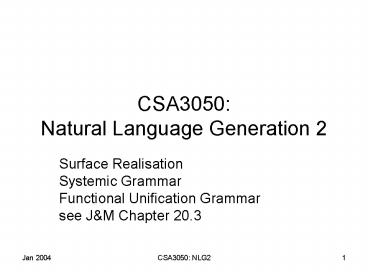

CSA3050: Natural Language Generation 2

1
CSA3050 Natural Language Generation 2

• Surface Realisation
• Systemic Grammar
• Functional Unification Grammar
• see JM Chapter 20.3

2
Surface Realisation within NLG
3
Revealing Quotations

• Language understanding is somewhat like counting
  from one to infinity language generation is like
  counting from infinity back to one. Y. Wilks,
  1988
• Generation from what?! C. Longuet-Higgins
• Moral there is no consensus about the level of
  representation we start from. This applies in
  particular to surface realisation.

4
Surface Realisation

• There is, however, some agreement that output
  should be specified in terms of function rather
  than syntactic form
• Consider the case of voice (syntactic form)
• The system will save the document vs.
• The document will be saved by the system
• Output of a discourse planner is not in terms of
  voice, active v. passive.
• More likely in terms of notions like topic, focus
  etc. whose surface realisation is left to a
  subsequent processing stage.

5
Two Approaches toSurface Realisation

• Systemic Grammar (Halliday 1985)
• Systemic Functional Linguistics
• Language as a resource for expressing meaning in
  context.
• Sentences are regarded collections of functions
  that are mapped to grammatical forms.
• Functional Unification Grammar (Kay 1979)
• Grammar is a "feature structure" (recursive
  attribute/value pairs).
• Input specification is another feature structure
• Realisation viewed as further specification of
  input to yield output sentence via fundamental
  operation of functional unification.

6
Systemic Grammar Multi-Layered Sentence Analysis
the system will save the document
Mood subject finite predicator object
Transitivity actor process process goal
Theme theme rheme rheme rheme

• Mood layer defines interaction between reader
  and writer
• telling v. asking v. ordering
• Transitivity layer expresses propositional
  content
• Theme layer deals with topic (highlighting
  function)

7
Systemic Grammar

• Grammar is represented as a graph called a system
  network. This comprises
• and systems (curly braces)
• conjunctive features in boldface
• or systems (straight vertical lines)
• disjunctive features in normal face
• realisation statements (in italic).
• specify how disjunctive features are realised

8
(No Transcript)
9
Realisation Statements

• X insert the function Xpredicator
• XY conflate the functions X and Y goal
  subject
• XgtY order X somewhere before Ysubject gt
  predicator
• X/A function X has grammatical feature
  Ysubject/noun phrase
• X!L assign function X to lexical item Lpassive!be

10
Generation Procedure

1. Traverse network from left to right, choosing the
   appropriate features and collecting the
   appropriate realisation statements.
2. Build an intermediate expression that obeys the
   constraints set by the realisation statements.
3. Recurse back through the grammar at a lower level
   for functions not fully specified.

11
Example Input

• (
• process save-1
• actor system-1
• goal document-1
• speechact assertion
• tense future
• )
• N.B. This specification resembles that used by
  PENMAN system (Mann 1983) based on KL-ONE
  knowledge base.

12
Generation 1

• Start with clause feature
• insert predicator and classify as verb
• Proceed to mood subsystem
• after interrogating input specification
  (assertion is specified) choose indicative and
  declarative features.
• Insert subject and finite functions with ordering
  subject gt finite gt predicator

13
Output of Mood System
Mood subject finite predicator
14
Generation 2

• Proceed to Transitivity subsystem.
• Assuming save-1 is a material process (from KB)
• Insert goal and process functions
• Conflate process with (finite, predicator) pair
• Proceed to Voice subsystem
• Choose Active feature and obey realisation
  statements.

15
Output of Transitivity System
Mood subject finite predicator object
Transitivity actor process process goal
16
Generation 3

• Proceed to Theme subsystem
• Since there is no thematic specification in the
  input, choose Unmarked Theme
• Insert theme and rheme functions
• Conflate theme with subject and rheme with
  predicator,object

17
Output of Mood Subsystem
Mood subject finite predicator object
Transitivity actor process process goal
Theme theme rheme rheme rheme
18
Generation 4

• Generation now recursively enters the grammar at
  lower levels to fully specify
• the phrases (noun phrase network, auxiliary
  network not shown here)
• lexical items (usually through entries in the
  knowledge base)
• and possibly morphological choices

19
Result of Generation
the system will save the document
Mood subject finite predicator object
Transitivity actor process process goal
Theme theme rheme rheme rheme
20
Functional Unification Grammar

• Build the generation grammar as a feature
  structure (FS)
• Build input specification as an FS
• Unify the two together (functional unification
  operation).
• Linearize result.

21
Feature Structures

• Feature structures are essentially sets of
  attribute value pairs

attribute1 value1 attribute2 value2 attribute3
value3
22
Feature Structure 2

• These can be used to express facts of different
  kinds

human facts
agreement facts
name mike height 156 eyes green
number sing gender masc case nom
23
Feature Structures 3

• Furthermore, values can themselves be feature
  structures

24
Functional Unification

• The information in feature structures can be
  combined together by means of the functional
  unification (?) operation.

name mike height 156
eyes green
?
name mike height 156 eyes green

25
Grammar as a Feature Structure
26
Input Specification as a Feature Structure
cat S actor head lex system process head lex
save tense future goal head lex document
27
Partial Result
cat S actor cat NP head lex system proces
s cat VP number actor number head lex save
tense future goal cat NP head lex docume
nt pattern (actor process goal)
28
Full Result
