Title: Protein Synthesis Translation mRNA processing is not shown


1

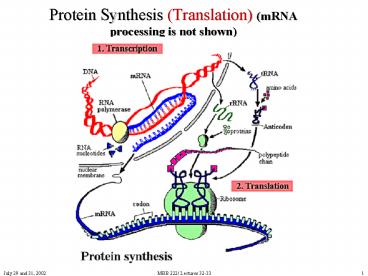

Protein Synthesis (Translation) (mRNA processing
is not shown)
2
(No Transcript)
3
Most biological activities are carried out by
proteins, and their synthesis is at the heart of
cellular function The design of protein synthesis
apparatus is similar in all organisms
RNA plays 3 Distinct Important Roles tRNA
the key or adaptor to the genetic code. rRNA
Provides scaffold catalysis. mRNA The
intermediary between gene and protein
4
Fig. 5.20
5
The Genetic Code tRNA Structure Function
Translation How is the protein coding
information in mRNA (in the language of
nucleotides) translated into a peptide
(language of amino acids)? Early
Observations - mRNA binds to ribosome - protein
is produced
Original Hypothesis Amino acids bind directly to
the nucleotides of the mRNA - by some
mutual recognition arrangement? Wrong! no
evidence, difficult to envisage from model
building
6
Alternate Hypothesis An adapter molecule
exists
aa
5
3
tRNA
Anti-codon loop
Codon has 3 nucleotides
5
3
mRNA
The adaptor is transfer RNA (tRNA) - each type
of tRNA carries a specific amino acid binds
only to mRNA sites corresponding to that amino
acid (aa) - enzymes called tRNA Synthetases
recognize ONE amino acid and its corresponding
tRNAs (How? The enzymes dont necessarily look at
the sequence of the anti codon look for more
sophisticated 3-D configurations of the tRNA)
7
Figure 27.6
Added post- transcriptionally
- many modified bases (7-15/molecule) -
modifications happen to standard bases AFTER
transcription Why the modifications? - may
stabilize 3D structure - may help recognition by
synthetase - Wobble pairing
pseudo uridine
aa
tRNA Secondary Structure
Anticodon loop
8
Figure 27.6
There is significant variability between certain
domains of different tRNAs (2 examples)
E.coli tRNALeu
Mitochondria tRNALys
9
Inosine a modified base also found in tRNA
NH2
guanine has NH2 group
An unusual property of inosine (I) is that it can
base pair with A,C or U - this makes it very
useful in many experimental techniques
(e.g., degenerate PCR where one is uncertain
about the precise sequence the primer should have
at certain locations)
10
The Structure of tRNA
11
Along with unusual / modified bases we also
observe unusual base pairs in tRNA this is due
to the non-regular structure (packing/folding) of
the tRNA compared to DNA, for example
Figure 27.9
12
tRNA Synthetases
Function
  • Associates correct amino acid ?? tRNA pair
  • Generates a high energy aminoacyl covalent bond
    between the two (cleavage of this bond releases
    energy and drives protein synthesis)
  • - Typically one tRNA synthetase exists for each
    tRNA

13
General strategy for Synthetasesediting function
  • aa binding site excludes amino acids which are
    too large
  • Editing Site is hydrolytic (cleaves)
  • - excludes amino acids of the correct size
  • - hydrolyzes aa-tRNA linkage of incorrect amino
    acids small enough to enter

14
tRNA lies across the protein and makes specific
contacts- anticodon region and acceptor stem
3 acceptor stem
ATP
Structure of tRNA sythetase bound to tRNA and ATP
15
Identity Elements in tRNA
- we might predict that the tRNA synthetases
would only use the anticodon to determine the
tRNA identity (bind the correct tRNA)
- what the enzyme actually does is examine other
unique structural features that identify the
tRNA - the location of some of these are
indicated in the secondary structures shown in
the figure
Figure 27.11
16
Formation of aminoacyl tRNA (charged tRNA) by
the aminoacyl tRNA synthetases
Figure 27.10
17
The Genetic Code
How does the aa- charged tRNA read the
mRNA? Since there are 20 amino acids, the
nucleotides must be capable of specifying at
least 20 words (anti-codons) If 2 nucleotides /
amino acid. ? 42 16 possibilities If 3
nucleotides / amino acid. ? 43 64
possibilities

(More than enough)
The actual arrangement of a three letter code has
several possible ways in which it could be
read - overlapping code - punctuated code -
unpunctuated code
18
Figure 27.1
19
How was the Genetic Code Cracked?
1961 M. Nirenberg used a cell free system to
study the incorporation of 14C-labeled amino
acids into proteins, after the addition of mRNA -
mRNAs ? low level of 14C-phe incorporated -
Poly U RNAs ? HIGH level of 14-phe
incorporated Poly U encodes Poly Phe UUU ?
Phe AAA ? Lys CCC ? Pro
20
Various kinds of copolymers made Polynucleotide
phosphorylase UDP(75) GDP(25) Random
copolymer containing UG ? 31 -UUU- (3/4)(3/4)(3
/4) 27/64 42 Phe incorporation -UUG- (3/4)(
3/4)(1/4) 9/64 14 Leu -UGU- (3/4)(1/4)(3/4
) 9/64 14 Cys -GUU- (1/4)(3/4)(3/4)
9/64 14 Val -UGG- (3/4)(1/4)(1/4) 3/64
5 Trp ETC..
21
Early 1960s G. Khorana -used synthetic
copolymers of known sequence - triplets and
tetra nucleotide repeats - with this work and the
data of Leder and Nirenberg, the entire genetic
code was completed
Figure 27.2
22
Degeneracy of the Genetic CodeThe Wobble
Hypothesis F.Crick
  • - we have 61 codons for 20 amino acids. Each
    codon codes for only one amino acid.
  • Most amino acids have more than one codon!
  • Arg, Ser, Leu ? 6 codons
  • Gly, Thr, Ala, Val, Pro ? 4 codons
  • Met, Trp ? 1 codon
  • the code is degenerate- this is important- if
    only one codon/ amino acid, most mutational
    changes would stop protein synthesis

23
5
5
Ser
Tyr
24
F. Crick proposed that the standard rules for
base-pairing (GC, AU) were relaxed for the
codon at position 3- (see Table 27.2 of Mathews)
aa
Inosine (I) allows types of wobble base
pairs IA IC IU IG GU
3
5
CCI
5-NNNNNGGCNNNNN-3
A
not allowed
U
Flexibility of anti-codon the environment of
the anti-codon in the ribosome both allows
stabilizes wobble pairs
25
Structure of the GU Wobble base pair
Figure 27.4
26
The genetic code is almost universal, but there
are a few exceptions / variations Eukaryotic
Mitochondria (human) UGA Trp (not stop) AUA
Met (not Ile) AGA Stop (not Arg) AGG
5
5
Tyr
Ser
Changes in nuclear codes of certain ciliated
protozoans (a class of euks) AGA AGG
STOP
- strong selective pressure to maintain the
genetic code in its current form
27
The Ribosome Structure and Assembly
Large 50S subunit
tRNA (3 bound)
Small 30S subunit
Electron density map of a prokaryotic ribosome
28
Components of the Ribosome
The components of prokaryotic and eukaryotic
ribosomes are essentially identical, although
there are more proteins/RNAs in the eukaryotic
ribosome
29
Secondary structure of ribosomal RNA (rRNA) -
very large complex - various ribosomal proteins
are associated with discrete areas of the RNA -
initially determined by a variety of biochemical
methods
30
Overview of the ribosome structure
31
RNA Protein Ribosome components can be purified
separately reconstituted Such reconstituted
ribosomes are active and SHOW - that all
components are known - they have the capacity for
self-assembly - that mixing and matching
experiments (from diff. organisms) are
possible Detailed structural studies have mapped
the sites of various proteins activities of the
ribosome
32
The Mechanisms of Translation
The process can be separated into 3 different
stages
1. Initiation 2. Elongation 3. Termination - All
stages require mRNA, ribosomes and aa-tRNAs - At
each step there are ALSO other specific protein
factors
33
Table 27.4
34
Initiation
3 key proteins involved, these are known as
Initiation Factors (IFs)
IF 1 3 aid in the disassociation of the 30S
50S subunits. IF 2 - a GTPase which presents
the initiator tRNA
Figure 27.20
35
How does the ribosome know where to begin protein
synthesis?
  • Most proteins begin on AUG (GUG UUG less
    frequently)
  • The first amino acid incorporated (in
    prokaryotes) is Methionine.
  • - Methionine of an initiator tRNA is modified
    Formylated

O R
(amino acid side chain)
HC-NH-CH-COOH
- Note f-Met looks like a peptide! - normal
tRNAmet only recognizes AUG while tRNAf-Met will
recognize AUG, GUG UUG codons - f-Met only used
at initiation
36
Finding the right AUG or start codon Prokaryotes
Shine-Delgarno sequence on every cistron
(i.e., more than one on polycistronic mRNA
derived from an operon)
Table 27.3
About 5-10 nucleotides upstream of AUG start
codon. Recognized by base pairing to 16S rRNA
(small subunit)
37
Eukaryotes Different - each mRNA is
monocistronic (only one ribosome binding site
needed per mRNA) - greater than 90 of the start
codons used for initiation are those that are
closest to the 5 end - the 5 - CAP, appears to
be recognized by the ribosome
38
Elongation
mRNA is always read 5 ? 3 protein synthesis
is N ? C Involves protein factors known as
elongation factors (EFs) - the 70S initiation
complex is presented with aa-tRNA in the A site
(aminoacyl) by EF-Tu - if correct codon-anticodon
interactions occur, the EF-Tu uses GTP to
completely insert the tRNA - EF-Tu GDP is
released recycled - this is the slowest (rate
determining) step of translation - a balance
between speed and accuracy - error rate 10-4
39
Peptide Bond Formation - the formation of the
peptide bond is catalyzed by the rRNA in the 50S
large subunit - after formation of the peptide
bond the ribosome is translocated or moved down
the RNA - the new tRNA which now has the nascent
peptide is now moved to the P site (peptidyl) -
the tRNA that was previously attached to the
peptide is then moved to the E site (exit), then
released
40
Elongation
Figure 27.22
41
Figure 27.5 - Schematic of the Ribosome
nascent polypeptide chain
42
Termination
- termination requires Release Factors (RFs) GTP
Figure 27.26
43
Polyribosomes
-found in both prokaryotes eukaryotes
44
Summary ofProkaryotic vs. EukaryoticTranslation
- general processes are very similar - eukaryotic
ribosomes are larger. 4.2 MDa vs 2.7 MDa - in
Eukaryotes, special MetinitiatortRNA is NOT
formylated - IMPORTANT no euk. Shine-Delgarno
sequence. Initiation occurs at the first start
codon after 5-cap - additional initiation and
Elongation Factors required in eukaryotes
