Chap 9: Alcohols, Ethers

1

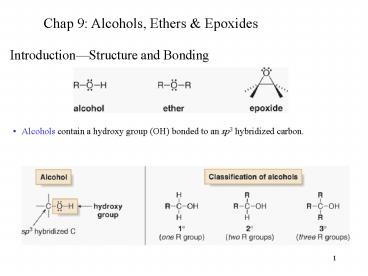

Chap 9 Alcohols, Ethers Epoxides
IntroductionStructure and Bonding

• Alcohols contain a hydroxy group (OH) bonded to
  an sp3 hybridized carbon.

2
Alcohols, Ethers and Epoxides
IntroductionStructure and Bonding

• Compounds having a hydroxy group on a sp2
  hybridized carbonenols and phenolsundergo
  different reactions than alcohols.

• Ethers have two alkyl groups bonded to an oxygen
  atom.

3
Alcohols, Ethers and Epoxides
IntroductionStructure and Bonding

• Epoxides are ethers having the oxygen atom in a
  three-membered ring. Epoxides are also called
  oxiranes.

• The COC bond angle for an epoxide must be 60,
  a considerable deviation from the tetrahedral
  bond angle of 109.5. Thus, epoxides have angle
  strain, making them more reactive than other
  ethers.

4
Alcohols, Ethers and Epoxides
Physical Properties

• Alcohols, ethers and epoxides exhibit
  dipole-dipole interactions because they have a
  bent structure with two polar bonds.
• Alcohols are capable of intermolecular (and
  intramolecular eg protiens DNA RNA) hydrogen
  bonding. So, alcohols are more polar than ethers
  and epoxides.

• Steric factors affect hydrogen bonding.

5
Alcohols, Ethers and Epoxides
6
Alcohols, Ethers and Epoxides
Preparation of Alcohols, Ethers, and Epoxides

• Alcohols and ethers are common products of
  nucleophilic substitution.

• Williamson ether synthesis.

7
Alcohols, Ethers and Epoxides
Preparation of Alcohols, Ethers, and Epoxides

• Unsymmetrical ethers can be synthesized in two
  different ways usually one approach is preferred.

8
Preparation of Alcohols, Ethers, and Epoxides

• An alkoxide salt is needed to make an ether.
• Alkoxides are prepared from alcohols by a
  BrØnsted-Lowry acidbase reaction.

• NaH is an especially good base for this because
  the by-product of the reaction, H2, is a gas that
  just bubbles out of the reaction mixture.

9
Preparation of Alcohols, Ethers, and Epoxides

• Organic compounds that contain both a hydroxy
  group and a halogen atom on adjacent carbons are
  called halohydrins.
• In halohydrins, an intramolecular version of the
  Williamson ether synthesis can occur to form
  epoxides.

10
Reactions of Alcohols

• The OH group in alcohols is a very poor leaving
  group.

• For an alcohol to undergo nucleophilic
  substitution, the OH must be converted into a
  better leaving group. Example an acid can
  convert the OH into H2O, giving a good leaving
  group.

11
Reactions of AlcoholsDehydration

• Dehydration, like dehydrohalogenation, is a ?
  elimination reaction in which the elements of OH
  and H are removed from the ? and ? carbon atoms
  to form water.

• Dehydration is usually carried out using H2SO4
  and other strong acids, or phosphorus oxychloride
  (POCl3) in the presence of an amine base.

12
Reactions of AlcoholsDehydration

• Common acids used for alcohol dehydration are
  H2SO4 or p-toluenesulfonic acid (TsOH) tosyl.

• More substituted alcohols dehydrate more easily

13
Reactions of AlcoholsDehydration

• When an alcohol has two or three ? carbons,
  dehydration is regioselective and follows the
  Zaitsev rule.
• The more substituted alkene is the major product
  when a mixture of constitutional isomers is
  possible.

14
Reactions of AlcoholsDehydration

• Secondary and 3 alcohols react by an E1
  mechanism, whereas 1 alcohols react by an E2
  mechanism.

Example as a review of E1 and E2 mechanisms
15
Reactions of AlcoholsDehydration

• The E1 dehydration of 20 and 30 alcohols with
  acid gives elimination products without
  significant amounts of by-products from an SN1
  reaction.
• Elimination takes place because the reaction
  mixture contains no good nucleophile to react
  with the intermediate carbocation, so little/no
  competing SN1 reaction.
• So, E1 dehydration of alcohols is much more
  synthetically useful than the E1
  dehydrohalogenation of alkyl halides.

16
Reactions of AlcoholsDehydration

• Since 1 carbocations are highly unstable, their
  dehydration cannot occur by an E1 mechanism
  involving a carbocation intermediate. Therefore,
  1 alcohols undergo dehydration following an E2
  mechanism.

Example as a review of E2 mechanism
17
Alcohols, Ethers and Epoxides
Reactions of AlcoholsDehydration

• Entropy favors product formation in dehydration,
  but enthalpy does not, since the ? bonds broken
  in the reactant are stronger than the ? and ?
  bonds formed in the products (broken formed).
  So, distill away product as it is formed.

18
Carbocation Rearrangementshydride shifts

• When carbocations are intermediates, a less
  stable carbocation can sometimes be converted
  into a more stable carbocation by a shift of a
  hydrogen or an alkyl group (a rearrangement).

Example of a shift from a secondary alcohol to
tertiary carbocat
19
Dehydration of Alcohols Using POCl3 and Pyridine

• Many organic compounds decompose when exposed to
  a strong acid, so... phosphorus oxychloride
  (POCl3) and pyridine (an amine base) can be used
  in place of H2SO4 or TsOH.

• POCl3 converts a poor leaving group (OH) into a
  good leaving group.
• Dehydration then follows an E2 mechanism.

Mechanism
20
Conversion of Alcohols to Alkyl Halides with HX

• Substitution reactions do not occur with alcohols
  unless OH is converted into a good leaving group.

• The reaction of alcohols with HX (X Cl, Br, I)
  is a good method to prepare 1, 2, and 3 alkyl
  halides.

21
Conversion of Alcohols to Alkyl Halides with HX

• This order of reactivity can be rationalized by
  considering the reaction mechanisms involved. The
  mechanism depends on the structure of the R group.

Mechanism
So primary give inversion, tertiary racemic mix
22
Conversion of Alcohols to Alkyl Halides with HX

• The reactivity of hydrogen halides increases with
  increasing acidity.

• Because Cl is a poorer nucleophile than Br or
  I, the reaction of 10 alcohols with HCl occurs
  only when an additional Lewis acid catalyst.

23
Conversion of 1o nad 2o Alcohols to Alkyl Halides
with SOCl2 and PBr3

• SOCl2 (thionyl chloride) converts alcohols into
  alkyl chlorides.
• PBr3 (phosphorus tribromide) converts alcohols
  into alkyl bromides.
• Both reagents convert OH into a good leaving
  group in situ (directly in the reaction mixture)
  AND provide the nucleophile to displace the
  leaving group!

Mechanism, similar for the two reagents
Pyridine is a common solvent that is converted
into pyridinium chloride, but its not
green. Need a nitrogen containing solvent
24
(No Transcript)
25
Alcohols Tosylates

• Tosylate is a good leaving group its conjugate
  acid, p-toluenesulfonic acid (CH3C6H4SO3H, TsOH)
  is a strong acid with pKa -7.

Tosyl formation though retention of
configuration, then mechanism can go either way
inversion or racemic
26
Alcohols Tosylates

• Tosylate is a good leaving group, so both
  nucleophilic substitution and ? elimination can
  occur.
• Best to treat with either a strong nucleophile or
  bases, so get SN2 or E2.

• SN2 mechanism gives inversion of configuration
  when chiral.

Mechanism compare methoxide with t-butoxide
nucleophiles on ROTs
27
Summary alcohols
28
Reaction of Ethers with Strong Acid not
synthetically very usefuldont focus on this
29
Reactions of Epoxides

• Epoxides contain a strained three-membered ring
  with two polar bonds.
• Nucleophilic attack opens the strained
  three-membered ring, making it a favorable
  process even with a poor leaving group.

Mechanism to open, create chiral centers, then
convert OH to Lv grp if want
30
Reactions of Epoxides which side do I attack?
31
Reactions of Epoxides Stereochemistry of
opening (acid or base catalyzed)
Nucleophilic attack of OCH3 occurs from the
backside at either CO bond, because both ends
are similarly substituted.
32
Reactions of Epoxides acid cat formation of 1,2
diols NOT enant pure though!
33
Reactions of Epoxides
Balance with sterics too
34
Reactions of Epoxides Ring opening acidic or
basic

• Ring opening of an epoxide with either a strong
  nucleophile or an acid HZ is regioselective
  because one constitutional isomer is the major or
  exclusive product.
• The site of selectivity of these two reactions is
  opposite from another.
