Using%20Hierarchy%20in%20Design%20Automation:

1

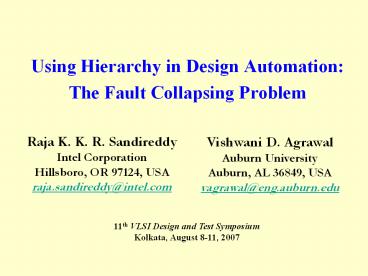

• Using Hierarchy in Design Automation
• The Fault Collapsing Problem

Raja K. K. R. Sandireddy Intel
Corporation Hillsboro, OR 97124,
USA raja.sandireddy_at_intel.com
Vishwani D. Agrawal Auburn University Auburn, AL
36849, USA vagrawal_at_eng.auburn.edu
11th VLSI Design and Test Symposium Kolkata,
August 8-11, 2007
2
Outline

• Introduction
• Main idea
• Background on fault collapsing
• Hierarchical fault collapsing
• Method
• Advantages
• Smaller collapse ratio
• Reduced CPU time
• Results
• Conclusion

3
The General Idea of Hierarchy
Lowest-level block (gates and interconnects), anal
yzed in detail, saved in library.
Circuit (top level In hierarchy)
Subnetwork analyzed once, placed in library.
interconnects
Analysis at nth level 1. Copy preprocessed
internal detail of n-1 level from
library. 2. Process nth level interconnects.
4
Background on Fault Collapsing
Test Vector Generation Flow

• DUT
• Generate fault list
• Collapse fault list
• Generate test vectors

Fault model
Required fault coverage
5
Structural Fault Collapsing
Total faults 6

• Equivalence Collapsing It is the process of
  selecting one fault from each equivalence fault
  set.
• Equivalence collapsed set a0, b0, c0, c1
• Collapse ratio 4/6 0.67
• Dominance Collapsing From the equivalence
  collapsed set, all dominating faults are left out
  retaining their respective dominated faults.
• Dominance collapsed set a0, b0, c1
• Collapse ratio 3/6 0.5

6
Functional Collapsing XOR Cell
Functional dominance examples d0 ? j0, k1 ? g0
c0 c1
All faults 24 Str. Equ. Faults 16 Str. Dom.
Faults 13 Func. Dom. Faults 4
c
d0 d1
h
j
a
g
m
d
e
b
k
i
f
7
Hierarchical Fault Collapsing

• Create a library
• For smaller (gate-level) circuits, exhaustive
  (functional) collapsing may be done.
• For larger circuits, use structural collapsing.
• For hierarchical circuits, at any level of
  hierarchy, say nth level
• Read-in preprocessed (library) collapse data of
  (n-1) level sub-circuits.
• Structurally collapse the interconnects and gate
  faults of nth level.

• R. K. K. R. Sandireddy and V. D. Agrawal,
  Diagnostic and Detection Fault Collapsing for
  Multiple Output Circuits, Proc. Design,
  Automation and Test in Europe Conf., March 2005,
  pp. 10141019.
• R. Hahn, R. Krieger, and B. Becker, A
  Hierarchical Approach to Fault Collapsing, Proc.
  European Design Test Conf., 1994, pp. 171176.

8
A Fault Collapsing Library
Cell name Cell characteristics Cell characteristics Cell characteristics Cell characteristics Collapsed fault set size Collapsed fault set size Collapsed fault set size Collapsed fault set size Func. coll. CPU (s)
Cell name No. of inputs No. of outputs No. of gates Total faults Structural Structural Functional Functional Func. coll. CPU (s)
Cell name No. of inputs No. of outputs No. of gates Total faults Equ Dom Equ Dom Func. coll. CPU (s)
Logic gates n 1 1 2n2 n2 n1 n2 n1 -
XOR 2 1 4 24 16 13 10 4 7.9
HA 2 2 5 30 20 16 15 6 9.1
FA 3 2 11 60 38 30 26 12 15.7
Sun Ultrasparc 5_10 (360MHz, 128MB)
9
Collapse Ratios for Ripple-Carry Adders
Collapse ratio
Total faults 234 1,858 14,850 118,786
475,138
In hierarchical collapsing, faults in lowest
level cells (XOR, full-adder, half-adder) are
functionally collapsed.
Programs used 1. Hitec (obtained from Univ. of
Illinois at Urbana-Champaign) 2. Fastest
(obtained from Univ. of Wisconsin at
Madison) 3. Our program (Auburn Univ.)
10
CPU Time (sec) Improvement by Hierarchy for
Ripple-Carry Adder
11
Rents rule

• Rents Rule Number of inputs and outputs
  terminals (T) for a typical block containing G
  logic gates is given by
• T K Ga
• a 0.5 to 0.65
• CPU time for collapsing a large hierarchical
  circuit is dominated by the time taken to build
  the structure of the circuit which is
  proportional to the T 2 (ref our previous work).

12
Hierarchical Ripple-Carry Adder
Here a 1.0, hence the total collapse time is
quadratic in circuit size as observed in our
experiment.
13
Hierarchical Array Multiplier
n n multiplier
n/2n/2
n/2n/2
n/2n/2
Inputs
Outputs
prop. to vG
prop. to vG
Here a 0.5, hence we expect the total collapse
time to grow linearly with circuit size.
14
Collapse Ratios for Array Multipliers
Collapse ratio
Total faults 84 726 3762
16,842 71,034 291,546 1,181,082
In hierarchical collapsing, faults in lowest
level cells (XOR, full-adder, half-adder) are
functionally collapsed.
Programs used 1. Hitec (obtained from Univ. of
Illinois at Urbana-Champaign) 2. Fastest
(obtained from Univ. of Wisconsin at
Madison) 3. Our program (Auburn Univ.)
15
CPU Time Improvement by Hierarchy for Array
Multipliers
16
Conclusion

• Benefits of hierarchical fault collapsing
• Better (lower) collapse ratios due to functional
  collapsing of library cells.
• Order of magnitude reduction in collapse time.
• Possible benefits of smaller fault sets
• Fewer test vectors
• Efficient fault simulation
• Easier fault diagnosis
• Further investigations
• Structural problems (testability measures, static
  timing analysis, physical design, etc.) may be
  solved using hierarchy.
• Functional problems (ATPG, simulation, etc.) may
  require new hierarchical algorithms.

128-bit multiplier
Dom. Collapsed Set Size (Collapse Ratio) Dom. Collapsed Set Size (Collapse Ratio) CPU s CPU s
Flat Hierarchical Flat Hier
53,4284 (0.45) 26,5824 (0.23) 27645 40
