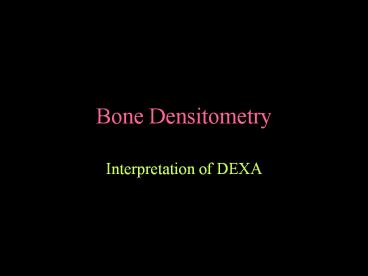

Bone Densitometry

• Interpretation of DEXA

2
Osteoporosis

• Osteoporosis is the most common metabolic bone
  disorder. It has been defined by the National
  Institutes of Health as an age-related disorder
  characterized by decreased bone mass and
  increased susceptibility to fractures
• in the absence of other recognizable causes of
  bone loss.

3
Osteoporosis

• Type 1. involutional osteoporosis affects mainly
  trabecular bone, occurs in women during the 15-20
  years after the menopause, and is related to a
  lack of estrogen. This is thought to account for
  wrist and vertebral crush fractures, which occur
  through areas of principally trabecular bone.
• Type 2. senile involutional osteoporosis. The
  fractures of old age seen at the hip, proximal
  humerus, pelvis and asymptomatic vertebral wedge
  fractures. This affects both trabecular and
  cortical bone and represents progressive loss of
  bone mass from the peak around the age of 18-35
  years.
• Secondary osteoporosis is due to an underlying
  medical condition, such as renal disease,
  malabsorption, or hormonal imbalance, or to
  medical treatment such as steroids or certain
  anticonvulsants

4
Osteoporosis

• Risk factors
• may be superimposed upon either involutional or
  secondary osteoporosis, including
• smoking, alcohol, poor diet, lack of exercise, an
  early menopause, strong family history and small
  frame.

5
Osteoporosis

• The normal rate of bone loss is 2 per year,
  hence 20-40 of the female bone mass is already
  lost by the age of 65 years of age, beginning
  before the menopause and accelerating afterwards

6
Osteoporosis

• Bone mass is the major determinant of bone
  strength that can be measured by non-invasive
  techniques, and accounts for 75-85 of this
  parameter

7
Osteoporosis

• Bone densitometry is clinically indicated for the
  detection and assessment of osteoporosis and for
  the evaluation and monitoring of several diseases
  and therapies. These include
• 1. The detection of osteoporosis and
  assessment of its severity.
• 2. Evaluation of perimenopausal women for the
  initiation of estrogen therapy.
• 3. Evaluation of patients with metabolic
  diseases that affect the skeleton.
• 4. Monitoring of treatment and evaluation of
  disease course.
• In addition it may be useful as an
  epidemiological tool and possibly in the future
  for screening

American Society of Bone and Mineral Research
8
Osteoporosis Measurement

• Plain film, Subjective, Radiogrammetry, Osteogram
• SPA
• DPA
• DEXA
• QCT
• US
• MRI

9
DEXA

• Because photons of different energy are
  differentially attenuated by bone and
  soft-tissues, by measuring the percentage of each
  transmitted beam and then applying simple
  simultaneous equations, the absorption by bone
  alone and hence bone density can be calculated.
• This measurement is not a true density but rather
  an areal density, represented in gms/cm2

10
DEXA
y
x
11
DEXA

• DEXA has very high
• accuracy (the difference in the measurement from
  a known standard) and
• precision (observed deviation of serial
  measurements with time),
• both short and long term, to within 1 at the hip
  and spine

12
DEXA

• DXA is at present the most precise measurement of
  BMD
• QCT is more sensitive to change

13
DEXA

• Interpretation

14
Find out as much relevant information as
possible
15
Find out as much relevant information as
possible
16
Bone DensitometryDEXA spine check list

• Note the age, sex, ethnicity and weight
• Does this match the reference ranges?
• Is the bottom of L4 roughly at the level of the
  iliac crests
• Are there any ribs on L1
• Scoliosis
• Are the vertebrae correctly divided
• Anything in the soft tissue

17
(No Transcript)
18
Vertebroplasty
19
(No Transcript)
20
Calcium Tablets
21
Wrong levels
Transitional vertebrae
22
Bone DensitometryDEXA spine check list

• Look for significant level to level variations
• 15-20 difference between adjacent levels

23
DEXA, what makes a good scan?

• 5-15 Lines of Iliac Crest. I recommend 1/2 of
  L5.
• 5-10 Lines of T12.
• 2 cm of tissue on both sides of the spine.
• Spine should be straight.
• No metal in spine.

24
Common problems with spine scans.

• Spine isnt straight.
• Scan starts in sacrum.
• Scan stops too soon.
• Wrong scan mode.
• Scan doesnt include L5.

25
What is a scan mode?

• This determines the speed the arm travels, and
  how much radiation the patient receives.
• The bigger the patient, the more radiation youll
  require.
• The smaller the patient, the less radiation
  youll require.

26
IQ Scan Modes
27
IQ Patient Thickness

• 12-15 cm is Medium 750
• 15-22 cm is Fast 3000
• 22-30 cm is Medium 3000
• Most patients fall in the Fast 3000 range.

28
Bone Densitometry

• In preventing Fxs it is the worst scenario that
  matters.
• Generally a slight increase in density as descend
  the L spine. Approx 6 increase between L1 and
  L4.

29
Typical Spine scan
30
Whats wrong with this scan?
31
Whats wrong with this scan?
L1 is really T12
32
Whats wrong with this scan?
33
Whats wrong with this scan?
Divisions dont account for scoliosis
34
Whats wrong with this scan?
Everything
35
DEXA Femur check listHints for a good scan.

• Patient should be straight on table.
• Pack patient with rice bags.
• Shaft of femur should be straight.
• Rotate leg inward, this will hide the lesser
  Trochanter.

36
DEXA Femur check listHints for a good scan.

• The Wards area is roughly half the neck area
• Trochanteric area 8-14cm2 in women, 10-16cm2 in
  men
• Check left and right and state side being used in
  report.

37
nonIQ DPX scanning

• Show 15-30 scan lines prior to seeing ischium.
• There should be little or no lesser Trochanter.
• Straight shaft.
• 25 lines or more above the Greater Trochanter.

38
Typical Femur Scan
39
Whats wrong with this scan?
40
Whats wrong with this scan?
Too much shaft
41
Whats wrong with this scan?
42
Whats wrong with this scan?
Insufficient tissue below neck
43
Whats wrong with this scan?
Set up for wrong leg
44
Whats wrong with this scan?
45
Bone DensitometryWHO uses T scores

• Normal
• gt -1 SD below young adult
• Osteopenia
• -1 -2.5 SD
• Osteoporosis
• lt-2.5 SD
• Established Osteoporosis
• Fxs, usually spine, hip, proximal humerus,
  wrist, rib

46
Template
47
Bone Densitometry

• Never round up figures
• -1 is osteopenia, -0.99 is normal
• -2.5 is osteoporosis, -2.49 is osteopenia

48
Bone mass in healthy children

• Increases with age, weight and pubertal Tanner
  stage.
• Tanner stage and weight are best predictors of
  bone mass.
• Age, sex, race, activity and diet are not good
  predictors, when weight and Tanner stage are
  controlled.

Radiology 1991179735-738
49
Bone mass in healthy children

• Make sure we have at least the age and weight of
  the child, if not the Tanner stage.

Radiology 1991179735-738
50
BMD in children and adolescents
51
BMD in children and adolescents
Girls
52
BMD in children and adolescents
Males
53
Bone Densitometry

• T score is compared to reference population,
  20-45 years, same sex, any race, any weight.
• Z score is matched for age, sex, weight and
  ethnicity.

54
Two possible reasons for this ladys Z score
being worse than the T score?
55
Two possible reasons for this ladys Z score
being worse than the T score? Obesity and race
56
The T score is based on a white, same sex, age
20-40population. The patient's BMD is compared
to this population's BMD.A lower T score means
that the patient BMD is low compared to this
young, healthy normal weight population. The Z
score compares the patient to an adjusted
population, it adjustsfor age, weight, and
ethnic background. The Z score can be lower for
the patient, if the average patient in this
population has a higher BMD than the average in
the T score population. This can be seen in
patients with higher weights, (which increases
bone density), and in African American groups,
(which show increased bone density). If the
patients comparison group has a generally higher
bone density, then it is possible to have a
poorer comparison to others of same age, than to
younger comparisons in generally lower density
group.
57
260 lb man, young Z above young T
58
Black as Black
Black as White
59
Black as Black
Black as White
T same Z up
60
Bone DensitometryWeight gain/loss and Z

• Weight gain (or loss) will not affect Z score
  comparison, since Z scores are weight matched.but
  should cause an increase (or decrease) in
  absolute BMD.
• An increase in weight, pushes up the reference
  range, and therefore the Z score may seem
  reduced, and vice versa.

2.2lbs1Kg
61
Bone DensitometryWeight gain/loss and T

• Weight gain (or loss) should cause an increase
  (or decrease) in absolute BMD.
• Weight gain (or loss) will affect T score
  comparison, since reference range will not have
  changed.
• Hence an increase in weight with a corresponding
  increase in bone density, will look like a good
  improvement in T score, but fracture risk is
  unchanged.

62
51F 90Kg
53F 51Kg
63
1.172
1.176
SD 0.1 both between -2 and -3
1Y, 16lb gain, 5 BMD loss significant increase
in fracture risk
64
Bone DensitometryComparison with previous

• Are the studies comparable
• Always compare like with like
• Thornton L1-4
• 4th and Lewis L2-4
• Any intervening events
• Cannot compare Hologic and Lunar

65
Bone DensitometryComparison with previous

• David Sartoriss previous studies that do not
  mention the region or levels measured, were
  standardized for L1-4 and the femoral neck.
• He usually did not quote BMD.
• Many previous studies were prior to the current
  database.
• Use the percent young adult as a guide to
  percentage change.

66
Bone DensitometryComparison with previous

• If over a period of time there is an increase in
  BMD in the lower lumbar spine and decrease in the
  upper lumbar spine, it is likely there is OA of
  the lower facet joints, and the upper lumbar
  spine is a truer reflection of useful BMD.

67
Bone DensitometryComparison with previous

• Increase in BMD of the femoral neck can be due to
  calcar buttressing with OA of the hip.

68
Bone DensitometryComparison with previous

• If you want to eyeball the for a comparison,
  use the young adult since the reference range
  will not change with age.
• A static bone density is actually a good result
  over a significant period of time
• If a test is 1 precise, then a change has to be
  greater than 2 to be significant

69
Bone DensitometryComparison with previous

• If you would have expected the bone density to
  have fallen 4 in 2 years, and it is static, then
  this is a positive response to RX

70
Bone DensitometryComparison with previous

• Generally Rx affects all levels equally. OA does
  not.

71
Cases
72
63F
73
63F
74
63F
75
63F
76
63F
77
63?
78
63F
79
63F
80
Report

• Because of the previous laminectomy at L4, which
  may also be affecting the reading on the inferior
  aspect of L3, the BMD is averaged at L1-2. Note
  is also made of mild decrease in the L4 vertebral
  height.

81
35F White 242lbs 62in
82
35F White 242lbs 62in
83
35F White 242lbs 62in
84
Report

• Because of the patients weight, the T score may
  not fully represent the fracture risk, and note
  should be made that the Z score is xSD below age
  and weight matched.

85
39M
.1551
86
39M OGI
.1551
87
46 F
Calcified bile
88
46 F
Calcified bile
89
46 F Calcified bile
90
47F
Black
91
49F 2Y8M gap Lx spine up, Fem neck down
92
49F
93
T
49F Sacral agenesis
94
50F
95
50F dense R femoral neck
96
50F dense R femoral neck
97
2d earlier
51F
2d later
98
2d earlier
51F
2d later
99
51F
Barium in diverticulum from recent enema
100
53F 51Kg
47F 59Kg
101
53F 51Kg
6 yr later, 8Kg wt loss
47F 59Kg
102
53F 51Kg
47F 59Kg
103
60F
104
60F
105
60F OA
106
54M ESLD s/p trans
Rec. repeat
107
76F response to Rx 15m earlier
15m later
108
85M Bil THR
109
85M Bil THR
