Image restoration, noise models, detection, deconvolution

1

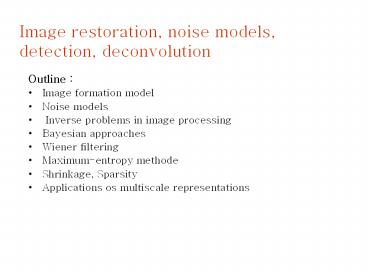

Image restoration, noise models, detection,
deconvolution

• Outline
• Image formation model
• Noise models
• Inverse problems in image processing
• Bayesian approaches
• Wiener filtering
• Maximum-entropy methode
• Shrinkage, Sparsity
• Applications os multiscale representations
