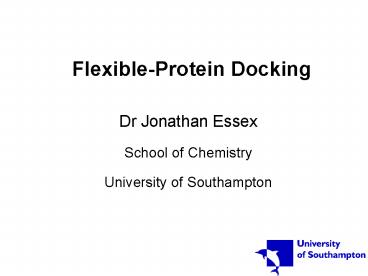

Flexible-Protein Docking

• Dr Jonathan Essex
• School of Chemistry
• University of Southampton

2
Southampton
3
Programme

• Existing small-molecule docking
• Typical approximations, and outcomes
• Evidence for receptor flexibility, and
  consequences
• Methods for accommodating protein flexibility in
  docking
• The ensemble approach
• The induced fit approach

4
Existing small-molecule docking

• Taylor, R.D. et al. J. Comput. Aided Mol. Des.
  16, 151-166 (2002)
• Many docking algorithms (some 127 references in
  this 2002 review!)
• Most docking algorithms
• Rigid receptor hypothesis
• Limited receptor flexibility in, for example,
  GOLD polar hydrogens

5
Existing small-molecule docking

• Most docking algorithms
• Range of ligand sampling methods
• Pattern matching, GA, MD, MC
• Treatment of intermolecular forces
• Simplified scoring functions empirical,
  knowledge-based and molecular mechanics
• Very simple treatment of solvation and entropy,
  or completely ignored!

6
Existing small-molecule docking

• And how well do they work?
• Jones, G. et al. J. Mol. Biol. 267, 727-748
  (1997)
• In re-docking studies, achieved a 71 success
  rate
• This is probably typical of most of these methods
• So whats missing?

7
The scoring function

• Existing functions inadequate
• Too simplified, for reasons of computational
  expediency
• Solvation and entropy often inadequately treated
• Possible solutions?
• More physics

8
The rigid receptor hypothesis

• Murray, C.W. et al. J. Comput. Aided Mol. Des.
  13, 547-562 (1999)
• Docking to thrombin, thermolysin, and
  neuraminidase
• PRO_LEADS Tabu search
• In self docking, ligand conformation correctly
  identified as the lowest energy structure 76
• For cross-docking 49 successful
• Some of the associated protein movements very
  small

9
The rigid receptor hypothesis

• Erickson, J.A. et al. J. Med. Chem. 47, 45-55
  (2004)
• Docking of trypsin, thrombin and HIV1-p
• Self-docking, docking to a single structure that
  is closest to the average, and docking to apo
  structures
• Docking accuracy declines on docking to the
  average structure, and is very poor for docking
  to apo
• Decline in accuracy correlated with degree of
  protein movement

10
The rigid receptor hypothesis

• Erickson, J.A. et al. J. Med. Chem. 47, 45-55
  (2004)

11
Models of Protein-Ligand Binding

• Goh, C.-S. et al. Curr. Opin. Struct. Biol. 14,
  104-109 (2004)
• Review of receptor flexibility for
  protein-protein interactions

12
Models of Protein-Ligand Binding

• This paper classifies protein-protein binding in
  terms of these models
• Induced fit assumed if there is no experimental
  evidence for a pre-existing equilibrium of
  multiple conformations
• Note that strictly this is an artificial
  distinction
• Statistical mechanics all states are accessible
  with a non-zero probability
• For induced fit, probability of observing bound
  conformation without the ligand may be very small

13
Protein flexibility in drug design

• Teague, S.J. Nature Reviews 2, 527-541 (2003)
• Effect of ligand binding on free energy

14
Protein flexibility in drug design

• Multiple conformations of a few residues
• Acetylcholinesterase
• Phe330 flexible acts as a swinging gate

15
Protein flexibility in drug design

• Movement of a large number of residues
• Acetylcholinesterase (again!)

16
Protein flexibility in drug design

• Table 1 in Teague paper lists pharmaceutically
  relevant flexible targets (some 30 systems!)
• Consequences of protein flexibility for ligand
  design
• One site, several ligand binding modes possible

17
Protein flexibility in drug design

• Consequences
• Allosteric inhibition
• Binding often remote from active site NNRTIs
• Proteins in metabolism and transport
• Promiscuous
• Bind many compounds, in many orientations
• E.g P450cam substrates, camphor versus
  thiocamphor (two orientations, different to
  camphor!)

18
Experimental evidence for population shift

• Binding kinetics
• Binding to low-population conformation should
  yield slow kinetics DGbarrier
• Observed for p38 MAP kinase - mobile loop
• Rates of association vary between 8.5 x 105 and
  4.3 x 107 M-1s-1, depending on whether
  conformational change involved
• Slow kinetics can make experimental comparison
  between assays difficult
• Slow kinetics can improve ADME properties!

19
Nitrogen Regulatory Protein C (NtrC) plays a
central role in the bacterial metabolism of
nitrogen
Experimental evidence for population shift
20
Changing nitrogen levels promote the activity of
NtrB kinase
Protein conformational change
NtrB kinase phosphorylates NtrC at aspartate 54
in the receiver domain
21
Phosphorylation promotes conformational change in
the receiver domain
Protein conformational change
22
Protein conformational change

• NtrC active and inactive conformations apparent
• P-NtrC protein shifted towards activated
  conformation
• Volkman, B.F. et al. Science 291, 2429-33 (2001)

23
Summary

• Protein flexibility important in ligand design
• Two basic mechanisms
• Selection of a binding conformation from a
  pre-existing ensemble population shift
• Induced fit binding to a previously unknown
  conformation
• Thermodynamically, these mechanisms are identical
• Evidence for population shift from binding
  kinetics, and protein NMR

24
Docking methods for incorporating receptor
flexibility

• Ensemble docking
• Docking to individual protein structures, or
  parts of protein structures ensemble docking
• Docking to a single average structure soft
  docking
• Induced fit modelling
• Carlson, H.A. Curr. Opin. Chem. Biol. 6, 447-452
  (2002)

25
Ensemble docking

• Generate an ensemble of structures, and dock to
  them
• Experimentally derived structures
• NMR or X-ray structures
• Computationally derived structures
• Molecular dynamics
• Simulated annealing
• Normal mode propagation

26
FlexE

• Claussen, H. et al. J. Mol. Biol. 308, 377-395
  (2001)
• Extension of the FlexX algorithm
• Preferred conformations for ligands identified
• Simplified scoring function adopted based on
  hydrogen bonds, ionic interactions etc.
• Break ligand into base fragments by severing
  acyclic single bonds

27
FlexE

• Extension of the FlexX algorithm
• Base fragments placed in active site by
  superposing interaction centres
• Incrementally reconstruct ligand onto base
  fragments
• Test each partial solution and continue with the
  best for further reconstruction

28
FlexE

• United protein description
• Use a set of protein structures representing
  flexibility, mutations, or alternative protein
  models
• Assumes that overall shape of the protein and
  active site is maintained across the series
• FlexE selects the combination of partial protein
  structures that best suit the ligand
• Flexibility given by FlexE is therefore defined
  by the protein input structures

29
FlexE

• United protein description
• Similar parts of the protein structures are
  merged
• Dissimilar parts of the protein are treated as
  separate alternatives

30
FlexE

• United protein description
• Some combinations of the structural features are
  incompatible and not considered
• As the ligand is constructed, the optimum protein
  structure is identified
• Combination strategy for the protein may result
  in a structure not present in the original data
  set

31
FlexE

• Evaluation
• 10 proteins, 105 crystal structures
• RMSD lt 2.0 Å, within top ten solution, 67
  success
• Cross-docking with FlexX gave 63
• FlexE faster than cross-docking with FlexX
• Aldose reductase - very flexible active site
• FlexE docking successful (3 ligands)
• Using only one rigid protein structure would not
  have worked

32
Ensemble docking

• Advantages
• Well-defined computational problem
• Computational cost generally scales linearly with
  number of structures (potential combinatorial
  explosion)
• Can use either experimental information, or
  structures derived from computation
• Disadvantages
• What happens if the appropriate bound receptor
  conformation is not present in the ensemble?

33
Soft-Docking

• Knegtel, R.M.A. et al. J. Mol. Biol. 266, 424-440
  (1997)
• Build interaction grids within DOCK that
  incorporate the effect of more than one protein
  structure
• Effectively soften and average the different
  structures

34
Soft-Receptor Modelling

• Österberg, F. et al. Proteins 46, 34-40 (2002)
• Similar approach applied to Autodock grids
• Energy-weighted grid
• Boltzmann-type weighting applied to reduce the
  influence of repulsive terms
• Combined grids performed very well HIV protease

35
Soft-Receptor Modelling
36
Soft-Receptor Modelling

• Advantages
• Low computational cost use of single averaged
  protein model
• Can use experimental or simulation derived
  structures
• Disadvantages
• Cope with large-scale motion?
• How reliable is this averaged representation?
• Mutually exclusive binding regions could be
  simultaneously exploited
• Active sites enlarged

37
Induced-Fit Docking Methods

• Allow protein conformational change at the same
  time as the docking proceeds
• Taking some of these algorithms, in no particular
  order

38
Induced-Fit Docking Methods

• Molecular dynamics methods
• Mangoni, R. et al. Proteins 35, 153-162 (1999)
• Separate thermal baths used for protein and
  ligand to facilitate sampling
• Multicanonical molecular dynamics
• Nakajima, N. et al. Chem. Phys. Lett. 278,
  297-301 (1997)
• Bias normal molecular dynamics to yield a flat
  energy distribution

39
Induced-Fit Docking Methods

• Monte Carlo methods
• Apostolakis, J. et al. J. Comput. Chem. 19, 21-37
  (1998)
• Hybrid Monte Carlo and minimisation method.
  Poisson-Boltzmann continuum solvation used
• ICM, Abagyan, R. et al. J. Comput. Chem. 15,
  488-506 (1997)
• Conventional MC, plus side-chain moves from a
  rotamer library
• Minimisation again required
• VS - J. Mol. Biol. 337, 209-225 (2004)

40
Induced-Fit Docking Methods

• FDS Taylor, R. et al. J. Comput. Chem. 24,
  1637-1656 (2003)
• Flexible ligand/flexible protein docking
• large side chain motions, rotamer library
• Solvation included on the fly
• continuum solvation model GB/SA
• Soft-core potential energy function
• anneal the potential to improve sampling

41
Arabinose Binding Protein

• Rigid protein docking
• Low energy structures are essentially identical
  to the X-ray structure
• Dock starting from experimental result, does not
  return to it

42
Arabinose Binding Protein

• Flexible protein docking
• Experimental structure found
• A number of other structures are isoenergetic
• Cannot uniquely identify the experimental
  structure

43
Arabinose Binding Protein

• Flexible protein docking
• Most successful structure with experiment
  (transparent)
• Most successful structure, experiment, and
  isoenergetic mode

44
Monte Carlo Docking

• 15 complexes studied
• Rigid receptor
• 13/15 identified X-ray binding mode
• 8/15 were the unique, lowest energy structures
• 3/15 were part of a cluster of low-energy binding
  modes
• Flexible receptor
• 11/15 identified X-ray binding mode
• 3/15 were the unique, lowest energy structure
• 6/15 were part of a cluster of low-energy binding
  modes

45
FAB Fragment

• Two isoenergetic binding modes
• Closest seed Isoenergetic seed

46
Conclusion

• Rigid protein docking as successful as other
  methods, but much more expensive
• Flexible protein docking does find X-ray
  structures, but does not uniquely identify them
• Refine scoring function?
• Using this methodology, need to consider a number
  of structures
• Further validation required

47
Summary

• Two main approaches for modelling receptor
  flexibility
• Use of multiple structures (experimental or
  theoretical) either independently, or averaged in
  some way ensemble approach
• Allow the receptor to adopt conformations under
  the influence of the ligand induced fit approach

48
Summary

• Ensemble is the more widely employed less
  expensive, but limited somewhat by the
  composition of the ensemble
• Induced fit should overcome this disadvantage of
  ensemble methods
• Induced fit methods can have significant sampling
  problems
• not computationally limited
• search space large, and increasing as extra
  degrees of freedom added

49
Flexible protein docking a case study

• Wei, B.Q. et al. J. Mol. Biol. 337, 1161-1182
  (2004)
• Use experimental structures
• Like FlexE, flexible regions move independently,
  and are able to recombine
• Modified version of DOCK used

50
Flexible protein docking a case study

• Receptor decomposed into three parts
• Green rigid
• Blue and red two flexible parts
• Ligand scored against each component
• Best-fit protein conformation assembled from
  these components

51
Flexible protein docking a case study

• Scoring function
• Electrostatic (potential from PB), van der Waals
• Solvation (scaled AMSOL result according to
  buried surface area)
• Large ligands favoured for large cavities
• Penalty for forming the larger cavity introduced

52
Flexible protein docking a case study

• In screening, enrichment improved compared to
  docking against individual conformations
• ACD screened against L99A M102Q mutant of T4L
• 18 compounds that were predicted to bind and
  change cavity conformation, tested
• 14 found to bind
• X-ray structures obtained on 7

53
Flexible protein docking a case study

• Predicted ligand geometries reproduced (lt 0.7 Å)
• In five structures, part of observed cavity
  changes reproduced
• In two structures, receptor conformations not
  part of original data set, and therefore not
  reproduced!

54
Flexible protein docking a case study

• New ligands found by flexible receptor docking
• Receptor conformational energy needs to be
  considered

55
Conclusion

• Rigid receptor approximation not universal
• Two main approaches to modelling receptor
  flexibility
• Ensemble
• Induced fit
• Further validation of these methods needed

56
Acknowledgements

• Flexible Docking
• Richard Taylor, Phil Jewsbury, Astra Zeneca
• Practical
• Donna Goreham, Sebastien Foucher
