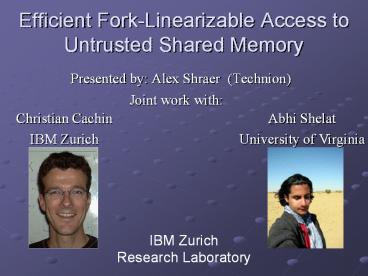

Efficient Fork-Linearizable Access to Untrusted Shared Memory

1
Efficient Fork-Linearizable Access to Untrusted
Shared Memory

• Presented by Alex Shraer (Technion)

Joint work with
Christian Cachin IBM Zurich
Abhi Shelat University of Virginia
IBM Zurich Research Laboratory
2
Data in a storage system

• Users store data on remote storage
• Data integrity
• Single user hashing
• Merkle hash trees for large data volume
• Multi user digital signatures
• Public key infrastructure is needed
• Data consistency?
• What if the server is faulty?

3
Model

• Asynchronous system
• Clients C1,, Cn
• correct
• communicate only with the server via reliable
  links
• have public/private key pair (stored data is
  signed)
• each client executes read/write operations
  sequentially
• Server S
• emulates n SWMR registers - client Ci writes only
  to register i
• CANNOT BE TRUSTED - perhaps faulty

Server
4
Consistency Model?

• Attempt 1 linearizable shared memory
• Requires a read to return the latest written
  value
• Impossible

s is linearizable if exists a sequential
permutation ? that preserves 1. the real-time
order of s and 2. the sequential specification
5
Attempt 2 Sequential consistency

• Read does not have to return latest value
• For every process, the order in which its
  operations take effect must be preserved Example

read (1) ? u
read (1) ? v
6
Sequential consistency Cont.

• Still impossible to implement !
• Proof

7
Fork-Linearizability

• Previously defined
• (1) Mazières, Shasha PODC 2002 (2) Oprea,
  Reiter DISC 2006
• The definition we use - similar to (2)
• A seq. of events ? is fork-linearizable if for
  each client Ci there exists a subsequence ?i of ?
  consisting only of completed operations and a
  sequential permutation ?i of ?i
• All operations of client Ci are in ?i
• ?i preserves real-time order of ?i
• ?I satisfies the sequential specification
• If an operation op is in ?I and ?k then the
  sequence of operations that precede op in both
  groups is the same

• Every client sees
• linearizable memory

R1
C3
C1 C2
By telling one lie to C1 C2 and another to C3,
the server forks their views
W1
R2
C2
C1
W2
R3
8
New on Fork-Linearizability

• Fork Linearizable Byzantine emulation
  (simplified)
• - every execution is fork-linearizable
• - if the server is correct
• every operation completes
• every execution is linearizable
• Global Fork-Linearizability a simpler and
  equivalent definition

9
Some Motivation

• Guarantees a linearizable view for each client,
  and linearizable executions when the server is
  correct
• The server can hide operations from clients, but
  nothing worse!
• If the server forks the views of C1 and C2, their
  views are forked ever after (no join), i.e., they
  do not see each others further updates
• otherwise the run is not fork-linearizable, which
  can be detected by the clients (unlike in
  linearizability or sequential consistency)
• fork-linearizability is not a weak condition
• Linearizability is stronger
• (New) Sequential consistency is not !

• Fork-Linearizability is the strongest
• known consistency that can be enforced
• with a possibly faulty server

Linearizable
Fork Linearizable
Seq. Consistent
proof in previous slides
10
Emulating fork-linearizable memory requires
waiting

• Theorem Every protocol has executions with a
  correct server
• where Ci must wait for Cj
• Formal proof in the paper. The idea
• by contradiction, assume that no waiting is
  necessary
• r(1) must return v since w(1, v) might have
  completed
• The server can cause this run to be
  indistinguishable from Run 1
• v cannot be returned
• r(1) cannot return neither u nor v in Run 1 it
  must wait

Run 1 Correct server
w(1, u)
w(1, v)
C1
C2
r(1) ? u
r(1) ? ?
Run 2 Faulty server
w(1, u)
w(1, v)
C1
C2
r(1) ? u
r(1) ? v
11
Protocols

• Trivial method Sign the complete history
• Server sends history with all signatures
• Client verifies all operations and signatures
• Client adds its operation and signs new history
• Message size proportional to system age
• Mazières, Shasha PODC 2002 Use n version
  vectors
• A blocking protocol and a concurrent protocol
• Communication complexity O(n2)
• Message size 400MB for 10000 users
• Our results
• A blocking protocol and a concurrent protocol
• Communication complexity O(n)
• Message size 40KB for 10000 users

12
Lock-Step with Correct Server (simplified)
Correct Server
C1
ltSUBMIT, WRITE, 1gt
ltREPLY, gt
lt COMMIT, , (val,1) gt
ltSUBMIT, READ, 1gt
C2
ltCOMMIT, gt
13
Lock-Step with Faulty Server (simplified)
14
What happened?
Example 1
Example 2
start
start
write1(1, val)
write1(1, val)
read2 (1) ? -
read2 (1) ? val

• The relation V V if for all j, Vj Vj

• B reads stale data of A B signs a version
  structure which cannot be ordered with what A
  signed
• Proof idea based on No-Join property no
  operation signs a version structure V s.t. V VA
  and V VB
• Subsequences ?i can be constructed from the
  branch of Ci in the fork-tree

15
Increasing concurrency

• Any protocol will sometimes block
• Concurrent protocol details in the paper
• Allow operations to complete concurrently
• A read must wait for a previously scheduled
  concurrent write to the same register to complete
  (at most one such operation)
• Message size O(n)

16
Summary of Results

• On the notion of Fork-Linearizability
• Global Fork-Linearizability
• Fork-Linearizable Byzantine emulations
• Comparing Fork-Linearizability with seq.
  consistency
• Communication efficient protocols
• Lock-Step
• Concurrent
• A proof that any Fork-Linearizable Byzantine
  emulation must sometime block
• As in MS02 and in our concurrent protocols
• Questions?
