Managing Biomolecular Simulations in a Grid Environment with NAMDG

1

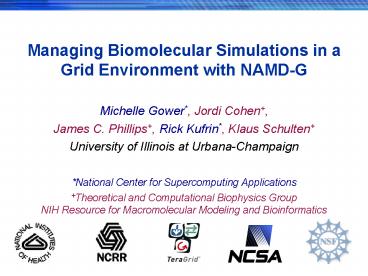

Managing Biomolecular Simulations in a Grid
Environment with NAMD-G

• Michelle Gower, Jordi Cohen,
• James C. Phillips, Rick Kufrin, Klaus Schulten
• University of Illinois at Urbana-Champaign
• National Center for Supercomputing Applications
• Theoretical and Computational Biophysics
  GroupNIH Resource for Macromolecular Modeling
  and Bioinformatics

2
Overview

• Scientific Motivation Hydrogenase O2 Problem
• Introduction to NAMD-G software
• Underlying Grid Middleware
• Technical Challenges/Lessons Learned
• NAMD-G Accomplishments
• Future Work
• Closing Remarks

3
The Hydrogenase O2 Problem

• O2 permanently deactivates hydrogenase.
• Can we engineer O2 tolerance?
• We dont know how the O2 gets to the active
  site.
• Led to development of a method to study gas
  migration pathways in proteins

?
Image created with VMD (http//www.ks.uiuc.edu/Res
earch/vmd)
4
Gas Migration Pathways

• Opportunity to study gas migration pathways in
  other proteins.
• This means running many biomolecular
  simulations.
• Managing these simulations becomes a problem.

Image created with VMD (http//www.ks.uiuc.edu/Res
earch/vmd)
Sperm Whale MyoglobinO2 Accessibility
5
NAMD

• Highly-scalable, high-performance molecular
  dynamics code for large biomolecular simulations
  (typically 8-512 processors)
• Developed by the Theoretical and Computational
  Biophysics Group (TCBG University of Illinois at
  Urbana-Champaign)
• NAMD can be told to output restart files.

6
Computation

• A simple simulation consists of the following
  sequence of NAMD runs
• 2 pre-equilibration runs
• An equilibration run (1ns)
• A production run (6ns)
• A scientist might also want to continue
  simulations for more timesteps or restart
  simulations from interesting points with
  different parameters.

7
Typical Tasks for a Run
1. Store input files on MSS
Local Workstation
2. Submit remote batch job
6. Retrieve restart and
output files
3. Retrieve input and restart files
4. Execute NAMD
5. Store output and restart files
Mass Storage System
Remote HPC Machine

• Images of remote HPC machine (Mercury) and mass
  storage system (UniTree) courtesy of the National
  Center for Supercomputing Applications (NCSA) and
  the Board of Trustees of the University of
  Illinois

8
Nanny for NAMD
NAMD-G

• NAMD-G is a grid-based automation engine for
  biomolecular simulations.
• Given input files and a description of the
  simulation, NAMD-G submits remote batch jobs to
  the specified remote system, handling the
  transfers of input, output, and restart files.
• If a job dies due to hitting the wallclock limit,
  NAMD-G automatically submits another job until
  the run is complete.

9
NAMD-G Commands

• NAMD-G is a set of scripts with specific
  knowledge of NAMD wrapped around existing generic
  grid middleware.

• Submit a simulation ngsubmit RUNFILE
• Monitor a simulation ngstat
• Delete a simulation ngdel ID
• Restart a simulation ngrestart

10
Pre-defined Runs

• There are pre-defined runs that will
  automatically work for any system.
• This greatly reduces the learning curve for
  someone to start using NAMD-G.
• They are very modular so the scientist can pick
  which ones they want to use.

11
Underlying Grid MiddlewareAuthentication

• Globus Toolkit
• Is an open source set of software developed by
  the Globus Alliance that can be used to build
  Grid applications.
• Globus Toolkit Security Component
• GSI-Authentication
• Use proxy certificates instead of passwords or
  ssh keys

12
Underlying Grid MiddlewareData Transfers

• uberFTP
• GridFTP-enabled interactive client
• Developed by NCSA
• Globus Toolkit
• Pre-WS GridFTP Services

GridFTP Server
GridFTP Server
Mass Storage
Remote HPC Machine
13
Underlying Grid MiddlewareJob Submission
Monitoring

• Condor
• Management system developed by the Condor Team,
  led by Miron Livny, at the University of
  Wisconsin-Madison.
• Condor Condor-G
• Uses Globus Toolkit behind the scenes to submit
  jobs to remote machines
• Globus Toolkit GRAM component
• Pre-WS GRAM Service

Gatekeeper
Batch Jobmanager
Batch System
Remote HPC Machine
14
Underlying Grid MiddlewareWorkflow Management

• Condor DAGMan
• Allows the user to specify ordering of jobs
• DAGMan keeps track of which jobs have been
  successfully completed. Upon failure, it writes
  a file allowing the user to easily restart it at
  the failed job.
• DAGMan can be told to repeat a job.

Job A
Job B
Job C
15
Underlying Grid MiddlewareDAGMan - Single Run

• Pre
• Copy internal files to remote machine
• NAMD job
• Retrieve input and restart files
• Run NAMD
• Post
• Transfer output files to MSS
• Transfer output files to local machine
• Check whether run has completed
• Notify user via email

16
Underlying Grid MiddlewareAuthentication Part
Two

• Globus Toolkit MyProxy
• Open source project started by NCSA to provide an
  online credential repository
• Condor-G can automatically renew a proxy using
  MyProxy

17
Grid Middleware Summary

• Local Workstation
• Globus Toolkit (no services)
• Condor
• uberFTP
• Remote HPC Machine
• Globus Toolkit Pre-WS services GridFTP, GRAM
• uberFTP
• Mass Storage System
• Globus Toolkit Pre-WS services GridFTP

18
Technical Challenges/Lessons Learned

• Local machines were behind firewalls with minimal
  open incoming ports
• Could not use built-in file staging, had to write
  code to push input files and pull output files
• Messages from remote batch submission command not
  sent back to local machine.
• Discovered jobmanager problems
• Some Globus installations did not correctly use
  single jobtype with processor count greater
  than 1
• Difficulty distinguishing jobs on remote machine
• Currently cannot set batch jobname through Globus
• Currently cannot get batch jobid through Globus

19
Technical Challenges cont.

• NAMD-G portability issues
• Shell script portability was an issue
• Different RSL has to be created depending upon
  remote machine
• Not all HPC machines have
• remote GridFTP access to home and scratch
  directories.
• a fork jobmanager.
• access to external MSS from compute nodes
• uberFTP installed

20
NAMD-G Accomplishments

• NAMD-G developed hand-in-hand with a pilot
  science project
• Completed projects on gas conduction
• Comparative O2 pathways in 15 globins, from
  plants to insects to mammals.
• O2 pathways in two high-profile proteins
  hydrogenase and copper amine oxidase.
• Ongoing simulation of ribosome

hydrogenase
NAMD-G saves time, especially time spent on
mindless, boring, and error-prone tasks. with
a minimal initial investment, NAMD-G makes
simulations even more convenient than I dared
hope to initially. - Dr Emma Falck, Beckman
Fellow
Cohen, et al., Biophys. J. 91 (Sept. 2006)
soy leghemoglobin
21
Future Work

• Allow simulations to be easily continued for more
  timesteps

• Allow simulations to be easily branched from
  other simulations

• Create NAMD-G configuration files at the system
  and user levels.

22
Closing Remarks

• Using existing grid middleware allowed for rapid
  development of a functional system.

• NAMD-G is a perfect example of what can be
  accomplished with tight collaboration where both
  groups provide ideas, design and implementation
  principles.

23
Acknowledgements

• This work was supported in part by the National
  Science Foundation grants SCI-0451538,
  SCI-0504064, and SCI-0438712. Funding for the
  Resource for Macromolecular Modeling and
  Bioinformatics is provided by the National
  Institutes of Health grant NIH P41 RR05969

24
Links

• NAMD - www.ks.uiuc.edu/Research/namd
• Globus Toolkit - www.globus.org/toolkit
• Condor - www.cs.wisc.edu/Condor
• UberFTP - dims.ncsa.uiuc.edu/set/uberftp
• MyProxy grid.ncsa.uiuc.edu/myproxy
• NAMD-G - www.ks.uiuc.edu/Research/namdg

25
Underlying Grid Middleware

• Authentication
• Globus Toolkit Security Component
• MyProxy
• Job Submission and Monitoring
• Condor Condor-G
• Globus Toolkit Pre-WS GRAM Services
• Workflow Management
• Condor DAGMan
• Data Transfer
• UberFTP
• Globus Toolkit Pre-WS GridFTP Service
