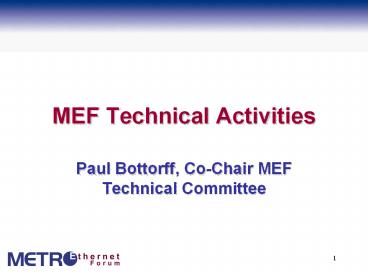

MEF Technical Activities

1
MEF Technical Activities

• Paul Bottorff, Co-Chair MEF Technical Committee

2
What is the MEF

• The Metro Ethernet Forum is a non-profit
  organization dedicated to accelerating the
  adoption of optical Ethernet as the technology of
  choice in metro networks worldwide.
• The Forum is comprised of leading service
  providers, major incumbent local exchange
  carriers, top network equipment vendors and other
  prominent networking companies that share an
  interest in metro Ethernet. It has 60 members as
  of February, 2002.

3
MEF Key Objectives

• Build consensus and unite service providers,
  equipment vendors, end customers on optical
  Ethernet
• Facilitate implementation of optical Ethernet
  standards to allow delivery of Ethernet services
  and make Ethernet-based metro transport networks
  carrier-class
• Enhance worldwide awareness of the benefits of
  optical Ethernet services and Ethernet-based
  metro transport networks
• Enable Ethernet applications and services,
  building on the physical transport specified by
  e.g. 10GEA

4
MEF Structure
5
MEF Diverse Leadership

• The MEF Board of Directors is comprised of
  representatives from
• BellSouth
• SBC
• France Telecom
• Rockefeller Group Telecommunications Services
• Agilent Technologies
• Procket Networks
• Atrica
• Nortel Networks
• Alcatel
• For more information about the MEF leadership
  please visit http//www.MetroEthernetForum.org/

6
Marketing Committee Structure
Marketing Committee
Messaging Collateral Sub-committee
Economic Analysis Sub-committee
Events Sub-committee

• Marketing committee is divided into three areas

7
Technical Committee Structure
Technical Committee
All Members
Areas
Architecture Sub-committee
Services Sub-committee
Management Sub-committee
Protocol Transport Sub-committee
Test Methods Sub-committee

• Technical committee is divided into five
  specialization areas

8
Approach to Technical Standards
Use existing Standards and only fill the
technical gaps for Metro Ethernet
OIF
ITU
IETF
MPLSForum
Etc.
Etc.
10 GEAlliance
Etc.
Etc.
9
Document Types

• Implementation Agreements
• Building consensus on existing standards
• Test Procedures
• Promoting/Performing Interoperability testing
• Position Statements
• Proposing work for existing standards bodies
• Technical Specifications
• Developing new standards within MEF

10
TC Work Is Divided By Specialization Area
Technical Committee
All Members
Areas
Architecture Sub-committee
Services Sub-committee
Management Sub-committee
Protocol Transport Sub-committee
Test Methods Sub-committee
11
Architecture

• Metro Ethernet Network (MEN) Reference Model
• User Network Interface (UNI)
• Network to Network Interfaces (NNIs)
• MEN Framework
• defines the modeling conventions for the
  functional elements which compose a MEN
• Provides common terminology for all MEF technical
  documents
• User Network Interface (UNI)
• The demark for customer or subscriber attachment
• Ethernet Interworking NNI (EI-NNI)
• Interface between autonomous systems

12
Services

• Ethernet Services Model
• Ethernet Definitions
• Ethernet Line Services (ELINE)
• Ethernet LAN Services (ELAN)
• Circuit Emulation Service (CES)
• Bandwidth Profiles Parameters
• Committed Information Rate (CIR)
• Peak Information Rate (PIR)

13
Transport and Protocol

• Protection
• Protection Framework describes a model and
  framework to deliver network protection schemes
• EMF
• Ethernet Multiplexor provides a subset of the
  functions under discussion at IEEE 802.1 Provider
  Bridges
• EoS
• Agreements for transport of Ethernet over Sonet

14
Management

• Element Management System
• defines the requirements for the central systems
  which manage the network elements of a MEN
• EMS/NMS Information Model
• defines a vendor independent data model for
  information exchanged between the service
  providers NMS and the MEN EMS
• OAM Management
• defines end-to-end OAM for the service assurance

15
MEF Technical Committee Dash Board
MEF Technical Committee
Test Area
Conformance Performance
Process Ad-Hoc
TC Rules and Procedures
Management Area
Architecture Area
Protocol Transport Area
Services Area
MEN Architecture
QOS
QOS Framework d2
OAMP
Ethernet Services Model d4
MEN Architecture FW Part 1 d1 MEN Architecture
FW Part 2 MEN Architecture FW part 3 MEN
Architecture FW part 4 MEN Architecture FW part 5
Ethernet Services
Protection
Protection Requirements d3
Ethernet Services OAM d4
Ethernet Services Definitions d2
Protection Framework d3
TM
EMS Mgmt
UNI
MPLS Protection IA d1
Traffic Performance Parameters d3
UNI Requirements d2
EoS
EMS Requirements d1
UNI Framework d3
EoS IA d1
CES
UNI PVC IA d1
EMS-NMS If
NI-NNI
CES Requirements d2
EI-NNI
EMS-NMS Information Model d3
MPLS NI-NNI D1
Legend
EI-NNI TS d1
EMF
Gray Color Not Approved Project Orange Color
Approved Project Blue Color Draft Status Green
Color Approved Standard Red Color Sent to
Ballot
EMF TS d1
16
16 Approved Drafts
17
Basic Metro Ethernet Model

• Ethernet Service provided by Metro Ethernet
  Network (MEN)
• Customer Equipment (CE) attaches to MEN at
  User-Network Interface (UNI) using 10, 100, 1000
  Mbps Ethernet interface.

18
MEN Layered Network Model

• Ethernet Services layer (ETH)
• uses services from its Transport Layer(s)
• provides services to its Application Services
  Layer(s)

Application Services Layer (s)
(VoIP, IP, MPLS, PDH, ...)
Ethernet Services Layer
(Ethernet)

Transport Layer (s)
Domain
(802.3 PHY, SDH/SONET,
MPLS, OTN, ...)
19
MEF External Reference Points
Public Service Networks Internet, FR, etc.
UNI
Service Interworking SI-NNI
Metro Ethernet Network (MEN) Autonomy X
Metro Ethernet Network (MEN) Autonomy Y
Subscriber
Intercarrier Network
Ethernet Interworking EI-NNI
Network Interworking NI-NNI
Transport Network
Metro Ethernet Network (MEN) Autonomy X
20
MEF External Reference Point

• User Network Interface (UNI)
• Reference point between Metro Ethernet Network
  (MEN) and directly/virtualized attached
  interfaces of customer equipment.
• Interfaces between MEN and customer equipment.
• Is the subscriber demark point
• Service Interworking NNI (SI-NNI)
• Reference point between MEN and other public
  service networks (IP).
• Interfaces between MEN and other public services
  networks (ex ATM, FR, T1/T3, IP-Sec, etc).

21
MEF External Reference Point (Cont.)

• Ethernet Interworking NNI (EI-NNI)
• Reference point between MENs in different
  autonomys
• Network Interworking NNI (NI-NNI)
• Reference point between MENs in same autonomy.
• Interface between MEN and other public transport
  networks (GE, SDH/SONET, ATM, RPR, etc).

22
Services Definition
CustomerEquipment (CE)
User NetworkInterface(UNI)
MetroEthernetNetwork
Service ProviderResponsibility
Service Model Services described as seen by CE,
UNI to UNI
23
Ethernet Virtual Connection Types (EVC)
Point-to-Point
Multipoint-to-Multipoint
Leaf
Root
Leaf
Point-to-Multipoint
24
Some Service Features
Bandwidth Profile Defines the way in which less
than the full physical bandwidth of UNI can
utilized by the subscriber. Basis of the pay for
the bandwidth that you need capability of an
Ethernet Service.
Service Multiplexing Multiple EVCs accessible at
a single UNI. Reach multiple destinations across
the MEN via a single UNI, e.g., a Gigabit
Ethernet UNI.
Interworking Function Non-Ethernet services via
an Interworking Function (IWF), e.g., TDM over
Ethernet
IWF
IWF
25
Ethernet Line Service (ELINE)
ELINE

• ELINE service is Point-to-Point and may describe
  both Private Lines and Virtual Private Lines
• May build a Frame Relay like service

26
ELINE Service Multiplexing

• In this example a single site has multiple ELINE
  connections to other sites multiplexed over a
  single UNI.

27
Ethernet LAN Service (ELAN)
ELAN

• Service is Multipoint-to-Multipoint fully
  connected

28
Protection Model
Multiple levels of service resiliency enabled by
flexible protection mechanism
Application Protection Constraint Policy
MEF Protection Mechanism
Aggregated Line andNode Protection
End-to-End PathProtection
Topology
Transport
29
Aggregated Line and Node Protection
DetourPath
NetworkElement
IngressNetworkElement
NetworkElement
NetworkElement
EgressNetworkElement
PrimaryPath
NetworkElement
DetourPath
30
End-to-End Path Protection
NetworkElement
IngressNetworkElement
NetworkElement
NetworkElement
EgressNetworkElement
PrimaryPath
NetworkElement
SecondaryPath
NetworkElement
NetworkElement
31
End-to-end OAM
Customer Edge
Customer Edge
LMI
Ethernet Virtual Connection (EVC)
UNI
LMI
Ethernet Access Network
Provider Edge
Provider Edge
Ethernet Access Network
Metro Ethernet Network
Internet Access
Metro Ethernet Network
ISP Router
32
OAM Management

• Availability
• Status Monitoring
• Scalability
• Extensibility
• Security
• Tunnel and Transport Independence
• Layer 3 Independence

33
Summary

• MEF is working to fill the gaps between existing
  standards needed to standardize complete MEN
  systems.
• Technical work is focused on
• Customer Service Specifications
• User Interface Definition
• Network To Network Interface Definitions
• Transport Network Features for Protection, QoS,
  and EoS
• End-to-end Management
• Network Element Management
