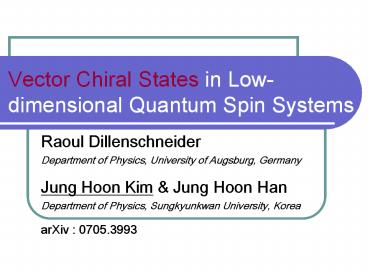

Vector Chiral States in Low-dimensional Quantum Spin Systems

1
Vector Chiral States in Low-dimensional Quantum
Spin Systems

• Raoul Dillenschneider
• Department of Physics, University of Augsburg,
  Germany
• Jung Hoon Kim Jung Hoon Han
• Department of Physics, Sungkyunkwan University,
  Korea
• arXiv 0705.3993

2
Background Information

• In Multiferroics

Control of ferroelctricity using magnetism

• Magnetic Control of Ferroelectric Polarization
  (TbMnO3)
• T. Kimura et al., Nature 426 55, 2003

Connection to Magnetism

• Magnetic Inversion Symmetry Breaking
• Ferroelectricity in TbMnO3
• Kenzelmann et al., PRL 95, 087206 (2005)

3
Background Information (2)

• Conventional magnetic order

• Spiral magnetic order

4
Microscopic Spin-polarization coupling
Inverse Dzyaloshinskii-Moriya(DM) type
Chirality (?ij) can couple to Polarization (Pij)
5
Is a (vector) Chiral Phase Possible?
Usually,
T, frustration
Spiral Magnetic
Collinear Magnetic
Paramagnetic
Ferroelectric
Possible?
6
Search for Chiral Phases Previous Works
(Nersesyan)

• Nersesyan et al. proposed a spin ladder model
  (S1/2)
• with nonzero chirality in the ground state

Nersesyan PRL 81, 910 (1998)

• Arrows indicate sense of chirality

7
Search for Chiral Phases Previous Works
(Nersesyan)

• Nersesyans model equivalent to a single spin
  chain (XXZ model) with both NN and NNN spin-spin
  interactions

8
Search for Chiral Phases Previous Works
(Hikihara)

• Hikihara et al. considered a spin chain with
  nearest
• and next-nearest neighbour interactions for S1

Hikihara JPSJ 69, 259 (2000)

• Define spin chirality operator

• DMRG found chiral phase for S1 when jJ1/J2 is
  sufficiently large

No chirality when S1/2
9
Search for Chiral Phases Previous Works
(Zittarz)

• Meanwhile, Zittartz found exact ground state for
  the class of anisotropic spin interaction models
  with NN quadratic biquadratic interactions

Klumper ZPB 87, 281 (1992)

• Both the NNN interaction (considered by
  Nersesyan, Hikihara) and biquadratic interaction
  (considered by Zittartz) tend to introduce
  frustration and spiral order
• Zittartzs ground state does not support spin
  chirality

10
Search for Chiral Phases Previous Works

• All of the works mentioned above are in 1D
• Chiral ground state carries long-range order in
  the chirality correlation
• of SixSjy-SiySjx
• No mention of the structure of the ground state
  in Hikiharas paper
• only numerical reports
• Spin-1 chain has a well-known exactly solvable
  model established by
• Affleck-Kennedy-Lieb-Tesaki (AKLT)

• What about 2D (classical quantum) ?
• How do you construct a spin chiral state?
• Applicable to AKLT states?

11
Search for Chiral Phases Recent Works (More or
Less)

• A classical model of a spin chiral state in the
  absence of magnetic order was recently found for
  2D

Jin-Hong Park, Shigeki Onoda, Naoto Nagaosa, Jung
Hoon Han arXiv0804.4034 (submitted to PRL)

• Antiferromagnetic XY model on the triangular
  lattice with
• biquadratic exchange interactions

12
Search for Chiral Phases Recent Works (Park et
al.)
Order parameters
New order parameter
2N degenerate ground states
13
Search for Chiral Phases Recent Works (Park et
al.)

• With a large biquadratic exchange interaction (J2
  ), a non-magnetic chiral phase opens up

T

• Paramagnetic
• (Non-magnetic)
• Nonchiral

• Non-magnetic
• Chiral
• Nematic

• Magnetic
• Chiral

J2/J1
J2/J19
14
Search for Chiral Phases Recent Works
(Dillenschneider et al.)

• Construction of quantum chiral states
• Start with XXZ Hamiltonian

Raoul Dillenschneider, Jung Hoon Kim, Jung Hoon
Han arXiv0705.3993 (Submitted to JKPS)
Include DM interaction

15
Search for Chiral Phases Recent Works
(Dillenschneider et al.)

• Consider staggered DM interactions

M O M O M O M O M O M
O M O M

• Staggered oxygen shifts gives rise to
  staggered DM interaction
• staggered phase angle, staggered flux
• We can consider the most general case of
  arbitrary phase angles

16
Connecting Nonchiral Chiral Hamiltonians

• Define the model on a ring with N sites

• Carry out unitary rotations on spins

• Choose angles such that

• This is possible provided

• Hamiltonian is rotated back to XXZ

17
Connecting Nonchiral Chiral Hamiltonians

• Eigenstates are similarly connected

18
Connecting Nonchiral Chiral Hamiltonians

• Correlation functions are also connected. In
  particular,

• Since

and

• It follows that a non-zero spin chirality must
  exist in

• Eigenstates of are generally
  chiral.

19
Generating Eigenstates

• Given a Hamiltonian with non-chiral eigenstates,
  a new
• Hamiltonian with chiral eigenstates will be
  generated with non-
• uniform U(1) rotations

20
AKLT States

• Well-known Affleck-Kennedy-Lieb-Tasaki (AKLT)
  ground states
• and parent Hamiltonians can be generalized in
  a similar way

Arovas, Auerbach, Haldane PRL 60, 531 (1988)

• Using Schwinger boson singlet operators

• AKLT ground state is

21
From AKLT to Chiral AKLT

• Aforementioned U(1) rotations correspond to

• Chiral-AKLT ground state is

22
Correlations in chiral AKLT states

• Equal-time correlations of chiral-AKLT states
  easily obtained as
• chiral rotations of known correlations of AKLT
  states

• With AKLT

• With chiral-AKLT

23
Excitations in Single Mode Approximations

• Calculate excited state energies in single-mode
  approximation
• (SMA) for uniformly chiral AKLT state

• With AKLT

• With chiral-AKLT

24
Excitation energies in SMA
25
Summary and Outlook

• Created method of producing ground states with
  nonzero vector spin
• chirality

• Well-known AKLT states have been generalized to
  chiral AKLT
• states.

• Excitation energy for the uniformly chiral AKLT
  state has been
• calculated within SMA along with various
  correlation functions.

• Need to search for a quantum spin model with
  long-range vector
• spin chirality correlation (without
  artificial DM interactions)
