The Live Access Server (Access to observational data)

1

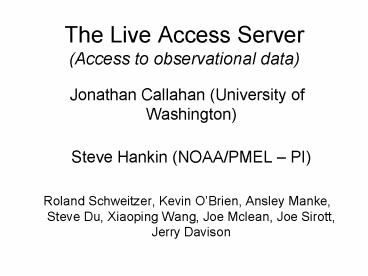

The Live Access Server(Access to observational
data)

• Jonathan Callahan (University of Washington)
• Steve Hankin (NOAA/PMEL PI)
• Roland Schweitzer, Kevin OBrien, Ansley Manke,
  Steve Du, Xiaoping Wang, Joe Mclean, Joe Sirott,
  Jerry Davison

2
Gridded vs. Observational Data

• Clean
• Organized
• Labeled
• Voluminous
• Handled by machines

• Dirty
• Messy
• Often un/mis-labeled
• Increasingly voluminous
• Previously handled by hand

3
Live Access Server (LAS)

• Web based, common interface to diverse sources of
  climate data
• Single interface for subsetting, download,
  visualization, comparison
• Easy access to metadata and documentation
• Unified access to distributed data holdings
• Uniform user interface to existing back end
  visualization packages

4
LAS Data Model
For data access users must specify
Dataset
5
Dataset
6
Dataset
7
Variable
8
4D Region Constraints
9
Output
10
LAS Architecture

• LAS is three tiered

11
Access to Remote Data

• Ferret back end is linked with OPeNDAP

12
Data Server Details
13
Server Side Functionality
After parsing the user request LAS must
Access Subset the data
Perform analysis
Create Visualization
For interactive results each task should take lt5
sec.
14
The Hard Part
After parsing the user request LAS must
Access Subset the data
15
Classes of Observational Climate Data

• Station time series (Eulerian)
• Oceanic
• tide guages (1D)
• moored thermister chains (2D)
• Atmospheric
• surface weather stations (1D)
• profilers (2D)

16
Classes of Observational Climate Data

• Profile data
• Oceanic
• CTD casts, bottle data (ordered by cruise track,
  quasi-scattered)
• repeat stations (ordered by cruise track or
  station location)
• Atmospheric
• profilers (station based)
• baloons (2D, quasi-lagrangian)

17
Classes of Observational Climate Data

• Tracks (Lagrangian)
• Oceanic
• ship underway data (surface)
• drifting buoys (surface)
• ARGO floats (surface tracks, scattered profiles)
• instrumented animals (depth)
• Atmospheric
• airplane underway data (altitude)
• baloons (altitude, quasi-stationary,
  quasi-profile)

18
Classes of Observational Climate Data

• Random Scatter
• Oceanic
• surface ship observations
• profile locations
• Atmospheric
• surface weather obs

19
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001
• data collected from ocean cruises and moorings
• scattered profiles, lagrangian drifters
• physical, chemical and biological data
• dozens (hundreds?) of variables
• gt 7 million profiles (1792-present, global)
• gt 10 Gigabytes of data (accelerating every year)

20
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001
• Current access
• Choose either temporally or spatially sorted data
• Choose year(s) or 10x10 degree box
• Choose instrument
• Retrieve data for all variables from that file
• Problems
• Cannot subset data (1 year x 1 instrument 7
  Mbytes)
• Data returned in impenetrable compressed ASCII
  files
• Associated metadata is lost

21
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001
• Our attempt at synoptic/cross-instrument data
  access
• Store data by variable
• Plan for those getting data out, not putting data
  in.
• What do scientific analysis and visualization
  packages need?
• Store data for minimum of disk seeks
• Memory is fast (and cheap!), disk seeks are slow.
• Multi-stage process for determining data blocks
  needed.
• Read excess data into memory, then winnow.

22
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001

Step 1 synoptic meta-pointer file (0.3
MByte) a) load synoptic meta-pointer file into
memory b) subset to extract metadata pointers
10deg x 10deg x 50 irregular timesteps 260
Kbytes
23
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001

Step 2 metadata/data-pointer file (200
Mbyte) a) read blocks of profile metadata into
memory b) subset by X/Y/T to obtain valid data
pointers
T
X
Y
24
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001

Step 3 data files (10 - 2000 Mbyte) a) read
profile data b) subset by depth/quality flag to
obtain valid data
1D profile
T
X
Y
Depth Value Quality flag
Z

25
Example Dataset

• NOAA/NODC/OCL World Ocean Database 2001
• Our attempt at synoptic/cross-instrument data
  access
• Successes
• Able to subset without accessing (much) unwanted
  data
• Access to (lt1 Mbyte) subsets in seconds
• Access to metadata (What profiles exist?) even
  faster
• Problems
• Only set up for most important variables
• Data cannot be updated, must be rewritten
• Must reinvent logic for relational queries
• Funky, home built soluition

26
Other data streams

• METAR obs (station time series)
• 1700 US weather stations report hourly data
• 25 variables 120 Mbytes/month
• ARGO floats (profiles)
• 4000 floats reporting profiles every 10 days
• 50 levels x 10 variables 24 Mbytes/month
• Tagging Of Pacific Pelagics (TOPP) (lagrangian
  tracks)
• 50 animals per year tagged with 1 min data
  recorders
• 5 variables 0.8 Mbytes/month
• Voluntary Observing Ships (random scatter)
• 3000 surface ship reports per day
• 25 variables 9 Mbytes/month

27
Observational Data Access Requirements

• Subset based on X, Y, Z, T or metadata (e.g.
  quality flag or station/ship/platform/animal_ID).
• Only return requested data. (Reduced volume for
  remote data access.)
• For near-real-time, daily updates are acceptable.
  (Can recreate static files on a daily basis if
  necessary.)
• Use standards wherever possible.
• Make the creation of the database as simple as
  possible. (Non-experts can follow cookbook
  examples.)

28
Conclusion

• Efficient access to observational data is an
  unsolved problem.
• Data volumes are increasing exponentially.
• Data access problems hinder the development of
  interactive visualization tools.
