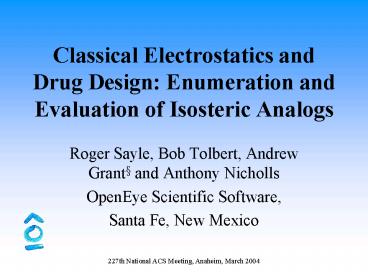

Classical Electrostatics and Drug Design: Enumeration and Evaluation of Isosteric Analogs

1
Classical Electrostatics and Drug Design
Enumeration and Evaluation of Isosteric Analogs

• Roger Sayle, Bob Tolbert, Andrew Grant and
  Anthony Nicholls
• OpenEye Scientific Software,
• Santa Fe, New Mexico

2
Motivation Docking is Difficult

• Protein Flexibility
• Conformational Strain
• VdW Clash Resolution
• Entropic Effects
• Temperature Pressure

• Hydrogen Bonding
• Hydrophobic Effect
• Desolvation Terms
• Tautomerism
• pKa/Protonation State

3
Cheating Docking Isosteres

• Isosteres are compounds with the same shape.
• For this talk, an isostere has the same heavy
  atom topology and non-terminal hybridizaton state
  (geometry).
• Isosteres are more likely to adopt the same
  binding mode than non-isosteric compounds.
• Given a bound ligand-protein complex crystal
  structure, we can extrapolate isosteres with more
  confidence.
• QSAR works well within compound series.

4
Cheating is what were good at!

• All remaining docking terms are electrostatic.
• Use state-of-the-art partial charging methods and
  continuum solvent electrostatics models.
• Continuous dielectric Poisson-Boltmann.
• Modern bond-charge increment partial charges.
• Efficient and realistic isostere/state
  generation.
• Dramatic simplification in electrostatic
  contribution evaluation.
• WABE GIMBLE

5
WABE Crosswords for chemists
6
Solving the Jigsaw Puzzle

• Wabe reads a molecule database as a training set.
• An unique atom type forms a piece, consisting of
  atomic number, formal charge, implicit hydrogen
  count, heavy degree and valence.
• The pieces edges are formed by the atom types of
  its immediate neighbors.
• A piece may be substituted into the puzzle if
  its heavy degree and hybridization match the
  template.
• Different training sets can used to tailor the
  acceptable results actives, non-toxic, known
  chemistry, available.

7
Example WABE solutions
8
(No Transcript)
9
Electrostatics in Water
10
Electrostatics in an Active Site
11
Perfect Charges
12
Tidor Perfect Charges
13
Gimble

• Using Tidors formulation of the matrix its
  possible to calculate electrostatic binding
  energies orders of magnitude faster than full
  Poisson-Boltzmann calculations.
• Full PB times (zap_bind)
• 1320 mols 54m44 2.48 s/mol
• Gimble times
• 1320 mols 1m34s ltlt 0.07 s/mol

14
Gimble Approximation Accuracy
15
Really CheatingKnowing the answer in advance

• Methotrexate/DHFR

16
Examples of Ring Substitutions
17
The Best and the Worst
1199

• Better then methotrexate (221/1320)!

1047
18
Specifics
Literature Charged WABE Monday Morning, 8am
19
Specifics
Literature Doesnt Matter WABE Effect is small
20
Specifics
Literature Essential WABE Essential
21
Specifics
Literature Non-Essential WABE Non-Essential
22
Specifics
Literature C better than N WABE Mais Oui!
23
Learning from CheatingWhen you didnt really
know the correct answer.
Exptl IC50 3.1µM
Exptl IC50 0.125µM

• Hansch et al., J. Med. Chem., 20, 96-102, 1977.
• Piper et al., J. Med. Chem., 29, 1080-1086, 1986.
• Graffner-Nordberg et al., J. Med. Chem., 43,
  3852-3861, 2000.

24
But does it scale?
33,250 analogues, Gimble takes 2m41s, gt 200
mols/s
30609
26192
25
Perhaps we were lucky?
Astra Zeneca M532121/p56 Lck Kinase
26
X-ray Structure of Lck-M532121
1.5Å crystal complex (R19.7, Rfree21.7)
27
We didnt know we could cheat

• Discovery of 2-Phenylamino-imidazo4,5-hisoquinol
  in-9-ones A New Class of Inhibitors of Lck
  Kinase,
• R. Snow, M. Cardozo, T. Morwick, C. Busacca, Y.
  Dong, R. Eckner, S. Jacober, S. Jakes, S.
  Kapadia, S. Lukas, M. Panzenbeck, G. Peet, J.
  Peterson, A. Prokopowicz, R. Sellati, R. Tolbert,
  M. Tschantz and N. Moss.
• J. Med Chem. 2002, 45, 3394.

28
Experimental Assay Data
Ureas ? Thioureas lt Guanidines CH3/Cl lt CH3/CH3 ?
Cl/Cl lt F/F
29
Gimble Scores
Ureas ? Thioureas lt Guanidines CH3/Cl lt CH3/CH3 ?
Cl/Cl lt F/F
30
1,792,000 compounds later...
Fluoro/Amino _at_2 Chloro/Methyl _at_3 Thiazinanium
_at_4 Methoxy _at_5 Oxazinanium _at_10 1,5-Naphthyridine
_at_13 Thiourea _at_15 Quinazoline _at_71 Urea _at_82
AZ Thiourea _at_360 AZ Urea _at_535
31
The Timms Effect
Gimble (PB Electrostatics) picks up the critical
SAR of the solubilizing group thats pointing
into solvent.
32
What worked and what didnt.

• MMFF94 charges perform significantly better than
  Marsilli-Gasteiger charges.
• Explicit hydrogens are important, but their
  placement isnt critical.
• Implicit hydrogens and united atom partial
  charges are sufficient to identify formal charge
  state, i.e. acid/base protonation, but not to
  distinguish between functional groups.

33
Improvements in Partial Charging
Similar technological advances in
electrostatics e.g. smoothed dielectric boundary
methods (Zap)
34
Conclusions

• Residual problems with radii differences.
• Medicinal chemistry from first principles
  physics.
• The technical problems with docking may still be
  with posing rather than scoring.
• A need for different smooth posing functions
  vs. accurate scoring functions?

35
Acknowledgements

• Anthony, Bob and Geoff.
• Andrew Grant at AZ.
• Astra Zeneca.
• HP, IBM and SGI
• Lewis Carroll

36
Bibliography

• Lewis Carroll, Through the Looking Glass.
• Lee-Peng Lee and Bruce Tidor, Optimization of
  electrostatic binding free energy, J. Chem.
  Phys., 106 (21), 8681-8690, June 1997.
• Erik Kangas and Bruce Tidor, Electrostatic
  Complementarity at Ligand Binding Sites
  Application to Chorismate Mutase, J. Phys. Chem.
  B., 105, 880-888, 2001.
• C. Hansch, J.Y. Fukunaga, P.Y.C. Jow and J.B.
  Hynes, Quantitative Structure-Activity
  Relationships of Antimalarial and Dihydrofolate
  Reductase Inhibition by Quinazolines and
  5-Substituted Benzyl-2,4-diaminopyrimidines, J.
  Med. Chem., 20 (1), 96-102, 1977.
• M. Gaffer-Nordberg et al., Computational
  Predictions of Binding Affinities to
  Dihydrofolate Reductase Synthesis and Biological
  Evaluation of Methotrexate Analogues, J. Med.
  Chem., 43 (21), 3852-3861, 2000.
