CLIM 752 Ocean General Circulation

1

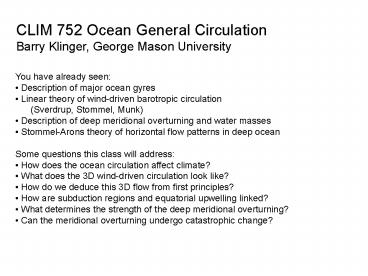

CLIM 752 Ocean General Circulation Barry Klinger,
George Mason University

• You have already seen
• Description of major ocean gyres
• Linear theory of wind-driven barotropic
  circulation
• (Sverdrup, Stommel, Munk)
• Description of deep meridional overturning and
  water masses
• Stommel-Arons theory of horizontal flow patterns
  in deep ocean
• Some questions this class will address
• How does the ocean circulation affect climate?
• What does the 3D wind-driven circulation look
  like?
• How do we deduce this 3D flow from first
  principles?
• How are subduction regions and equatorial
  upwelling linked?
• What determines the strength of the deep
  meridional overturning?
• Can the meridional overturning undergo
  catastrophic change?

2

• Brief Course Outline
• Heat Transport and Streamfunctions kinematics,
  Definitions, Observations
• Review of wind-driven gyres observation and
  theory
• Three-dimensional barotropic flow
• Subduction and Luyten-Pedlosky-Stommel theory
• The Equatorial Undercurrent
• Shallow Overturning Tropical and Subtropical
  Cells
• Review of "thermohaline circulation" observation
  and theory
• Theories of thermohaline overturning strength
• Mixing, buoyancy, wind, geography, and the deep
  meridional overturning
• Multiple states and time variability of the deep
  meridional overturning

Reference Material Pedlosky, 1996 Ocean
Circulation Theory, Springer-Verlag Siedler,
Church, and Gould, eds., 2001 Ocean Circulation
and Climate, Academic Press Tomczak and Godfrey,
1994 Regional Oceanography, Pergamon Press
3

• Some ways ocean circulation affects climate
• biological productivity ? gas exchange
• direct transport of gases (e.g., the carbon
  cycle)
• ice ? albedo
• heat exchange with atmosphere

4
Ocean Circulation, Heat Transport, and Kinematics
Barry A. Klinger
5
Oceanic Heat Transport

• p T cp
• 0 -2 3989
• 0 31 4002
• -2 3844
• 5000 2 3854

See for instance Gill (1982)
6
(No Transcript)
7

• Several possibilities including
• Q 0 (thermally passive ocean)
• D H small, Q ?Et dV (ocean is thermal
  flywheel)
• D ?Et dV small, Q H (ocean moves heat
  around)
• 1 ? good approx global and annual average
• 2 ? good approx some places for timescales
  seasonal
• 3 ? good approx annual average

What determines Q(x,y)? Need to consider both
atmosphere dynamics and global oceanic velocity
and temperature field.
Similar expressions exist for transport of salt
and other tracers.
8
From COADS, W/m2
9
Net Annual-Average Heat Flux into Ocean

• General pattern
• absorbs heat near equator, loses heat at
  high latitudes
• (as expected)
• Typical values O(50 W/m2)
• Some interesting details
• heat gain largely in east, heat loss in
  west
• Pacific heat gain especially big
• Atlantic heat loss especially big

10
When calculating H, we often choose domain so
that most of the lateral boundaries are walls,
except for a 1 or 2 zonal sections (as shown).
u?n 0 on bottom, and if we can neglect u?n
through the top, H is simply meridional heat
transport.
11
(No Transcript)
12
Ocean and Atmospheric Meridional Heat
Transport Ocean clearly important in
tropics Latest observations ? smaller ocean role
at high latitudes (still significant
uncertainties)
total
ocean
1 PW 1015 W
atmosphere
Trenbirth and Caron, 2001 J Clim, 3433-3443
13
Coupled models indicate significant atmospheric
response to oceanic circulation change
Difference Between System with 2 Different Ocean
Circulations
Manabe and Stouffer, 1988 J Clim, 841-866
14
See for instance Batchelor (1969), Kundu (1990)
15
Can Find Streamfunction in Other Dimensions

• No divergence ? no flow from eastern or western
  boundaries of basin.
• Could also define Zonal Overturning
  Streamfunction
• but hasnt been useful in oceanography.
• To calculate streamfunction
• Set arbitrary value at some boundary
• Calculate either ? -? V dz or ? ?W dy

16
Example Near-global numerical model (HYCOM),
climatological forcing
Klinger et al (2005), unpublished
17
Meridional Overturning Streamfunctions (same
model)
18
Not necessarily clean relationship between
streamfunction and heat transport
Temperature field is similar
same model as previous pages
