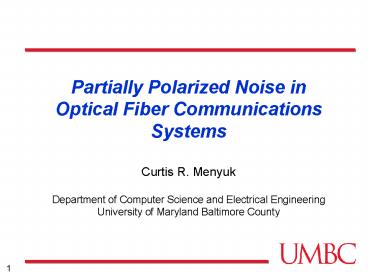

Partially Polarized Noise in Optical Fiber
Communications Systems Curtis R.
Menyuk Department of Computer Science and
Electrical Engineering University of Maryland
Baltimore County
2
Based on the Ph.D. dissertations of Yu Sun
(Optium Corporation) and Ivan Lima (U. North
Dakota - Fargo) With important input from G. M.
Carter, A. O. Lima, D. Wang, L. Yan, J.
Zweck And special thanks to P. Runge, F.
Kerfoot (ATT-Bell Labs Tyco) D. Chernin, A.
Mondelli (SAIC)
3
Introduction

• Work presented is based on two observations
• In academic work TRANSMISSION
  receivertransmission effects get most of the
  attention
• In the real world transmission
  RECEIVERaccurately modeling the receiver is more
  important

4
Introduction

• Work presented is based on two observations
• Full time-domain modeling of polarization effects
  is
• too slow
• many WDM channels must be kept to take into
  account amplifier effects
• many realizations must be run to take into
  account statistical effects
• often not necessary
• polarization effects are independent of
  nonlinearity and dispersion

5
Introduction

• We introduce a reduced Stokes parameter
  modelwith the following features
• Four Stokes parameters are kept for signal and
  noise for every WDM channel
• nonlinearity and dispersion in transmission is
  neglected
• the noise Stokes parameters are random variables
  (means)
• the AWGN assumption is used for the optical
  power distribution

6
Introduction

• We introduce a reduced Stokes parameter
  modelwith the following features
• The receiver is modeled accurately
• The pulse shape prior to the receiver is needed
• nonlinearity and dispersion are taken into
  account here
• Excellent agreement between theory and experiment
  is obtained!

7
Polarization effects
Polarization effects
T1
G1
EDFA
G2
T2
T1
Input pulse
T2
Output pulse
Polarization dependent loss (PDL)
Polarization dependent gain (PDG)
Polarization mode dispersion (PMD)
8
Polarization representation
Stokes Parameters
Degree of polarization
9
Receiver structure

• This model is appropriate for digital systems
  with optical noise loading !

10
System performance measures

• Often cited, BUT in many cases is really BER

How are they related?
11
Receiver performance measures

• Receiver Sensitivity

• The minimum average signal
• power to achieve a BER 10 ?9

How is it related to other performance measures?
12
Receiver modeling
Marcuse / Humblet-Azizoglu Model

• Flat-top optical bandpass filter
• Integrate-and-dump receiver
• Additive Gaussian white optical noise input

Probability distributions for the spaces and the
marks
These distributions are special cases of
chi-square distributions!
13
Receiver Modeling

• ESNR electrical
  signal-to-noise ratio IS signal

B optical bandwidth T bit period
BOSA Bandwidth of optical spectrum analyzer
Then ESNR ? OSNR (BOSA/B), which relates
OSNR to Q

• Optimal current threshold and minimum BER cannot
  be analytically determined

BUT
A Gaussian approximation is often used
14
Gaussian approximation
10 0
The Gaussian approximation yields poor results
for the threshold Good results for the
sensitivity
spaces
marks
BUT
Chi-square distributions
probability density
Maxwellian distributions
Two errors fortuitously cancel!
10-12
1
0
Voltage (a.u.)

• The results are independent of pulse shape and
  uniquely relate

OSNR Q BER
This is no longer true with realistic filters and
partial polarization

• This model extends easily to finite extinction
  ratios (with BOSA B)

,
15
Accurate formula for the Q-factor
signal normalized Stokes vector,
signal normalized Stokes vector
The parameters ? and ? depend on the format and
the receiver
Noise co-polarized with signal
Unpolarized noise
16
Accurate formula for the Q-factor
There is a large advantage to maximizing this
number! Hence, most of the advantage of RZ in
undersea systems
17
Back-to-back experimental setup
10 Gb/s RZ 215 1 PRBS
Transmitter
BERT
Receiver
Attenuator
OSA
PC
Polarization Analyzer
Polarizer
ASE source 1
ASE source 2
18
Variation of the Q-factor
25
SNR 10.9 dB
measured DOPn 0.95
measured DOPn 0.5
Q
theoretical DOPn 0.95
theoretical DOPn 0.5
5
-1
1
Q varies with the angle between SOPs of signal
and noise There is less variation in Q for
smaller DOPn
19
Distribution of the Q-factor
For fixed SNR and DOPn
Qmin Stokes vectors of signal and noise are
parallel Qmax Stokes vectors of signal and
noise are antiparallel
20
Distribution of the Q-factor
0.4
DOPn 0.5 SNR 10.9 dB
pdf
0
10
18
Q
The sharp cut-offs are at Qmax and Qmin
21
Recirculating loop setup
SMF
S
D
DSF
Input scrambler
Polarization controller
IS
Loop-synchronous scrambler
LSS
22
Degree of polarization evolution
measured DOP, PDL 0.22 dB
simulated DOP, PDL 0.2 dB
These curves are for the best performance
23
Q factor distribution at 5,000 km
experimental result
simulated loop result
simulated straight line
Q
The loop experiment can overestimate the
performance of a line system.
24
Q-factor distribution at 10,000 km
scrambled
2.5
with input scrambler
PDL 0.2 dB/round trip
no input scrambler
pdf
simulation
0
3
10
Q
With loop scrambling, the Q distribution
resembles that of a straight line
25
Q-factor distribution at 10,000 km
PDL 0.6 dB/round trip
scrambled
1
with input scrambler
Simulation using a receiver that takes into
account the partially polarized noise
no input scrambler
pdf
0
1
11
Q
The Q-factor distribution is asymmetric when
large PDL polarizes the noise
26
Q-factor distribution at 10,000 km
PDL 0.6 dB/round trip
scrambled
1
with input scrambler
Simulation using a receiver that takes into
account the partially polarized noise
no input scrambler
pdf
Simulation assuming unpolarized noise at the
receiver
0
1
11
Q
The Q-factor distribution is asymmetric when
large PDL polarizes the noise
27
27
Conclusion

• Receiver model MUST account for partially
  polarized noise
• The noise polarization can be found accurately
  using a reduced Stokes parameter model
• The relation of OSNR ? Q ? BER is no longer unique

28
28
Stokes Model
Jones representation of a WDM system with n
channels
Stokes parameters
where T is large.
29
Stokes Model
PMD evolution in fibers Coarse step method

• Divide fiber segment into sections of length ? (
  50)
• Section is large compared to the
  correlation length
• Calculate in each section

wavelength dependent rotation
random rotation between steps
30
Stokes Model
PMD evolution in fibers Coarse step method
31
Stokes Model
Except one operates on the Jones vectors
32
Stokes Model
The effect of PDL element
33
Stokes Model
The EDFA module

• The effect of PDG

where

• ASE noise addition

• Gain saturation keep the output power constant

34
Derivation of Receiver Model
35
Derivation of Receiver Model
36
Derivation of Receiver Model
37
Derivation of Receiver Model
38
Derivation of Receiver Model
39
Derivation of Receiver Model
