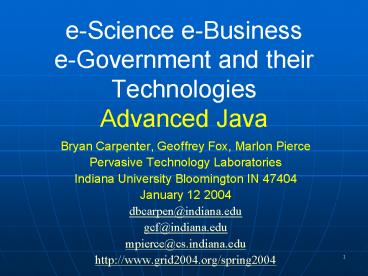

e-Science e-Business e-Government and their Technologies Advanced Java

1
e-Science e-Business e-Government and their
TechnologiesAdvanced Java

• Bryan Carpenter, Geoffrey Fox, Marlon Pierce
• Pervasive Technology Laboratories
• Indiana University Bloomington IN 47404
• January 12 2004
• dbcarpen_at_indiana.edu
• gcf_at_indiana.edu
• mpierce_at_cs.indiana.edu
• http//www.grid2004.org/spring2004

2
What are we doing

• This is a semester-long course on Grids (viewed
  as technologies and infrastructure) and the
  application mainly to science but also to
  business and government
• We will assume a basic knowledge of the Java
  language and then interweave 6 topic areas
  first four cover technologies that will be used
  by students
• 1) Advanced Java including networking, Java
  Server Pages and perhaps servlets
• 2) XML Specification, Tools, Linkage to Java
• 3) Web Services Basic Ideas, WSDL, Axis and
  Tomcat
• 4)Grid Systems GT3/Cogkit, Gateway, XSOAP,
  Portlet
• 5) Advanced Technology Discussions CORBA as
  istory, OGSA-DAI, security, Semantic Grid,
  Workflow
• 6) Applications Bioinformatics, Particle
  Physics, Engineering, Crises, Computing-on-demand
  Grid, Earth Science

3
Course Topic 1

• Advanced Java Programming
• We will assume basic Java programming proficiency
• We will cover Java client/server, three-tiered
  and network programming.
• Ancillary but interesting Java topics to be
  covered include Apache Ant, XML-Beans, and Java
  Message Service
• Material in the last bullet will mostly be
  introduced in later sections, as the course
  unfolds.
• First lecture of the segment starts with a fairly
  discursive review of Java features.

4
Reading Material

• No particular text for this section, but some
  material will come from earlier related courses
• Java HPC Course, September 2003
• http//www.hpjava.org/courses/arl
• Opennet Technologies Online Course, Fall 2001
• http//aspen.ucs.indiana.edu/ptliu
• Applications of Information Technology I and II,
  Spring 2001
• http//aspen.ucs.indiana.edu/it1spring01
• http//aspen.ucs.indiana.edu/it2spring01

5
Java History

• The Java language grabbed public attention in
  1995, with the release of the HotJava
  experimental Web browser, and the subsequent
  incorporation of Java into the Netscape browser.
• Java had originally been developedunder the name
  of Oakas an operating environment for PDAs, a
  few years before.
• Very suddenly, Java became one of the most
  important programming languages in the industry.
• The trend continued. Although Web applets are
  less important today than they were originally,
  Java was rapidly adopted by many other sectors of
  the programming community.

6
The Java Virtual Machine

• Java programs are not compiled to machine code in
  the same way as conventional programming
  language.
• To support safe execution of compiled code on
  multiple platforms (portability, security), they
  are compiled to instructions for an abstract
  machine called the Java Virtual Machine (JVM).
• The JVM is a specification originally published
  by Sun Microsystems.
• JVM instructions are called Java byte codes.
  They are stored in a class file.
• This execution model is part of the specification
  of the Java platform. There are a few compilers
  from the Java language to machine code, but it is
  hard to get these recognized as Java compliant.

7
JVM and Performance

• The first implementations of the JVM simply
  interpreted the byte codes. These
  implementations were very slow.
• This led to a common misconception that Java is
  an interpreted language and inherently slow.
• Modern JVMs normally perform some form of
  compilation from byte codes to machine code on
  the fly, as the Java program is executed.

8
Run-time Compilation

• In one form of Just-In-Time compilation, methods
  may be compiled to machine code immediately
  before they are executed for the first time.
  Then subsequent calls to the method just involve
  jumping into the machine code.
• More sophisticated forms of adaptive compilation
  (like in the Sun Hotspot JVMs) initially run
  methods in interpreted mode, monitor program
  behavior, and only spend time compiling portions
  of the byte code where the program spends
  significant time. This allows more intelligent
  allocation of CPU time to compilation and
  optimization.
• Modern JVMs (like the Hotspot server JVM)
  implement many of the most important kinds of
  optimization used by the static compilers of
  traditional programming languages.
• Adaptive compilation may also allow some
  optimization approaches that are impractical for
  static compilers, because they dont have the
  run-time information.

9
Features of the Java Language
10
Prerequisites

• We assume you know either Java or C moderately
  well.
• But some things, like threaded and network
  programming with Java, will be covered from an
  introductory level later on.
• In this section I will only point out some
  features and terminologies that are
  characteristic of Java and that you probably
  should understand.
• And highlight some of the differences from C.

11
What Java Isnt

• C, mainlynow hard to think of languages as
  closely related.
• Similar syntax for expressions, control
  constructs, etc, but these are perhaps the least
  characteristic features of C or Java.
• In C use features like operator overloading,
  copy constructors, templates, etc, to create
  little languages through class libraries.
• Worry about memory management and efficient
  creation of objects.
• Worry about inline versus virtual methods,
  pointers versus references, minimizing
  overheads.
• In Java most of these things go away.
• Minimal control over memory management, due to
  automatic garbage collection.
• Highly dynamic all code is loaded dynamically
  on demand implicit run-time descriptors play an
  important role, through run-time type checks,
  instanceof, etc.
• Logically all methods are virtual overloading
  and implementation of interfaces is ubiquitous.
• Exceptions, rarely used in C, are used
  universally in Java.

12
Java Class Structure

• All methods and (non-local) variables are
  explicitly member of classes (or interfaces).
• No default, global, namespace (except for the
  names of classes and interfaces).
• Java discards multiple inheritance at the class
  level. Inheritance relations between classes are
  strictly tree-like.
• Every class inheritance diagram has the universal
  base class Object at its root.

13
Java Class Structure (2)

• Java introduces the important idea of an
  interface, which is logically different from a
  class. Interfaces contain no implementation code
  for the methods they define.
• Multiple inheritance of interfaces is allowed,
  and this is one way Java manages without it at
  the class level.
• Since Java 1.2, classes and interfaces can be
  nested.
• This is a big change to the language read JLS
  2nd Edition in detail if you dont believe this!

14
Classes and Instances

• Will consistently use the following terminologies
  (which are correct)
• A class is a type, e.g.
• public class A int x void foo() x 23
• An interface is a type, e.g .
• public interface B void goo()
• An instance is an object. An object is always an
  instance of one particular class.
• That class may extend other classes, and
  implement multiple interfaces.

15
Pointers in Java?

• Any expression in Java that has class type (or
  interface type) is a reference to some instance
  (or it is a null reference). E.g. a variable
  declared
• A a
• holds a reference to an instance. The
  objects themselves are behind the scenes in
  Java we can only manipulate pointers
  (references) to them.
• E.g. a b Only copies a reference, not an
  object.
• But important to note references to objects and
  arrays are the only kinds of pointer in Java.
  E.g. there are no pointers to fields or array
  elements or local variables.

16
Instance and static members

• The following terminologies are common. In
• public class A
• int x
• void foo()
• static int y
• static void goo()
• We say
• x is an or instance variable, or non-static
  field.
• foo() is an instance method, or non-static
  method.
• y is a static field, or class variable.
• goo() is a static method, or class method.

17
Class Loading

• A Java program is typically written as a class
  with a public, static, void, main() method, as
  follows
• public class MyProgram
• public static void main(String args)
• body of program
• and started by a command like
• java MyProgram
• This command creates a Java Virtual Machine,
  loads the class MyProgram into the JVM, then
  invoke its main() method.
• As this process unfolds, dependencies on other
  class and interfaces and their supertypes will be
  encountered, e.g. through statements that use
  other classes. The class loader brings in the
  class files for these types on demand. Code is
  loaded, and methods linked, incrementally,
  throughout execution.

18
The CLASSPATH

• Many people have problems getting the CLASSPATH
  environment variable right.
• Because all linking is done at run-time, must
  ensure that this environment variable has the
  right class files on it.
• The class path is a colon-separated
  (semicolon-separated in Windows) list of
  directories and jar files.
• If the class path is empty, it is equivalent to
  .. But if the class path is not empty, . is
  not included by default.
• A directory entry means a root directory in which
  class files or package directories are stored a
  jar entry means a jar archive in which class
  files or package directories are stored.

19
Binary Compatibility

• There is a useful property called
  binary-compatibility between classes. This means
  that (within some specified limits) two class
  files that implement the same public interface
  can be used interchangeably.
• It also means that if you pick up an
  inappropriate implementation of a given class
  from the CLASSPATH at runtime, things can go
  wrong in an opaque way.

20
Java Native Interface

• Some methods in a class may be declared as native
  methods, e.g.
• class B
• public native long add(int nums)
• Notice the method add() has the modifier
  native, and the body of the method declaration is
  missing
• It is replaced by a semicolonsimilar to abstract
  methods in interfaces, etc. But in this case the
  method isnt abstract.
• The implementation of a native method will be
  given in another language, typically C or C (we
  consider C).
• Implementing native methods is quite involved.
• Arguably a good thingit discourages casual use!
  Generally need a good reason for resorting to JNI.

21
A Definition of Java_B_add()

• JNIEXPORT jlong JNICALL Java_B_add(JNIEnv env,
•
  jobject this, jintArray nums)
• jint cnums
• int i, n
• jlong sum 0
• n (env)-gtGetArrayLen(env, nums)
• cnums (env)-gtGetIntArrayElements(env,
  nums, NULL)
• for(i 0 i lt n i)
• sum cnums i
• return sum

22
The Invocation API

• JNI also provides a very powerful mechanism for
  going the other waycalling from a C program into
  Java.
• First the C program needs to create a JVM
  (initialize all the data structures associated
  with a running JVM), which it does with a
  suitable library call.
• The standard java command works exactly this
  wayit uses the JNI invocation API to create a
  JVM, and call the main() method of the class
  specified on the command line.

23
The Rest of this Segment

• Will cover three core topics in advanced Java
• Multithreaded Programming in Java
• Java as a multithreaded language Java thread
  synchronization primitives.
• Network Programming in Java
• Traditional Java class libraries for sockets,
  URLs.
• Overview of Java New I/O.
• Java Servlets and Java Server Pages.
• Java technologies for Web Applications.
• Other Java techniques (e.g. Java for XML, Web
  Services) will be introduced as the course
  unfolds.

24
1) Multithreaded Programming in Java
25
Need for Concurrent Programming

• This course is mostly about distributed
  programming.
• This is a different discipline from concurrent or
  multithreaded programming, but doing distributed
  programming without understanding concurrent
  programming is error prone.
• Some frameworks (e.g. EJB) try to enable
  distributed programming while insulating the
  programmer from the difficulties of concurrent
  programming, but eventually you are likely to hit
  concurrency issues.

Non-determinism
Partial failures
Sequential programming
Concurrent programming
Distributed programming
26
Java as a Threaded Language

• In C, C, etc it is possible to do multithreaded
  programming, given a suitable library.
• e.g. the pthreads library.
• Unlike other languages, Java integrates threads
  into the basic language specification in a much
  tighter way.
• Every Java Virtual Machine must support threads.

27
Features of Java Threads

• Java provides a set of synchronization primitives
  based on monitor and condition variable paradigm
  of C.A.R. Hoare.
• Underlying functionality similar to e.g. POSIX
  threads.
• Syntactic extension for threads (deceptively?)
  small
• synchronized attribute on methods.
• synchronized statement.
• volatile keyword.
• Other thread management and synchronization
  captured in the Thread class and related classes.
• But the presence of threads has a wide-ranging
  effect on language specification and JVM
  implementation.

28
Contents of this Lecture

• Introduction to Java Threads.
• Mutual Exclusion.
• Synchronization between Java Threads using wait()
  and notify().
• Other features of Java Threads.
• Suggested Exercises

29
Java Thread Basics
30
Threads of Execution

• Every statement in a Java program is executed in
  a context called its thread of execution.
• When you start a Java program in the normal way,
  the main() methodand any methods called from
  that methodare executed in a singled out (but
  otherwise ordinary) thread sometimes called the
  main thread.
• Other threads can run concurrently with the main
  thread. These threads share access to the same
  classes and objects as the main thread, but they
  execute asynchronously, in their own time.
• The main thread can create new threads these
  threads can create further threads, etc.

31
Creating New Threads

• Any Java thread of execution (including the main
  thread) is associated with an instance of the
  Thread class. Before starting a new thread, you
  must create a new instance of this class.
• The Java Thread class implements the interface
  Runnable. So every Thread instance has a method
• public void run() . . .
• When the thread is started, the code executed in
  the new thread is the body of the run() method.
• Generally speaking the new thread ends when this
  method returns.

32
Making Thread Instances

• There are two ways to create a thread instance
  (and define the thread run() method). Choose at
  your convenience
• Extend the Thread class and override the run()
  method, e.g.
• class MyThread extends Thread
• public void run()
• System.out.println(Hello from another
  thread)
• . . .
• Thread thread new MyThread()
• Create a separate Runnable object and pass to the
  Thread constructor
• class MyRunnable implements Runnable
• public void run()
• System.out.println(Hello from another
  thread)
• . . .
• Thread thread new MyThread(new MyRunnable())

33
Starting a Thread

• Creating the Thread instance does not in itself
  start the thread running.
• To do that you must call the start() method on
  the new instance
• thread.start()
• This operation causes the run() method to
  start executing concurrently with the original
  thread.
• In our example the new thread will print the
  message Hello from another thread to standard
  output, then immediately terminate.
• You can only call the start() method once on any
  Thread instance. Trying to restart a thread
  causes an exception to be thrown.

34
Example Multiple Threads

• class MyThread extends Thread
• MyThread(int id)
• this.id id
• public void run()
• System.out.println(Hello from thread
  id)
• private int id
• . . .
• Thread threads new Thread p
• for(int i 0 i lt p i)
• threads i new MyThread(i)
• for(int i 0 i lt p i)
• threads i.start()

35
Remarks

• This is one way of creating and starting p new
  threads to run concurrently.
• The output might be something like (for p 4)
• Hello from thread 3
• Hello from thread 4
• Hello from thread 2
• Hello from thread 1
• Of course there is no guarantee of order
  (or atomicity) of outputs, because the threads
  are concurrent.
• One might worry about the efficiency of this
  approach for large numbers of threads (massive
  parallelism).

36
JVM Termination and Daemon Threads

• When a Java application is started, the main()
  method of the application is executed in the main
  thread.
• If the main method never creates any new
  threadsthe JVM keeps running until the main()
  method completes (and the main thread
  terminates).
• Typically, the java command finishes.
• If main() creates new threads, by default the JVM
  terminates when all user-created threads have
  terminated.
• More generally there are system threads executing
  in the background (e.g. threads might be
  associated with garbage collection). These are
  marked as daemon threadsmeaning that they dont
  have the property of keeping the JVM alive. So
  actually the JVM terminates when all non-daemon
  threads terminate.
• Ordinary user threads can create daemon threads
  by applying the setDaemon() method to the thread
  instance before starting it.

37
Mutual Exclusion
38
Avoiding Interference

• In any non-trivial multithreaded (or
  shared-memory-parallel) program, interference
  between threads is an issue.
• Generally interference (or a race condition)
  occurs if two threads are trying to do operations
  on the same variables at the same time. This
  often results in corrupt data.
• But not always. It depends on the exact
  interleaving of instructions. This
  non-determinism is the worst feature of race
  conditions.
• A popular solution is to provide some kind of
  lock primitive. Only one thread can acquire a
  particular lock at any particular time. The
  concurrent program can be written so that
  operations on some given variables are only
  performed by threads holding the lock for those
  variables.
• In POSIX threads, for example, the lock objects
  are called mutexes.

39
Monitors

• Java adopts a version of monitors, proposed by
  C.A.R. Hoare.
• Every Java object is created with its own lock
  (and every lock is associated with an
  objectthere is no way to create an isolated
  mutex). In Java this lock is often called the
  monitor lock.
• Methods of a class can be declared to be
  synchronized.
• The objects lock is acquired on entry to a
  synchronized method, and released on exit from
  the method.
• Synchronized static methods need slightly
  different treatment.
• If methods generally modify the fields (instance
  variables) of the method instance, this leads to
  a natural and systematic association between
  locks and the variables they guard.
• The critical region is the body of the
  synchronized method.

40
Example use of Synchronized Methods
Thread A
Thread B
call to counter.increment()
// body of synchronized method tmp1 count
count tmp1 1
call to counter.decrement()
Blocked
counter.increment() returns
// body of synchronized method tmp2 count
count tmp2 - 1
counter.decrement() returns
41
Caveats

• This approach helps to encourage good practices,
  and make multithreaded Java programs less
  error-prone than, say, multithreaded C programs.
• But it isnt magicit still depends on correct
  identification of the critical regions, to avoid
  race conditions.
• Concurrent programming is hard, and if you start
  with the assumption Java somehow makes concurrent
  programming easy, you are probably going to
  write some broken programs!

42
Example A Simple Queue

• public class SimpleQueue
• public synchronized void add(Object data)
• if (front ! null)
• back.next new Node(data)
• back back.next
• else
• front new Node(data)
• back front
• public synchronized Object rem()
• Object result null
• if (front ! null)
• result front.data
• front front.next
• return result

43
Remarks

• This queue is implemented as a linked list with a
  front pointer and a back pointer.
• The method add() adds a node to the back of the
  list the method rem() removes a node from the
  front of the list.
• The rem() method immediately returns null when
  the queue is empty.
• The Node class just has a data field (type
  Object) and a next field (type Node).
• The following slide gives an example of what
  could go wrong without mutual exclusion. It
  assumes two threads concurrently add nodes to the
  queue.
• In the initial state, Z is the last item in the
  queue. In the final state, the X node is
  orphaned, and the back pointer is null.

44
The Need for Synchronized Methods
Thread A add(X)
null
Z
back
back.next new Node(X)
Thread B add(Y)
null
back.next new Node(Y)
X
Z
null
X
back
Z
null
Y
back back.next
back
null
X
Z
back back.next
null
Y
back
null
X
Z
Corrupt data structure!
null
Y
back
null
45
The synchronized construct

• The keyword synchronized also appears in the
  synchronized statement, which has syntax like
• synchronized (object)
• critical region
• Here object is a reference to any object. The
  synchronized statement first acquires the lock on
  this object, then executes the critical region,
  then releases the lock.
• Typically you might use this for the lock object,
  somewhere inside a non-synchronized method, when
  the critical region is smaller than the whole
  method body.
• In general, though, the synchronized statement
  allows you to use the lock in any object to guard
  any code.

46
Deadlock

• Deadlock occurs when a group of threads are
  mutually waiting for one another in such a way
  that none can proceed.
• This happens if there is a cycle of waits-for
  dependencies, e.g.
• A waits for B, B waits for C, , D waits for A.
• There are unfortunately many ways this can occur.
  One common situation is if two threads try to
  acquire the same pair of locks in different
  orders, e.g.

Thread A synchronized(x)
synchronized(y)
Thread B synchronized(y)
synchronized(x)
47
Performance Cost of synchronized

• Acquiring locks introduces an overhead in
  execution of synchronized methods. See, for
  example
• Performance Limitations of the Java Core
  Libraries,
• Allan Heydon and Marc Najork (Compaq),
• Proceedings of ACM 1999 Java Grande Conference.
• Many of the original utility classes in the Java
  platform (e.g. Vector, etc) were specified to
  have synchronized methods, to make them safe for
  the multithreaded environment.
• This was probably a mistake newer replacement
  classes (e.g. ArrayList) dont have synchronized
  methodsthe programmer provides synchronization
  as needed, e.g. through wrapper classes.

48
General Synchronization
49
Beyond Mutual Exclusion

• The mutual exclusion provided by synchronized
  methods and statements is an important category
  of synchronization.
• But there are other interesting forms of
  synchronization between threads. Mutual exclusion
  by itself is not enough to implement these more
  general sorts of thread interaction (not
  efficiently, anyway).
• POSIX threads, for example, provides a second
  kind of synchronization object called a condition
  variable to implement more general inter-thread
  synchronization.
• In Java, condition variables (like locks) are
  implicit in the definition of objects every
  object effectively has a single condition
  variable associated with it.

50
A Motivating Example

• Consider the simple queue from the previous
  example.
• If we try to remove an item from the front of the
  queue when the queue is empty, SimpleQueue was
  specified to just return null.
• This is reasonable if our queue is just meant as
  a data structure buried somewhere in an
  algorithm. But what if the queue is a message
  buffer in a communication system?
• In that case, if the queue is empty, it may be
  more natural for the remove operation to block
  until some other thread added a message to the
  queue.

51
Busy Waiting

• One approach would be to add a method that polls
  the queue until data is ready
• public synchronized Object get()
• while(true)
• Object result rem()
• if (result ! null)
• return result
• This works, but it may be inefficient to keep
  doing the basic rem() operation in a tight loop,
  if these machine cycles could be used by other
  threads.
• This isnt clear cut sometimes busy waiting is
  the most efficient solution.
• Another possibility is to put a sleep() operation
  in the loop, to deschedule the thread for some
  fixed interval between polling operations. But
  then we lose responsiveness.

52
wait() and notify()

• In general a more elegant approach is to use the
  wait() and notify() families of methods. These
  are defined in the Java Object class.
• Typically a call to a wait() method puts the
  calling thread to sleep until another thread
  wakes it up again by calling a notify() method.
• We will speak of wait() putting a thread to sleep
  inside a particular object, meaning we use the
  condition variable associated with that object.
  The notify() call that subsequently wakes the
  thread must be called on the same object.

53
wait() and notify() II

• In our example, if the queue is currently empty,
  the get() method would invoke wait(). This
  causes the get() operation to block.
• Later when another thread calls add(), putting
  data on the queue, the add() method invokes
  notify() to wake up any sleeping thread. The
  original get() call can then return.

54
A Simplified Example

• public class Semaphore
• int s
• public Semaphore(int s) this.s s
• public synchronized void add()
• s
• notify()
• public synchronized void get() throws
  InterruptedException
• while(s 0)
• wait()
• s--

55
Remarks I

• Rather than a linked list we have a simple
  counter, which is required always to be
  non-negative.
• add() increments the counter.
• get() decrements the counter, but if the counter
  was zero it blocks until another thread
  increments the counter.
• The data structures are simplified, but the
  synchronization features used here are
  essentially identical to what would be needed in
  a blocking queue (left as an exercise).
• Some may recognize this as an implementation of a
  classical semaphorean important synchronization
  primitive in its own right.

56
Remarks II

• wait() and notify() should be used inside
  synchronized methods of the object they are
  applied to.
• More precisely, the calling thread must hold the
  objects monitor lock.
• The wait() operation pauses the thread that
  calls it. It also releases the lock that the
  thread holds on the object, for the duration of
  the wait() call.
• The lock must be claimed again, before continuing
  after the pause.
• While the lock is temporarily released, another
  synchronized method can proceed.
• This method may wake up the first, by calling
  notify().

57
Remarks III

• Several threads can wait() simultaneously in the
  same object.
• If any threads are waiting in the object, the
  notify() method wakes up exactly one of those
  threads. If no threads are waiting in the
  object, notify() does nothing.
• Common lore has it that one should always put a
  wait() call in a loop, in case the condition that
  caused the thread to sleep has not been resolved
  when the wait() completes.
• The logic in the example here doesnt strictly
  require itan if would also work.
• A wait() method may throw an InterruptedException
  (rethrown by get() in the example). This will be
  discussed later.

58
Another Example

• public class Barrier
• private int n, generation 0, count 0
• public Barrier(int n) this.n n
• public synchronized void synch() throws
  InterruptedException
• int genNum generation
• count
• if(count n)
• count 0
• generation
• notifyAll()
• else
• while(generation genNum)
• wait()

59
Remarks

• This class implements barrier synchronizationan
  important operation in shared memory parallel
  programming.
• It synchronizes n processes when n threads make
  calls to synch() the first n-1 block until the
  last one has entered the barrier.
• The method notifyAll() generalizes notify(). It
  wakes up all threads currently waiting on this
  object.
• Many authorities consider use of notifyAll() to
  be safer than notify(), and recommend always to
  use notifyAll().
• In the example, the generation number labels the
  current, collective barrier operation it is only
  really needed to control the while loop round
  wait().
• And this loop is only really needed to conform to
  the standard pattern of wait()-usage, mentioned
  earlier.

60
Final Remarks on Synchronization

• We illustrated with a couple of simple examples
  that wait() and notify() allow various
  interesting patterns of thread synchronization
  (or thread communication) to be implemented.
• In some sense these primitives are sufficient to
  implement general concurrent programmingany
  pattern of thread synchronization can be
  implemented in terms of these primitives.
• For example you can easily implement message
  passing between threads (left as an exercise)
• This doesnt mean these are necessarily the last
  word in synchronization e.g. for scalable
  parallel processing one would like a primitive
  barrier operation more efficient than the O(n)
  implementation given above.

61
Other Features of Java Threads
62
Other Features

• This lecture isnt supposed to cover all the
  detailsfor those you should look at the spec!
• But we mention here a few other features you may
  find useful.

63
Join Operations

• The Thread API has a family of join() operations.
  These implement another simple but useful form
  of synchronization, by which the current thread
  can simply wait for another thread to terminate,
  e.g.
• Thread child new MyThread()
• child.start()
• Do something in current thread
• child.join() // wait for child thread to
  finish

64
Priority and Name

• Thread have properties priority and name, which
  can be defined by suitable setter methods, before
  starting the thread, and accessed by getter
  methods.

65
Sleeping

• You can cause a thread to sleep for a fixed
  interval using the sleep() methods.
• This operation is distinct fromand less powerful
  thanwait(). It is not possible for another
  thread to prematurely wake up a thread that was
  paused using sleep().
• If you want to sleep for a fixed interval, but
  allow another thread to wake you beforehand if
  necessary, use the variants of wait() with
  timeouts instead.

66
Deprecated Thread Methods

• There is a family of methods of the Thread class
  that was supposed to give life-or-death control
  over threads.
• Experience showed these didnt really work, and
  killing threads is no longer considered
  acceptable in polite society.
• If you need to interrupt a running thread, you
  should explicitly write the thread it in such a
  way that it pays attention to interrupt
  conditions (see the next slide) and terminates
  itself.
• If you want to run an arbitrary thread in such a
  way that it can be killed and garbage collected
  by an external agent, you probably need to fork a
  separate process, not a thread.
• The deprecated methods include stop(), destroy(),
  suspend(), and resume().

67
Interrupting Threads

• Calling the method interrupt() on a thread
  instance requests cancellation of the thread
  execution.
• This works in an advisory way the code for the
  thread must explicitly test whether it has been
  interrupted, e.g.
• public void run()
• while(!interrupted())
• do something
• Here interrupted() is a static method of the
  Thread class.
• If the interrupted thread is executing a blocking
  operation like wait() or sleep(), the operation
  will throw an InterruptedException.
  Interruptible threads should catch this exception
  and terminate themselves.
• This mechanism depends on suitable implementation
  of the thread body. The programmer must decide
  at the outset whether it is important that a
  particular thread be responsive to
  interruptsoften it isnt.

68
Thread Groups

• There is a mechanism for organizing threads into
  groups. This may be useful for imposing security
  restrictions on which threads can interrupt other
  threads, for example.
• Check out the API of the ThreadGroup class if you
  think this may be important for your application.

69
Thread-Local Variables

• An object from the ThreadLocal class stores an
  object which has a different, local value in
  every thread.
• Check the API of the ThreadLocal class for
  details.

70
Volatile Variables

• Suppose a the value of a variable must be
  accessible by multiple threads, but you decided
  you cant afford the overheads of synchronized
  methods or the synchronized statement.
• Presumably effects of race conditions are known
  to be innocuous.
• Java does not guaranteeabsent lock operations
  that force write-back to main memorythat the
  value of a variable written by a one thread will
  be visible to other threads.
• But if you declare a field to be volatile
• volatile int myVariable
• the JVM is supposed to synchronize the value
  of any thread-local (cached) copy of the variable
  with central storagemaking it visible to all
  threadsevery time the variable is updated.
• The exact semantics of volatile variables and the
  Java memory model in general is still
  controversial, see for example
• A New Approach to the Semantics of Multithreaded
  Java,
• Jeremy Manson and William Pugh,
• http//www.cs.umd.edu/pugh/java/memoryModel/

71
Threads on Symmetric Multiprocessors

• Most modern implementations of the Java Virtual
  Machine will map Java threads into native threads
  of the underlying operating system.
• For example these may be POSIX threads.
• On multiprocessor architectures with shared
  memory, these threads can exploit multiple
  available processors.
• Hence it is possible to do true parallel
  programming using Java threads within a single
  JVM.
• See the lectures on Java HPC, cited earlier, for
  examples.

72
2) Network Programming in Java
73
Contents of this Section

• Basics of network programming in Java
• Sockets background
• Socket classes, with simple HTTP examples
• Internet address classes
• URL classes
• Overview of New I/O extensions
• Efficient data transfer
• Non-blocking sockets
• Multiplexing (select)
• JSSE elements

74
Sockets, Addresses and URLs
75
Sockets

• Sockets first appeared in BSD UNIX (designed by
  Bill Joylater a designer of Java) circa 1982.
• Cross-protocol API for networking. Original
  implementation supported protocols including
• TCP/IP
• Xerox NS
• Local UNIX inter-process communication.
• Today available in all variants of UNIX/Linux,
  and in Windows through the WinSock API.
• Directly support a client/server architecture.
• Support connection-oriented protocols like TCP,
  and connectionless protocols like UDP.

76
BSD Socket Calls
Network
Server
Client
socket() create socket
socket() create socket
bind() name socket
connect()
listen()
accept() accept connection
write() send request
read() get request
. . . process request . . .
write() send reply
read() get reply
77
Port Numbers

• The bind() call on the server side establishes a
  well-known address for the listening socket.
• In the case of an TCP/IP socket the important
  part of this is the port number.
• A port number is an integer between 0 and 64K.
• On any given host, only one server socket can be
  listening on a particular port at a particular
  time.
• In UNIX, port numbers below 1024 can only be used
  by a privileged user (the super-user). Any user
  can create a server socket listening on higher
  ports.
• Low port numbers are used by standard services,
  e.g.
• 23 is the default port number for telnet
• 80 is the default port number for HTTP servers

78
Making a Connection

• The client makes a connect() call, specifying the
  remote host IP address, and the port number for
  the server socket it wants to connect to.
• Meanwhile the server is waiting on an accept()
  call on the server socket.
• When the connection is established, the accept()
  call completes, returning a reference to a new
  socket.
• Data is subsequently exchanged through the socket
  pair consisting of the client socket, and the new
  socket on the server, returned by the accept()
  call.

79
Sockets in Java

• Using sockets from C is traditionally quite hard.
  The arguments of the BSD socket functions are
  complex.
• Perhaps in part because of the historical need to
  support multiple protocols.
• Luckily the API has been greatly simplified in
  the Java binding for sockets.
• The associated classes are in the package
  java.net.

80
Java Sockets from the Client Side

• A Java program can open a socket connection in
  one step using a constructor of the Socket class
• Socket t new Socket(hostName,
  port)
• Here hostName is a string, like
  grid2004.org, and port is an integer, like 80.
• This constructor subsumes the socket() and
  connect() calls in the BSD API.
• The Socket class has methods getInputStream() and
  getOutputStream(), returning Java stream objects
  that swap data between the connected socket pair.
• The connection is bi-directional both client an
  server can read and write.

81
A Simple Client

• import java.io.
• import java.net.
• public class TrivialBrowser
• public static void main(String args)
  throws IOException
• Socket s new Socket(www.grid2004.o
  rg, 80)
• PrintWriter out new PrintWriter(
• new OutputStreamWriter(s.ge
  tOutputStream()))
• out.print("GET /spring2004/index.ht
  ml HTTP/1.1\r\n")
• out.print("Host www.grid2004.org\r\n
  \r\n")
• out.flush()
• BufferedReader in new
  BufferedReader(
• new InputStreamReader(s.ge
  tInputStream()))
• String line
• while((line in.readLine()) !
  null)
• System.out.println(line)

82
Remarks

• This implements a (drastically restricted) Web
  client.
• Cut and paste this slide, compile and run the
  code. It prints out the HTML source for the
  course home page.
• It connects to port 80 on the server (the HTTP
  port).
• It gets an output stream to write to the socket
  using getOuputStream().
• It sends an HTTP GET request on the stream,
  specifying the file it1spring01/index.html
  relative to the servers document root.
• It gets an input stream to read from the socket
  using getInputStream().
• It copies lines from the socket connection to the
  console.

83
Java Sockets from the Server Side

• The BSD operations socket(), bind() and listen()
  for a server-side socket are subsumed in a
  constructor for the ServerSocket class
• ServerSocket s new
  ServerSocket(port)
• Here port is the integer port number, such as
  80 (if you are writing a Web server), on which
  the server will listen.
• Next the Java server will call the accept()
  method and wait for clients to connect to it.
  accept() returns an ordinary socket, completing
  the socket-pair for the connection
• Socket connection s.accept()
• After processing the request, the client goes
  back to waiting on accept(), for new client
  requests.
• Real servers typically fork a thread or process
  to deal with the request, and return immediately
  to waiting for the next client connection.

84
A Simple Server

• public static void main(String args) throws
  Exception
• ServerSocket server new
  ServerSocket(8080)
• while(true)
• Socket sock server.accept()
• BufferedReader in new
  BufferedReader(
• new InputStreamReader(sock
  .getInputStream())
• String header in.readLine()
• . . . Skip over any other lines in
  request packet . . .
• String fileName path component
  from 2nd field of header
• DataOutputStream out
• new DataOutputStream(sock.getO
  utputStream())
• if( file fileName exists )
• byte bytes contents of
  local file fileName
• out.writeBytes(HTTP/1.0 200
  OK\r\n)
• out.writeBytes(Content-Length
  bytes.length \r\n)
• out.writeBytes(Content-Type
  text/html\r\n\r\n)
• out.write(bytes)
• else Send HTTP error status


85
Remarks

• This implements a (drastically restricted) Web
  server.
• It creates a server socket listening to port 8080
  on the local host.
• It gets a socket connection from a client using
  the accept() method, and then gets the input
  stream from the socket using getInputStream().
• We handle only GET requests the second field
  will normally be the file name (preceded by /).
• It reads the file (assuming . as document root)
  and writes it to the output stream of the socket,
  in HTTP.
• A realistic server would probably spawn a new
  thread to deal with each transaction. The main
  loop would return immediately to waiting on
  accept().

86
Other Features of java.net sockets

• The Socket and ServerSocket classes provide a
  bunch of inquiry methods to determine the socket
  state.
• But there arent too many more operations one can
  actually perform on sockets
• One notable thing is setting a time out for I/O
  operations.
• Notable things you cant do include I/O in
  non-blocking mode, and any kind of select
  functionality.
• These important features werent added until J2SE
  1.4, in the java.nio packages.
• In unaugmented java.net sockets, the closest you
  can come is to execute socket operations in
  dedicated threads.

87
Internet Addresses

• The class java.net.InetAddress bundles together
  various useful functions on Internet address
• DNS lookup, reverse name resolution, etc.
• Example methods
• static InetAddress getByName(String host)
• static InetAddress getByAddress(byte addr)
• byte getAddress
• String getCanonicalHostName()
• static InetAddress getLocalHost()
• InetAddress objects can be passed to the
  constructors of socket classes.

88
URL Objects

• Instead of explicitly opening a socket connection
  to a Web server, a client can read information
  using the higher level URL class.
• A constructor takes a URL string and creates a
  URL object
• URL url
• new URL(http//www.grids2004.org/spring200
  4/)
• This constructor may throw a MalformedURLException
  .
• This class is mostly (only?) useful for clients.

89
Reading a File Using a URL Object

• Now if url is a URL object, the resource can be
  read by opening a stream on the URL
• BufferedReader in
• new BufferedReader(
• new InputStreamReader(url.openStream(
  )))
• This example creates a character stream that can
  be read like any other.

90
URL Connection Objects

• A class java.net.URLConnection provides
  additional functionality on URLs. A
  URLConnection is created by the openConnection()
  method
• URLConnection connection url.openConnection()
• Methods on connection allow to return fields from
  the HTTP header
• String getContentType()
• int getContentLength()
• . . .
• You can also open an InputStream or OutputStream
  on a URL connection. The latter is used for HTTP
  POST requests.

91
UDP in Java

• So far discussed use of Java sockets for TCP.
• The User Datagram Protocol is an alternative
  which is neither connection-oriented nor
  reliable.
• It transports datagrams messages of fixed
  (limited) size.
• Messages may occasionally be lost they may also
  be delivered out of order.
• But for applications that dont need strong
  guarantees it can be faster than TCP, e.g. the
  Internet Domain Naming Service is implemented
  over UDP.
• Finally, you have to use UDP if you want to
  exploit IP multicast.

92
A UDP Message Producer

• import java.net.
• public class UDPProducer
• public static void main(String args)
  throws java.io.IOException
• DatagramSocket sock new
  DatagramSocket()
• InetAddress addr InetAddress.getByName(
  "grids.ucs.indiana.edu")
• int port 3516
• for(int i 0 i lt 10 i)
• String message "message " i
• byte data message.getBytes()
• DatagramPacket packet
• new
  DatagramPacket(data, data.length, addr, port)
• sock.send(packet)

93
A UDP Message Consumer

• import java.net.
• public class UDPConsumer
• public static void main(String args)
  throws java.io.IOException
• int port 3516
• DatagramSocket sock new
  DatagramSocket(port)
• byte buffer new byte 65536
• while(true)
• DatagramPacket packet
• new DatagramPacket(buffer,
  buffer.length)
• sock.receive(packet)
• String message
• new String(packet.getData(),
  0, packet.getLength())
• System.out.println(message)

94
Java New I/O
95
NIO New I/O

• Prior to the J2SE 1.4 release of Java, I/O had
  become a performance bottleneck.
• The old java.io stream classes had too many
  software layers to be fast.
• No way to multiplex data from multiple sources
  without incurring thread context switches
• No way to exploit modern OS tricks for high
  performance I/O, like memory mapped files.
• New I/O changed that.

96
Features of New I/O

• New I/O provides
• A hierarchy of dedicated buffer classes that
  allow data to be moved from the JVM to the OS
  with minimal memory-to-memory copying, and
  without overheads like switching byte
  ordereffectively give Java a window on system
  memory.
• A unified family of channel classes that allow
  data to be fed directly from buffers to files and
  sockets, without going through the slow old
  stream classes.
• Non-blocking I/O on sockets.
• A family of classes to directly implement
  selection (or readiness testing, or multiplexing)
  over a set of channels.
• NIO also provides file locking for the first time
  in Java.

97
References

• The Java NIO software is part of J2SE 1.4 and
  later, from
• http//java.sun.com/j2se/1.4
• Online documentation is at
• http//java.sun.com/j2se/1.4/nio
• There is an authoritative book from OReilly
• Java NIO, Ron Hitchens, 2002

98
New I/O Buffers
99
Buffers

• A Buffer object is a container for a fixed amount
  of data.
• It behaves something like a byte array, but is
  encapsulated so that the internal storage may be
  a block of system memory.
• Adding data to, or getting it from, a buffer can
  be a very direct way of getting information
  between a Java program and the underlying
  operating system.
• All the I/O operations in New I/O operate on
  these buffer objects.

100
The java.nio.Buffer Hierarchy
101
The ByteBuffer Class

• The most important buffer class in practice is
  the ByteBuffer class. This represents a
  fixed-size vector of primitive bytes.
• The storage used internally by the buffer class
  is called the backing store.
• This backing store can either be an ordinary Java
  array, or a block of system memory.
• If it is system memory, the buffer is called a
  direct buffer.
• Think of system memory as meaning something
  like a C array allocated by malloc(). It is not
  memory managed by the JVM, subject to garbage
  collection, etc.

102
Creating Buffers

• There are various factory methods that can be
  used to create a new ByteBuffer, including
• ByteBuffer wrap(byte array)
• ByteBuffer allocate(int capacity)
• ByteBuffer allocateDirect(int
  capacity)
• These are all static methods of the ByteBuffer
  class
• wrap() creates a ByteBuffer backed by the Java
  array provided by the caller.
• allocate() creates a ByteBuffer backed by an
  anonymous Java array, size capacity.
• allocateDirect() creates a direct ByteBuffer,
  backed by capacity bytes of system memory.

103
Examples

• import java.nio.
• public class CreateBuffers
• public static void main(String args)
• int BUF_SIZE 1024
• byte myBacking new byte BUF_SIZE
• ByteBuffer buffer1 ByteBuffer.wrap(myBac
  king)
• // Uses array myBacking for
  storage.
• ByteBuffer buffer2 ByteBuffer.allocate(B
  UF_SIZE)
• // Uses buffer2.array() for
  storage.
• ByteBuffer buffer3 ByteBuffer.allocateDi
  rect(BUF_SIZE)
• // Uses inaccessible system memory
  for storage.

104
ByteBuffer Reads and Writes

• Has a family of put() and get() methods for
  writing and reading the buffer, e.g.
• byte get() // Get the next byte in
  the buffer
• get(byte dst) // Get the next block of
  bytes
• put(byte b) // Write b to the next
  position in buffer
• put(byte src) // Write block starting at
  next position
• I omitted the some of the return types to avoid
  confusion. These methods typically return a
  reference the original possibly modifiedbuffer.
• The put() and get() operations shown above are
  all relative operations they get data from, or
  insert data into, the buffer, starting at the
  current position in
