DyVOSE Project: Experiences in Applying Advanced Authorisation Infrastructures

1

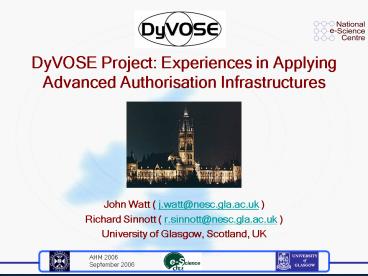

DyVOSE Project Experiences in Applying Advanced
Authorisation Infrastructures

• John Watt ( j.watt_at_nesc.gla.ac.uk )
• Richard Sinnott ( r.sinnott_at_nesc.gla.ac.uk )
• University of Glasgow, Scotland, UK

2
Dynamic Virtual Organisations in e-Science
Education
http//www.nesc.ac.uk/hub/projects/dyvose

• Investigating the establishment of scalable
  Virtual Organisations in an e-Science education
  domain.
• 2 year JISC-funded project (May 04 July 06)
• In partnership with University of Kent (and
  EDINA)

3
Project Goals (Glasgow)

• Creation of a permanent Grid Computing Module
  (GC5) as an option within the Advanced MSc.
  postgraduate course in Glasgows Computing
  Science department
• Provide a lasting lab infrastructure to support
  practical Grid Computing lab sessions
• Investigate technologies that enable Grid
  Services to be protected with advanced
  authorisation infrastructures which the students
  can deploy as part of an assignment

4
Course Details

• Single term course of 20 lectures and 10
  tutorials (Jan-Mar)
• 1st year (04-05) 19 students
• 2nd year (05-06) 16 students
• Three short essay/programming assessments
• Final Exam in June (answer 3 questions of 5)
• Month-long Programming Assignment
• This assignment forms the core of the DyVOSE
  authorisation investigations

5
Assignment

• In both years the assignment took the following
  form
• Students are split into two teams
• Write a Grid Service (and a client) in GT3.3 to
  perform some task
• Write a scheduler that will split a large job
  into many sub-jobs and submit to the local Condor
  pool
• Protect the Grid Service so that some functions
  are only available to students who are in the
  same team
• For both years, students used PERMIS to protect
  their Grid Services

6
Assignment

• Year 1
• Investigate STATIC privilege management
• Roles are issued by a local Source of Authority
  (SoA) stored in a local LDAP for access to a
  local service only
• Year 2
• Investigate DYNAMIC privilege management
• Roles are issued by a local SoA stored in a local
  LDAP for accessing local AND REMOTE services
• But roles required for access to the REMOTE
  service are not recognised within the local
  infrastructure
• REMOTE SoA DELEGATES the right to assign these
  REMOTE roles to the LOCAL SoA (they form a VO!)
• Will prove that this can be done SECURELY and
  EASILY (from a user perspective) with PERMIS

7

• Generic Java API for Role Based Access Control
  (RBAC)
• Provides method-level protection to applications
  and Web Services
• Protects Grid Services through GGF-standardised
  SAML Authz API
• Roles are issue in the form of X509 Attribute
  Certificates (ACs)
• http//sec.cs.kent.ac.uk/permis
• http//www.permis.org

8
Generic Authorisation

• A generic framework for authorisation is defined
  in X.812 ISO 10181-3 Acc. Ctrl. Framework

9
PERMIS with GGF Authz API

• PERMIS deployed in Grid Service container
• WSDD file contains policy location, LDAP server
  details and trust info
• GSI provides user DN, PERMIS retrieves ACs

10
PERMIS Components

• XML Policy
• Roles
• and heirarchy
• Targets
• Actions
• SOAs
• DN Scope
• Attribute Storelist
• LDAPs
• Policy Editor tool
• syntax checks

11
PERMIS Components

• Privilege Allocator or Attribute Certificate
  Manager (ACM)
• Creates and signs X509 Attribute Certificates
  (ACs) and loads into LDAP
• ACs contain digitally signed attributes (roles)
• PERMIS API verifies PKI chain of trust (if more
  than unity length) on invocation
• Fully supports a static PMI
• One SoA, home roles only

12
Year 1 Assignment

• Write a Grid service (and client) to parse the
  Complete Works of Shakespeare and offer a
  Search service to everyone, but a Sort
  service only to members of the same team. Split
  the job into sub-jobs and submit to the Condor
  pool.
• Support (as Sys Admins)
• Create PKI (CA) and p12 certificates for Globus
• Write a local XML policy to enforce the rules
• Create LDAP entries and use the ACM to issue ACs
  to the students which contain their role
• Students were given LDAP and PKI info to amend
  their PERMIS service
• A tough assignment for four weeks. We got 2
  completions and about 5 or 6 who were about 90
  there.
• We have since Shibboleth-enabled this service,
  check URL at end

13
Year 2 Assignment

• Write a Grid Service and client which runs BLAST
  on a set of data extracted from a remote database
  and schedule into sub-jobs for submission to the
  Condor pool
• Student experience much the same as before
  implementation-wise (deploy PERMIS in container
  point to our PMI details)
• But the Support part requires a more
  sophisticated AC allocator application to handle
  external as well as local roles (among other
  properties)
• Enter the Delegation Issuing Service (DIS)
• (and a slightly modified PERMIS too)

14
Delegation Issuing Service

• No user key pair required to issue ACs
• dis user signs all ACs on behalf of the
  delegator
• If a rogue employee is kicked out, any
  certificates they issued to trustworthy employees
  are still valid
• Not the case with AC chains
• DIS checks the local policy before signing
• Only policy-valid ACs can ever be issued
• With previous PERMIS tools it is possible to
  issue ANY AC with ANY role
• Deployed as a web service utilising SOAP
• Can be used anywhere by valid users

15
Delegation Issuing Service

• Extensions to the PERMIS API allow for
• Cross-certification
• Allow ACs signed by a remote CA to be recognised
• Currently done through an SoA policy extension
• Role-mapping
• Recognise the meaning of an external role
• Currently done by equating the names of the roles
  in the local policies
• Future tools will do this equality on the fly
  without having to alter local core policy
• The above implement the necessary features to
  allow Glasgow to issue Edinburgh roles within
  their PMI and in accordance with both sites
  policies

16
DIS Implementation

• Web Service
• AXIS, Apache, Tomcat
• Not too tricky
• An afternoon
• Docs fine for this part
• Underlying PKI
• OpenSSL
• Quite complex
• Had to be quite careful with compatibility of VO
  PKIs
• Have written extension to manual detailing the
  steps required in full

17
Dynamic PMI Use Case

• Student Assignment
• Student were split into two teams
• They were issued with Attribute Certificates
  which assigned them with one of two roles
  (GlaTeamN and GlaTeamP)
• Students implemented a BLAST Grid Service which
  queried an external database (hosted in
  Edinburgh) for gene data
• Database was PERMIS protected so only members of
  the correct team got the right data (based on
  EdTeam roles)
• Students PERMIS protected their service so only
  members of their own team could invoke the service

18
Dynamic PMI Use Case

• PERMIS Policy Details
• BLAST DATA Service (Edinburgh)
• Send Nucleotide Data if User presents PERMIS Role
  EdTeamN
• Send Protein Data if User presents PERMIS Role
  EdTeamP
• BLAST Service (Glasgow)
• Invoke BLASTN service if User presents PERMIS
  Role GlaTeamN
• Invoke BLASTP service if User presents PERMIS
  Role GlaTeamP

19
Dynamic PMI Use Case

• Dynamic Delegation
• Edinburgh issues a Delegation Statement to the
  Glasgow SoA that allows them to assign the
  EDINBURGH PERMIS role EdTeamN/P
• Done through Glasgow policy extension
  (RoleMapping)
• Glasgow SoA delegates the responsibility to issue
  this role to user ext
• Issues ext an Attribute Certificate containing
  the Edinburgh roles with the delegation flag set
• User ext assigns the Edinburgh roles to Glasgow
  students
• By issuing the Glasgow students Attribute
  Certificates
• This user can be in the Glasgow infrastructure or
  can be the Edinburgh SoA (by logging into the
  Glasgow DIS) both models can be supported (the
  former being the more direct)
• Edinburgh Data Service searches both LDAP
  directories
• Service finds User entries in Glasgow LDAP that
  contain the correct Edinburgh role ACCESS
  GRANTED

20
Dynamic PMI Use Case
Edinburgh
Glasgow
You may assign Edinburgh Roles
CONDOR
LDAP
LDAP
P
P
Student
PERMIS Service
BLAST Client
BLAST DATA
BLAST SERVICE
PERMIS Service
GT3.3 Container
GT3.3 Container
21
In Practise
22
Summary

• PERMIS simple to deploy for users
• For sys admins, deployment is tricky, but use is
  easy
• Dynamic Delegation of Authority can be secure and
  workable
• Future tools (next year?) will optimise this
  process
• User need not know of certificates!
• Happier users
• DyVOSE legacy
• Third year of Grid module starting in Jan 07
• Permanent Grid Computing Laboratory in NeSC
  Glasgow
• A set of tools which we are able to apply to many
  of our security projects now and in the future
• Fancy doing the course next year?
• http//www.dcs.gla.ac.uk/courses/MSc_ACS/
