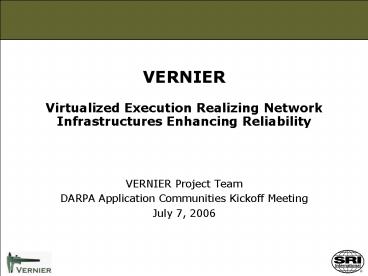

VERNIERVirtualized Execution Realizing Network
Infrastructures Enhancing Reliability

• VERNIER Project Team
• DARPA Application Communities Kickoff Meeting
• July 7, 2006

2
Outline

• Background
• Project Overview
• Objectives
• Project Scope
• Research Challenges
• Breakthrough Capabilities
• Expected Results
• Team Key Personnel and Roles
• Technical Approach
• Scenario Exemplars
• Project Plan Schedule and Milestones
• Experimentation and Evaluation
• Technology Transition Plan

3
Background

• Commercial-off-the-shelf (COTS) software
• Large organizations, including DoD, have become
  dependent on it
• Yet, most COTS software is not dependable enough
  for critical applications
• Security breaches
• Misconfiguration
• Bugs
• Large, homogeneous COTS deployments, such as
  those in DoD, accentuate the risk, since many
  users
• Experience the same failures caused by the same
  vulnerabilities, configuration errors, and bugs
• Suffer the same costly, adverse consequences
• Alternatives, such as government-funded
  development of high-assurance systems present
  significant barriers in
• Cost
• Functionality
• Performance

4
VERNIER Project Objectives

• Develop new technologies to deliver the benefits
  of scaling techniques to large application
  communities
• Provide enhanced survivability to the DoD
  computing infrastructure
• Enhance the cost, functionality, and performance
  advantages of COTS computing environments
• Investigate and develop new technologies aimed at
  enabling communities of systems running similar,
  widely available COTS software to perform more
  robustly in the face of attacks and software
  faults
• Deliver a demonstrated, functioning,
  transition-ready system that implements these new
  AC survivability technologies
• Technical approach Augmented virtual machine
  monitor
• Commercial transition partner VMware, Inc.

5
Project Scope

• Collaborative detection and diagnosis of failures
• Collaborative response to failures
• Advanced situational awareness capabilities
• Collective understanding of community state
• Predictive capability Early warning of potential
  future problems
• Key goal turn the size and homogeneity of the
  user community into an advantage by converting
  scattered deployments of vulnerable COTS systems
  into cohesive, survivable application communities
  that detect, diagnose, and recover from their own
  failures
• What COTS?
• Microsoft Windows, IE, Office suite, and the like

6
Research Challenges

• Extracting behavioral models from binary programs
• Breakthrough novel techniques required
• Quasi-static state analysis for black-box
  binaries
• Scaled information sharing
• Networked application communities sharing
  knowledge about the software they run
• Intelligent, comprehensive recovery
• Predictive situational awareness
• Automatic, easy-to-understand gauges

7
Breakthrough Capabilities
8
Expected Results and Impact

• COTS Product (VMware) with breakthrough
  capabilities for application communities
• Scalability to 100K nodes running augmented
  VMware and custom Vernier software
• Automatic collaborative failure diagnosis and
  recovery
• Survivable robust system
• Community-aware solution

9
VERNIER Team

• SRI International, Menlo Park, CA
• Patrick Lincoln, Principal Investigator
• Steve Dawson, Project manager integration
• Linda Briesemeister, Knowledge sharing
  collaborative response
• Hassen Saidi, Learning-based diagnosis code
  analysis situation awareness
• Stanford University
• John Mitchell, Stanford PI code analysis
  host-based detection and response
• Dan Boneh, Knowledge sharing protocols
• Mendel Rosenblum, VMM infrastructure
  collaborative response transition liaison
• Palo Alto Research Center (PARC)
• Jim Thornton, PARC PI configuration monitoring
  and response situation awareness
• Dirk Balfanz, Community response management
• Glenn Durfee, Configuration monitoring and
  response situation awareness
• Technology transition partner VMWare, Inc.

10
John Boyds OODA Loop
Observe
Orient
Decide
Act
ImplicitGuidance Control
ImplicitGuidance Control
UnfoldingCircumstances
CulturalTraditions
Observations
Decision(Hypothesis)
GeneticHeritage
Analyses Synthesis
Action(Test)
FeedForward
FeedForward
FeedForward
NewInformation
PreviousExperience
OutsideInformation
UnfoldingInteractionWithEnvironment
UnfoldingInteractionWithEnvironment
Feedback
Feedback
Note how orientation shapes observation, shapes
decision, shapes action, and in turn is shaped by
the feedback and other phenomena coming into our
sensing or observing window. Also note how the
entire loop (not just orientation) is an
ongoing many-sided implicit cross-referencing
process of projection, empathy, correlation, and
rejection. From The Essence of Winning and
Losing, John R. Boyd, January 1996.
Defense and the National Interest,
http//www.d-n-i.net, 2001
11
VERNIER Technical Approach
12
Notional Host System Architecture
13
An Abstraction-Based Diagnosis Capability for
VERNIER

• Hassen Saidi, SRI

14
Objectives

• Based on the general principle much of security
  amounts to making sure
• that an application does what it is suppose to
  do.. and nothing else!
• Build models of applications behaviors (what the
  application is suppose to do).
• Monitor applications behavior and report
  malfunctions and unintended behaviors (deviations
  from behavior).
• Use the recorded execution traces as raw data to
  a set of abstraction-based diagnosis engines (why
  did the deviation from good intended behavior
  occurredto the extent to which we can do a good
  job answering such question).
• Share the state of alerts and diagnosis among the
  nodes of the community (sharing the bad news.but
  also the good ones!).
• Aggregate the diagnosis outputs and the alerts
  into a situation awareness gauge.

15
Global situation awareness
Situation Awareness Gauge UI
Secure Knowledge Sharing Network
Collaborative diagnosis, collaborative response
Collaborative Response
Learning-Based Diagnosis
Local diagnosis, local response
Quasi-Static Code Analysis
Configuration Analysis
Network Traffic Analysis
INCREASED APPLICATION COMMUNITY SURVIVABILITY
Safe execution
Runtime data
Monitoring and Control App OS
Execution,Configuration, Network Traffic
Dynamic VMM
VERNIER OS Base
VM Kernel
16
Approach

• We combine a set of well known and well
  established techniques
• building increasingly accurate models of
  applications behaviors
• Static analysis combined with predicate
  abstraction to build Dyke and CFG models used for
  static analysis-based intrusion detection
• Implement mechanisms for monitoring sequences of
  states and actions of an application for the
  following purposes
• Check if a known bad sequence is executed
  (signature-based!)
• Check for previously unknown variations of known
  bad sequences (correlation!)
• Find root-causes for unexpected malfunction and
  malicious exploits (Diagnosis)
• Diagnosis is performed using techniques borrowed
  from
• Delta-debugging (root-cause diagnosis)
• Anomaly detection (correlation)
• The situation awareness gauge is implemented as a
  platform independent web interface

17
Monitoring-Based Diagnosis

• We combine these techniques into two phases
• Monitoring Applications are monitored and
  sequences of executions along with configurations
  are stored.
• Diagnosis Differences between good runs and bad
  runs are the first clues used for diagnosis
• Traces of executions are sequences of
• System calls
• Method calls
• Changes in configurations
• The more information is stored, the better chance
  that malfunctions and malicious behaviors are
  properly diagnosed.

18
Quasi-static binary analysis and predicate
abstraction-based intrusion detection

• Use static analysis for recovering the control
  flow graph the application.
• CFG generated by compliers for source code.
• Recover class hierarchy for object code of OO
  applications.
• Build a pushdown system which is a model that
  represents an over approximation of the sequences
  of methods and system calls of the application.
• Deal with context sensitivity to match exit calls
  to return locations.
• Use predicate abstraction and data flow analysis
  to refine the pushdown system and obtain a more
  accurate model.
• Improving the knowledge about arguments to
  monitored calls.

19
Better Models and Better Monitoring

• We are not just interested in detection
  intrusions, but by
• also generating high-level explanations of why an

• application deviates from its intended behavior.
• CFG and Dyke models are all over-approximations
  of the applications behavior (potential attacks
  are only discovered when the application behavior
  deviates from the model).
• We will use the runs of the application to
  generate under-approximations of the applications
  behavior!
• Alternatively, ever model representing an
  over-approximation has a dual that represents an
  under-approximation (over and under-approximations
  dont have to be the same type of models!).
• We will combine over and under approximation to
  reduce the risk of missing possible attacks.
• We will refine the over and under approximations
  to improve the application model.

20
Combining over and under approximations
Over approximation (constructed by static
analysis)
Under approximation (constructed from runs)
21
What if we dont have a model of the application?

• We can monitor the application as a blackbox and
  intercept system calls
• Learn a model of good behaviors
• Learn a model of bad behaviors
• Anomalies are difference between good and bad
  behaviors
• Borrow from delta-debugging techniques to find
  root-causes of misbehaviors

22
Analyzing Differences between runs

• There are many differences between execution
  traces
• Could consider arbitrary lengths of different
  sub-sequences
• Difference of length k should be considered where
  k is defined depending on the application, the
  size of the collected data, and the sensitivity
  of the analysis

23
Delta Differences k2
good run
bad run
a b b b b c c b b d
a b b b b c c b b d
Both sequences have the same set of 2-events
sequences. This means that, k needs to be
increased and that k2 is A too abstract way of
distinguishing the two sequences
24
Delta Differences k3
25
Diagnosis

• One of the 6 sequences that are not common to the
  two runs is the source of the problem which
  one?!. We can rank the sequences in order of
  importance based on
• Application specific criteria use distance to
  common sequences for every application-specific
  origin of a sequence (e.g, process identity, or
  user identity)
• Application-independent criteria use distance to
  common sequences
• Use distance to common sequences or known bad
  sequences by ignoring order of execution of calls
• Increasing k provides a better explanation, but
  generates a large number of sequences.

26
More abstraction

• There are more good runs than bad ones!. We need
  to compare the bad runs to the union of good
  runs union of good runs with a single sequence
  cancel out the one bad run that contains all
  those sequences!
• Use average-sequence-weight ranking

27
Situation Awareness Gauge
28
Situation Awareness Gauge

• Implemented as a platform independent web
  interface (e.g. ruby on rails)
• Content is defined by the databases content
  attacks, failures, diagnosis, etc
• Gauges a simple Displays of number of attacks and
  failures and various parameters
• Provide a user with the possibilities of
  initiating responses and diagnosis activities in
  other nodes via the database

29
Configuration-based Detection, Diagnosis,
Recovery, and Situational Awareness

• Jim Thornton, PARC

30
Importance of Configuration

• Static configuration state highly correlated with
  system behavior
• Many attacks/bugs/errors introduced by way of a
  substantive change to configuration
• A central problem in system administration is
  the construction of a secure and scalable scheme
  for maintaining configuration integrity of a
  computer system over the short term, while
  allowing configuration to evolve gradually over
  the long term Mark Burgess, author of cfengine

31
AC Opportunity

• Leverage scale of population to learn what are
  bad states in configuration space

Today Every configurationchange is an
uncontrolledexperiment
AC Future Configurationchanges managed as
controlledreversible trials
32
Live Monitoring of Configuration State

• State analysis
• Comparative diagnosis
• Vulnerability assessment
• Clustering similar nodes and contextualizing
  observations
• Detect change events
• Cluster low-level changes into transactions
• Log events for problem detection, mitigation and
  user interaction
• Share events in real-time for situational
  awareness
• Active learning
• Automated experiments to isolate root causes
• Managed testing of official changes like patch
  installation

33
Live Control of Configuration State

• Modification for Reversibility and
  Experimentation
• Coarse-grained VM rollback
• Medium-grained Installer/Uninstaller activation
• Fine-grained Direct manipulation of low-level
  state elements
• Prevention
• In-progress detection of changes
• Interruption of change sequence
• Reversal of partial effects

34
Identifying Badness

• Objective Deterministic Criteria
• Rootkit detection from structural features
• Published attack signatures
• Objective Heuristic Criteria
• Performance outside of normal parameters
• Subjective End-User Report
• Dialog with user to gather info, e.g. temporal
  data for failure appearance
• Administrative Policy
• Rules specified by administrators within community

35
Local Components
Community
3
App VM
VERNIER VM
Experimental VM
COTS
Console(UI)
Comm
Diag
App 1
App 2
App 1
App 2
Agent
Agent
VERNIER Monitor/Control
1
1
App OS
App OS
VERNIER OS Base
2
VMM (VM Kernel)
36
Key Interfaces
VERNIER-Agent (TCP/IP, XML?) Registry change
events Filesystem change events Install
events Manipulate registry Manipulate
filesystem Control System Restore
VERNIER-VMM (?) Suspend Resume Checkpoint Revert C
lone Reset Lock memory Process events Read
memory Read/write disk
1
2
3

• VERNIER-Community
• (?)
• Cluster management
• Experience reports
• Unknown
• Prevalent
• Known Bad
• Presumed Good
• State exchange
• Experiment request/response

37
Local Functions
NetworkTap
Communication Manager
Console
ResponseController
Analysis Diagnosis
Configuration Analysis
AgentInside
Event Stream
BehaviorAnalysis
TrafficAnalysis
Local DB Local condition detail Event
logs Labeled condition signatures State
snapshots Experimental data
VMM
Firewall
38
Adapting and Extending Host-based, Run-time Win32
Bot Detection for VERNIER

• Liz Stinson, Stanford

39
Overview

• Background on Stanfords botnet research
• Plans for adapting and extending this work for
  application to VERNIER

40
Exploit botnet characteristic ongoing command
and control

• Network-based approaches
• Filtering (protocol, port, host, content-based)
• Look for traffic patterns (e.g. DynDNS Dagon)
• Hard (encrypt traffic, permute to look like
  normal traffic, ) botwriters control the
  arena.
• Host-based approaches
• Ours Have more info at host level.
• Since the bot is controlled externally, use this
  meta-level behavioral signature as basis of
  detection

41
Our approach

• Look at the syscalls made by a program
• In particular at certain of their args our
  sinks
• Possible sources for these sinks
• local mouse, keyboard, file I/O,
• remote network I/O
• An instance of external control occurs when data
  from a remote source reaches a sink
• Surprisingly works really well for all bots
  tested (ago, dsnx, evil, g-sys, sd, spy), every
  command that exhibited external control was
  detected

42
Big picture
43
Design
44
Two modes

• Cause-and-effect semantics
• Tight relationship between receipt of some data
  over network and subsequent use of some portion
  of that data in a sink
• Correlative semantics looser relationship
• Use of some data that is the same as some data
  received over the network
• Why necessary?

45
Behaviors ideally disjoint_at_ lowest level in
call stack
46
Results

• Looked at 6 bots agobot, dsnxbot, evilbot,
  g-sysbot, sdbot, spybot
• At least 4 have totally indep code bases
• g-sys non-trivially extends sd
• Spybot borrows only syn flood implem from sd
• Wide variation in implementation
• Every cmd that exhibited external control
  detected almost every instance external control
  flagged (3 false negatives)

47
Results
48
Correlative semantics

• Why necessary
• Why bots with C library functions statically
  linked in unconstrained OOB copies
• In general almost as good as cause-and-effect
  semantics (stat vs. dyn link)
• Exceptions cmds that format recvd params (e.g.
  via sprintf)

49
Comparison
50
Comparison
51
Benign program testing

• Tested against some benign programs that interact
  with the network
• Firefox, mIRC, Unreal IRCd
• 3 contextual false positives
• IRCd sent on X heard on Y
• Firefox dereferencing embedded links
• Artificial false positives quite a few
• mIRC DCC capabilities
• Firefox saving contents to a file,

52
False positives

• contextual false positives not present in bots
• external control heuristic correctly detected but
  these actions under these circumstances widely
  accepted as non-malicious
• artificial false positives not present in bots
• def of external control implies no user input
  agreeing to particular behavior
• but we dont track explicitly clean data (that
  received via kb, mouse)
• spurious false positives
• any other incorrect flagging of external control

53
Our mechanism review

• Single behavioral meta-signature detects wide
  variety of behaviors on majority of Win32 bots
• Resilient to differences in implementation
• Resilient in face of unconstrained OOB copies
• Resilient to encryption w/some constraints
• Resilient to changes in command-and-control
  protocol (e.g. from IRC to HTTP) and parameters
  (e.g. for rendezvous point)

54
Plans for VERNIER

• (1) Reimplement BotSwat
• Using correlative semantics
• With improved statistical analysis comparing
  contents of buffers received over the network to
  arguments of selected syscalls
• Probably as an entirely kernel-space
  implementation
• May leverage some Livewire support to confirm
  integrity of BotSwat and its components
• May also leverage Livewire support to enable
  better resilience to bot use of private
  encryption functions
• Using its watch memory range X (and let me know
  when it changes) functionality

55
Plans for VERNIER

• (2) Confirm BotSwat works at detecting back-door
  programs
• Obtain various samples of these programs
• Determine whether additional syscalls might need
  to be hooked in order to provide better coverage
  of the functionality exported by these programs

56
Plans for VERNIER

• (3) Feasibility of simple approach to detecting
  keyloggers
• If it is the case that the API call to insert
  self into the call chain for receiving keyboard
  input (for an arbitrary window, not owned by the
  calling process) eventually traps to a system
  call, then this is a simple extension to BotSwat
  (a new syscall to hook)
• Otherwise, we need to provide a user-space
  component to achieve this
• Any process that signs itself up to receive
  keyboard input not destined for that process is
  suspect
• Can extend this paradigm to trap calls to read
  another processs memory
• Win32 API has ReadProcessMemory function call
  that enables one process to read another
  processs memory contents (under certain
  circumstances)

57
Plans for VERNIER

• (4) Leverage Virtual Machine Introspection (VMI)
  IDS technology to
• Confirm integrity of kernel component of BotSwat
• Confirm integrity of keyboard/mouse drivers (to
  ensure that no process is able to obtain
  keyboard/mouse input via replacing the relevant
  kernel-mode device drivers)
• Possibly also augment BotSwats resilience to
  target programs use of private encryption
  functions, and the like

58
Plans for VERNIER

• (5) Botnet mitigation whistleblower
• Once some bot B is detected on some host machine
  via BotSwat, obtain from B (programmatically) the
  CC parameters in order to prevent CC traffic
  for that botnet from entering or leaving the DoD
  network
• Basically, push out firewall filter
• Also push sample of bot executable to
  anti-malware scanner so that it can generate a
  signature for this malware executable

59
Plans for VERNIER

• (6) Botnet RD
• After detecting a bot and pushing out filters, we
  would like to be able to poke that bot
  (programmatically) in a controlled environment
• Get it to generate variants of some exploit where
  those variants could be used as input to an
  automated vulnerability signature generator
• Bot would then be operating effectively as a flow
  classifier
• Especially for zero-day exploits (or others that
  do not already have a NIDS signature)
• Requires learning the command used by the bot to
  generate such scan/spread packets as well as
  learning how to gain control of the bot
• Note this is not attempting to solve the problem
  of automated vulnerability signature generation,
  but simply to get the bot to act as a flow
  classifier

60
Plans for VERNIER

• (7) Setting the stage generating a version of
  the bot that will not trip anti-malware signature
  scanners
• From Christodorescu/Jha (Testing Malware
  Detectors), we have techniques for performing
  source-code-level obfuscations, including
  variable renaming and encapsulating/encrypting
  portions of the source code
• Christodorescu/Jha showed that the major
  anti-virus scanners performed very poorly in
  response to encapsulation using hex encoding

61
Knowledge Sharing in VERNIER

• Patrick Lincoln, SRI

62
Knowledge Sharing

• Need Communication is the core concept of a
  community
• Application communities rely on ability to share
  knowledge Reliable, Efficient, Authentic, Secure
• Approach two-tier peer-to-peer platform
• Tuple space (ala Linda)
• Considering JXTA, jxtaSpaces implementation of
  tuple spaces
• Two-tier for better scalability
• If needed, hypercube hashtable index (ala
  Obreiter and Graf)
• Benefits Reliable, efficient (local) knowledge
  sharing
• Competition Other possible methods for knowledge
  sharing include explicit messaging, centralized
  database, and statically indexed knowledge
  structures.
• Other approaches lack scalability, are
  unreliable, and can bedifficult to secure

63
Knowledge Sharing Levels

• Lower level (within a cluster)
• Tuple space (ala Linda (Gelernter))
• Simple queries
• (, name, ) returns records regarding name
• Concurrent access and update
• Higher level (supernodes)
• Nodes aggregate knowledge of an entire cluster
• Use abstraction to summarize current situation
• Application-level multicast to push out summaries
• Supernode pushes all summary updates into local
  tuple space

64
Group Communication

• Group communication is key
• For higher level, certain usual assumptions
• Reliable delivery
• Ordered message delivery
• Spread (www.spread.org) as a basis for
  implementation of group communication
• Building on secure spread and progress software
  (progress.com)s more secure, reliable, scalable
  variants of spread

65
Group Communication Security and Privacy
Secrecy and Authenticity

• Security and privacy are critical aspects of
  VERNIER
• Must authenticate reports and ensure correctness
• Confidentiality of reports
• Protecting user privacy (my files, my keystrokes)
• Protect aspects of applications
• Protect configuration information
• Protect vulnerability detection information
• Community members send status reports to local
  supernode
• Reports propagated throughout network

66
Group Communication Security

• Defense against
• network attacks sending forged messages to
  supernodes
• PKI
• Compromised community member sending false
  reports
• statistical anomaly detection (eg EMERALD)
• Virtualization
• Any report generated within compromised virtual
  machine must be consistent with what is observed
  outside the virtualization layer

67
Group Communication Security

• Secure audit logs
• Secure log of all P2P status reports
• Enable post-mortem analysis on detected attacks
• Cryptographic protection of log (Boneh, Waters)
• Sanitizing stats reports
• Status reports reveal private information
• Special encryption enabling read only by
  credentialed membersand search (as in search
  over encrpyted database) by community
• Mitigating denial of service attacks on
  supernodes
• Re-election of supernodes when under attack
• Securing configuration update messages
• PKI authenticating legitimate reports from
  community members

68
VERNIER Scenarios, Schedule, and Plans

• Steve Dawson, SRI

69
Example Scenarios / Use Cases

• Browser crash demonstrate both local crash
  recovery from a nonmalicious failure and
  proactive community avoidance of the same failure
• Simple case repeatable Web browser crash occurs
  when visiting a particular URL
• Local diagnosis launch one or more copies of the
  VM, rolled back to a known good state play back
  step-by-step, observe that visiting the URL
  always causes the crash
• Local response quarantine the URL
• Collaborative diagnosis problem reported to the
  community other installations attempt to
  replicate the problem, correlate observed
  behavior with relevant configuration details,
  discover that the problem occurs only for browser
  version X or earlier
• Collaborative response recommend community-wide
  upgrade
• More complex variations could involve situations
  in which the circumstances leading to the browser
  crash involve multiple steps or interactions with
  other software

70
Example Scenarios / Use Cases (2)

• Phishing scenario show how VERNIER can mitigate
  threats even when the attack is unknown and
  requires (unwitting) human participation
• Cleverly constructed e-mail induces some key
  individuals to run a malicious program that
  subsequently interferes with their ability to
  send and/or receive e-mail
• Local diagnosis detect and correlate the
  installation actions of the unknown program
  separately, affected users report difficulty with
  e-mail VERNIER runs an experiment with a
  checkpointed VM to determine possible association
  with newly installed program
• Local response malicious program automatically
  removed (possibly by reverting to checkpointed
  VM)
• Collaborative diagnosis VERNIER instances share
  information about the installed program even
  before users report a problem community observes
  use of unknown software, raising level of
  suspicion
• Collaborative response warning to community
  against activity leading to installation of
  malicious program

71
Example Scenarios / Use Cases (3)

• Patching scenario demonstrate mitigation of
  nonmalicious threats such as new software bugs
• Variation on the phishing scenario, where
  installation of a seemingly beneficial software
  patch has unintended side effects or introduces a
  new bug not observed previously

72
Schedule and Milestones
73
Experimentation and Evaluation

• Project testbed
• Cluster of 300 virtual hosts
• 30 server-class physical hosts
• 10 virtual nodes per server
• Housing and cluster configuration yet to be
  determined
• Single cluster in one location?
• Three clusters, one at each participant site?
  Current plan
• Software
• Host OS Linux
• Guest (community) OS Microsoft Windows
• Applications IE browser (possibly others) MS
  Office
• Simulations and scalability
• Financially infeasible to scale to thousands of
  nodes
• Plan is to use hybrid simulation to test
  scalability
• Real (live) nodes provide actual data
• Simulated nodes use synthesized data generated by
  perturbing data collected from real clusters
  supernodes

74
Success Criteria

• Metrics and targets (team-defined)
• False positives (FP) / False negatives (FN)
• Phase 1 FP lt 10, FN lt 20
• Phase 2 FP lt 1, FN lt 2 (order of magnitude
  improvement)
• Percent loss of network availability
• Phase 1 At most 20 per node, with at most 80
  over any 500ms interval
• Phase 2 At most 5 per node, with at most 20
  over any 500ms interval
• Average time to recovery
• Phase 1 Assuming a fix exists (not a FN), at
  most 30 minutes to recover the entire community
• Phase 2 At most 10 minutes
• Average network and computational overhead
• No more than 30 slowdown for applications
• No more than 100 KB/s average VERNIER-induced
  network traffic per node
• Percent accuracy of prediction
• Phase 1 Effects of problems predicted within 15
  minutes of onset set of nodes wrongly predicted
  (either way) differs by no more than 40 of
  actual
• Phase 2 Prediction within 5 minutes predicted
  set differs by no more than 20

75
Technology Transition

• Ultimate goal of VERNIER is a COTS solution
• Transition partner VMware, Inc.
• Supporting VERNIER initially by providing VMware
  licenses for the testbed
• May provide limited technical assistance in
  developing necessary VERNIER-to-VMM APIs (details
  currently under discussion)
• Have agreed to define their own success criteria
  for the technology
• Functionality, performance, cost, and other
  relevant goals that, if met, would lead VMware to
  pursue further development and integration of
  VERNIER technology into the VMware product line
• Initial response suggests general agreement with
  the metrics weve already proposed (may want to
  tweak the numbers a bit), plus
• Breadth of operating system support
• Breadth of application support

76
Next Steps

• VERNIER team workshop
• Full day (at least)
• Brainstorming and detailed planning
• Target date week of July 17
• Continue discussions with VMware on success
  criteria, etc.
