A Goal-Independent Suspension Analysis for Logic Programs with Dynamic Scheduling

1

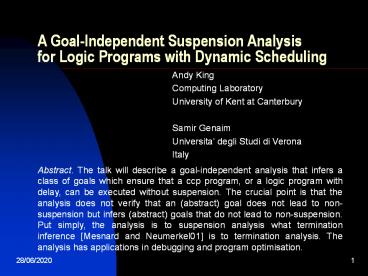

A Goal-Independent Suspension Analysisfor Logic
Programs with Dynamic Scheduling

• Andy King
• Computing Laboratory
• University of Kent at Canterbury
• Samir Genaim
• Universita degli Studi di Verona
• Italy

Abstract. The talk will describe a
goal-independent analysis that infers a class of
goals which ensure that a ccp program, or a logic
program with delay, can be executed without
suspension. The crucial point is that the
analysis does not verify that an (abstract) goal
does not lead to non-suspension but infers
(abstract) goals that do not lead to
non-suspension. Put simply, the analysis is to
suspension analysis what termination inference
Mesnard and Neumerkel01 is to termination
analysis. The analysis has applications in
debugging and program optimisation.
2
Background

• Since the early days of abstract interpretation,
  the connection between backward reasoning and
  debugging has been known Cousot82, Bourdoncle93
• Forward reasoning is usually applied in ccp and
  clp to verify that certain properties hold
  Ciao-Prolog
• Forward analysis checks that a certain property
  holds for a given (abstract) query
• In the context of clp, backward analysis infers
  properties that the query must satisfy for the
  program to satisfy certain requirements

3
Forward suspension analysis

• Suspension analysis Codognet90, Codish94 checks
  that a class of goals will not lead to suspension
• These analyses use local fixpoints Codognet90
  or star-abstractions to avoid the state-space
  explosion that arises from goal interleaving
• In the context of the ccp language Janus, Debray
  Debray96 checks that a program does not suspend
  by attempting to schedule atoms left-to-right

4
Backward suspension analysis

• The advantage of backward suspension analysis is
  that the programmer need not rerun the analysis
  for different (abstract) queries
• The programmer need not even be aware of how to
  invoke the program, thus zero effort to apply.
• Analysis infers where depth-first scheduling can
  be (locally) applied without compromising
  suspension
• Conditions sufficient for depth-first scheduling
  are reported to the programmer these conditions
  guarantee non-suspension and hint at where
  efficiency can be improved Parlog

5
Example analysis for inorder (Prolog with delay
style)

• inorder(nil,).
• inorder(tree(L,V,R),I) -
• app(LI,VRI,I),
• inorder(L,LI),
• inorder(R,RI).
• - block app(-, ?, -).
• app(, X, X).
• app(XXs, Ys, XZs) -
• app(Xs,Ys,Zs).

6
Example analysis for inorder (ccp style)

• inorder(T, I) -
• true
• T nil,
• I true.
• inorder(T, I) -
• true
• T tree(L,V,R),
• A VRI
• app(LI,A,I),
• inorder(L,LI),
• inorder(R,RI).

app(L, Ys, A) - nonvar(L) V nonvar(A) L
, A Ys true. app(L, Ys, A) -
nonvar(L) V nonvar(A) L XXs, A
XZs app(Xs,Ys,Zs).
7
Pos abstraction for inorder

• inorder(T, I) -
• true
• T /\ I.
• inorder(T, I) -
• true
• T ? (L /\ V /\ R),
• A ? (V /\ RI)
• app(LI,A,I),
• inorder(L,LI),
• inorder(R,RI).

app(L, Ys, A) - L \/ A L /\ (A ? Ys)
true. app(L, Ys, A) - L \/ A L ? (X /\
Xs), A ? (X /\ Zs) app(Xs,Ys,Zs).
Note that asks are abstracted from below whereas
tells are abstracted from above
8
lfp calculation

• The success patterns of the ccp program (and thus
  the Prolog with delay program) are described by
  the lfp of the abstract Pos program
• A success pattern is an atom with distinct
  variables for arguments paired with a Pos formula
  over those variables
• The lfp of the Pos program can be computed in
• TP-style to give
• F inorder(x1, x2)- x1 ? x2,
• app(x1, x2, x3) - (x1 /\ x2) ?
  x3
• Observe that F faithfully describes the grounding
  behaviour of inorder and app

9
gfp calculation

• A gfp is computed to characterise the safe call
  patterns of the program
• A call pattern has the same syntactic form as a
  success pattern
• Iteration commences with D0 top and
  incrementally strengthens the call pattern
  formulae until they are safe, that is, they
  describe queries that do not violate the ask
  constraints

10
gfp calculation (under the microscope, part I)

• Di1 is computed from Di by considering each
• clause p(x) - d f p1(x1), pn(xn) in the
  abstract program and calculating a formula that
  (possibly) strengthens the call pattern
• Specifically, let fi denote the success pattern
  formula for pi(xi) in F and let di denote the
  call pattern formula for pi(xi) in Di
• Compute e /\i 1n (di gt fi) which describes
  the grounding behaviour of the compound goal
  p1(x1), pn(xn),
• Calculate e' /\i 1n di which describes a
  groundness property sufficient for scheduling the
  compound goal depth-first without suspension.

11
gfp calculation (under the microscope, part II)

• The formula e gt e' then describes a grounding
  property which, if satisfied when the compound
  goal is called, ensures the goal can be scheduled
  depth-first without suspension
• Similarly, g d /\ (f gt (e gt e')) describes a
  grounding property which ensures that the ask is
  satisfied and the body atoms can be scheduled
  depth-first without suspension
• Variables not present in p(x), Y y1,..yn say,
  are then eliminated by g' forallY1(... forallYn
  (g))
• A safe calling mode for this particular clause is
  then given by g'

12
gfp calculation (under the microscope, part III)

• This procedure generates the following Di
  sequence that converges from above
• D0 top
• D1 inorder(x1, x2)- true,
• app(x1, x2, x3) - x1 \/ x3
• D2 inorder(x1, x2)- x1 \/ x2 ,
• app(x1, x2, x3) - x1 \/ x3
• D3 D2 so that the gfp is reached and checked
  in 2 iterations

13
Pre-requisites for backward suspension analysis

• Logical implication lt coincides with the
  intuitionistic implication for Pos
• Any (abstract) domain equipped with
  intuitionistic implication is condensing (and
  vice versa) Giacobazzi98
• Backwards suspension analysis can be applied with
  any condensing abstract domain

14
Future work

• Weaken requirements for ccp
• Relate to Hoarau and Mesnard99 after TPLP paper
  is accepted
• Run larger programs through http//www.cs.bgu.ac.i
  l/cgi-bin/genaim/susweb.cgi
