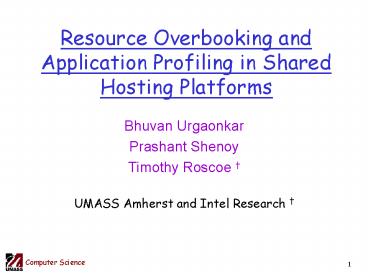

Resource Overbooking and Application Profiling in Shared Hosting Platforms

1
Resource Overbooking and Application Profiling in
Shared Hosting Platforms

• Bhuvan Urgaonkar
• Prashant Shenoy
• Timothy Roscoe
• UMASS Amherst and Intel Research

2
Motivation
cluster
E-commerce
Streaming
Clients
Games

• Proliferation of Internet applications
• Electronic commerce, streaming media, online
  games, online trading,
• Commonly hosted on clusters of servers
• Cheaper alternative to large multiprocessors

3
Hosting Platforms

• Hosting platform server cluster that runs
  third-party applications
• Application providers pay for server resources
• CPU, disk, network bandwidth, memory
• Platform provider guarantees resource
  availability
• Performance guarantees provided to applications
• Central challenge Maximize revenue while
  providing resource guarantees

4
Design Challenges

• How to determine an applications resource needs?
• How to provision resources to meet these needs?
• How to map applications to nodes in the platform?
• How to handle dynamic variations in the load?

5
Talk Outline

• Introduction
• Inferring Resource Requirements
• Provisioning Resources
• Handling Dynamic Load Variations
• Experimental Evaluation
• Related Work

6
Hosting Platform Model

• Hosting Platforms Dedicated vs Shared
• Dedicated Applications get integral nodes
• Shared Applications may get fractional nodes
• Our focus Shared Hosting Platforms
• Nodes may have competing applications
• Capsule component of an application running on a
  node
• Example e-commerce application HTTP server, app
  server, database server

7
Provisioning By Overbooking

• How should the platform allocate resources?
• Provision resources based on worst-case needs
• Worst-case provisioning is wasteful
• Low platform utilization
• Applications may be tolerant to occasional
  violations
• E.g., CPU guarantees should be met 99 of the
  time
• Possible to provide useful guarantees even after
  provisioning less than worst-case needs
• Idea Improve utilization by overbooking
  resources

8
Application Profiling

• Profiling process of determining resource usage
• Run the application on an isolated set of nodes
• Subject the application to a real workload
• Model CPU and network usage as ON-OFF processes

Begin CPU quantum
End CPU quantum
time
ON
OFF

• Use the Linux trace toolkit

9
Resource Usage Distribution
Measurement Interval
time
10
Capturing Burstiness Token Bucket

• Token Bucket (s, ?)
• Resource usage over t s.t ?

s1.t ?1
s2.t ?2
usage
?2
?1
Algorithm by Tang et al
time

• Additional parameter T
• Satisfy token bucket guarantees only for t T

11
Profiles of Server Applications

• Applications exhibit different degrees of
  burstiness
• May have a long tail
• Insight Choose (s, ?) based on a high percentile

12
Resource Overbooking

• Applications specify overbooking tolerance O
• Probability with which capsule needs may be
  violated
• Controlled overbooking via admission control
• SK (sk Tmin ?k)(1 - Ok)
  CTmin
• Pr (SKUk gt C) min (O1,,Ok)
• A node that has sufficient resources for a
  capsule is feasible for it

13
Mapping Capsules to Nodes
1
1
1
1
2
2
2
Final Mapping
3
3
3
3
4
4
capsules
capsules
nodes
nodes

• A bipartite graphs of capsules and feasible nodes
• Greedy mapping consider capsules in
  non-decreasing order of degrees O( c . Log c )
• Guaranteed to find a placement if one exists!
• Multiple feasible nodes gt best fit, worst fit,
  random

14
Handling Flash Crowds

• Detect overloads by online profiling

• Reacting to overloads (ongoing work)
• Compute new allocations
• Change allocations, move capsules, add servers

15
Talk Outline

• Introduction
• Inferring Resource Requirements
• Provisioning Resources
• Handling Dynamic Load Variations
• Experimental Evaluation
• Related Work

16
The SHARC Prototype

• A Linux-based Shared Hosting Platform
• 6 Dell Poweredge 1550 servers
• Gigabit Ethernet link
• Software Components
• Profiling
• Vanilla Linux Linux trace toolkit
• Control plane
• Overbooking, placement
• QoS-enhanced Linux kernel
• HSFQ schedulers

17
Experimental Setup

• Prototype running on a 5 node cluster
• Each server 1 GHz PIII with 512MB RAM and
  Gigabit ethernet
• Control plane runs on a dedicated node
• Applications run on the other four nodes
• Workload mix of server applications
• PostgreSQL database server with pgbench (TPC-B)
  benchmark
• Apache web server with SPECWeb99 (static
  dynamic HTTP)
• MPEG streaming server with 1.5 Mb/s VBR MPEG-1
  clients
• Quake I game server with terminator bots

18
Resource Overbooking Benefits

• Small amounts of overbooking can yield large
  gains
• Bursty applications yields larger benefits

19
Capsule Placement Algorithms

• Diverse requirements worst-fit outperforms
  others
• Similar requirements all perform similarly

20
Performance with Overbooking
Application Metric Isolated 100th 99th 95th Avg
Apache Tput (req/s) 67.9 67.51 66.91 64.81 39.8
PostgreSQL Tput (trans/s) 22.8 22.46 22.21 21.78 9.04
Streaming Viol (sec) 0 0 0.31 0.59 5.23

• Performance degradation is within specified
  overbooking tolerance

21
Related Work

• Single node resource management
• Proportional share schedulers WFQ, SFQ, BVT,
• Reservation based schedulers Nemesis, Rialto,
• Cluster-based resource management
• Cluster Reserves Aron00, Aron thesis Aron00
• MUSE Chase01 economic approach
• Oceano IBM, Planetary computing HP
• Clusters for high availability Porcupine
  Saito99
• Grid computing

22
Concluding Remarks

• Resource management in shared hosting platforms
• Application profiling to determine resource usage
• Revenue maximization using controlled overbooking

• Ability to handle dynamic workloads (ongoing
  work)
• URL
• http//lass.cs.umass.edu
