Impact features

1

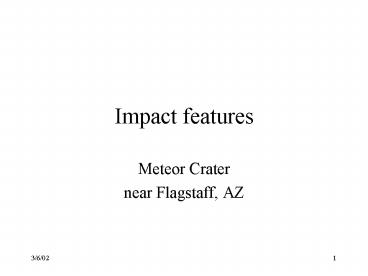

Impact features

• Meteor Crater
• near Flagstaff, AZ

2
Instructor has no financial or other interest in
Meteor Crater. Its just a neat place to see.
3
Characteristics

• Bowl-shaped
• raised rim (100 feet)
• diameter 4000 feet
• depth 600 feet
• fragments of an iron meteorite in vicinity
  (Canyon Diablo meteorite)
• 25,000 - 50,000 years old
• volcanoes nearby (5 million years old)

4
Meteor Crater, Arizona
5
History

• 1876 Mathias Armijo, cowboy
• visited by prospectors, metal fragments
• thought to be volcanic
• 1891 sample of metal sent for analysis
• 77 iron
• 2 lead
• rest gold and silver

6

• 1891 A E Foote, a mineralogist, visits
• identifies metal fragments as a meteorite
• diamonds found in meteorite
• crater due to impact
• 1895 G K Gilbert, Director USGS
• not an impact
• volcanic
• 1902 D M Barringer, mining engineer
• graduated Princeton at 19
• law school

7

• studied geology at Harvard
• wanted to work in west
• discovered Commonwealth silver mine, AZ
• rich
• visited crater site, was of meteorite origin
• bought the place!
• 1906 published paper outlining his ideas
• B convinced that a large (several million tons)
  iron meteorite buried below the crater, worth
  250,000,000

8

• Barringers arguments in favor of impact origin
• surrounded by millions of tons of debris
  pulverized sandstone (Coconino)
• oxidized chunks of iron
• meteorite fragments mixed with rock debris
• overturned rim
• no volcanic rocks in crater
• no magnetic effect - iron in small pieces

9
Detailed history and info.

• www.barringercrater.com/adventure
• www.meteorcrater.com/
• gdcinfo.agg.nrcan.gc.ca80/crater/
• index_e.html

10

• Gilberts arguments in favor of volcanic origin
• no evidence of a large meteorite
• no magnetic effect from meteorite
• not necessary to have lava in the crater
• crater the result of high pressure steam

11
Test A. volcanic - no magnetic effect volumes
equal B. impact - should be a magnetic effect,
unequal volumes Gilbert measured and A was
correct
12
Barringer

• Drilling in center - nothing
• decided that the meteorite buried beneath south
  rim
• 1919 Gilbert reiterates volcanic theory
• 1920 B raises more money drill sticks and breaks
  - meteorite?
• 1925 mine shaft - floods, company sinks, B dies

13
Geology

• Couldnt be simpler (layer cake)
• horizontal layers of sedimentary rocks
• each of a different color
• only three rocks involved
• lowest is the Coconino sandstone (white)
• middle is the Kaibab limestone (buff)
• uppermost is the Moenkopi sandstone (purple)

14
Layer-cake arrangement of sedimentary
rocks youngest on top excavation rim deformation
of the rocks
15
New player

• Eugene Shoemaker
• PhD from Princeton University
• doctoral dissertation, 1960 - Meteor Crater
• idea that a high velocity object hitting the
  Earth would be largely vaporized
• old idea - 1908
• now the ability to simulate with computer

16
Mid 1960s
17
Estimates

• Iron meteorite
• 100 feet in diameter
• 63,000 tons
• 15 km/sec
• energy 120 megatons of TNT
• greater than the nuclear device dropped on
  Hiroshima

18
High velocity example

• Buffalo - New York is 450 miles
• 730 km
• at 15 km/sec, the trip would take 49 seconds
• meteorites can have velocities of 70 km/sec
• trip to NY would take 10 seconds
• And you would be driving a car that weighed
  63,000 tons (dont hit anything!)

19
In spite of that - Meteor Crater is a small event.
20
Underground nuclear test Project Sedan
21
Overturned rim reversal of rocks
22
Overturned rim oldest rock on top
23
Crater types bowl shaped, small raised
rim Meteor Crater central peak larger terraces C
opernicus
24
Isidorus, Moon
25
Theophilus, Moon
26
Gosses Bluff, Australia
